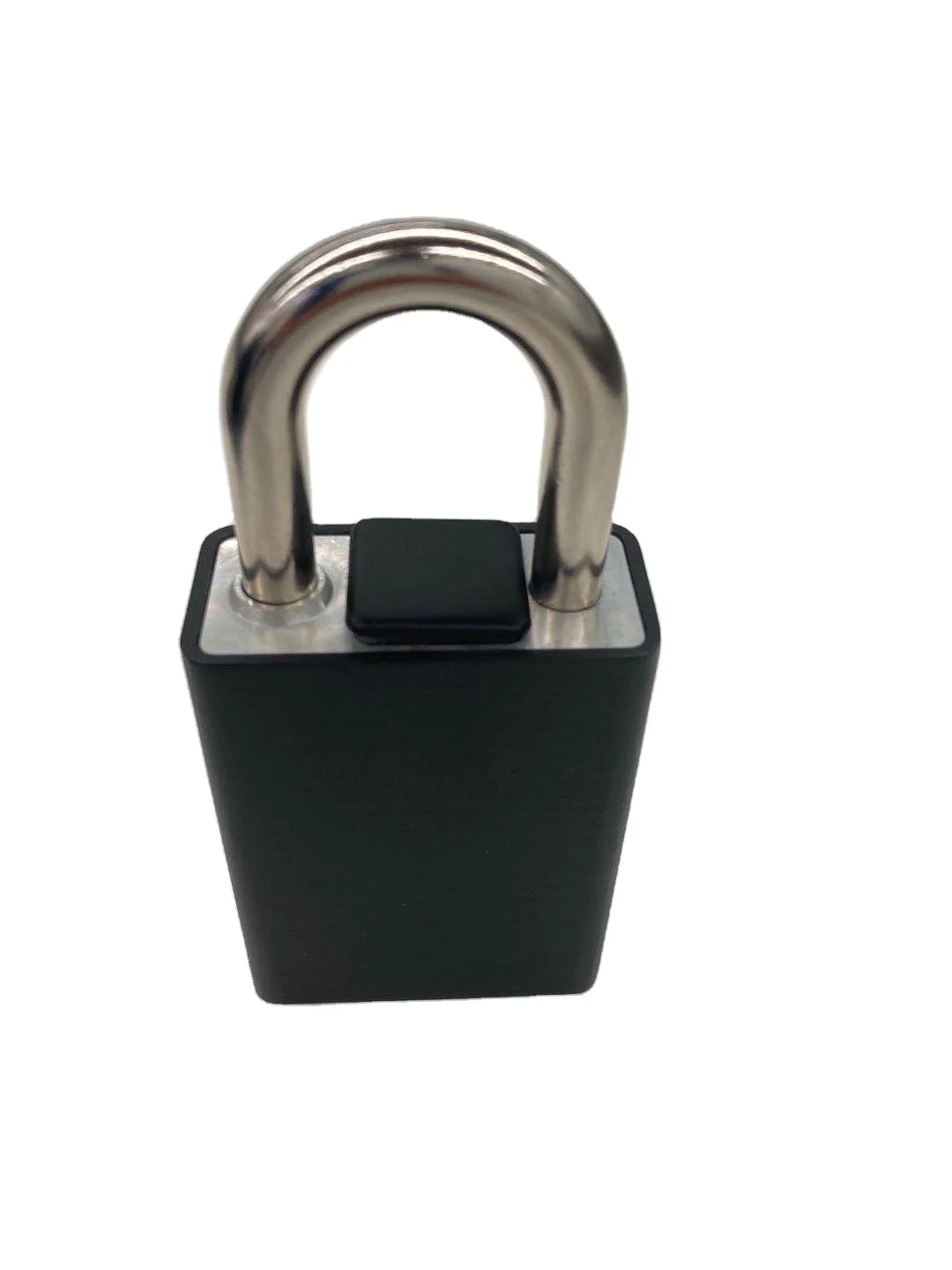

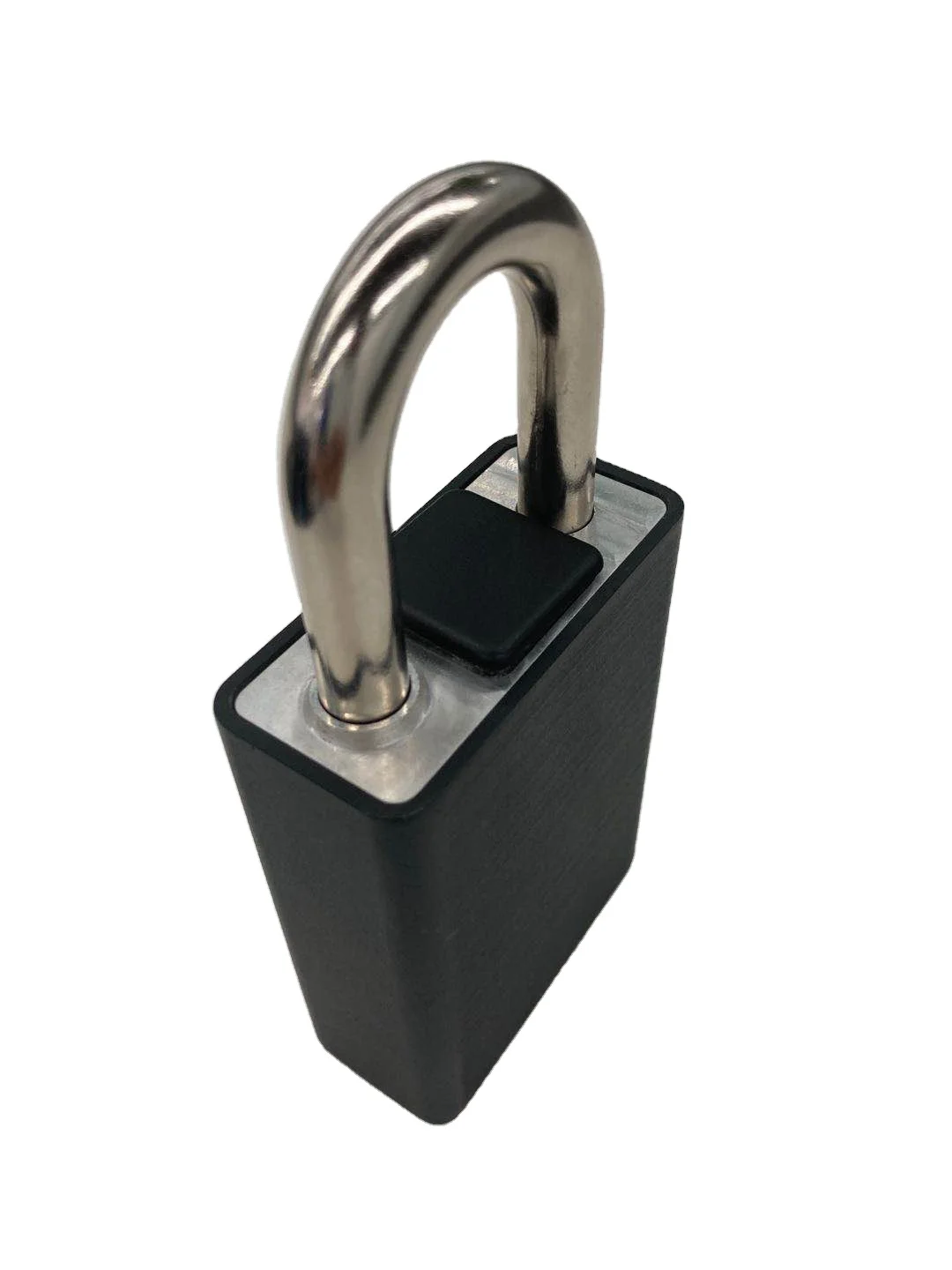

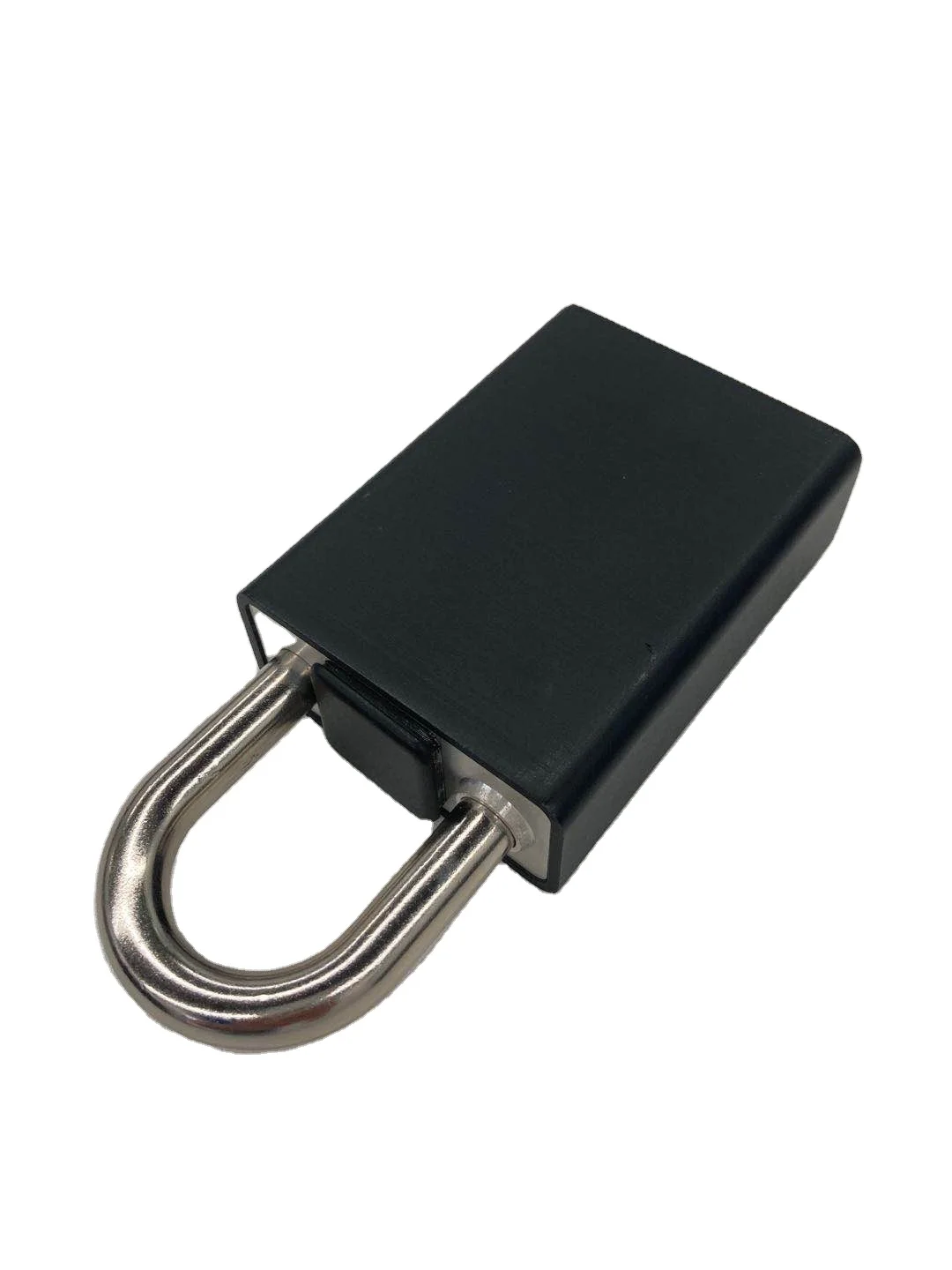

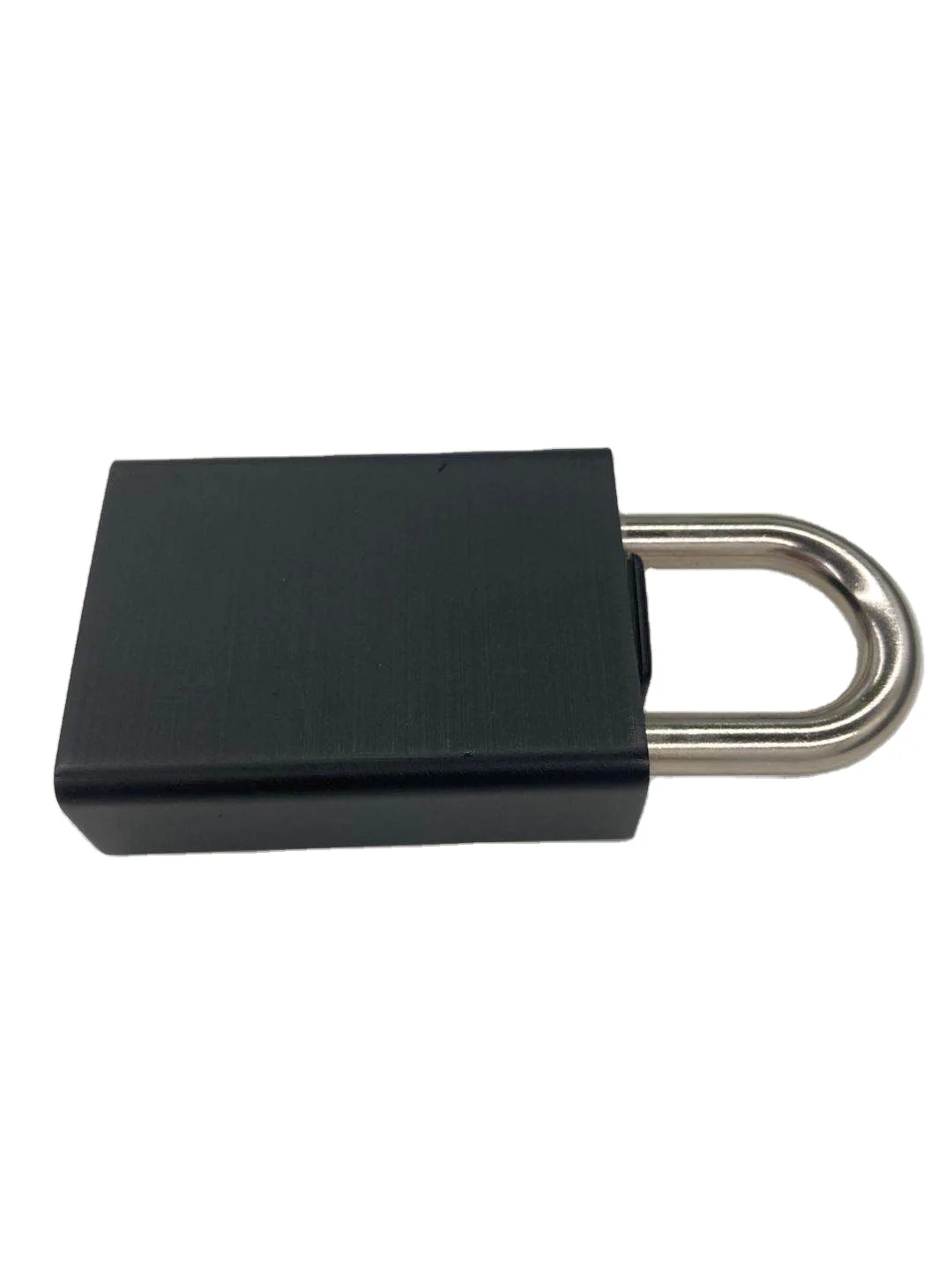

IoT multiple unlock intelligent gps lock logistic Smart gps padlock

Product Overview

Description

Specification

Unlock manner	Bluetooth/Remote/Mechanical
Operating mode	Idle State/Energy-Saving mode/Regular mode
Battery capacity	650mAh + 2300mAh,Modular cell bin,Replace the battery without return.
2GBand	GSM900/GSM850/DCS1800/PCS1900
GPS&BDS Band	1573.42MHz&1561.098MHz
BLE Band	2.4GHz
Wi-Fi Band	2.4GHz
CPU	ARM7EJ-S 32Bit RISC
Network	GPS/WiFi&BLE/GSM
Storage Temperature	-40℃~85℃
Opreating Temperature	-25℃~55℃
BLE Covering range	<10M
GPS positionaI accuracy	< 5M
Waterproof rating	IP65
Housing material	Aluminium
Housing coloer	Black/Camouflage
Dimension	70mm(Diameter),142mm(Height)
Weight	~ 0.5Kg
Unlock Methods	Bluetooth/Remote/Mechanical
Operating mode	Idle State/Energy-Saving mode/Regular mode
Standby time	3 Months (Standby Mode)
	28 days/3.2mA(Energy-Saving Mode)
	5 days/18.1mA(Regular Mode)
Battery capacity	2200mAh
2GBand	GSM900/GSM850/DCS1800/PCS1900
GPS&BDS Band	1573.42MHz&1561.098MHz
CPU	ARM7EJ-S 32Bit RISC
Network	GPS/WiFi&BLE/GSM
Storage temperature	-40℃~85℃
Operating temperature	-25℃~55℃
BLE Covering range	<10m
GPS Postion accuracy	< 5M
Waterproof rating	IP67
Housing material	Zinc
Housing color	Black/Silver
Dimension	140mm*64mm*30mm
Weight	~0.5Kg
On-off	>20000 times
Warranty	5 Years
Battery capacity	2000mah
Battery Voltage	3.6V
Standby Current	< 20ua
Operating Current	< 50ma(Motor working)
Relative humidity	40%-85%
Operating temperature	-20℃~75℃
Waterproof rating	IP67
Housing material	Zinc
Housing color	Black/silver
Dimension	100mm*60mm*23mm
Weight	approximately0.28kg
