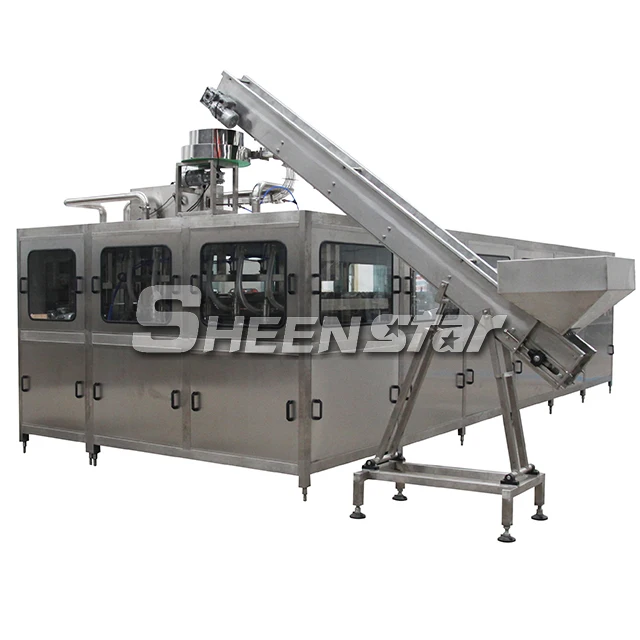

Automatic 20 liter 5 gallon water bottled pure water filling machine

Product Overview

Description

Automatic 20 liter 5 gallon water bottled pure water filling machine



Automatic 20 liter 5 gallon water bottled pure water filling machine ---production

  Automatic 19 liter water pailing machine

(1) This filling line specially produces 3&5 gallons barreled drinking water.

(2)This series barreled filling production line integrates bottle washer, filler and sealer into one unit.

(3) In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.

(4) This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.

(5) This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.

(6) It has features of complete functional, novel design, and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.

Automatic 20 liter 5 gallon water bottled pure water filling machine ---images



Decapping and outside washing

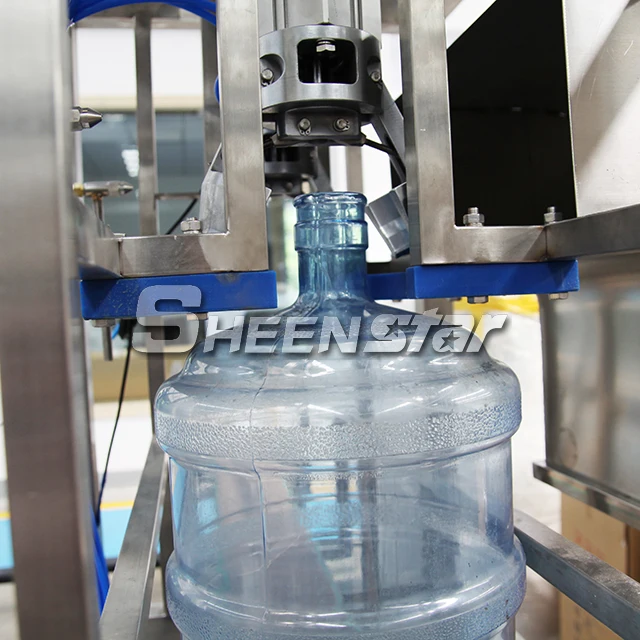

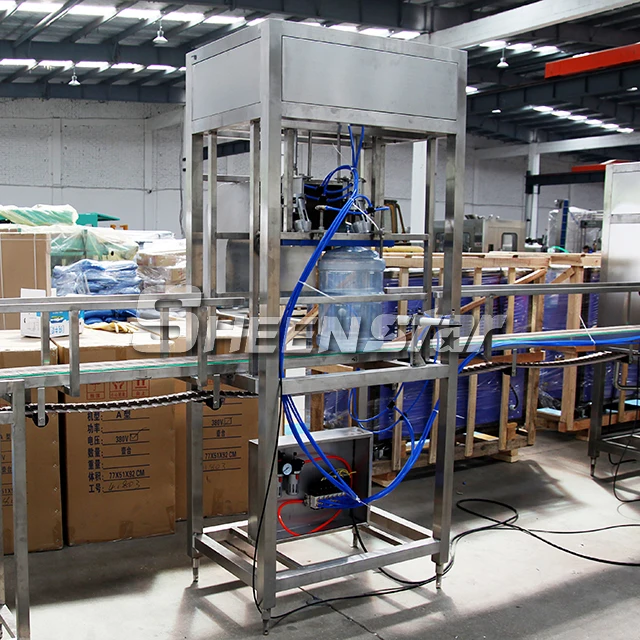

decapping machine

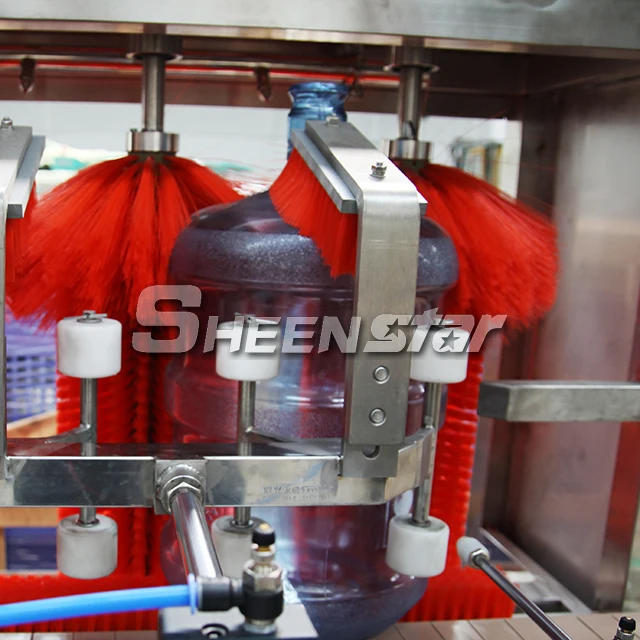

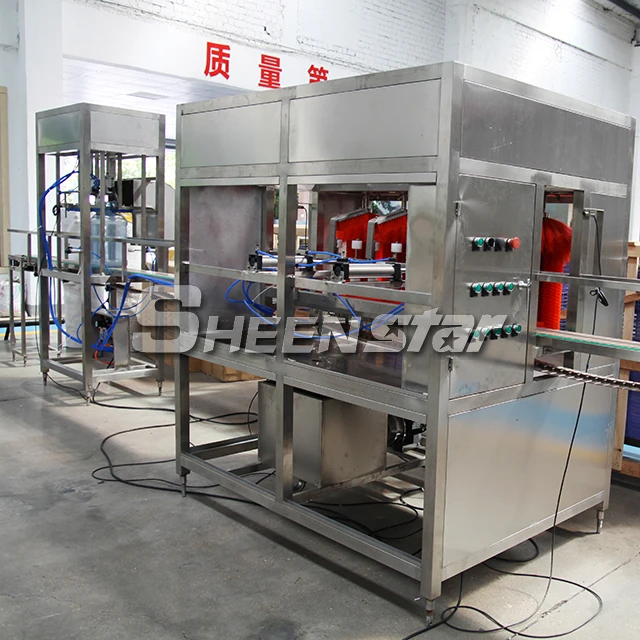

outside washing



inside washing

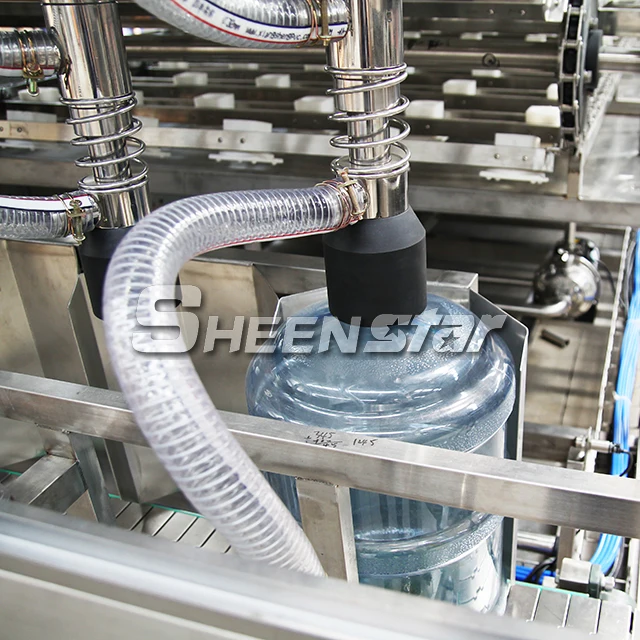

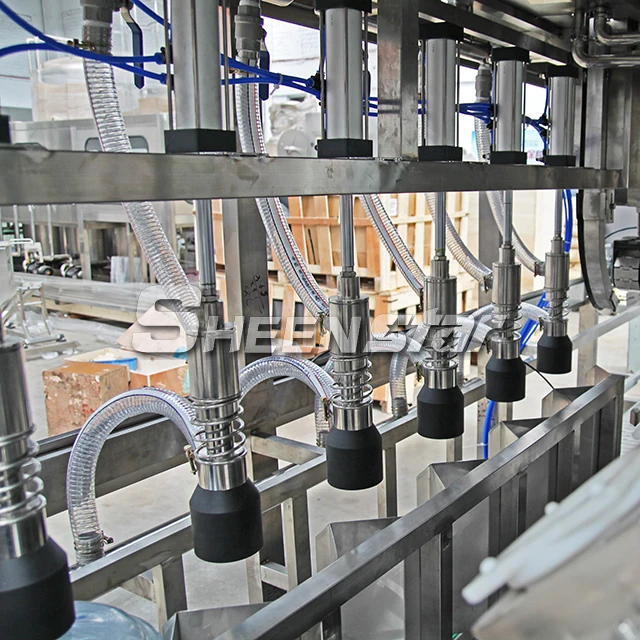

Filling







capping





Automatic 19 liter barrelled water filling line -- Main technical data
Model	QGF-100	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200	QGF-2000
Number of filling heads	1	2	3	4	8	12	16
Filling capacity	18.9	18.9	18.9	18.9	18.9	18.9	18.9
Barrel size (mm)	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490
Production capacity (b/n)	100-120	200-240	300-400	600	900	1200	2000
Gas pressure (Mpa)	0.4-0.6	0.4-0.6	0.6	0.6	0.6	0.6	0.6
Gas consumption (m3/min)	0.37	0.6	0.6	1.2	2.2	3	4.5
Motor power(kw)	1.75	3.22	4.8	8.5	8.5	8.5	8.5
Rated voltage (V)	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Overall dimension (mm)	3790×650 ×1550	3550×800 ×1800 2800×1100 ×1800	3550×1200 ×1800 3800×1100 ×1800	3650×1500 ×18003800×1100 ×1800	2200×1860 ×2700 not include cleaning	2560×2350 ×2750 not include cleaning	3100×2800 ×2750 not include cleaning





Automatic 19 liter barrelled water filling line  --Welcome to SHEENSTAR!



















Any questions about   Automatic 19 liter barrelled water filling line ,please don't hesitate to contact us ,we will always at your service!Providing your bottle size and capacity will be appreciate!
