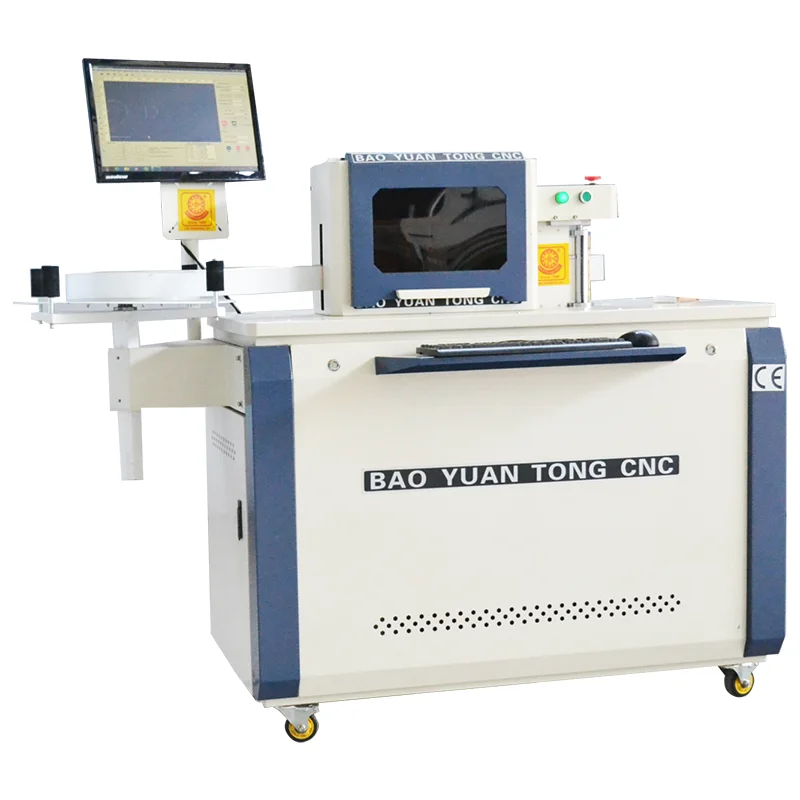

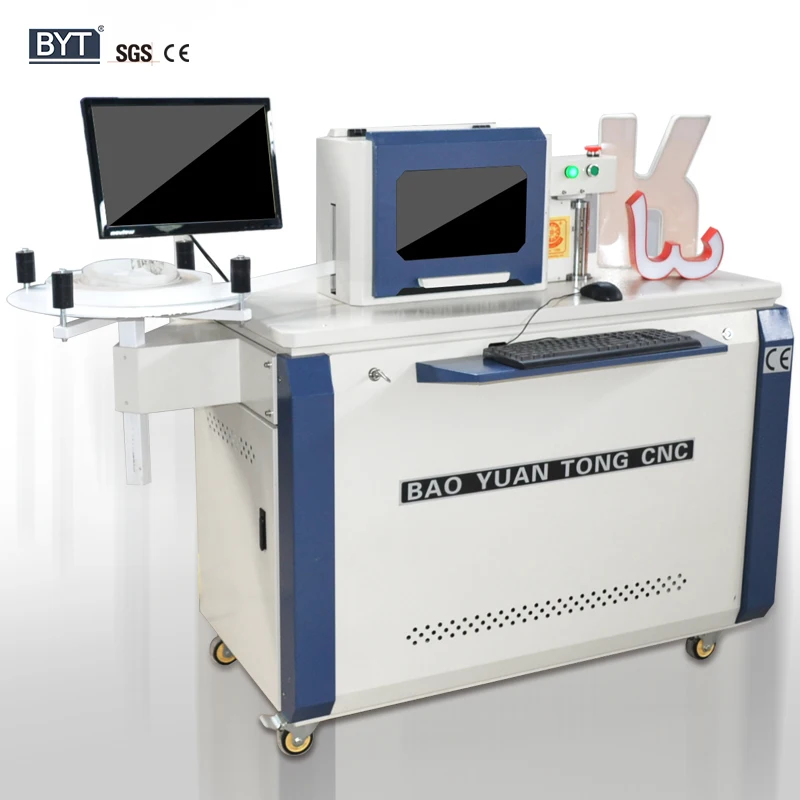

BYTCNC BWZ F Automatic CNC Aluminum Profile 3D Signs Channel Letter Bending Machine
- Category: Channel Letter Bending Machine >>>
- Supplier: Shandong Yuantong Century Intelligent Technology Co. Ltd.
Share on (1600110556921):
Product Overview
Description
Products Description

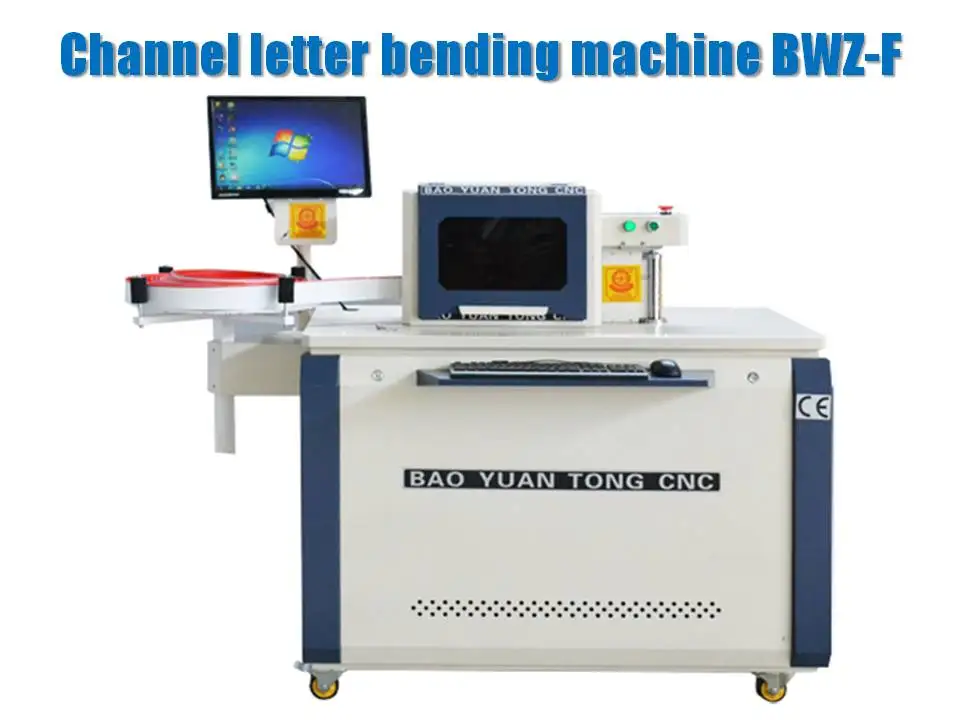

Flat&Floding Aluminum Channel Letter Bending Machine BWZ-F
Feature:
1.Feeding rubber roller are made of electroplated iron and rubber ,which are durable and rust free. Roller friction feeding, total
four sets of rolls. Feed more straight and convenient ,low noise.
2. With an encoder, the feeding time is more accurate to ensure the letters accuracy;
3.Cooperate with the software to semi-automatically adjust the cutting depth, simply adjust the machine, accurate and convenient;
4.The disc knife can swing 60-110 degree , adjust depth, length and radian , more convenient and intelligent, easy to operate.
5.Double-bar linkage arc bender, driven by stepper motor, double-copper shaft arc bender, to ensure that the material surface is
not worn.
6.Letron CBS4 control system, simple and fast operation, stable system, simple interface.Easy to learn and operate;
Technical datas:
1.Feeding rubber roller are made of electroplated iron and rubber ,which are durable and rust free. Roller friction feeding, total
four sets of rolls. Feed more straight and convenient ,low noise.
2. With an encoder, the feeding time is more accurate to ensure the letters accuracy;
3.Cooperate with the software to semi-automatically adjust the cutting depth, simply adjust the machine, accurate and convenient;
4.The disc knife can swing 60-110 degree , adjust depth, length and radian , more convenient and intelligent, easy to operate.
5.Double-bar linkage arc bender, driven by stepper motor, double-copper shaft arc bender, to ensure that the material surface is
not worn.
6.Letron CBS4 control system, simple and fast operation, stable system, simple interface.Easy to learn and operate;
Technical datas:
Model | BWZ-F |
Function | Automatic feeding,slotting and bending |
Applicable Material Alu=Aluminum | Flat Alu，Folding Alu |
Material Width | Flat Alu：≤150mm Folding Alu：≤108mm |
Material Thickness | Aluminum：0.3~1.2mm |
Bending Radius | 12mm |
Feeding | φ30mm feeding wheel +Encoder |
Slotting System | Air cylinder control |
Bending | Coupled extrusion-general arc bender |
Control System | Leetro CBS4 |
Power | ＜1500W |
Air Pressure | 0.6MPa |
File Format | Dxf, Ai,Plt |
Working Voltage | 220V/ 50-60HZ/1P |
Net Weight(kgs) | 240 |
Overall Size(mm)(L*W*H) | 1350*700*1300 |
Why Choose Us
Company Experience
1.Founded in 1996, with registered trademarks "BAOYUANTONG" and "BYT".2.Own more than 30 patents for invention, utility model and design.
3.Passed the "SGS certification" for 9 consecutive years, and all products have obtained the " Europe CE certification"
4.Exported to over 150 countries including the North America, Europe, South America, the Middle East,and have more than 2000
clients.
5.Provide one-stop procurement ,let customer’s purchase more efficient and safety.
6.According the customer different requirements ,provide equipment customized solved plan and sample making .
Sales Service
1.Technical people have professional english ability and directly with customer communication.
2.24H/7D on line service , when you need we all will be here .
3.Before delivery , accept the international third party finish inspection .
4.Regular return visits to customers for technical guidance, and get high praise from customers.
5.For the products making , have professional technical engineer provide process guide .
Various Training Service
1.Provide U disk with detailed operation manual and video.
2.Via on line chat way service(QQ,whatsapp,wechat) for customer in any time.
3.Via teamviewer remote control software to provide on line guidance.
4. Customer come to our factory for learning how to operate the machines.
5.Engineer can go aboard for training if customer needed.
Optional Parts
Customer feedback
Packing & Shipping
Packing:
1.After the completion of machinery production, the factory inspectors shall check and put the equipment into storage.Before the delivery of the equipment, the after-sales engineer shall conduct secondary inspection and ensure the quality of the machine meets the customer's requirements
2.Clean the whole machinery , protect the parts that need oil, and check the related parts again .
3. Anti-collision package edge: All parts of the machine are covered with some soft materials.
Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.
4. Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time and money.
2.Clean the whole machinery , protect the parts that need oil, and check the related parts again .
3. Anti-collision package edge: All parts of the machine are covered with some soft materials.
Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.
4. Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time and money.
Company Profile
SHANDONG YUANTONG CENTURY INTELLIGENT TECHNOLOGY CO.,LTD This factory build in 1996, mainly producer vacuum forming machine,vacuum press ,CNC router ,laser machine and channel letter bending machine ,the products export to more than 152 countries and get CE and SGS certification , service more than 2000 customers.
