Flat Panel Pressure Solar Water Heater
- Category: Solar Water Heaters >>>
- Supplier: Haining Feixiang Import & Export Co. Ltd.
Share on (1600110694946):
Product Overview
Description
Product Description

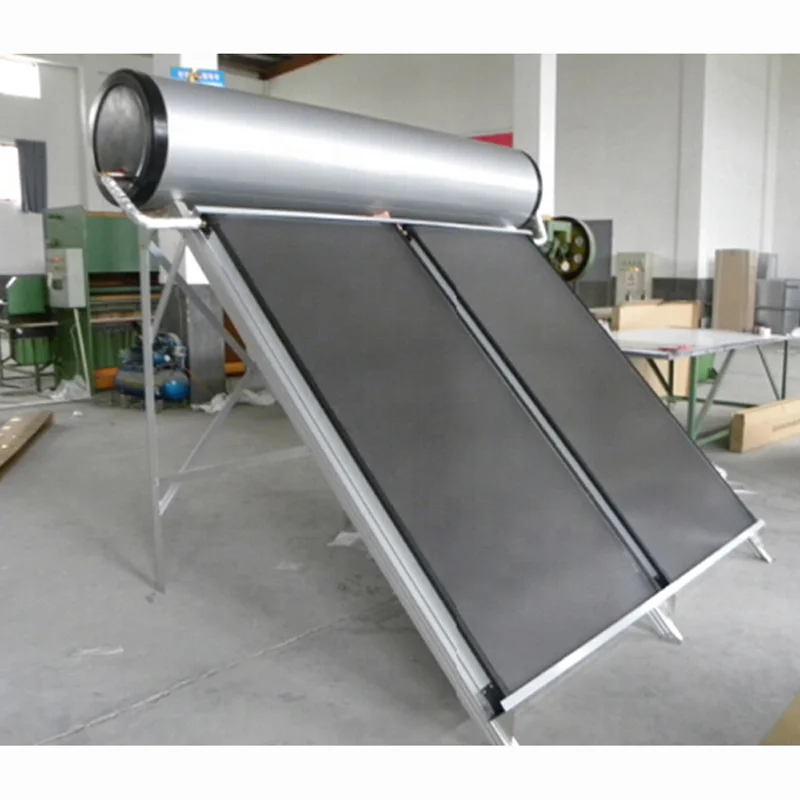

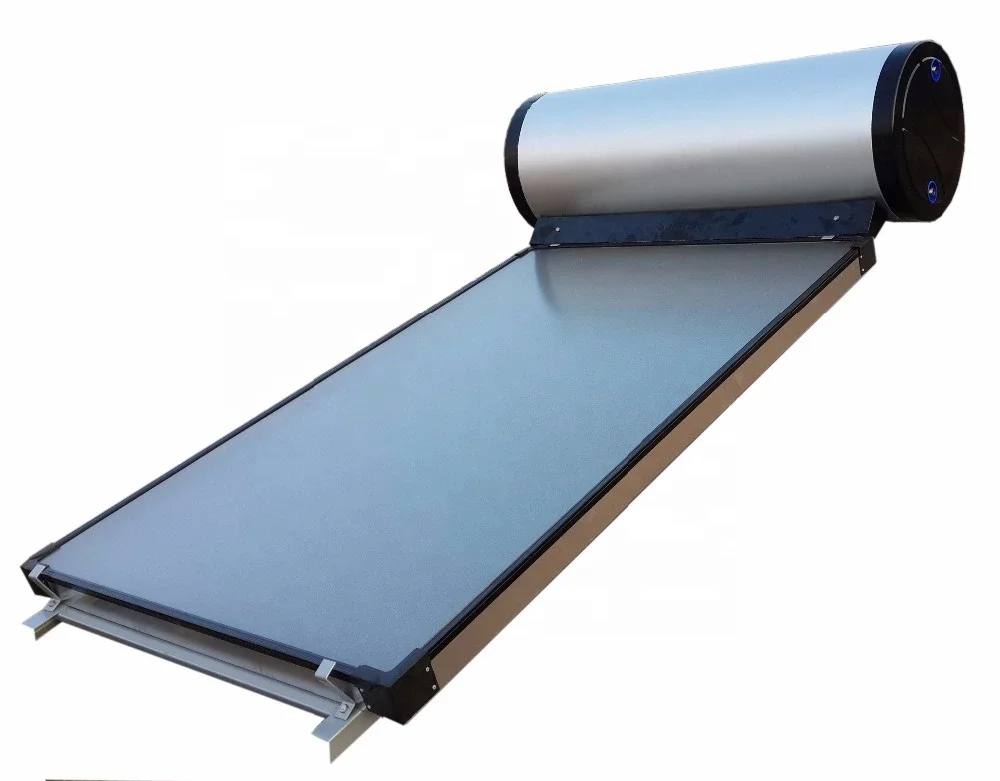

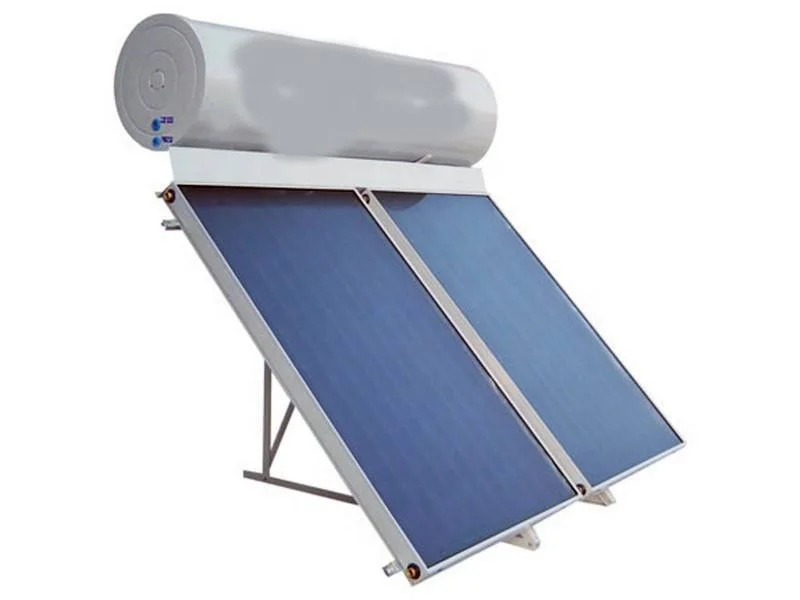

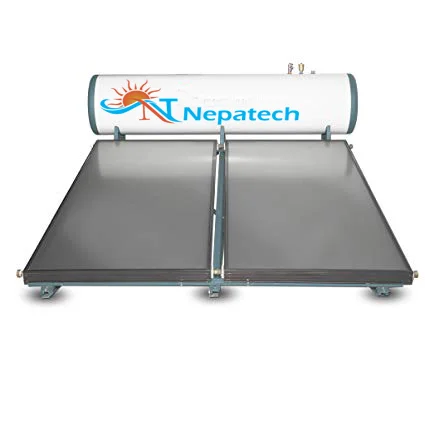

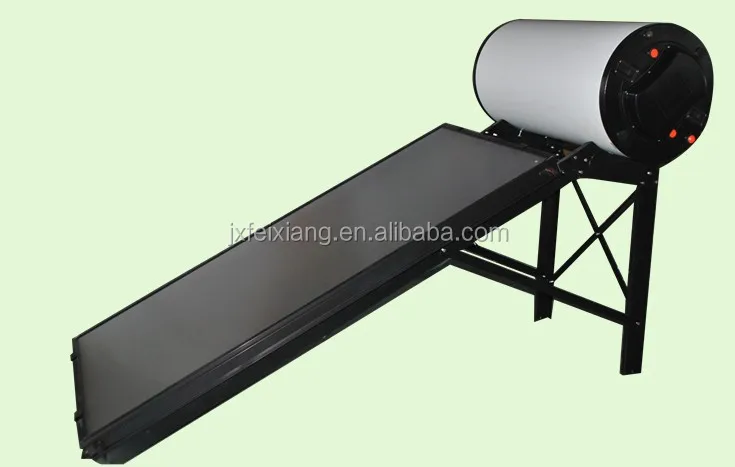

Flat Plate High Pressure Solar Water Heater
Specifications
1. Water tank:
Inner tank: SUS304 stainless steel, thickness 1.2mm
Outer tank: Painted galvanized steel/Stainless Steel , thickness 0.35mmInsulation layer: 50mm high density polyurethane foam
Inner tank: SUS304 stainless steel, thickness 1.2mm
Outer tank: Painted galvanized steel/Stainless Steel , thickness 0.35mmInsulation layer: 50mm high density polyurethane foam
2. Flat solar collector
Dimension (L*W*H): 2000mm*1000mm*80mm
Riser: 8PCS copper pipe
Coating: blue titanium
Insulation: Rock wood
Cover: Tempered glass
Back plate: Glavanized steel
Outer frame: Aluminum alloy
3. Support bracket:
Glavanized steel, thickness 1.5mm
Angle 0. 27.38.45 degree or customized
Technological Data
| Water tank | Out tank | 0.5 mm color steel | |||
| Inner tank | SUS 304-2B /316 stainless steel | ||||
| Insulation layer | High density polyurethane foam | ||||
| Capacity | 100/150/200/250/300 L | ||||
| Accessory | electric heater, magnesium rod | ||||
| Collector | Collector type | flat plate | |||
| Size | 2000*1000*80 mm | ||||
| Coating | Blue titanium with efficiency 95% | ||||
| Cover | 3.2 mm glass | ||||
| Insulation layer | rock wool | ||||
| COPPER | 22X0.8MM 8PCS | ||||
| Frame | anodizing aluminum alloy | ||||
| Bracket | 1.5 mm galvanized steel / 1.2mm SUS 201 stainless steel for tiled and flat roof | ||||
| System angle | 0-50 % | ||||
| Warranty | 5 years for water tank , 10 years for flat plate collector | ||||
| Model | FXFPN-100 | FXFPN-150 | FXFPN-200 | FXFPN-250 | FXFPN-300 |
| Capacity | 100 | 150 | 200 | 250 | 300 |
| Plate qty | 1 | 1 | 1 | 2 | 2 |
| 20GP/sets | 50 | 44 | 30 | 25 | 23 |
| 40HQ/sets | 123 | 108 | 74 | 60 | 54 |
Size range:
| ITEM.NO | SPECIFICATION | EFFECTIVE LIGHT AREA | TANK'S CAPACITY | APPLICATION PEOPLE | CBM | ||
| PANEL | PANEL SIZE | ||||||
| FXFPN-100 | 1 | 2000*1000*80mm | 1.04 | 100L | 4 | 0.37 | |
| FXFPN-150 | 1 | 2000*1000*80mm | 1.56 | 150L | 4 | 0.4 | |
| FXFPN-200 | 2 | 2000*1000*80mm | 2.08 | 200L | 8 | 0.7 | |

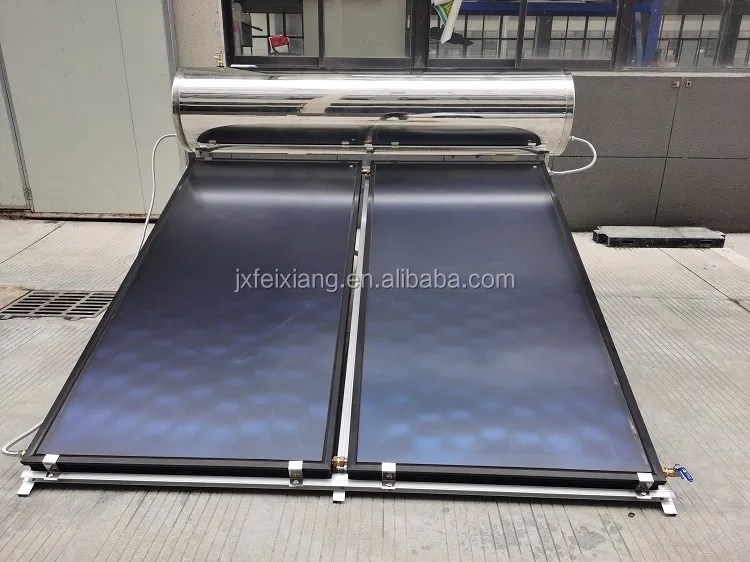

| FXFPN-300 | 2 | 2000*1000*80mm | 3.13 | 300L | 12 | 1 | |
