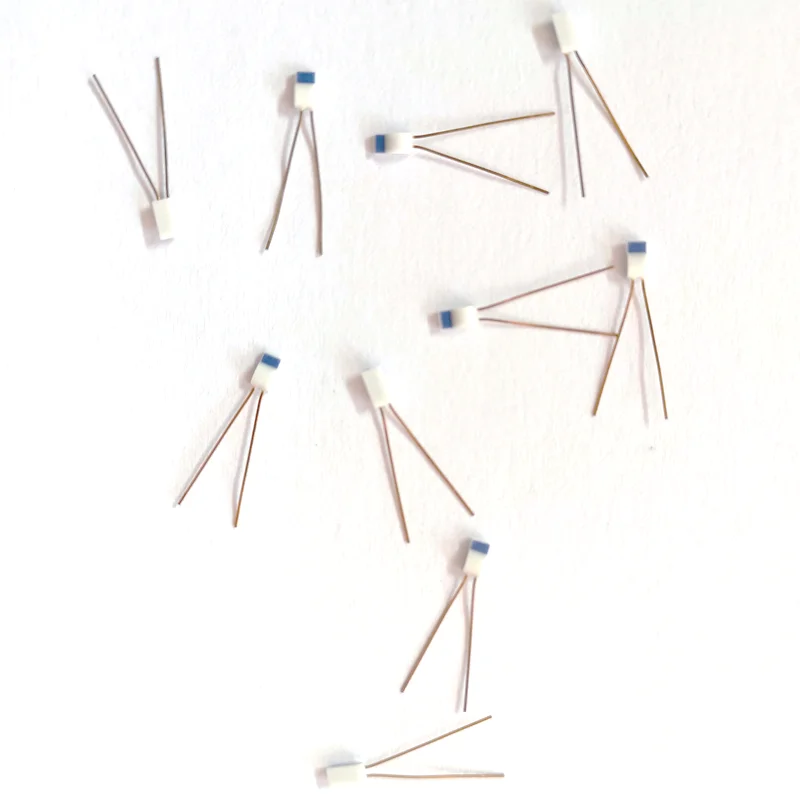

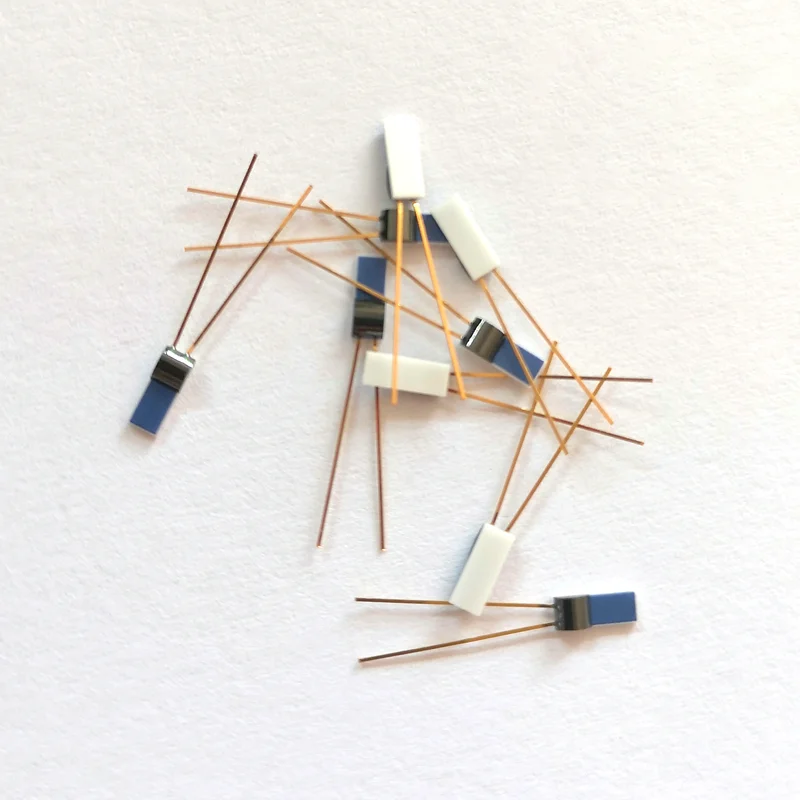

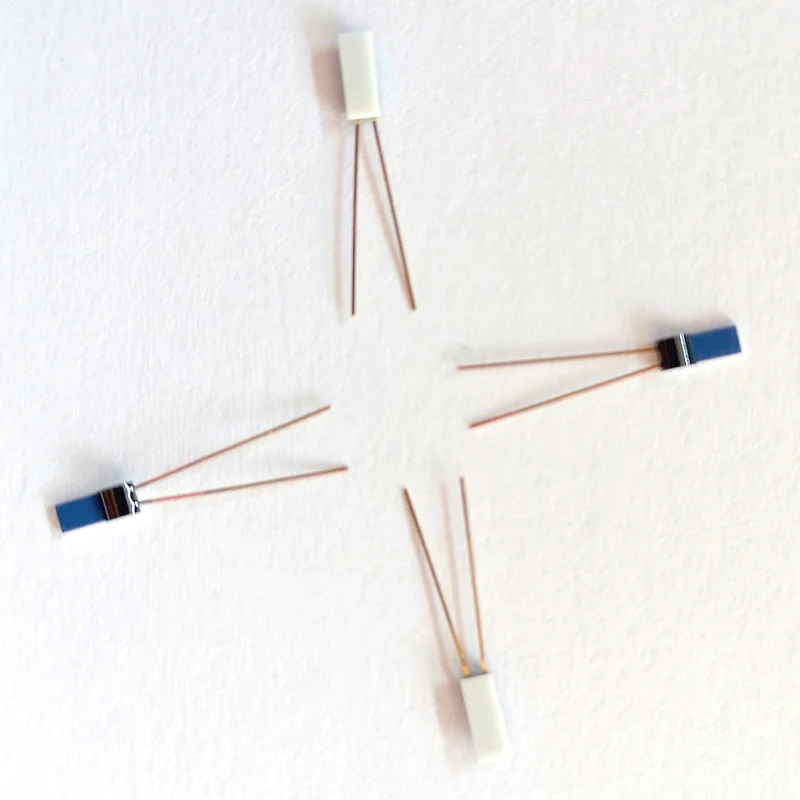

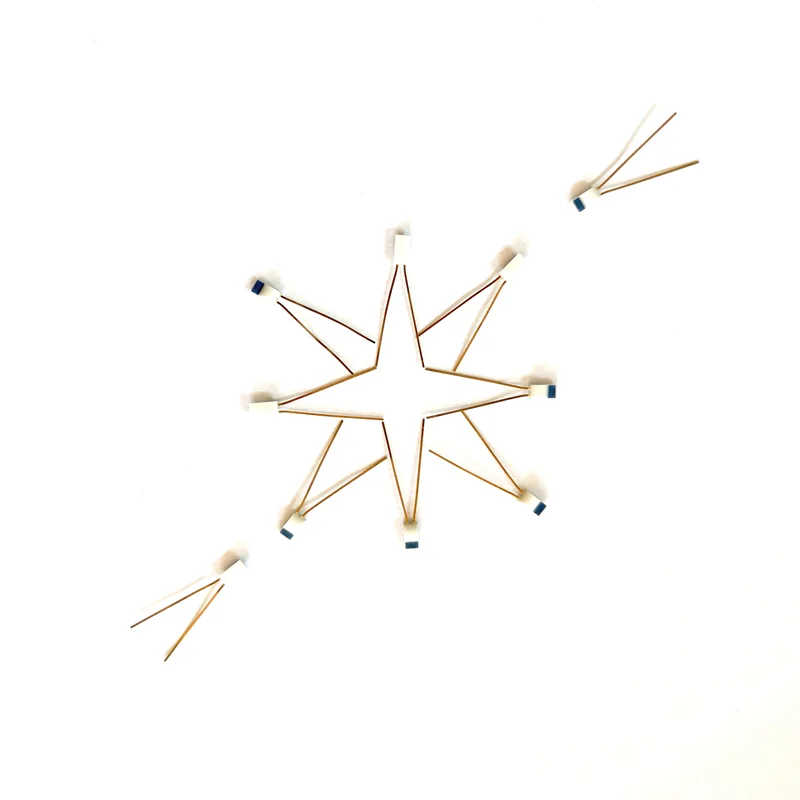

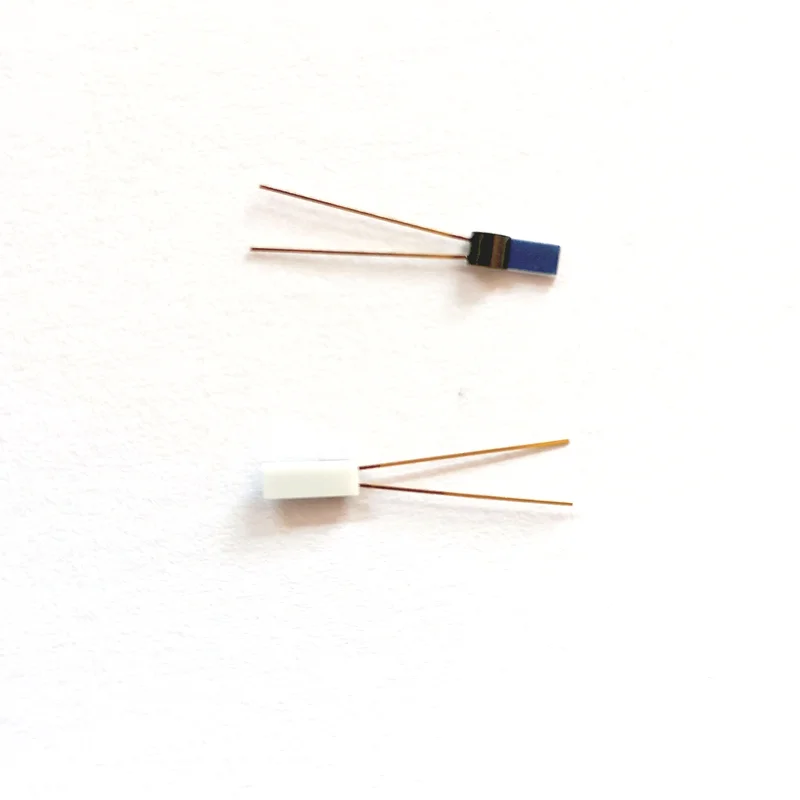

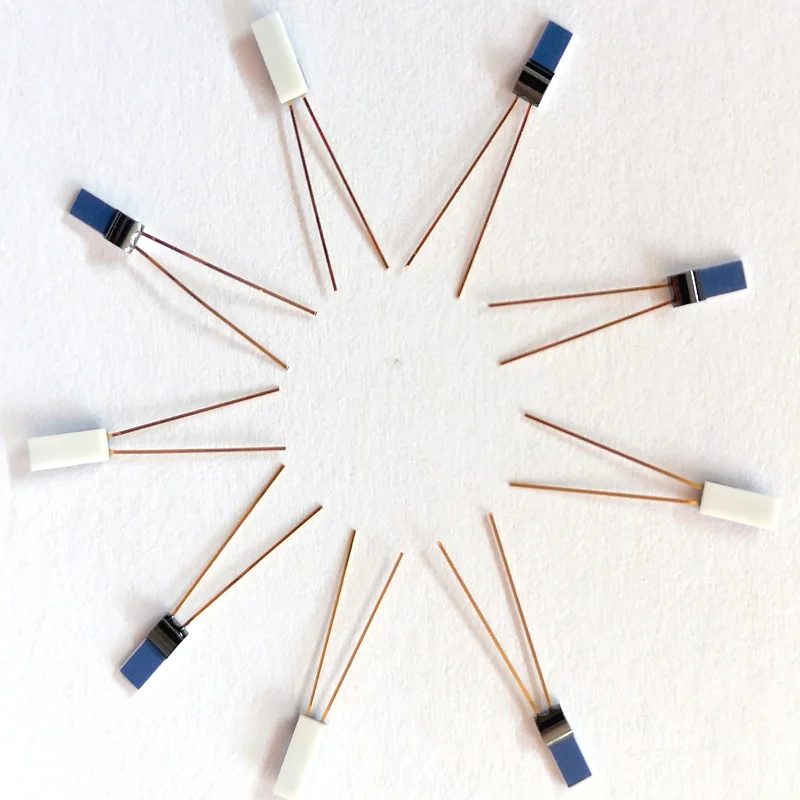

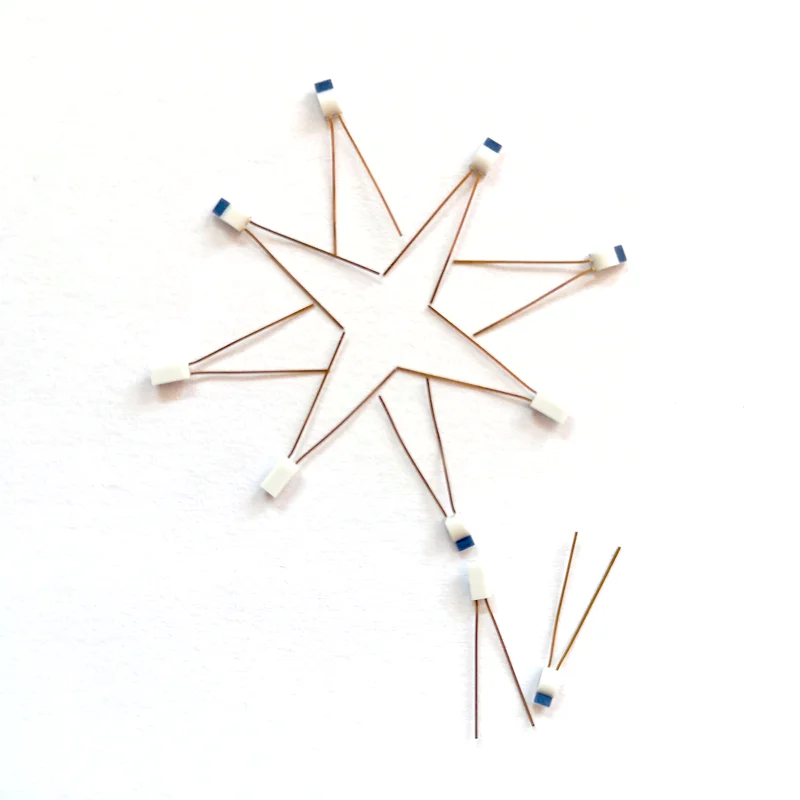

Thin Film Platinum RTD thermal Elements Pt100 and Pt1000

Hot sale Thin Film PT100 Sensor/resistor Class A/B

Temperature Sensor Introduction

RTDs are temperature sensors contain a resistor that changes resistance value as its temperature changes. They have been used for measuring temperature in laboratory and industrial processes, and have a good reputation for accuracy, repeatability, and stability.

Our temperature sensors are machined according to customers’ requirements. And if you have special requirements, our technicians can cooperate with you and serve you better.

 Temperature Sensor Specifications

1.temperature range:-70 to 450C

2.ceramic dimension:(L*W*H)3.0*2.0*1.0    3.2*1.6*1.0    5.0*2.0*1.0

3.lead wire length:10mm

4.lead wire material:ni-pt alloy

5.specified current:1mA

6.max current:2mA

7.accuracy:1/3B,A,B,2B

After-sales Service

1.All goods will be inspected and tested before shipment.

2.Customer's satisfaction is the most important thing to us. If you have any problems or questions, pls

contact us by Trademanager or email. We will respond you within 24 hours.

What Can I Do For You

1.Quality & Service At JINGDA, our 1st priority has always been providing our clients with great quality

products and superior customer service.

2. Quick LeadTime We're dedicated to providing the quickest turnaround times and work very hard to ensure

 that all of your deadlines are met.

3. Unbeatable Prices We continuously strive to find ways of reducing our production costs, and passing the

savings over to you!

4. Brand Awareness The goal of any strong brand is to achieve a level of awareness that instills the idea of

quality and value into all of your potential customers.

5. Special Offers In order to maintain our competitive edge, we are constantly running special offers on our

products including Thermometer and Pedometer etc. Contact our sales team to see how we can help you save

 a lot of money.

We Are Together

JNDA is willing to work and develop together with worldwide agents and distributors.

Always,on the road; Work together, change the world.
