Automotive industry products china thermoforming machine price

Technical parameters:

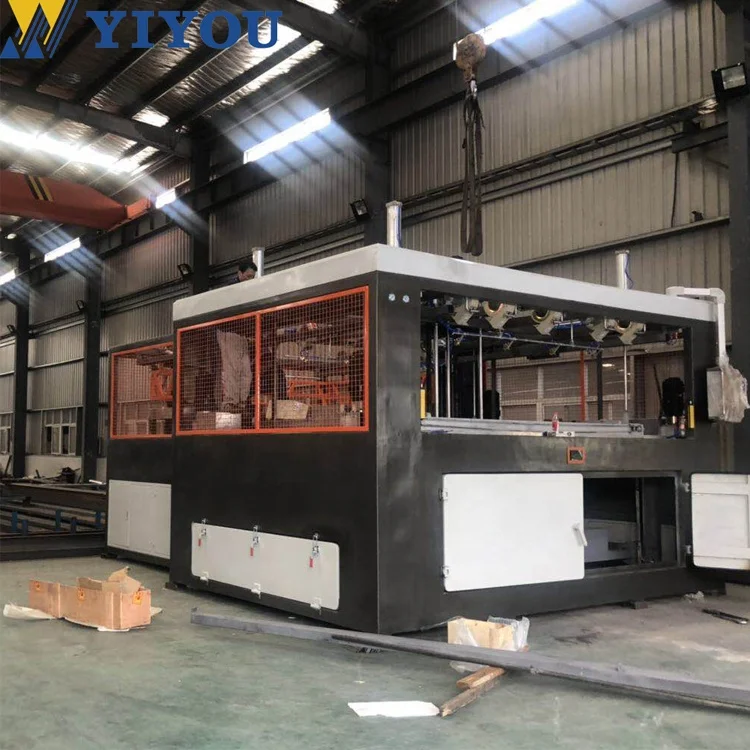

Main Features of our Vacuum Forming Machine:

This machine consist of Frame,Vacuum forming devices, Heating Devices, Pneumatic Control System, Safety Mesures etc.

• Frame: Adopt Steel structure welded or split jointed, for the installation of the forming, heating and auxiliary devices. Integral steel structure has enough intensity and stiffness.


• Vacuum System: Consist of Vacuum pipe line, vacuum pump, chamber, storage tank and vacuum angle seat valve etc.German vacuum pump with low noise, has the function of auto-cutoff when the pressure exceed limit.The evacuation process can be fast and slow, convenient to adjust the forming procedures and can guarantee the reliability of the production.


• Heating Devices: Adopt Double side heating, made up of carbon fiber medium wave heating tube, tube carriage and porcelain connector. With the character of instant heating and energy saving, the energy consumption is about 60% of similar machines in the market. If being used intermittently, the energy consumption even Low.

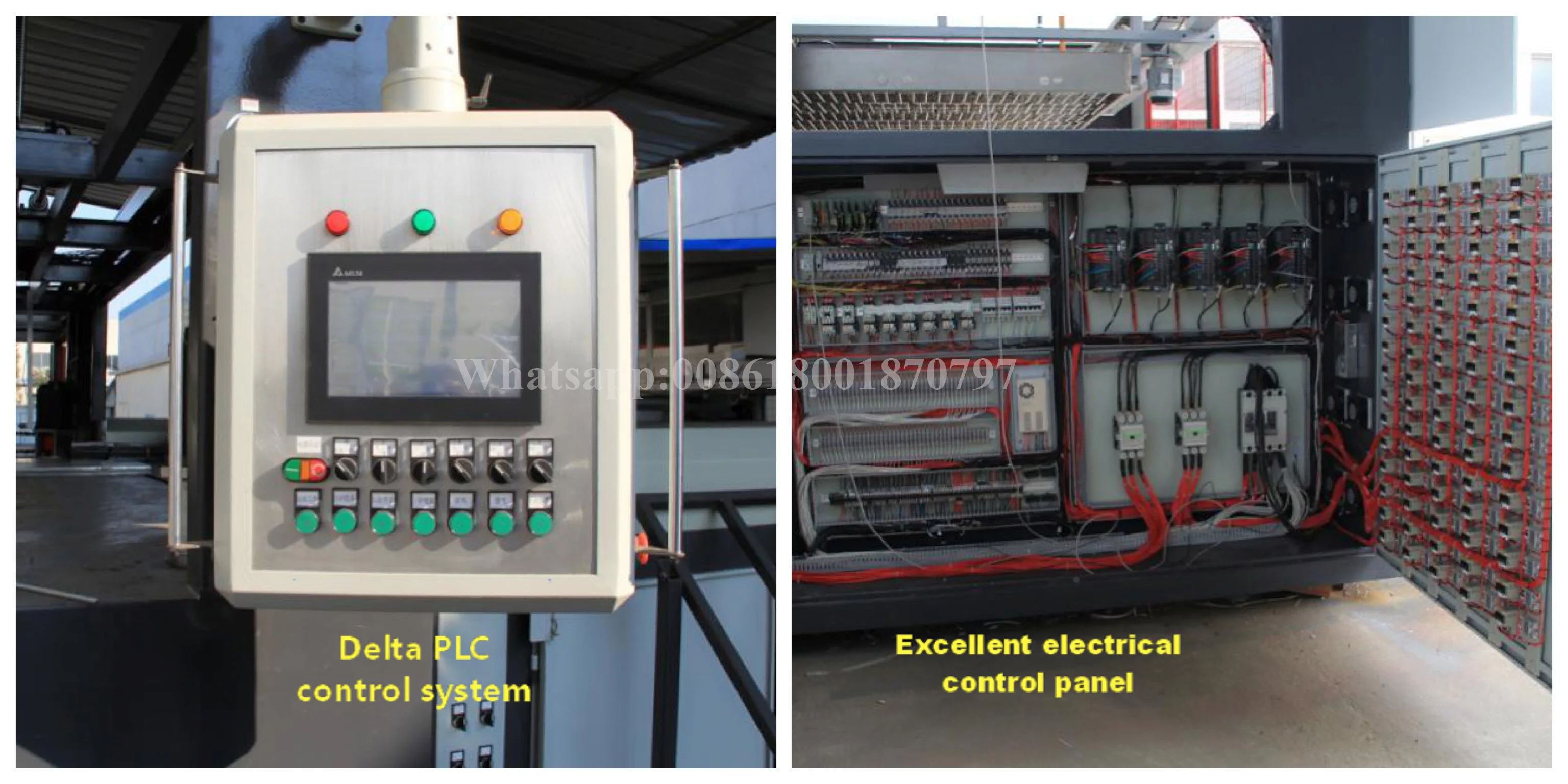

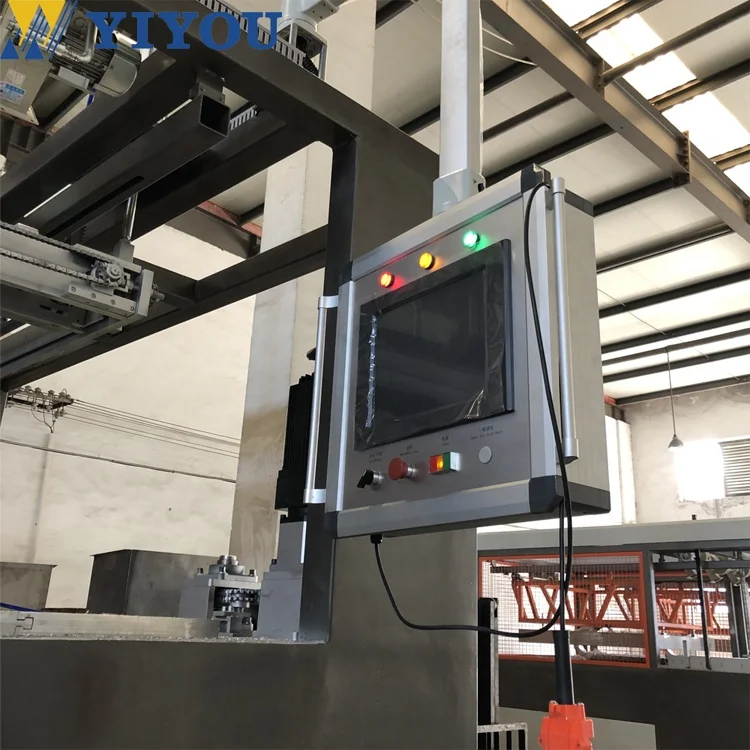

• Pneumatic Control System: Composed of Pressure gauge, all pipes, normal valves and Proportional pressure valves.Air filtering device was equipped at the inlet of air line,it chooses high pressure types except for regulated places, beautiful layout.


• Safety Measures: System has many protection measures,any possible confliction will trigger protection function.

More details about this machine:

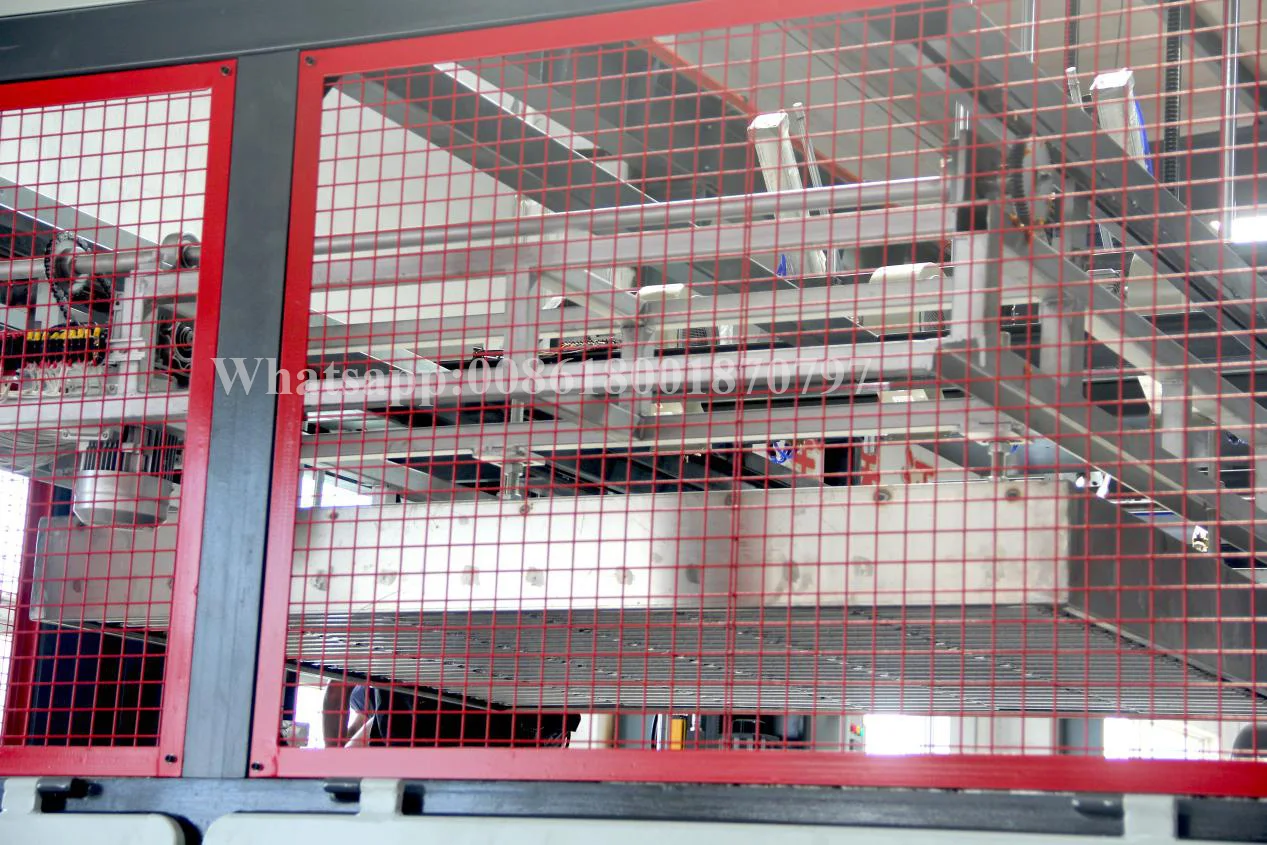

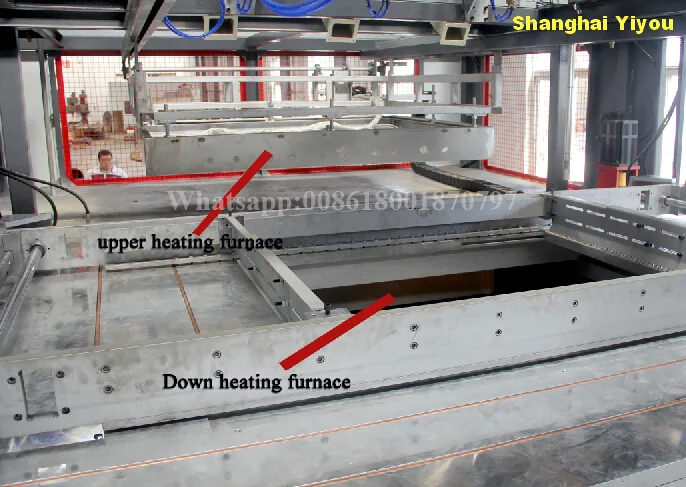

• Heating Furnace (Carbon fiber medium wave Heating Tube)

Double heating furnace

• Heating oven

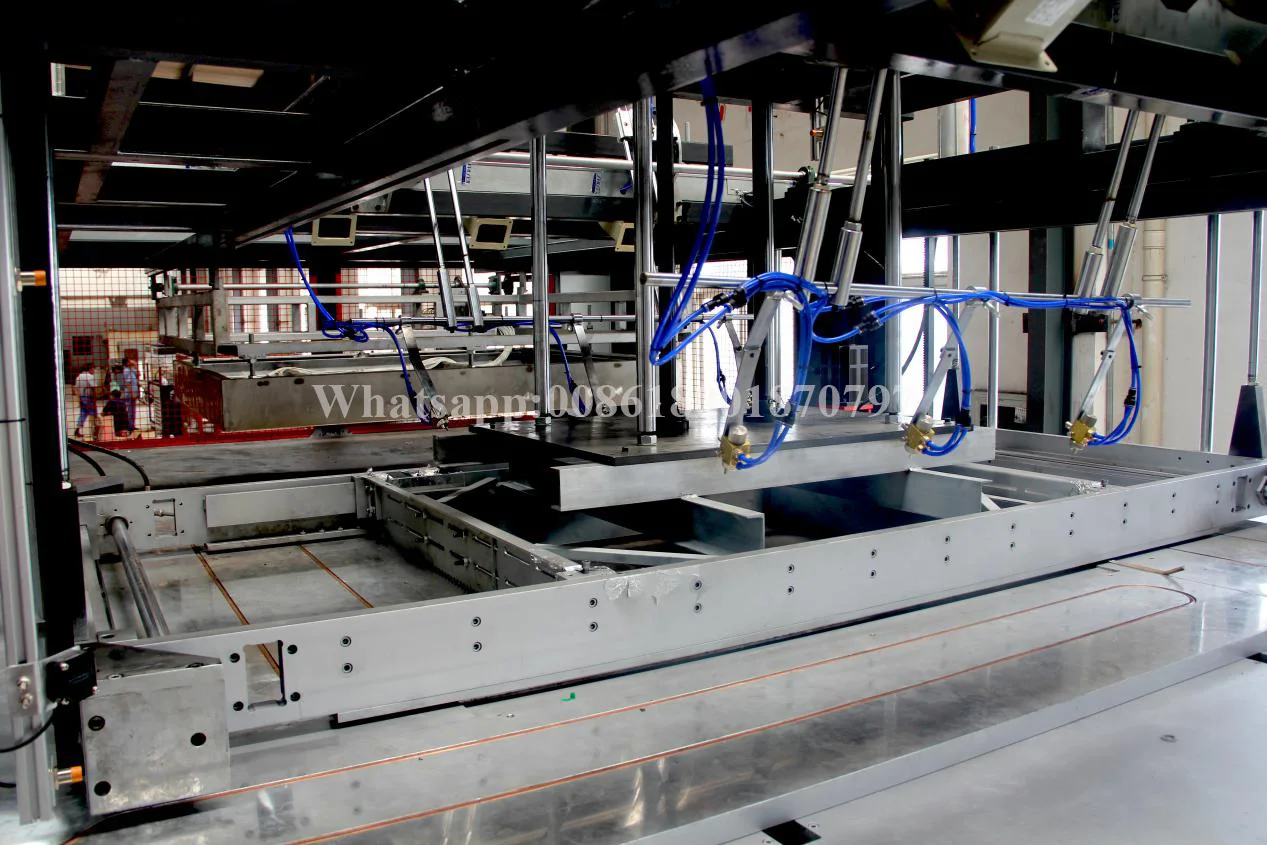

• Triple cooling system(cold water nozzle+cooling blower+circulating water system).1.Cold water nozzle

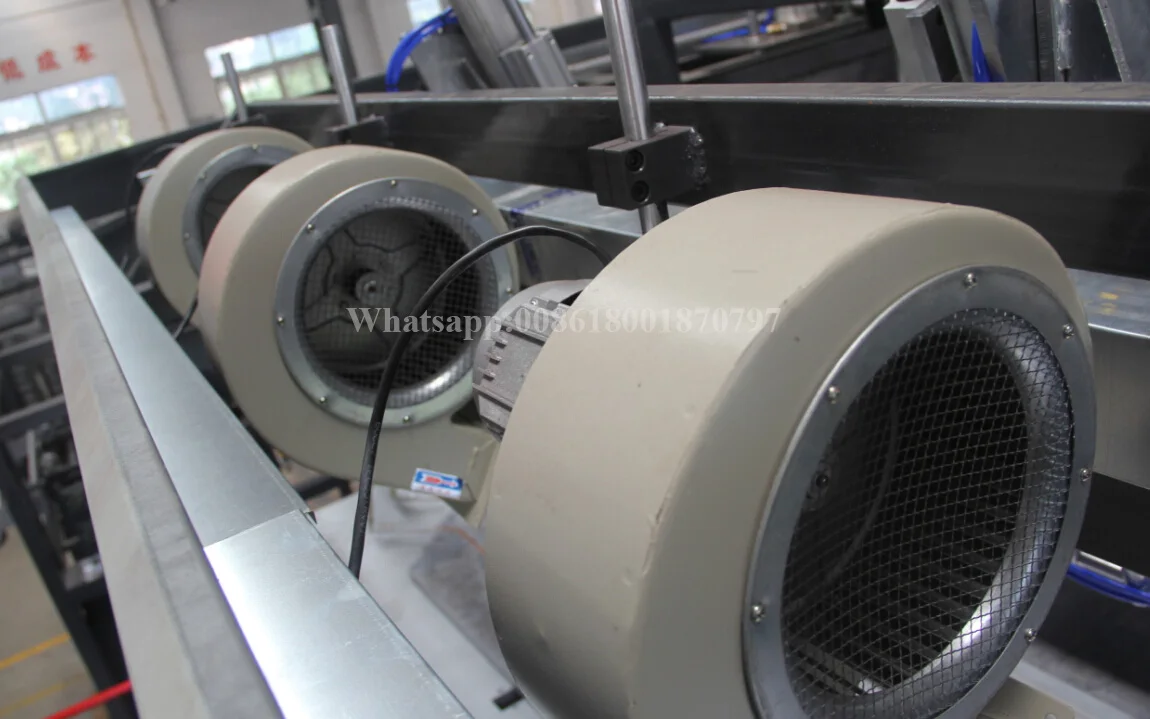

 2.Powelful cooling fans

3.Circulating water system

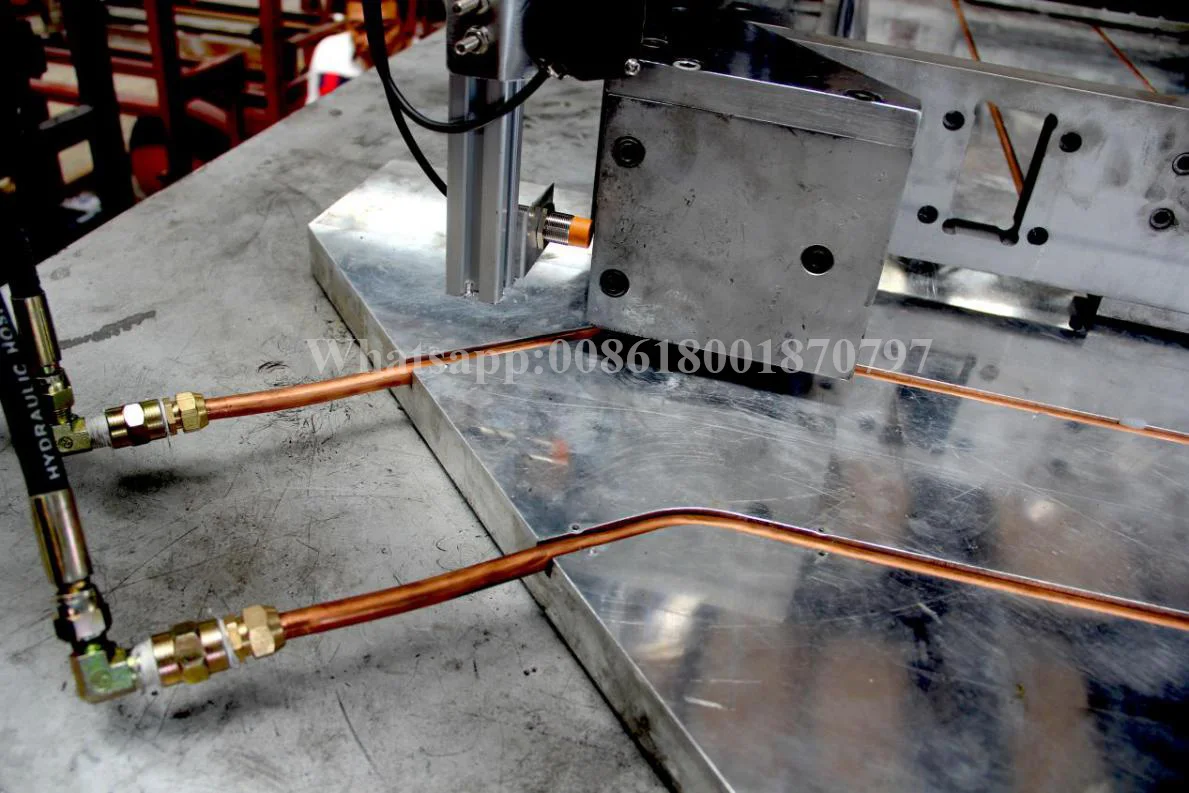

The copper tube is embedded in the Adjustable Window Plate,and the copper tube has cool water inside to achieve the auxiliary cooling effect.Besides,there's water in the mould that keeps flowing, helps cool down.

According to the forming area can be divided into:
(1) Small thick sheet thermoforming machine, the forming area is about 1500mm*1000mm or less.
(2) Medium-sized thick sheet thermoforming machine with a forming area of 1500mm*1000mm to 2500mm*1500mm or less.
(3) Large-scale thick film thermoforming machine with a molding area of 2000mm*3000mm or above.

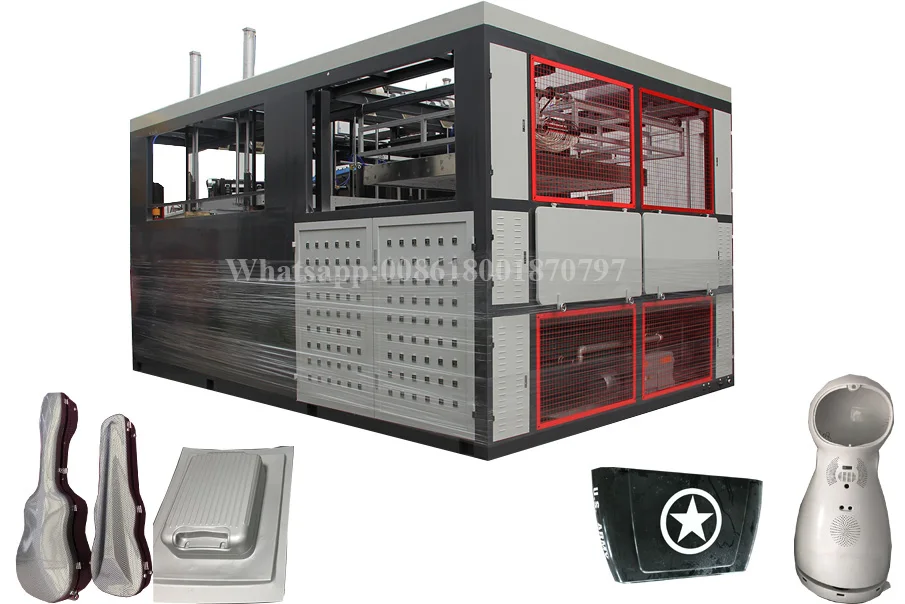

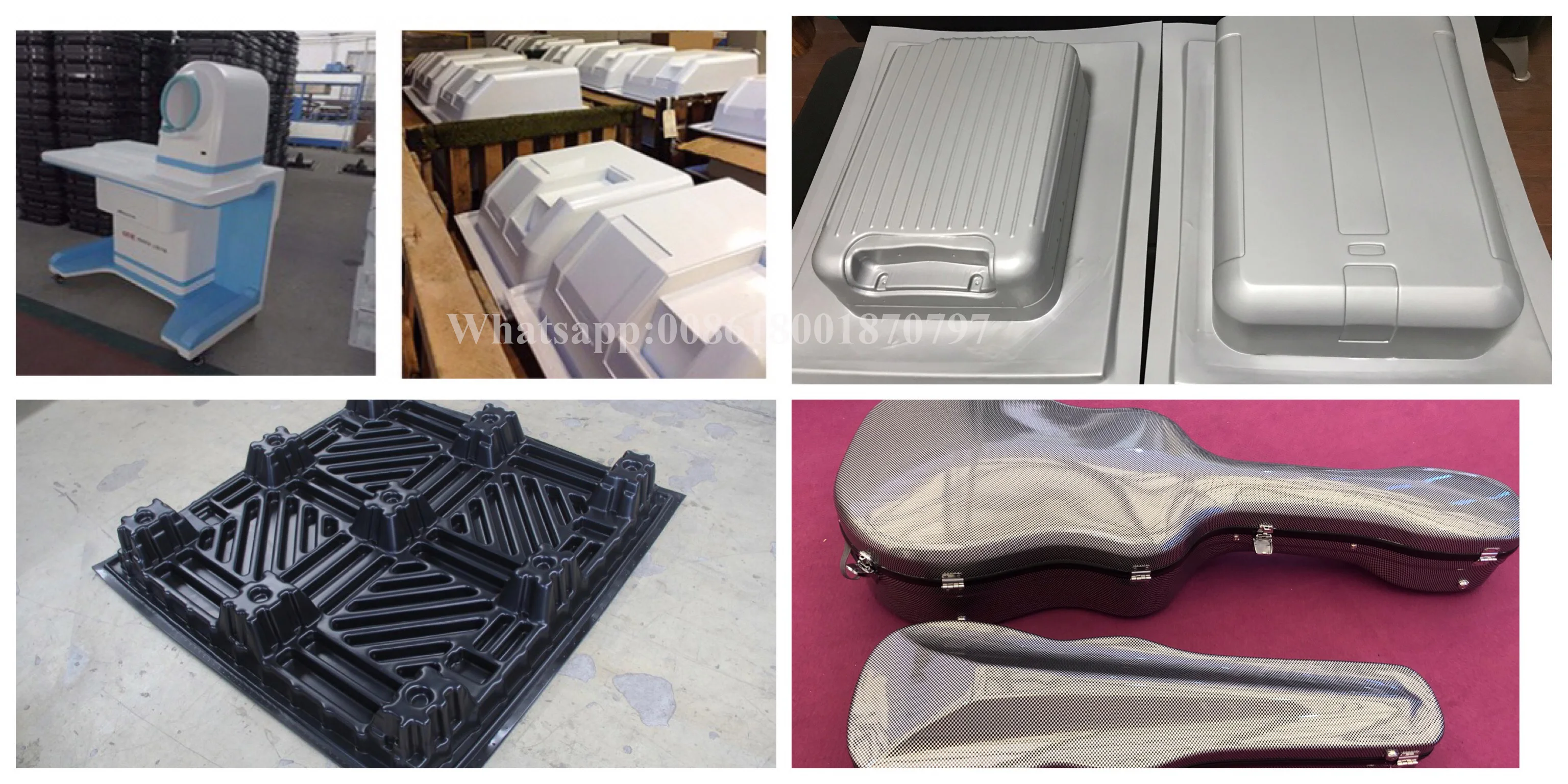

What products can this machine produce?

   Shanghai Yiyou company is a high-tech enterprise that integrates R&D,manufacturing and the sales of Thermoforming machine.Our company is located in Qingpu industrial zone,Shanghai,China.(only 15 minutes driving from ShangHai HongQiao airport).Our main products are Full-aotomatic Positive and Negative Three & Four Stations Thermoforming machine (forming,cutting,punching and stacking); Thick Sheet(plate) Vacuum Forming machine; Automatic PLC controlled High Speed Thermoforming machine; Full Automatic Vacuum Thermoforming machine; Automatic Plastic Cups,Lids and Bowls Making machine; Extrusion Line; Precision Hydraulic Cutting machine and other related plastic machines,etc.Or Thermoforming whole plant equipments.Quality is our culture,we build brand with soul.Based on our over 20 years experience in plastic,hope we can ensure your business success.

Our production line:

We are working in 2500 m2 production area and still looking for expanding,operating with a team of 30 expert staffs and R&D department, presenting innovative solutions at a favourable price,has now grown into a position to export to 4 continents and 15 countries so far.
