2021 new super fast 5g lte wireless wifi router 4g 5g sim wifi6 Mesh system support global
- Category: Routers >>>
- Supplier: Shi,Di,Fen,(Shenzhen),Technology,Co.,Ltd.
Share on:
Product Overview
Description

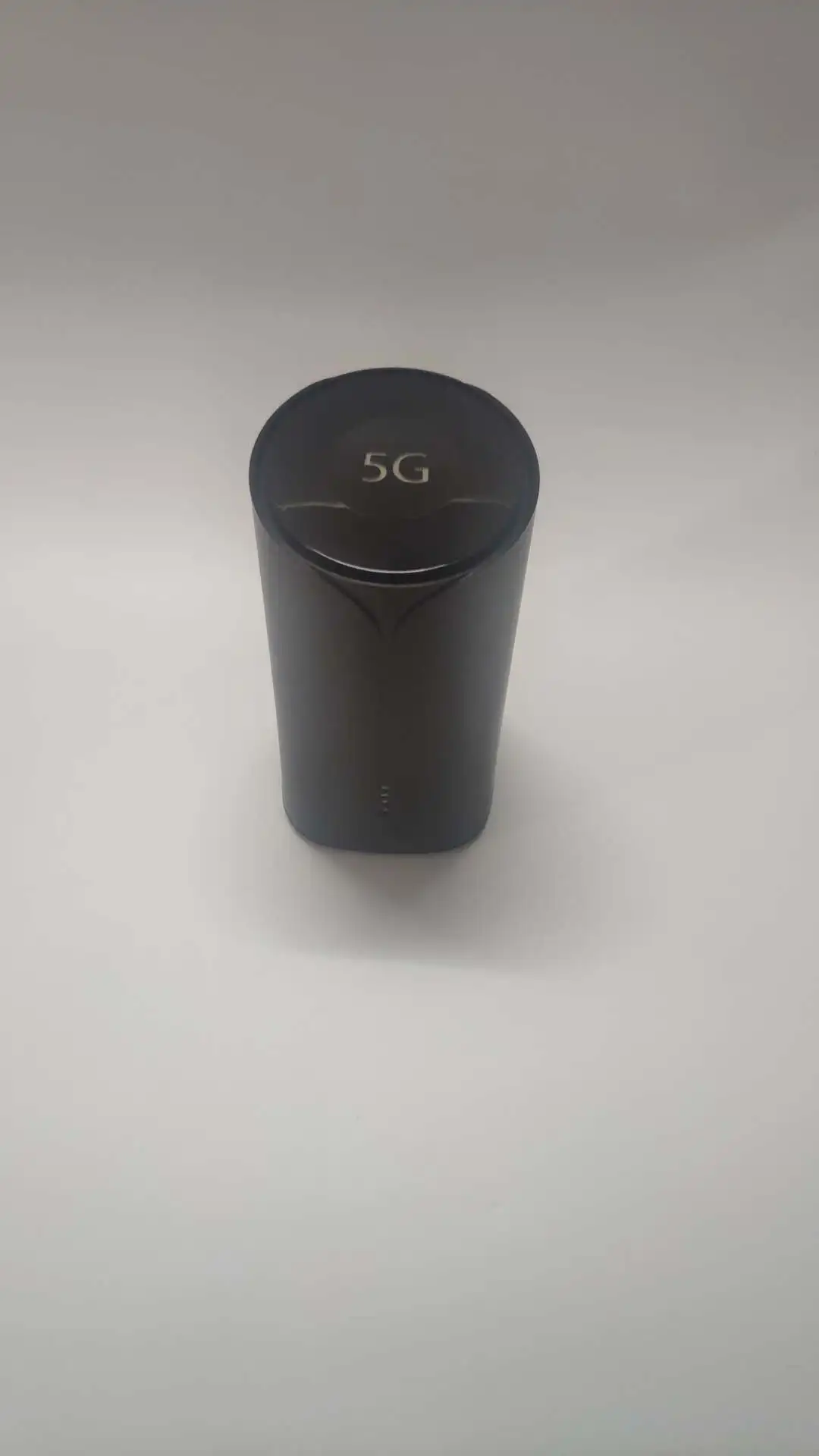

2021 new super fast 5g lte wireless wifi router 4g 5g sim wifi6 Mesh system support global
Overview:
MESH+ Smart WiFi System is based on newest wireless
Technology to make WiFi experience more comfortable.
Thanks to the latest 802.11ax WiFi6 technology platform, the
single E01MX-M4 can cover 3000 sq. Ft. provides better wireless
signals and network bandwidth. It can meet the increasing access
requirements of mobile terminations and IOT nodes. And it’s so
convenient to add sub-node router to create mesh network to
extend wireless coverage.
The latest 802.11ax standard provides future-proof technologies,
higher network efficiency, faster Wi-Fi speeds, greater coverage
and improved battery life for connected devices, providing a
significantly better networking experience for users.
Key Feature
Enlarge the wireless coverage for whole home
Brand-new Mesh WiFi system, more powerful computing and radio ability, increase the wireless range up to
50% to satisfy the bigger scale coverage.
Enhanced new WiFi technology – WiFi-6
With OFDMA and MU-MIMO, new WiFi System enables more efficient, stable, and faster transmission even
when multiple devices are transmitting data at the same time.
More space streams and higher capacity
Up to 6 streams for each device, provides 3100Mbps (600+2475) bandwidth for high speed transmission, makes
you enjoy the smooth UHD online video and low-latency games. Meanwhile, WiFi 6 brings the ability to agree
more terminations connected, it suits to IOT appliance greatly.
Mixed network for convenient roaming
New mesh system allows you connect two or more devices by ethernet cable or wireless mixed, it improves the
deployments of wireless network and optimized the seamless feature.
Interfaces
What’s in the package?
• One (1) MESH+ Router (E01MX-M4)
• One (1) 1m Cat5e Ethernet cable
• One (1) DC12V/2.5A power adapter
• Quick start guide
Ezmesh APP
mobile App, provide the better user experience of setup and management.
• Safe Wi-Fi Setting
• Parental Control
• Client management
• Network Map
• iOS & Android
Tech Specification
Wireless Connectivity
– Radio 1: 600Mbps @ 2.4GHz: Supports 1024QAM
– Radio 2: 2475Mbps @ 5GHz: Supports 1024QAM
500 wireless terminals with Peak Connection
IEEER 802.11a/b/g/n ,802.11ac wave2, 802.11ax
MU-MIMO capable for simultaneous data streaming
Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands
Smart QoS, Firewall, Upnp, NAT,
PPPOE / DHCP / Static WAN
WiFi Security – WPA2/WPA3
Solution – IPQ8071A
– 16MB Flash + 256MB NAND
– 2* 256MB DDR3
Core Technology
– MESH+ Self-Networking
Antenna – Six (6) high performance internal antennas
Ethernet Ports
– Two (2) 10/100/1000Mbps Ethernet ports, one (1) 2.5Gbps ethernet port
– One (1) WAN & Two (2) LAN
Reset Button
MES+ Networking Button
Power Button
LED Indicator Status
– Power
– Internet
– MESH+ Status
Environment
– Working Temperature: -40℃~+70℃
– Working Humidity:5%~95%
Dimensions: 108X108X216 mm
Weight: TBD
5G Modem optional | |
| Quectel RM500Q-GL | |
5G &4G Feture | 5G band: N1/N2/N3/N5/N7/N8/20/N28/N41/N66/N71/N78/N79 Lte:Cat 20 and above LTE :B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/B12(17)/ B13/B14/B20/B25/B26/B28/B29/B30/B32/B38/B39/B40/B41/B42/B43/B46/B48/B71
Operation Mode:NSA&SA DL 4X4 MIMO 5G NR:n1/n2/n3/n7/n41/n66/n77/n78/n79 LTE:B1/B2/B3/B4/B7/B25/B30/B38/B39/B40/B41/B42/B43/B48/B66
DL 256QAM UL 64QM WCDMA:B1/B2/B3/B4/B5/B8/B9/B19 |
Quectel RM500Q-AE | |
| 5G &4G Feture | 5G &4G Feture: 5G NR:3GPP Release 15 NSA/SA operation, Sub-6 GHz 5G NR NSA :n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 5G NR SA:n1/n2/n3/n5/n7/n8/n12/n20/n25 /n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14 /B17/B18/B19/B20/B25/B26 /B28/B29/B30/B32/B66/B71 LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48 WCDMA B1/B2/B3/B4/B5/B6/B8/B19 |
