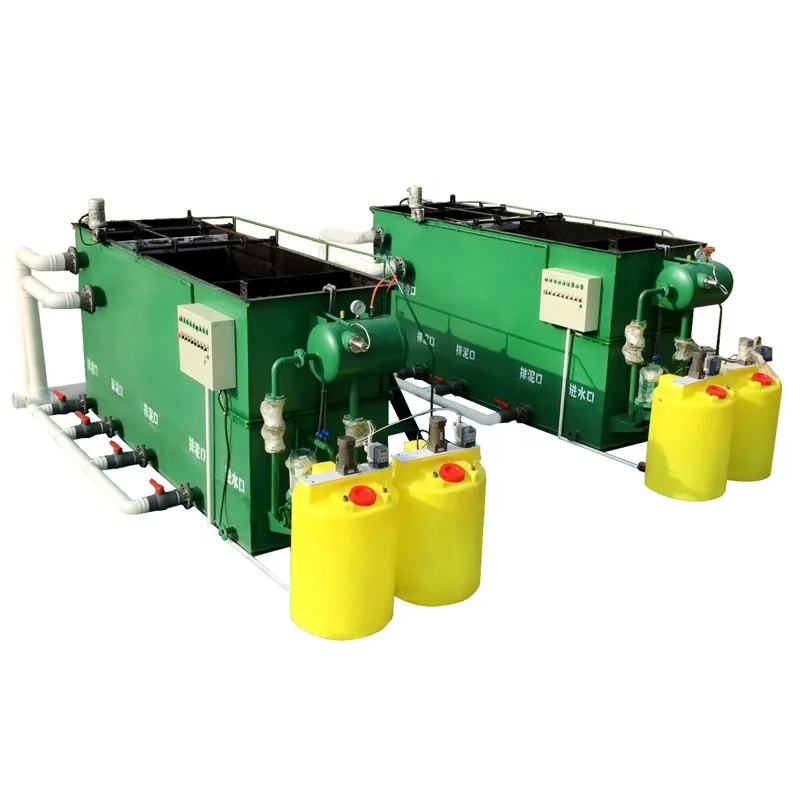

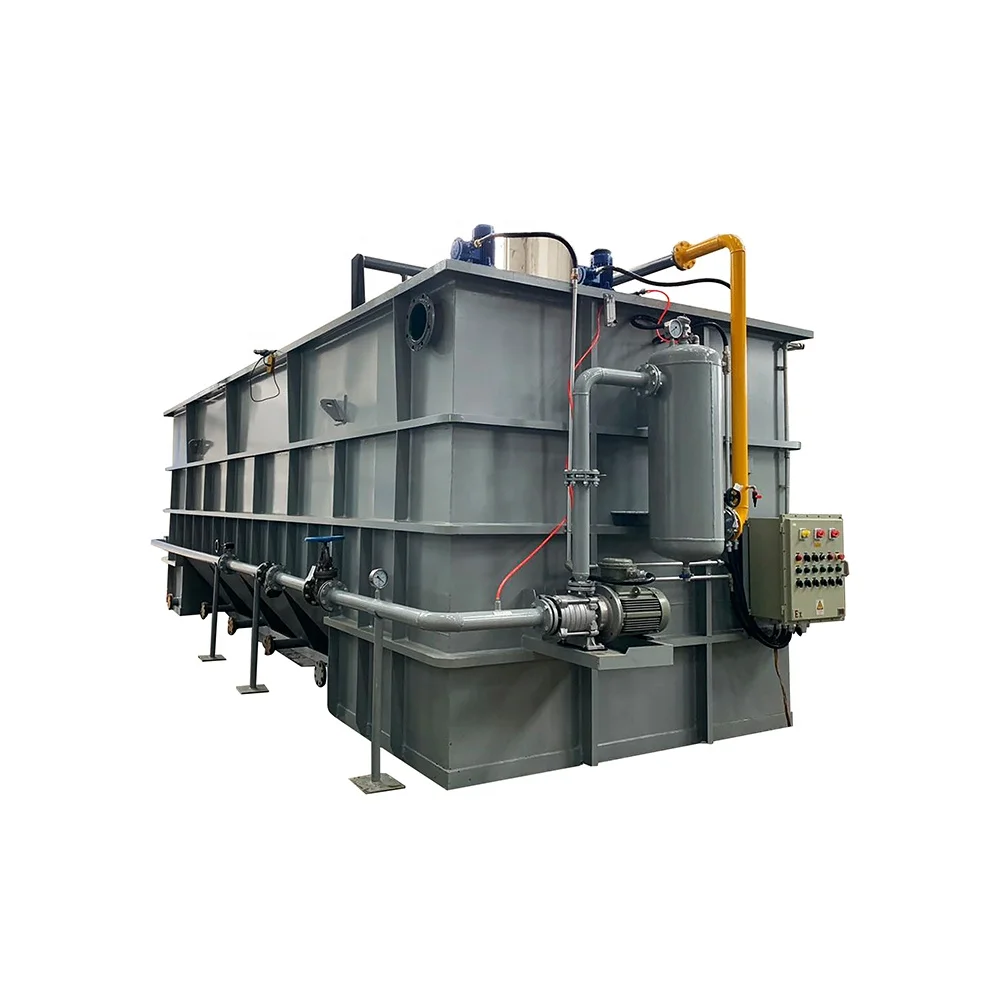

Industrial sewage waste water treatment process used DAF clarifier device dissolved air flotation system machine with best price
Industrial sewage waste water treatment process used DAF clarifier device dissolved air flotation system machine with best price
Industrial sewage waste water treatment process used DAF clarifier device dissolved air flotation system machine with best price
Industrial sewage waste water treatment process used DAF clarifier device dissolved air flotation system machine with best price
Industrial sewage waste water treatment process used DAF clarifier device dissolved air flotation system machine with best price
Industrial sewage waste water treatment process used DAF clarifier device dissolved air flotation system machine with best price
Industrial sewage waste water treatment process used DAF clarifier device dissolved air flotation system machine with best price

Industrial sewage waste water treatment process used DAF clarifier device dissolved air flotation system machine with best price

Share on (1600111380457):


Price:

Quantity:


Product Overview

Description



Product Overview




water clarification dissolved air flotation
Dissolved Air Flotation (DAF) unit is a water treatment process that clarifies wastewaters (or other waters) by the removal of suspended matter such as oil or solids. The removal is achieved by dissolving air in the water or wastewater under pressure and then releasing the air at atmospheric pressure in a flotation tank. The released air forms tiny bubbles which adhere to the suspended matter causing the suspended matter to float to the surface of the water where it may then be removed by a skimming device.

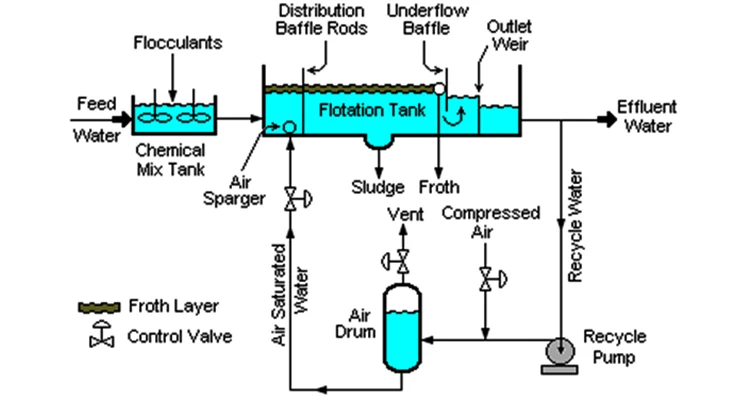

How It Works




water clarification dissolved air flotation
The feed water to the DAF float tank is often (but not always) dosed with a coagulant (such as ferric chloride or aluminum sulfate) to coagulate the colloidal particles and/or a flocculant to conglomerate the particles into bigger clusters.
A portion of the clarified effluent water leaving the DAF tank pumped though a dissolved air pump in which air is introduced and output air-saturated water.The air-saturated water stream is recycled to the front of the float tank and flows through a pressure reduction valve just as it enters the front of the float tank, which results in the air being released in the form of tiny bubbles. Bubbles form at nucleation sites on the surface of the suspended particles, adhering to the particles. As more bubbles form, the lift from the bubbles eventually overcomes the force of gravity. This causes the suspended matter to float to the surface where it forms a froth layer which is then removed by a skimmer. The froth-free water exits the float tank as the clarified effluent from the DAF unit.


PRODUCT SPECIFICATIONS




Model
Capacity
(m3/h)
Air-saturated water
(m3/h)
Main motor
(kW)
Air compressor motor (kW)
scraper motor
(kW)
Total Power
(kW)
DAF-1
0.5-1
0.3-0.5
0.55
0.55
0.18
1.28
DAF-2


1-2
0.5-0.8
0.55
0.55
0.18
1.28
DAF-3


2-3
1-1.5
1.1
0.55
0.37
2.02
DAF-5


3-5
1.5-2
1.1
0.55
0.37
2.02
DAF-10
5-10
3-4
1.5/5.5
0.75
0.37
2.62/6.62
DAF-15
10-15
4-5
2.2/5.5
0.75
0.37
3.32/6.62
DAF-20
15-20
5-7
2.2/5.5
0.75
0.37
3.32/6.62
DAF-30
20-30
8-12
5.5
0.75
0.37
6.62
DAF-40


30-40
10-15
5.5
0.75
0.37
6.62
DAF-50
40-50
15-18
7.5
1.5
0.37
9.37
DAF-60
50-60
18-20
7.5
1.5
0.37
9.37
DAF-70
60-70
20-25
11
2.2
0.55
13.75
DAF-80
70-80
25-30
11
2.2
0.55
13.75
DAF-100
80-100
35-40
15
2.2
0.55
17.75
DAF-150
120-150
40-50
15
2.2
0.55
17.75
DAF-200
180-200
70-80
22
4
1.1
27.10


Application




water clarification dissolved air flotation
Oil-water separation of wastewater in petrochemical industry (emulsified oil and vegetable oil);
Pretreatment of wastewater in textile, dyeing, bleaching, wood spinning and paper industry;
Wastewater treatment in surface treatment (galvanization, PCB, pickling) industry;
Pretreatment of effluent in pharmacy, chemical, papermaking, tannery, slaughter, and food industry;
Replacement of Clarifiers in WWTPs;

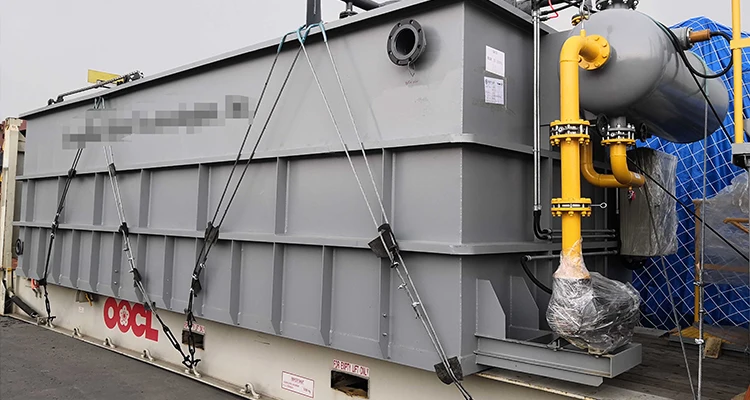

Packaging & Shipping




water clarification dissolved air flotation
Load on 40ft FR and cover with tarpaulin

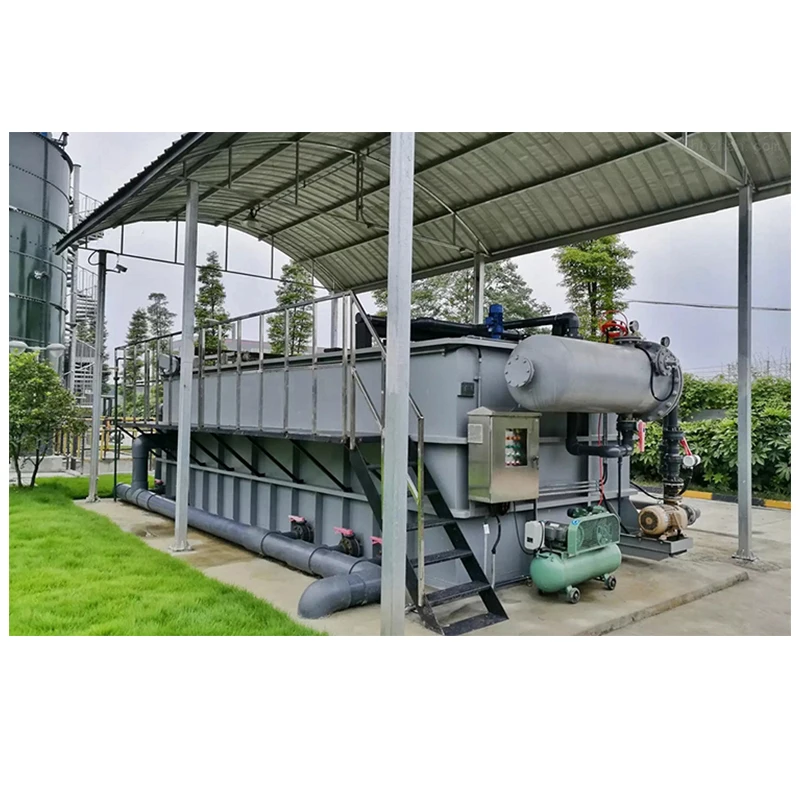

Engineering Case






Our service




Pre-Sales Service
* 7/24 technical service on line ;
* Free water sample test;
* Engineer on-spot investigation if necessary
* View our Factory.
water clarification dissolved air flotation
After-Sales Service
* 7/24 technical service on line ;
* One Year Guarantee;
* Detailed installation& operation manual provided;
* Engineers available to service overseas.
water clarification dissolved air flotation



Our Company




Located in Xin Xiang city, China, Qiankun Environmental Protection Joint Stock Co., Ltd has several years of forging ahead ,combining with advanced technology from China and abroad, owns abundant practical experience and high-tech research team ,launch a whole chain industrial enterprise, which offers a one-stop service for all kinds of waste water treatment project,and has accumulated over 2000 of references in pulp&paper, printing&dyeing, chemical fiber, chemicals, leather,pharmaceutical, medical treatment,breeding, etc. various kinds of industries and municipal sewage treatment projects. gained a global sales network reaching India, Egypt, Nigeria, Indonesia,Philippines, Vietnam,Thailand , Malaysia ,Russia , Ethiopia , Argentina etc.
water clarification dissolved air flotation


Factory
Office


Work Shop
Customer Visit


Certifications
Qiankun owns the certifications of qualification as general contractor of Environmental Engineering project, qualification as general contractor of municipal utilities construction , general contractor of urban landscaping project, and gains ISO9001 quality management system certificate,ISO14001 environmental management system certificate, and OHSAS18001 established occupational health and safety management system certificate. Qiankun is a high-tech enterprise integrating R&D, designing,manufacturing, marketing,installation and after-sale service.
