Product Overview

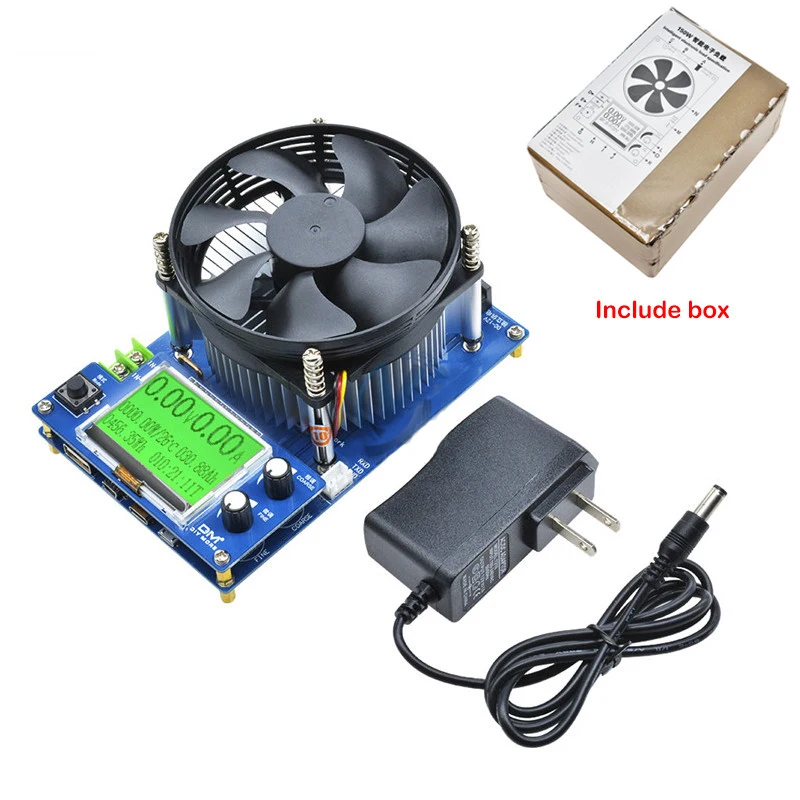

150W Digital Battery Capacity Tester Electronic Load Intelligent Adjustable Constant Current Discharge Resistance Power Tester


Power Voltage: DC 6~12V Interface: DC 5.0
Voltage measure range: 0~150V, Accuracy 0.05V
Current adjustable range: 0~10A, Accuracy: 0.05A
Capacity range: 0~999.999Ah, Accuracy: 0.001Ah
Cumulative range: 0~99999.9Wh, Accuracy: 0.01Wh
Measure range: 0~2999.9W, Accuracy: 0.01W
Impedance range: 0~999.9Omega, Accuracy: 0.01Omega
Temperature range: 0~99℃, Accuracy: 1℃
Max timing: 999:59:59 Accuracy: 1s
Fan cooling power: <150W
Fan control threshold: Temp>40℃
Standby reminder threshold: <2W/0.5h
Timing function: >0.5W start timing
Input interface: 20A high current occlusion screw column, USB type A, Mini USB, Micro USB, Type-C
Refresh time: >500ms/time
Measurement rate: 0.5time/s
Over limit alarm: interface warning and buzzer alarm
Voltage overrun auto- stops discharge range: 0~150V
Current overrun auto- stops discharge range: 0~10A
Power overrun auto- stops discharge range: 0~150W
Display screen: LCM display
Size: 149*96*80mm/195*105*135mm(package)
Weight: 570g(package)/370g(net weight)
Consumption: <1.5A
Operating temp: -10~60℃
Operating humidity: 10~80%RH(No condensation)

Mode button function:

1. Click to switch each display interface
2. The function of the button operation in the 2-4 interface is as follows:
①long press all records to clear
②Double-click capacity (Ah) to reset to zero
③three-stroke power (Wh) reset to zero
④four-stroke power (00:00:00) reset to zero
⑤consecutive seven hits at no load, making the current zero accurate in the current temperature environment. Calibration is zeroed
for accurate measurement at low currents. Factory reset all parameters.
3. The operation functions of the buttons under the interfaces 6, 7, 9, 11, and 13 are as follows:
①Double-click the parameter value to increase, double-click and long press the parameter to continue to increase
②The value of the three-stroke parameter is reduced, and the length of the three-stroke is continued to decrease.
