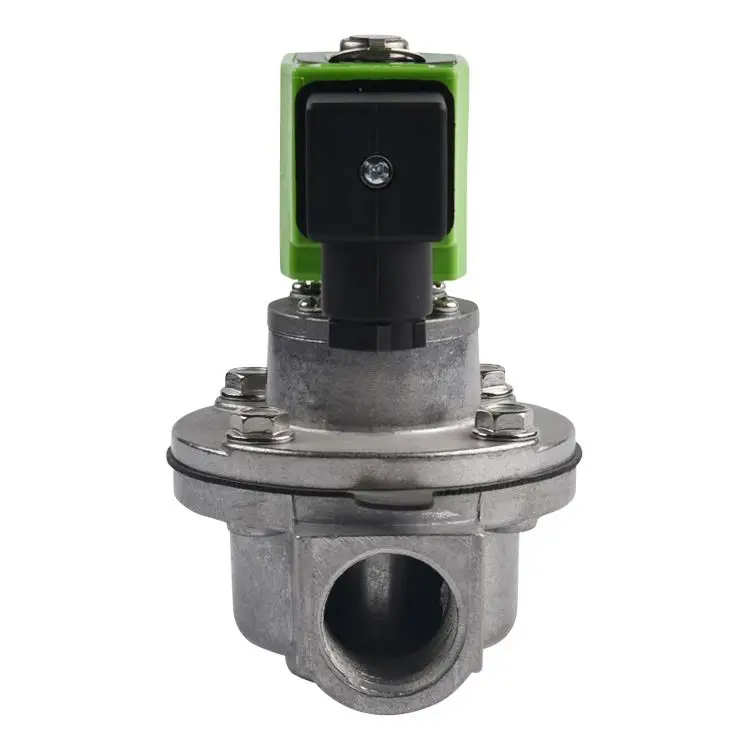

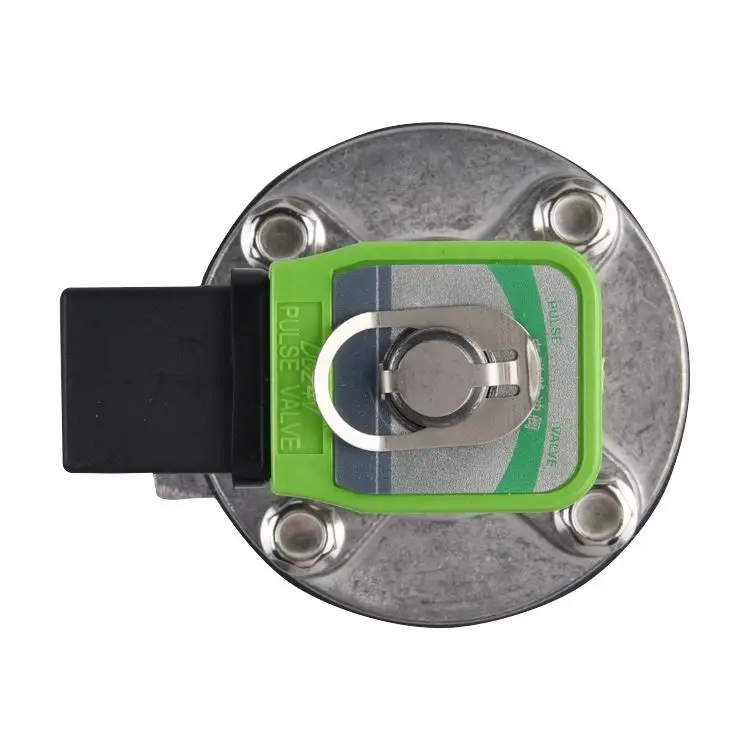

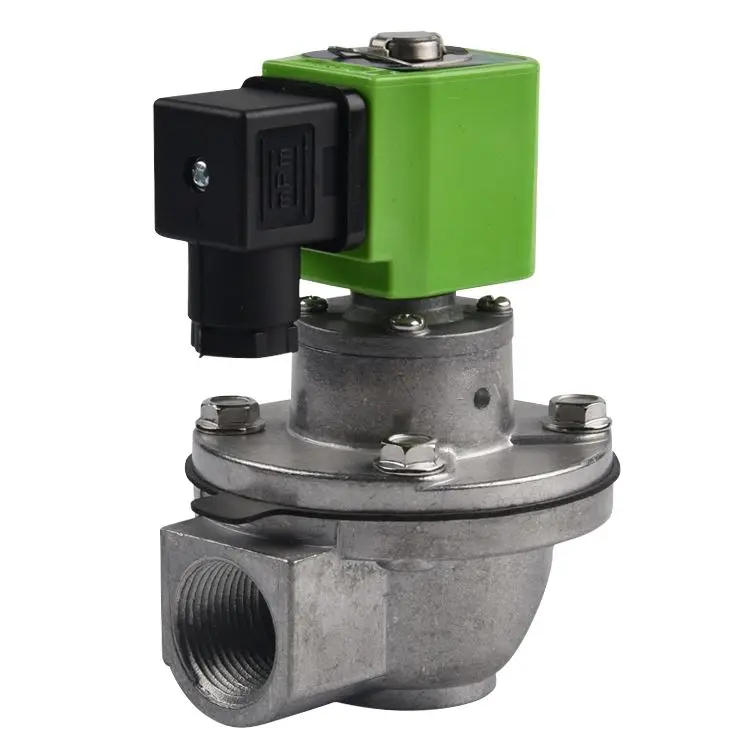

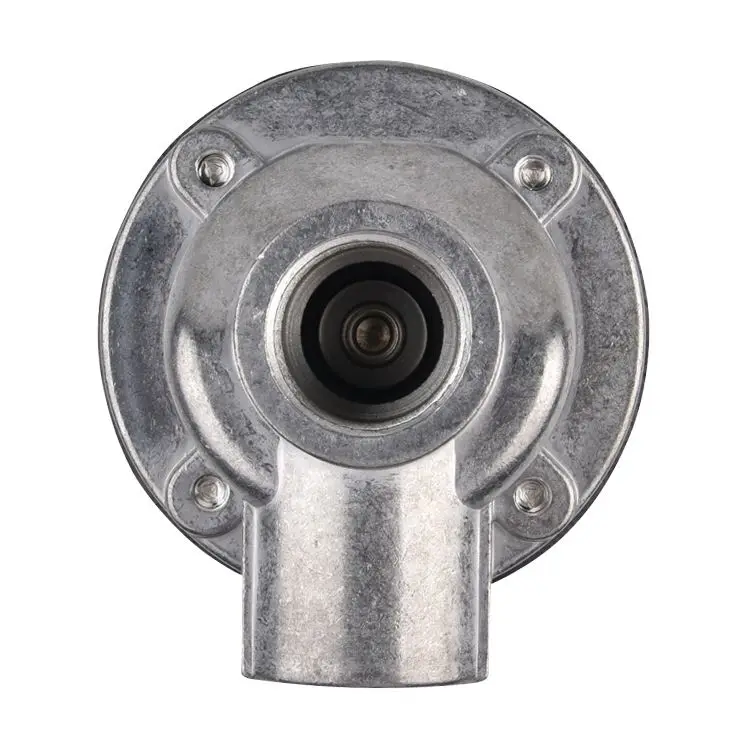

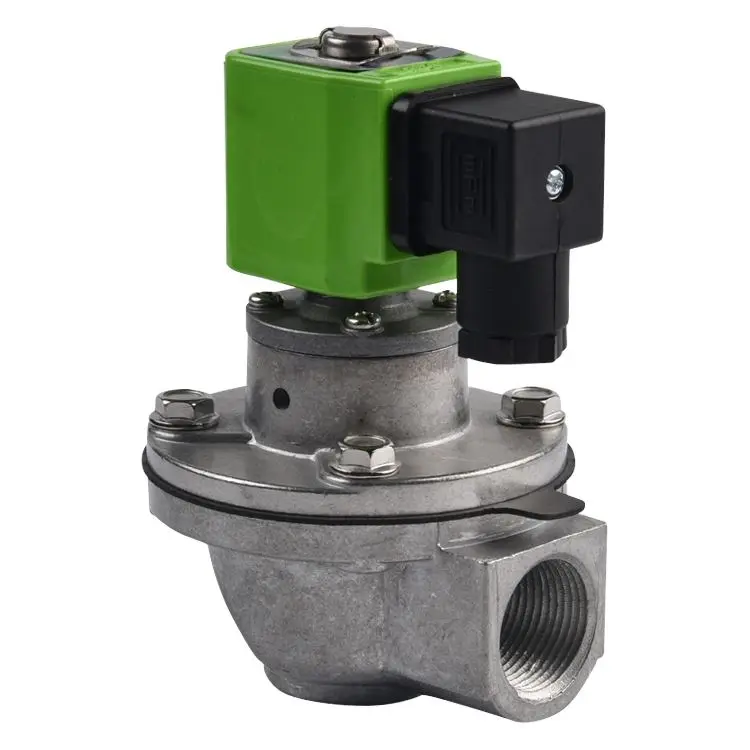

TK DMF Z 20 3/4 Inch Bag Filter Diaphragm Clean Air Right Angle Valve For Dust Collector Pulse Jet Solenoid Valves

Share on (1600111494271):


Price:RUB 1,144.64

Quantity:


Product Overview

Description

1_01

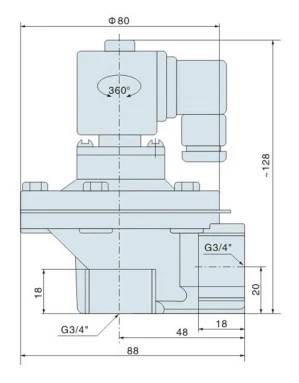

  Overall Dimension

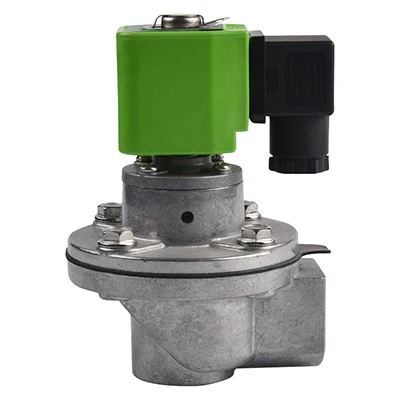

YWD-Z-20x YWD-Z-20-S
YWD-Z-20





 Model  YWD-Z-20  Diaphragm
 Diaphragm diameter (large diaphragm)  Φ80mm YWD-Z-20-M
 Flow coefficient / Kv/Cv  17.55/20.48
 Spray area (m²)  3.5˜6
 Inlet and outlet size  G3/4" G3/4"
 Weight(kg)  0.65
 Voltage  110V/220V/24V
 Number of diaphragms  1

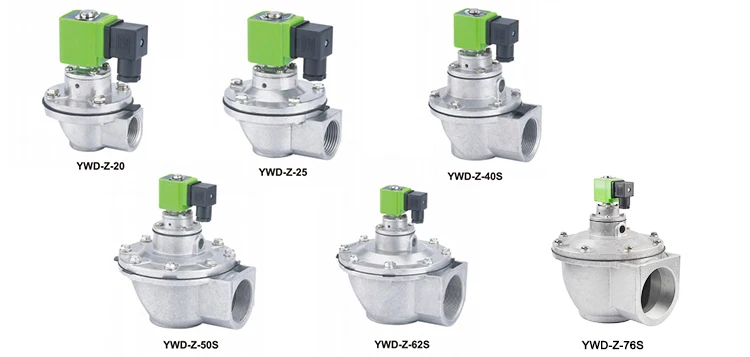

YWD Serie Right Angle Pulse Valve,20-62SYWD-Z-Serie-1



Product Prarameters

 Model  YWD-Z-20  YWD-Z-25  YWD-Z-40S  YWD-Z-50S  YWD-Z-62S  YWD-Z-76S
 Work pressure  0.3~0.7Mpa
 Envionnment temperature  -15~65°C
 Relative humidity  <85%
 Use medium  Dry clean compressed air
 Electric pressure  AC110V/A220V/DC24V
 Diaphragm diameter  Injection of million or more
 Nominal diameter  20mm  25mm  40mm  50mm  62mm  76mm
 Connection threed  G3/4  G1  G1-1/2  G2  G2-1/2  G3
 Kv/Cv/The discharge coefficient  17.55/20.48  26.16/30.53  45.82/53.47  61.24/71/47  129.26/150.85  159.95/186.66
 (m^2)/The injection area  3.5~6  8~10  12~16  18~28  27~38  37~65

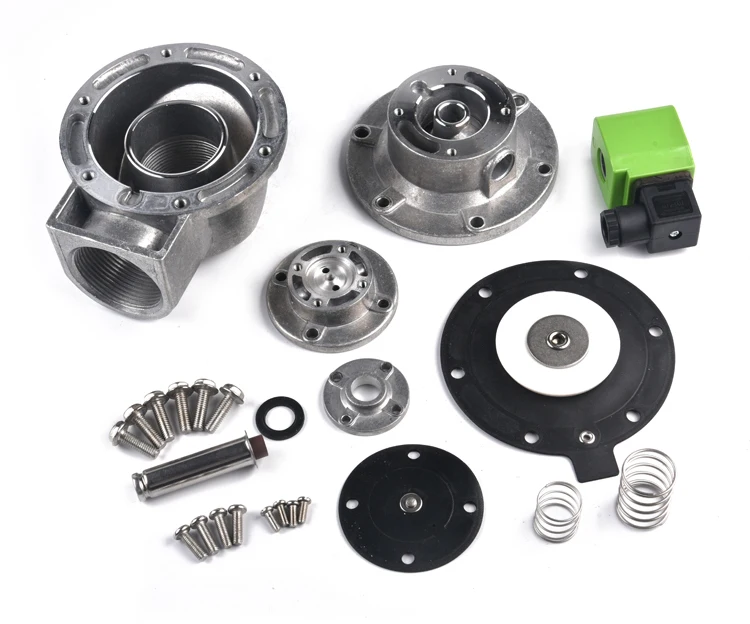

Product Breakdown





YWD-Z Serie

XQY-XYK_03.jpg XQY-XYK_04.jpgXQY-XYK_05.jpgXQY-XYK_06.jpgXQY-XYK_07.jpg

Q1. Is the sample order acceptable?

A: Yes, of course.



Q2. What is your MOQ?

A: 1 PCS.



Q3. What is the delivery time?

A: It is about 3-7 days after we receive the payment.



Q4. How to make the payment?

A: We accept T/T, Paypal, Ali Trade Assurance.



Q5. Do you have products in stock?

A: Yes, some stock can be shipped out within 3 days.



Q6. Do you test all your goods before delivery?

A: Yes, all products are fully inspected before delivery.



Q7. What is the warranty?

A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
