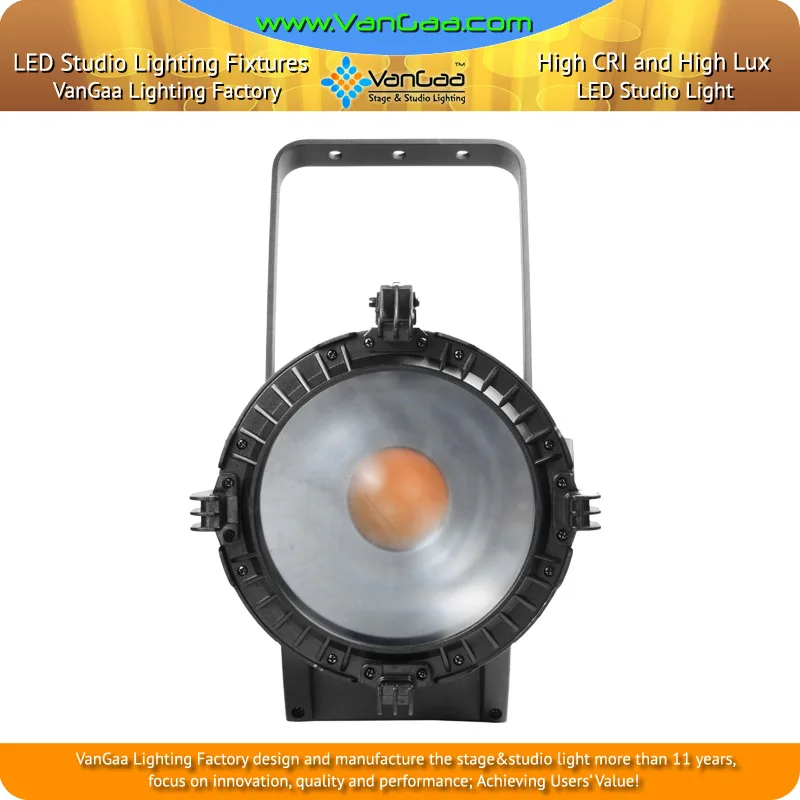

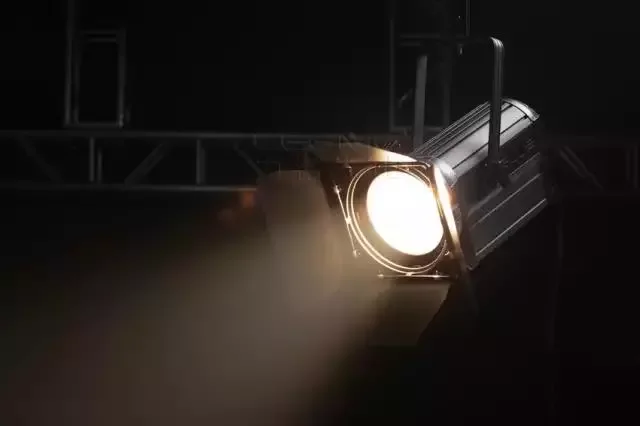

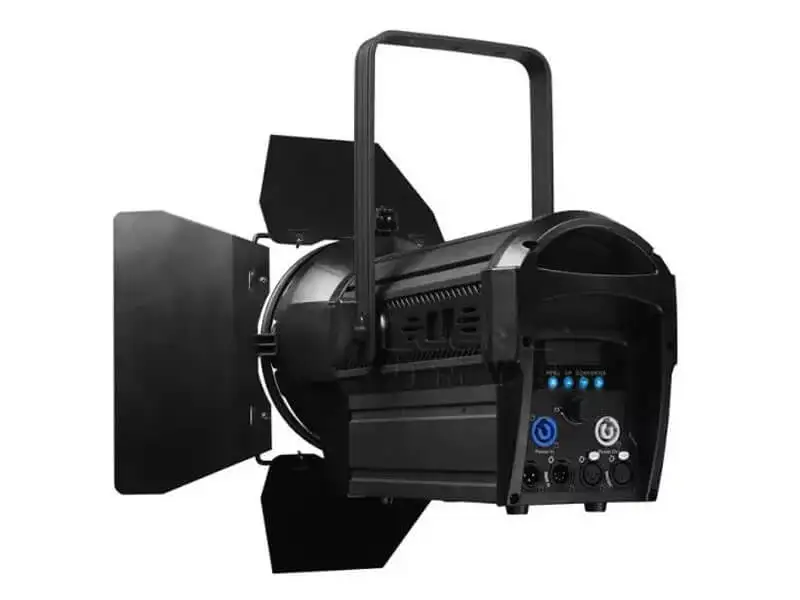

LED Fresnel Spot Light Housing Mould for Theater
- Category: LED Stage Lights >>>
- Supplier: Guangzhou,Weijia,Photoelectric,Tech.,Co.,Ltd
Share on:
Product Overview
Description
Product Description
Brand Name | Vangaa |
Power | 150W |
Color Temperature | CW, WW optional |
DMX channel | 3CH, 2CH |
LED | 1pc 100W COB LED Lamps |
Control mode | DMX-512; Auto run |
Related voltage | AC 100V-240V, 50/60 Hz |
CRI | CRI: Ra≥95 |
Function | OEM ODM |

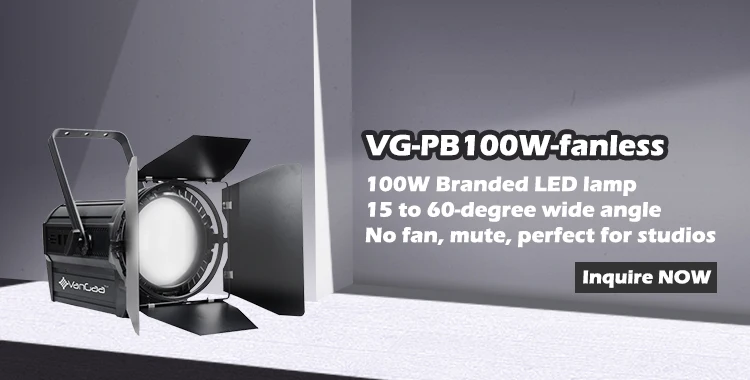

100W Continuous Daylight
Self-developed mould, Unique appearance,
Fashionable and reasonable design!

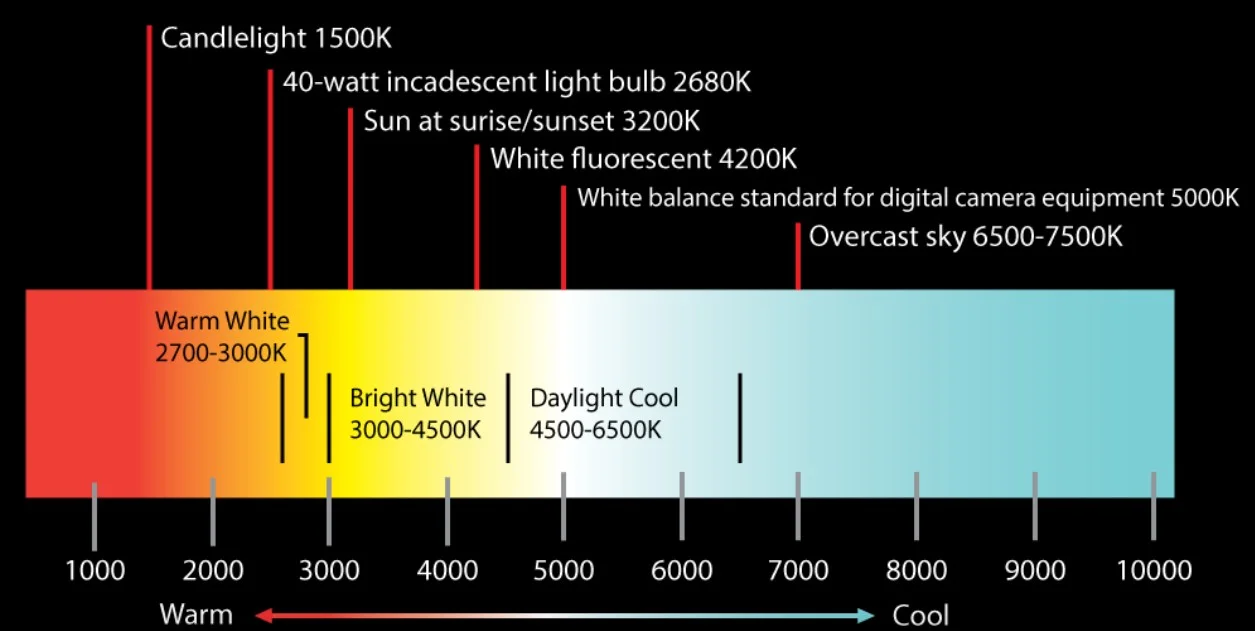

3200K or 5600K, Optional
High CRI, 95+
Restore true colors

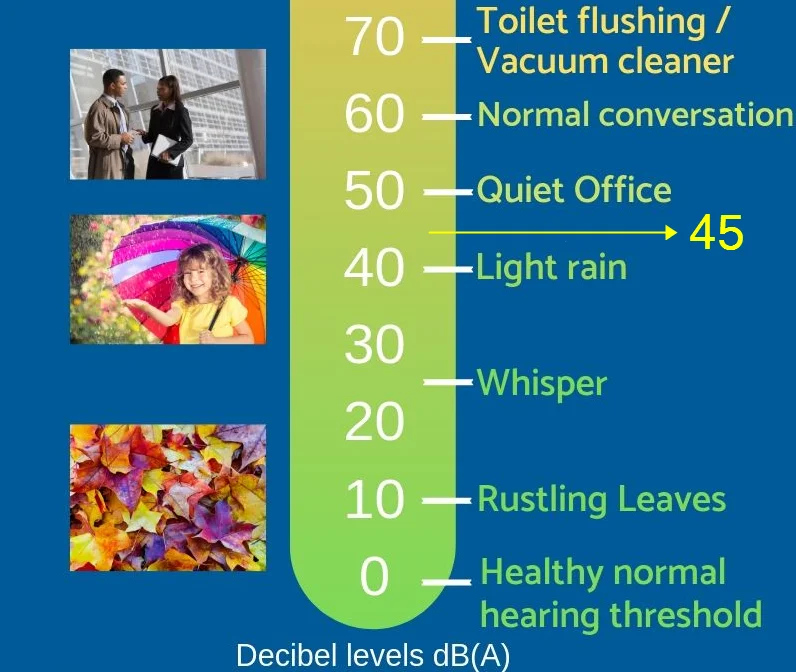

Noise level under
45db at work
Leading
technology!
Branded LED lamp, long lifespan (＞50000 hours)

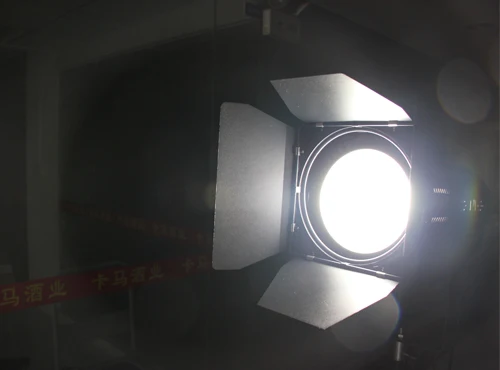

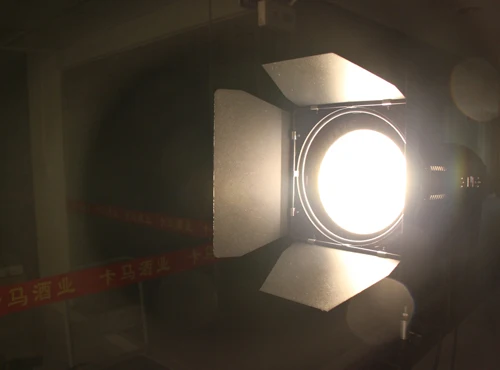

Strong Brightness, Even and Soft
LCD display + 4 buttons
3-pin or 5-pin optional DMX
White cover
based on quantity
15 years' R&D and manufacturing experience
Welcome for OEM, ODM, OBM orders.
Light Sources
* LED: 1pc 100W COB LED Lamps
* Lifespan: 500,000h
* Color: CW, WW optional
Optics
* Beam angle: 15-60degree, motorize zoom and manual zoom
* Dimmer: 0-100% linear dimmer
Light Output
* Luminous flux: 3810
* Illuminance: 1800 Lux (6m 15°)
* Optimal projection distance: 15-30m
Control
* Control mode: DMX-512; Auto run
* DMX channel: 2CH, 3CH
* Display of control panel: LCD display + 4 buttons
* LED: 1pc 100W COB LED Lamps
* Lifespan: 500,000h
* Color: CW, WW optional
Optics
* Beam angle: 15-60degree, motorize zoom and manual zoom
* Dimmer: 0-100% linear dimmer
Light Output
* Luminous flux: 3810
* Illuminance: 1800 Lux (6m 15°)
* Optimal projection distance: 15-30m
Control
* Control mode: DMX-512; Auto run
* DMX channel: 2CH, 3CH
* Display of control panel: LCD display + 4 buttons
Power Supply
* Related voltage: AC100V-240V, 50/60Hz
* Related power: 150W
Construction

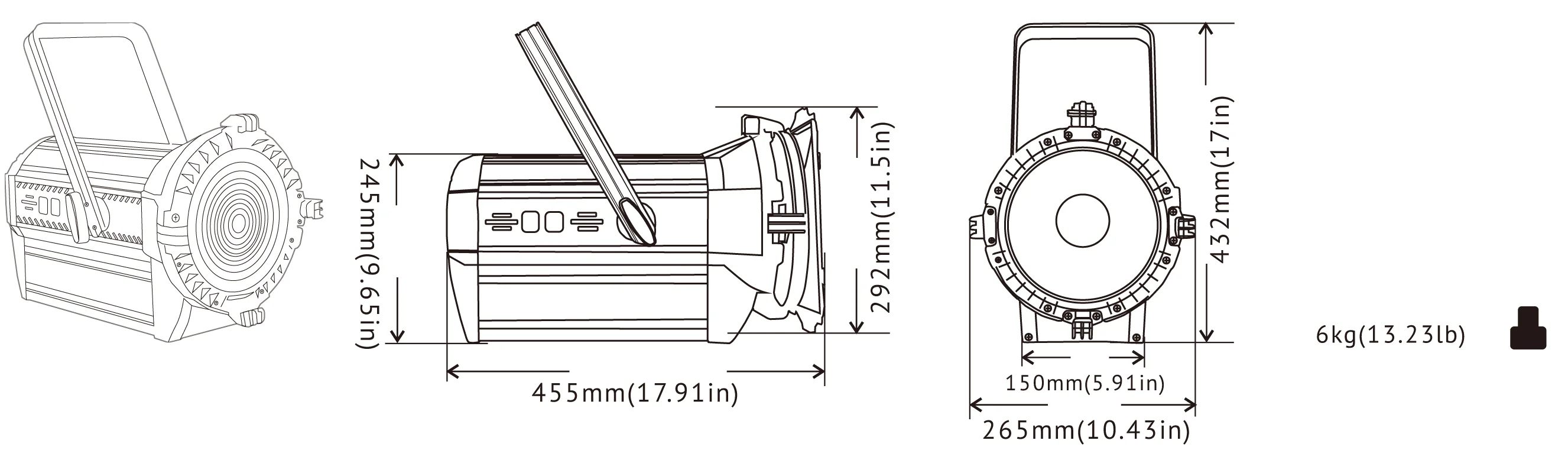

* Body dimension: D455*W265*H292mm
* Net weight: 5.8kg
* Shell color: black
* Shell material: aluminium die casting
Working Environment
* Working temperature: -25-40℃
* Cooling: Radiator, No Fan
* Protection rating: IP20
Standard Configuration Spare Part List
* Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)
* User manual: English version user manual
* Related voltage: AC100V-240V, 50/60Hz
* Related power: 150W
Construction
* Body dimension: D455*W265*H292mm
* Net weight: 5.8kg
* Shell color: black
* Shell material: aluminium die casting
Working Environment
* Working temperature: -25-40℃
* Cooling: Radiator, No Fan
* Protection rating: IP20
Standard Configuration Spare Part List
* Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)
* User manual: English version user manual
Optional Configuration Spare Parts List
* Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)
* Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)
Package
* Carton board package size: 530*330*390mm(1pc/carton) [confirmed on 19-12-3]
* N.W/G.W/V.W: 7.5kg/8.4kg/13kg
* Flight case package size: 745*640*650(4pcs/flight case)
* Net weight of flight case: 30kg
* N.W/G.W/V.W: 24kg/54kg/63kg
* Flight case package size: 1100*640*650(6pcs/flight case)
* Net weight of flight case: 34kg
* N.W/G.W/V.W: 36kg/70kg/92kg
* Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)
* Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)
Package
* Carton board package size: 530*330*390mm(1pc/carton) [confirmed on 19-12-3]
* N.W/G.W/V.W: 7.5kg/8.4kg/13kg
* Flight case package size: 745*640*650(4pcs/flight case)
* Net weight of flight case: 30kg
* N.W/G.W/V.W: 24kg/54kg/63kg
* Flight case package size: 1100*640*650(6pcs/flight case)
* Net weight of flight case: 34kg
* N.W/G.W/V.W: 36kg/70kg/92kg
Productpackage:
Flight case (customized and optional)
Thick wood board
Long hinge
Quality aluminum alloy
Best rubber wheels
Thick wood board
Long hinge
Quality aluminum alloy
Best rubber wheels

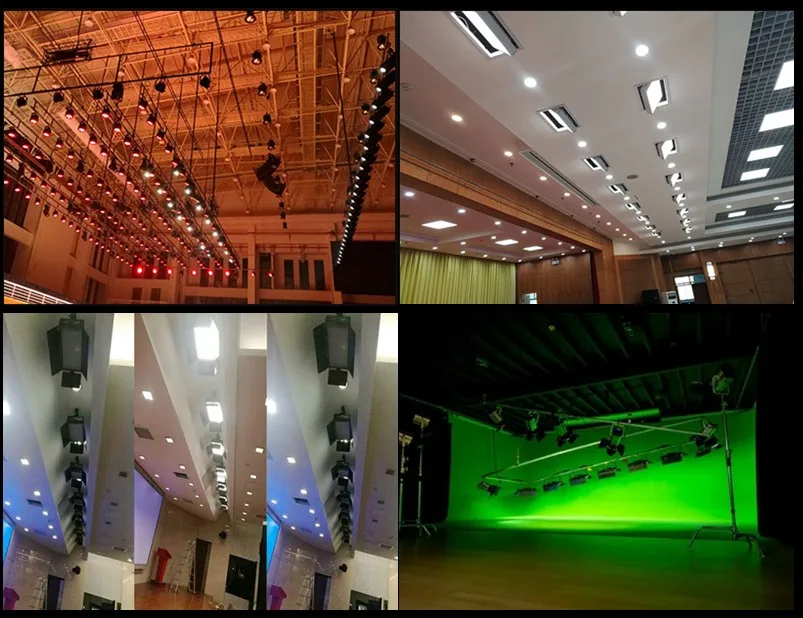

Projects Supported By VanGaa
Panel Light Series

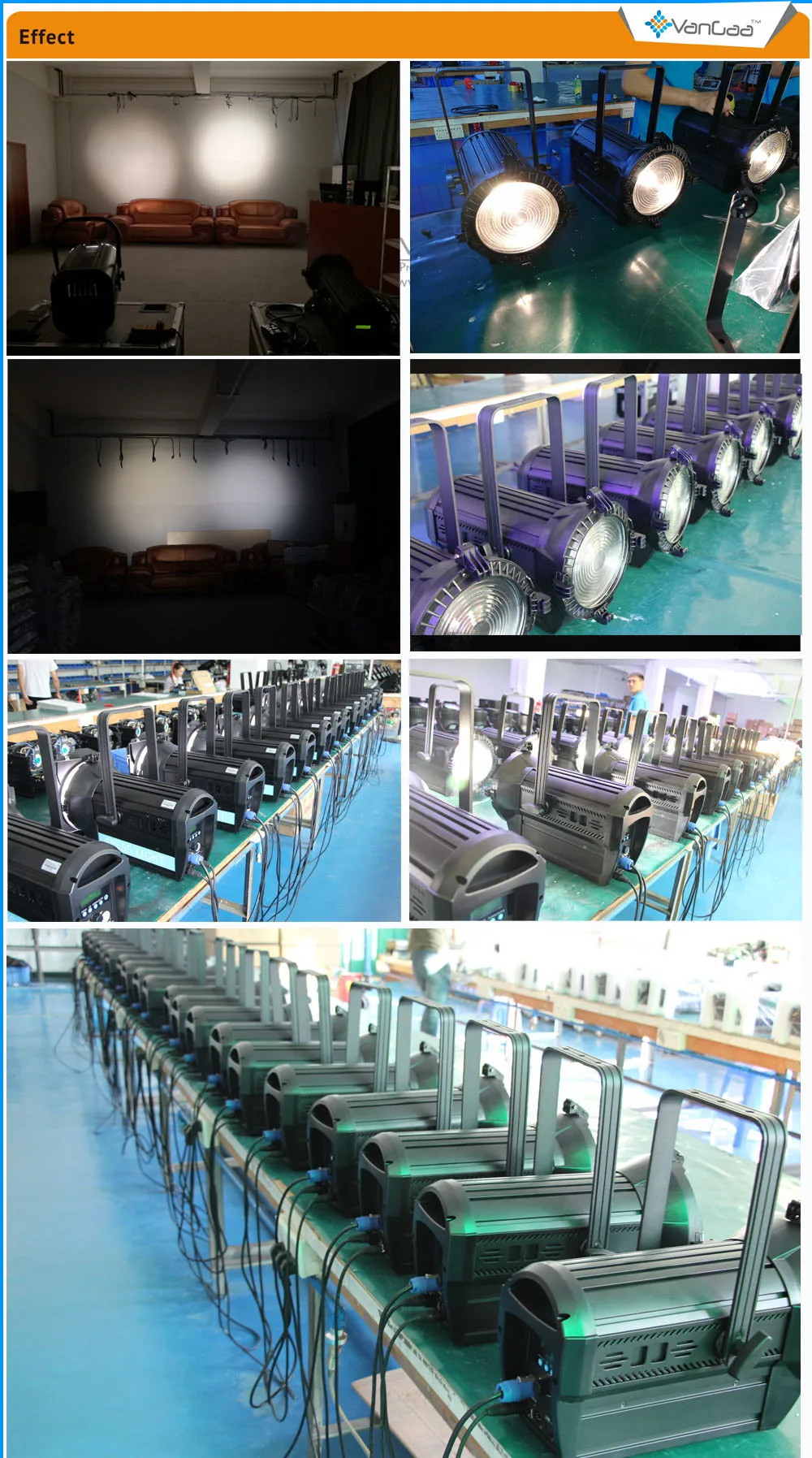

Quality Testing Department
R&D dept have 4 engineers, all of them have 4-7 years experiences in stage lighting.Each year at least 5 series new products will be launched into market. All products passed CE(EMC,LVD) & RoHS standard In order to make product be stable, we process very strickly quality control policy |
Have 4 staffs in QC Dept. |
ICQ check all materials before them ready to production line. |
QC do all lighting performance and appearance inspect when finished assembled before packing. |
1. all materials will be 100% certainly inspect,any defect materials will be returned and not used. |
2. Each fixture will be done at least 12 hours performance testing after assembled but before close cover. |
3. Fixture will take 24-48 hours aging test after finished. |
4. Each batch production we will take around 5% quantity to do hang test. |
Company Introduction
VanGaa Lighting Co., Limited is an internationally recognized company that focus on energy efficient LED technology for professional studio and stage lighting fixtures.VanGaa Lighting is established on 2006 in Guangzhou, and we have made up our own factory on 2009 which owns three production lines now. We design and developed the professional studio lighting fixtures, such as the LED Fresnel Spot Light, LED Profile Spot Light, LED Meeting Room Panel Light. The product made by this manufacturer strictly comply with ISO9001:2008, ISO14001:2004, CE and RoSH safety standards.
Certificate
FAQ
Q1. Can I have a sample order for led stage light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: 1 let us know your requirements or application.
2 We quote according to your requirements or our suggestions.
3 customer confirms the samples and places deposit for formal order.
4 We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1years warranty to our products.After the warranty period, we can continue to provide after-sales service of products and replacement of spare parts
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: 1 let us know your requirements or application.
2 We quote according to your requirements or our suggestions.
3 customer confirms the samples and places deposit for formal order.
4 We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1years warranty to our products.After the warranty period, we can continue to provide after-sales service of products and replacement of spare parts
