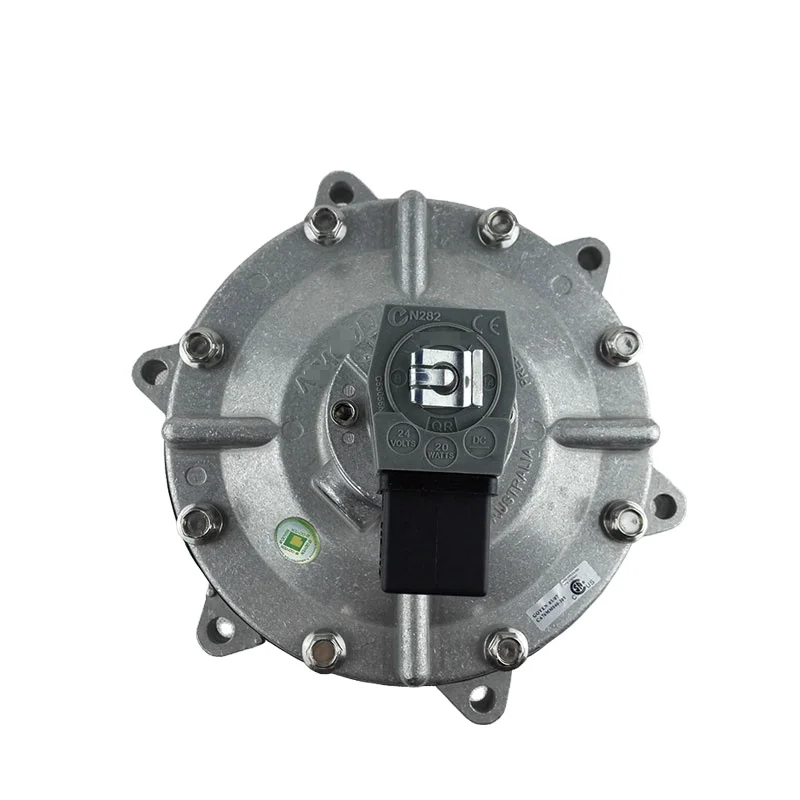

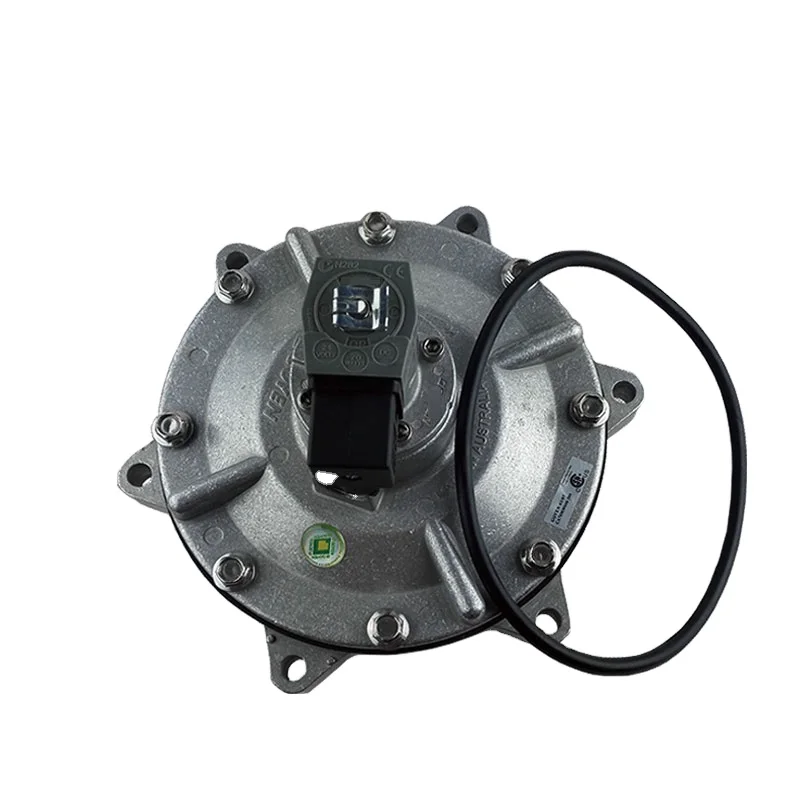

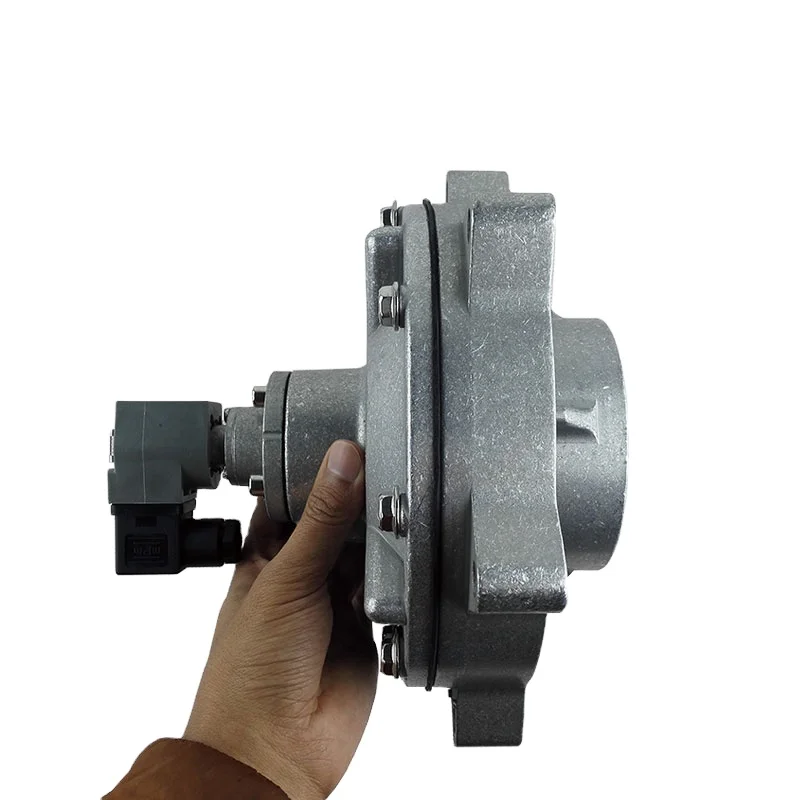

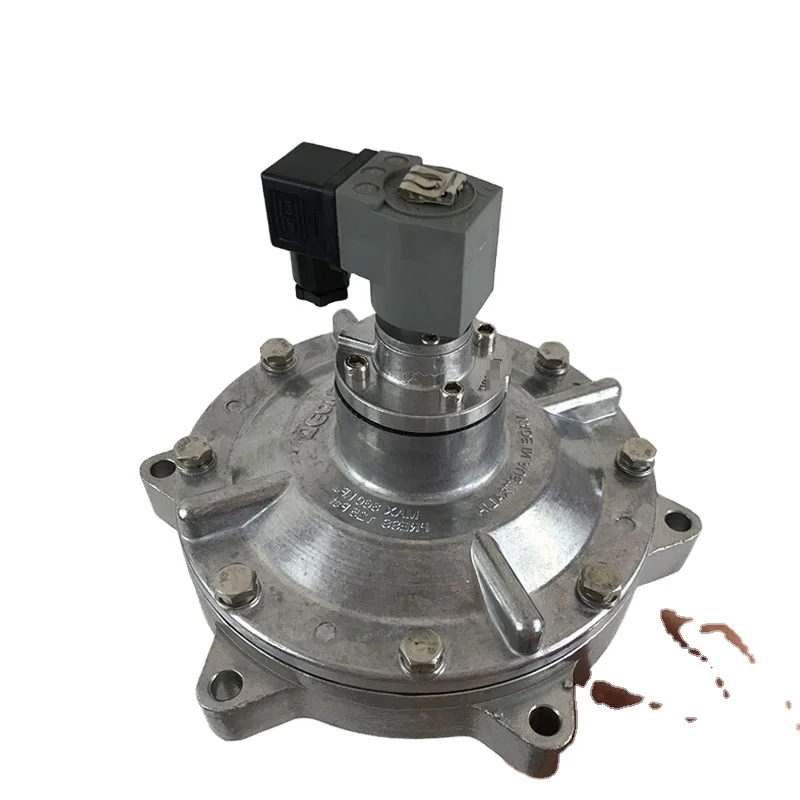

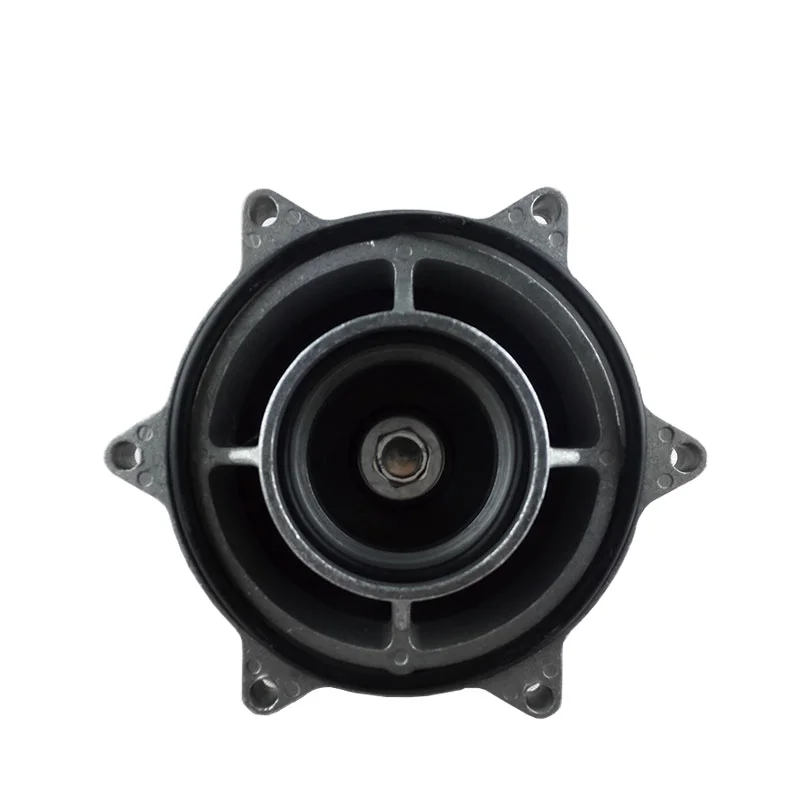

CA76MM / CA76MM010 300 / CA76MM010 305 RCA76MM Dust Collector K7600 K7601 3inch Submerged Pulse Jet Diaphragm Valve
- Category: >>>
- Supplier: Ningbo Aiwofu Automation Technology Co. Ltd.
Share on (1600112045619):
Product Overview
Description
Product Description
Product Name | ‘MM’ Series Pulse Jet Valves |
Material | Diecast Aluminium |

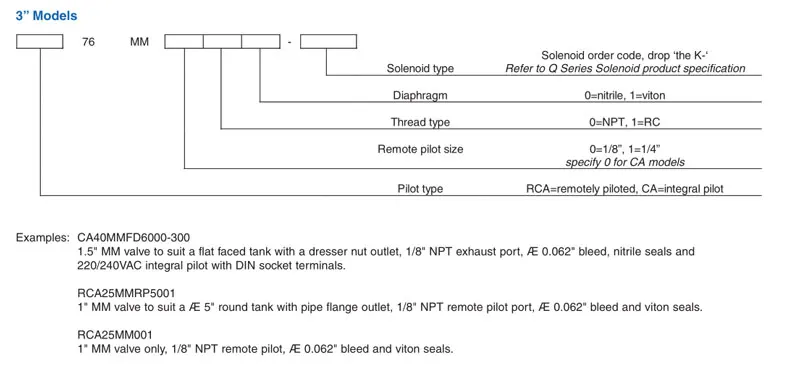

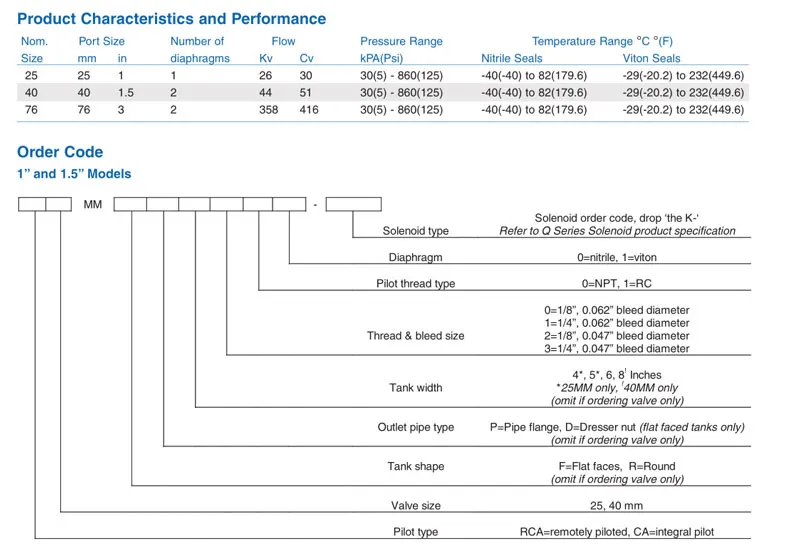

Model | CA/RCA76MM |
Valve size | G3INCH |
Description:
Very high performance diaphragm valve designed to be mounted directly into the compressed air manifold. 1"
and 1.5" models are supplied with outlet pipes to length specified, 3" model is supplied without outlet pipes.
Very high performance diaphragm valve designed to be mounted directly into the compressed air manifold. 1"
and 1.5" models are supplied with outlet pipes to length specified, 3" model is supplied without outlet pipes.
Suitable for:
Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.
Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.
Operation:
Recommended on time range: 50-500ms
Recommended time between pulses: 1 minute or greater
Recommended time between pulses: 1 minute or greater
Maintenance:
Before conducting any maintenance
activity on the system ensure that
components are fully isolated from
pressure and power supplies. Pressure
and power should not be reapplied until
the valve has been fully assembled.
Diaphragm and pilot inspection should
be conducted annually.
activity on the system ensure that
components are fully isolated from
pressure and power supplies. Pressure
and power should not be reapplied until
the valve has been fully assembled.
Diaphragm and pilot inspection should
be conducted annually.
- Installation:

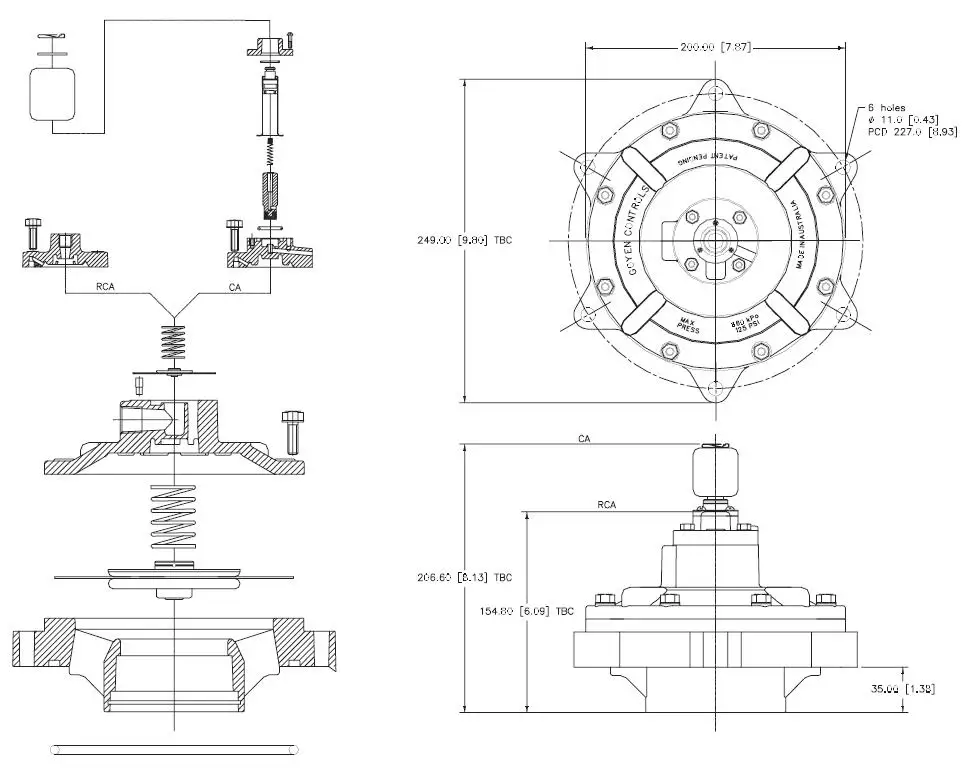

1. MM valves are installed through the tank, refer to the appropriate template listed above.
2. To avoid any potential operational problems it is preferable that the valves are not mounted underneath the tank where condensation may collect. All o-rings should be coated with a silicone based lubricant or similar.
3. Dresser nut seals where used are a pressure seal only, not a structural component. Do not rely on dresser seals to retain either the tanks or blowtubes. Tanks and blowtubes must be independently restrained.
3. Dresser nut seals where used are a pressure seal only, not a structural component. Do not rely on dresser seals to retain either the tanks or blowtubes. Tanks and blowtubes must be independently restrained.
4. Tighten dresser nuts to 20Nm (15 ftlbs) max.
5. Tighten pipe outlets to 20 Nm (15 ftlbs).
6. Connect to Goyen pilot valve, if remotely actuated.
7. Ensure compressed air supply is dry and free from oil and dirt.
8. Check all cleaning system components are secure before applying pressure.
9. Apply moderate pressure and check for leaks.
10.Fully pressurise system.
11.Test fire and listen for proper actuation and crisp pulse noises.
5. Tighten pipe outlets to 20 Nm (15 ftlbs).
6. Connect to Goyen pilot valve, if remotely actuated.
7. Ensure compressed air supply is dry and free from oil and dirt.
8. Check all cleaning system components are secure before applying pressure.
9. Apply moderate pressure and check for leaks.
10.Fully pressurise system.
11.Test fire and listen for proper actuation and crisp pulse noises.
