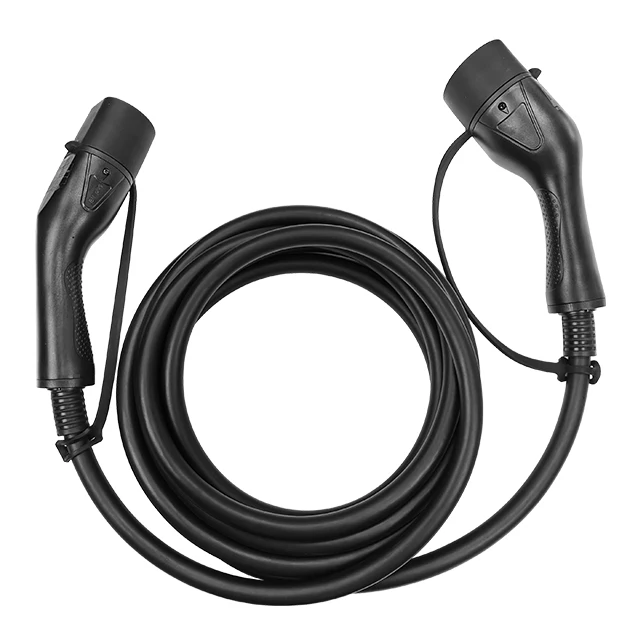

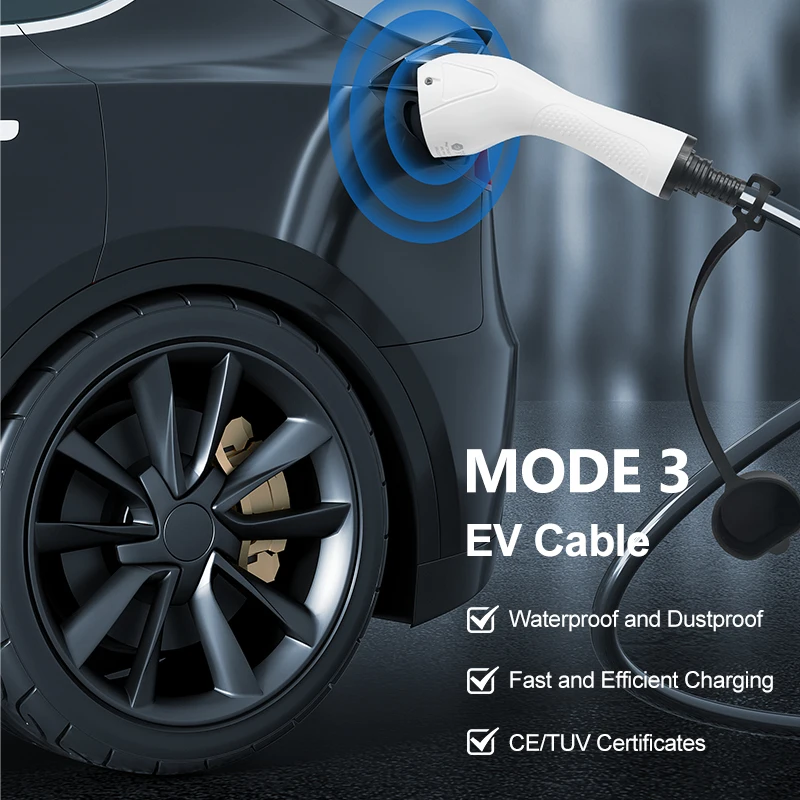

8 м 32A IEC62196 TUV CE сертифицированный Тип 2 to type 2 зарядный кабель для электромобиля портативный EV кабель
- Category: >>>
- Supplier: Dongguan Yongsheng Cables Technology Co. Ltd.
Share on (1600112075075):
Product Overview
Description
Specification
The Product Definition | Mechanical Behavior | |||||
Standard | IEC 62196-2 | Insertion & Pullout Times | > 10,000 times | |||
Charging Mode | Mode 3 | Insertion force | <100N | |||
Current Type | AC | Withstanding Impact Force | 5000 N | |||
Ambient Condition | Electrical Characteristics | |||||
Ambient Temperature(working) | -30℃~+50℃ | Rated Current | 16A/32A | |||
Ambient Temperature(storage) | -30℃~+50℃ | Rated Voltage | 250Vac/480Vac | |||
Ingress Protection | IP54(mated) | Insulation Resistance | ≥5MΩ | |||
Cable Configuration | ||||||
16A Single Phase | 3*2.5mm²+1*0.75mm² | |||||
16A Three Phase | 5*2.5mm²+1*0.75mm² | |||||
32A Single Phase | 3*6mm²+1*0.75mm² | |||||
32A Three Phase | 5*6mm²+1*0.75mm² | |||||
