SINOLIFT CTY1000-M700 Manual Hydraulic Roll Lifter Paper Roll Lifter
US $790.00-$820.00

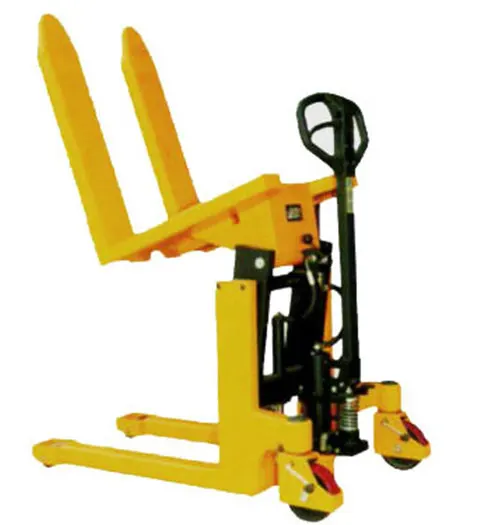

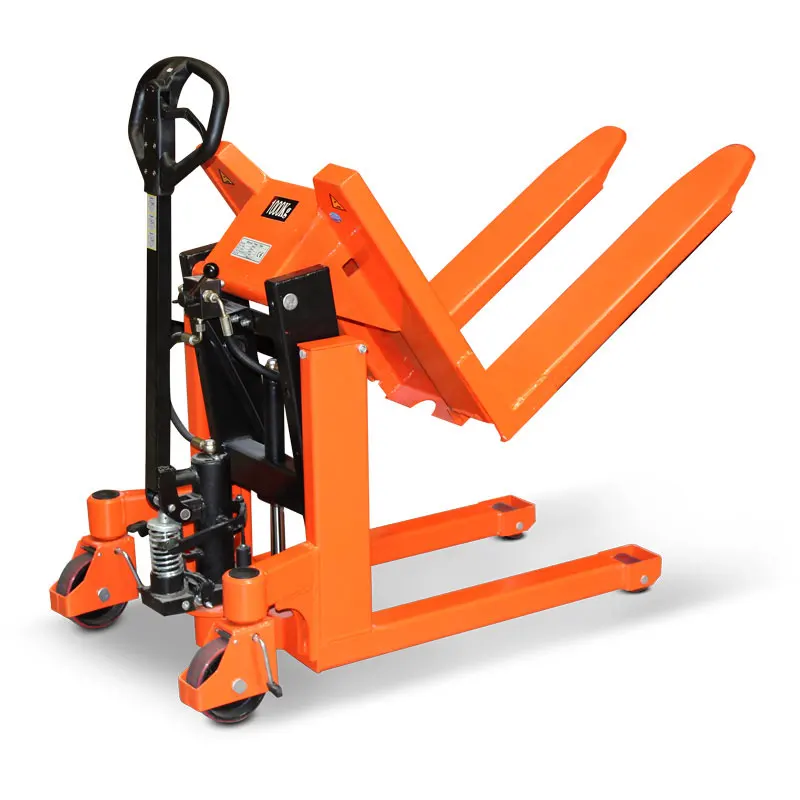

LT10M Manual Pallet Tilter Tuck
- Category: Other Material Handling Equipment >>>
- Supplier: Shanghai,Sinolift,Mechanical,and,Electrical,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
· Manual hydraulic pump tilter-lift & tilts crates, boxes & Euro pallets
· Gives the user the ergonomically correct position to reach loads easily without bending or stretching
· Lifting capacity - 1000Kg
· Forks will title through to 90°
· Pulling / Pumping handle can be locked in position away from line of work
· Lift & Tilt operated by single pump unit fitted with supply changeover valve
· Delivery Ex Stock
· CE marked,

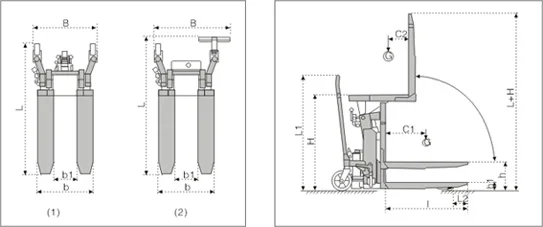

| Model | LT10M | |
| Type | Manual | |
| Capacity | (kg) | 1000 |
| Lifting Height, Vertical | h (mm) | 285 |
| Min.Fork Height | h1 (mm) | 85 |
| Fork Length | l (mm) | 800 |
| Handle Height | L1 (mm) | 1138 |
| Overall Fork Width | b (mm) | 560 |
| Width Between Forks | b1 (mm) | 234 |
| Fork Tip Length From Roller | L2 (mm) | 135 |
| Overall Width | B (mm) | 638 |
| Overall Length | L (mm) | 1325 |
| Overall Height, Raised | H (mm) | 950 |
| Overall Height, Lowered | H (mm) | 750 |
| Load Centre Min./Max. | C1 (mm) | 200/400 |
| Load Centre Min./Max. | C2 (mm) | 200/420 |
| Power Unit | (KW/V) | — |
| Net Weight | (kg) | 178 |
