380V 220V electric hydraulic piston pump
- Category: >>>
- Supplier: Zhengzhou,Gaode,Equipment,Co.,Ltd.
Share on:
Product Overview
Description

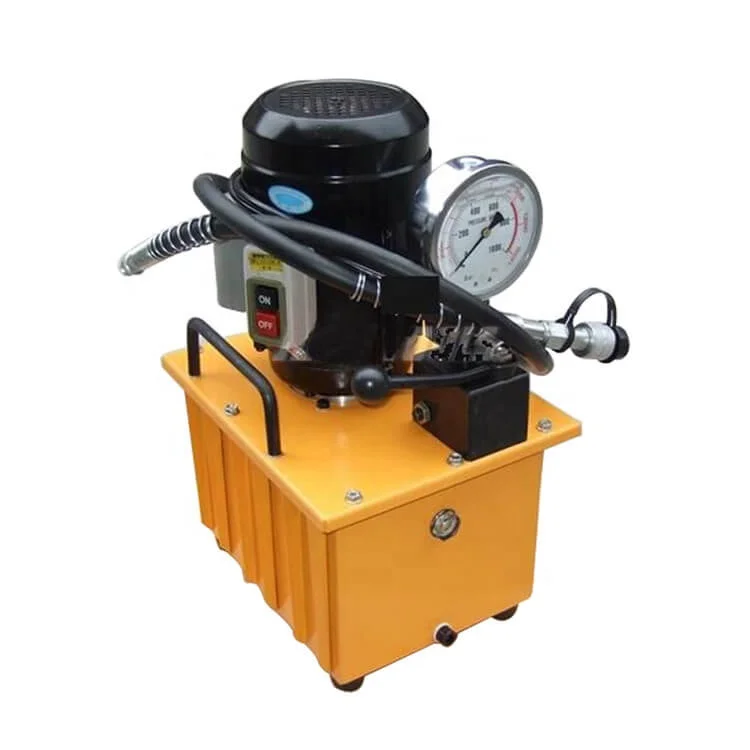

380V 220V electric hydraulic piston pump
Product Description
Power: 0.55~11Kw Oil capacity:7~150L
This ultrahigh pressure double acting electric oil pump is a complete hydraulic power pack, it is made of oil pump, control valve, oil box, motor, oil gauge and etc.
We also can customize electric hydraulic oil pump according to client’s requirements.
Application
1) The power pack is matched with other hydraulic tool, it can supply driven for lifting, profiling, bending pipe, straightening, tearing down, cutting, installing, gauging pipe, punching and etc.
2) It also can be installed into some machine for supplying power pack.
3) As test pressure pump station for kinds of high pressure hydraulic component,
high pressure container, high pressure rubber hose.
Features of electric hydraulic oil pump:
Small dimension, light weight, convenient usage, high working pressure.
Double stage pump station: high-low pressure pump supply oil at the same time
Holding function: at the condition that outer oil-way is no reveal, stop the pump for holding 5 minters, rated pressure reduce less than 5Mpa.
Technical Parameters
| Type | Power Kw | High pressure Mpa | High pressure flow L/min | Low pressure flow L/min | Oil capacity L | Weight Kg |
| ZB-0.55 | 0.55 | 63 | 0.4 | 1 | 7 | 23 |
| ZB-0.75 | 0.75 | 63 | 0.7 | 2.4 | 16 | 33 |
| ZB-1.5 | 1.5 | 63 | 1 | 6 | 26 | 55 |
| ZB-2.2 | 2.2 | 63 | 2.4 | 6 | 42 | 70 |
| ZB-3 | 3 | 63 | 3 | 6 | 42 | 90 |
| ZB-4 | 4 | 63 | 4 | 9 | 60 | 118 |
| ZB-5.5 | 5.5 | 63 | 5 | 10 | 90 | 125 |
| ZB-7.5 | 7.5 | 63 | 7 | 10 | 120 | 150 |
| ZB-11 | 11 | 63 | 9 | 20 | 150 | 220 |
We also can customize electric hydraulic oil pump according to client’s requirements.
Related Products

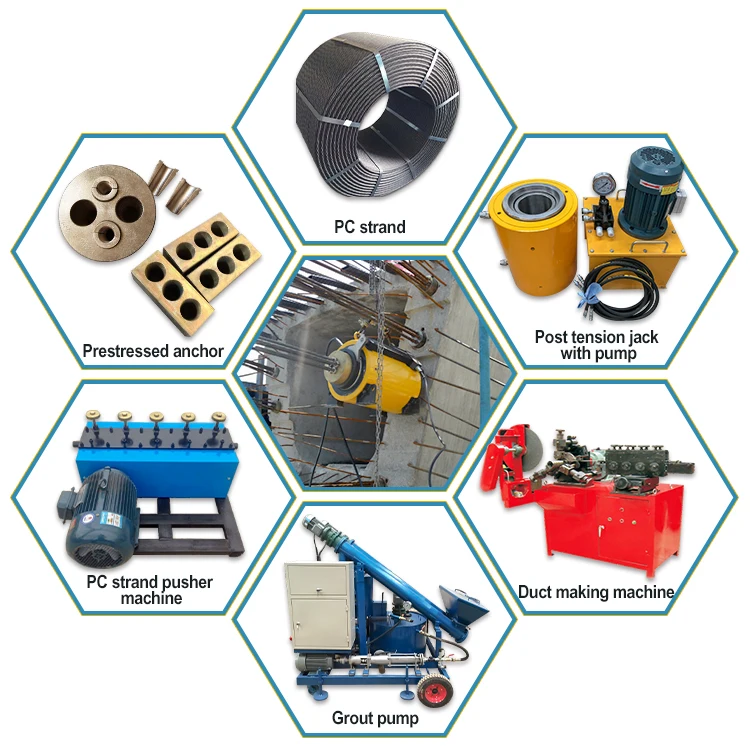

We can also provide:
Post tension jack with pump: The equipment can be used to tighten various steel strand anchors, and has a matching hydraulic oil pump.
PC strand: 12.7 mm and 15.2mm prestressed concrete wire strand.
Prestressed anchor: Anchor head, bearing plate, anchor wedge, spiral reinforcement, metal corrugated ducts, PC strands. Good tensile performance, continuous stability, high efficiency coefficient, convenient operation.
PC strand pusher machine: PC strand pusher machines are widely used in prestressing jobs. The operation is simple and the maintenance is convenient, saving manpower and improving work efficiency.
Grout pump: The equipment can be used for grouting of prestressed Bridges.
Duct making machine: The machine can produce bellows for bridge prestressing and small, efficient, easy to operate.
All the machines can be customized according to client’s requirements, supply the best quality and serve. Our warranty is 2 years.
Packaging
1. First, electric hydraulic oil pump packaging is a bubble film packaging packaging.
2. The electric hydraulic oil pump packaging generally uses a square wooden box, which has better pressure resistance and impact resistance.
