Automatic PVC blister paper card heat sealing packing machine for scrubber
- Category: Blister Packaging Machines >>>
- Supplier: Wenzhou Anchuang Machinery Technology Co. Ltd.
Share on (1600112422261):
Product Overview
Description
AC-600 Automatic High Speed Blister Card Packing Machine
Product Paramenters
Mode | AC-600 |
Production speed | 15-18 cycles/min |
Stroke range | 30mm-260mm |
Max forming area | 500mm*180mm |
Max forming depth | 35mm |
Forming heating power | 3.5kw(*2) |
Heat sealing power | 4.5kw |
Total power | 13kw |
Worker | 2 person |
Air consumption | ≥0.5m³/min |
Air Pressure | 0.5-0.8mpa |
Packing material（PVC）(PET) | thickness 0.15mm-0.5mm |
Max paper dimension | 600mm*200mm*0.5mm |
Total Weight | 2500kg |
Machine dimension(L*W*H) | 6200mm*800mm*1880mm |
Machine dimension(L*W*H) | 5000mm *1100mm*1800mm |
Production Process &Detial
The production process is PVC heating---Blister card forming---servo motor traction---scrap collection---blister cutting-manipulator grap the blister to the chain- place product ---paper card lay down ---blister and paper card hot sealing---product output
Optional: Euro-hole device, labeling machine

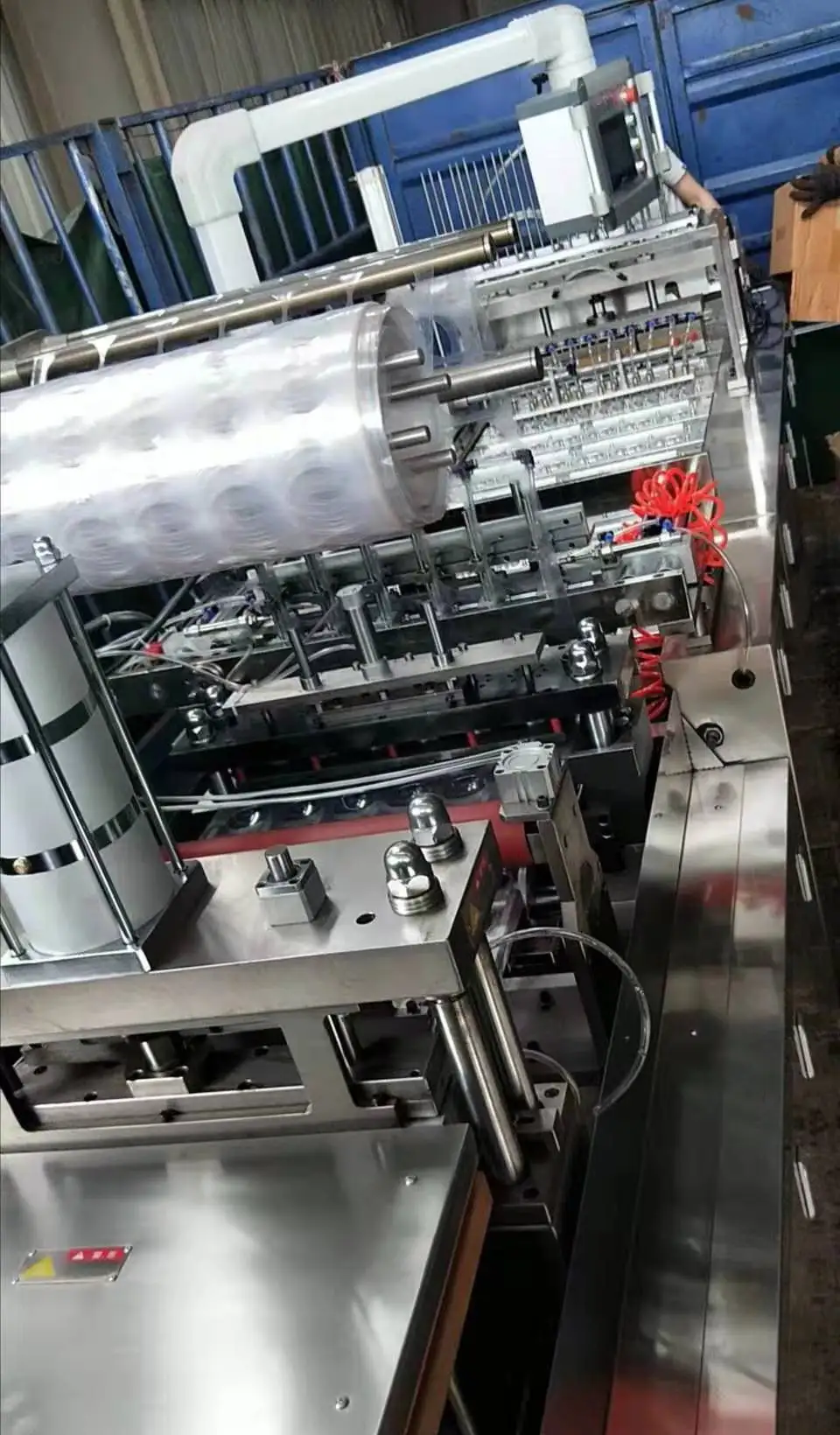

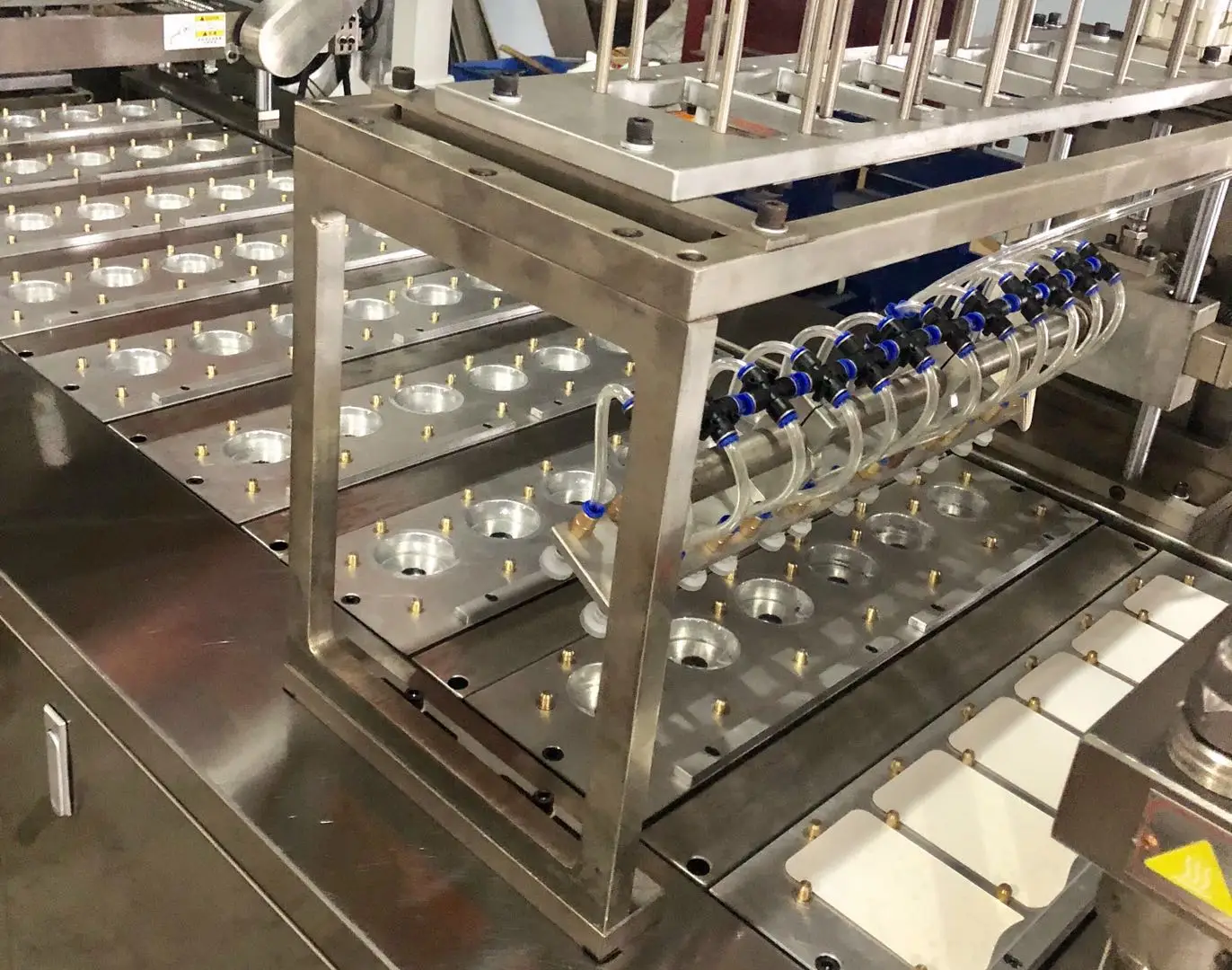

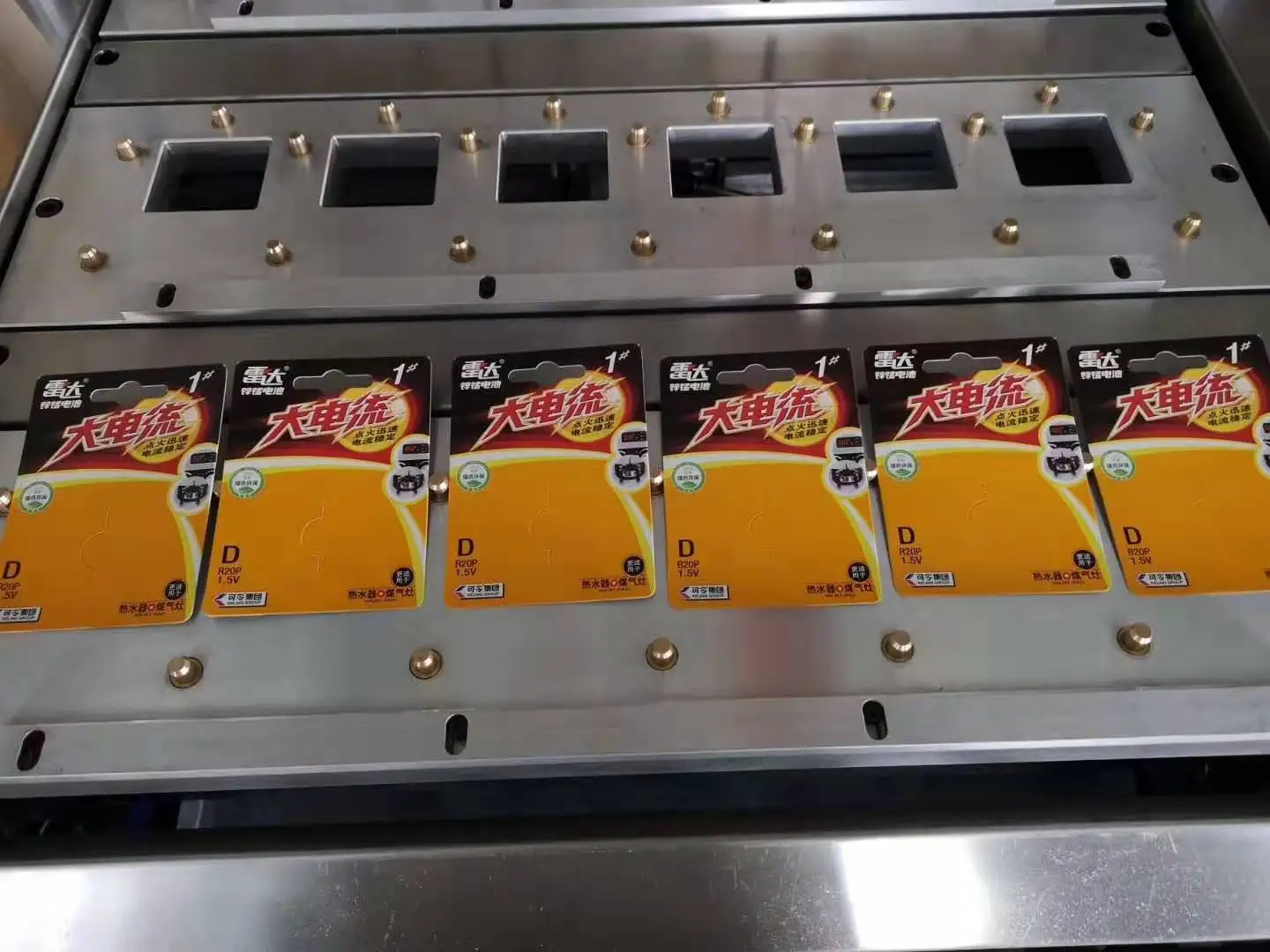

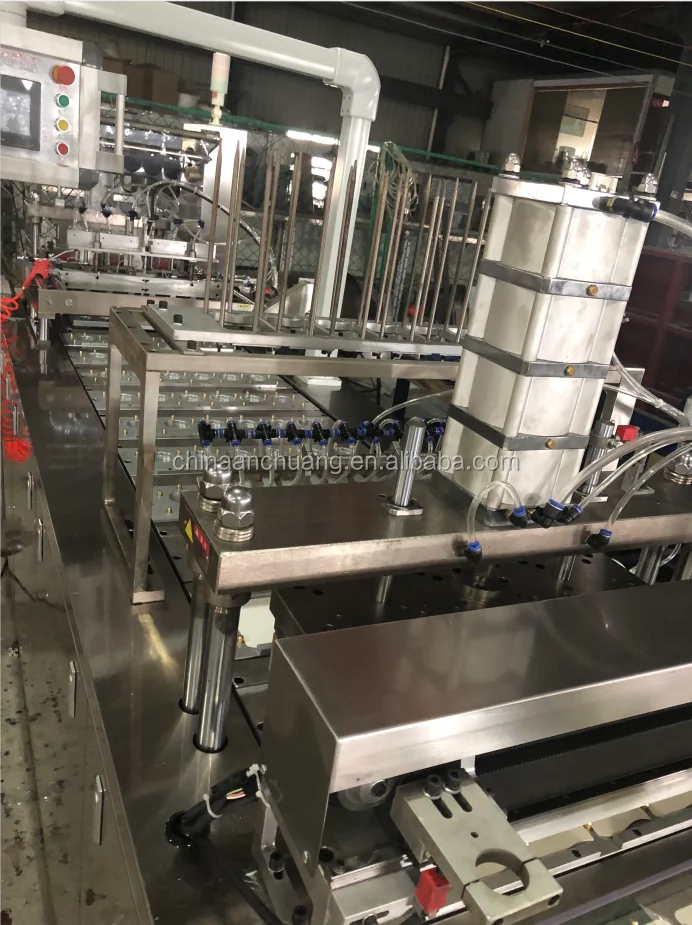

Machine real shot detail as below:
The electrical accessories we use are cooperated with many big brand suppliers
Ensure our equipment is more stable and reliable and our efficiency is higher.
