sihi circulating water vacuum pump for filtration industry

Product Overview

Description

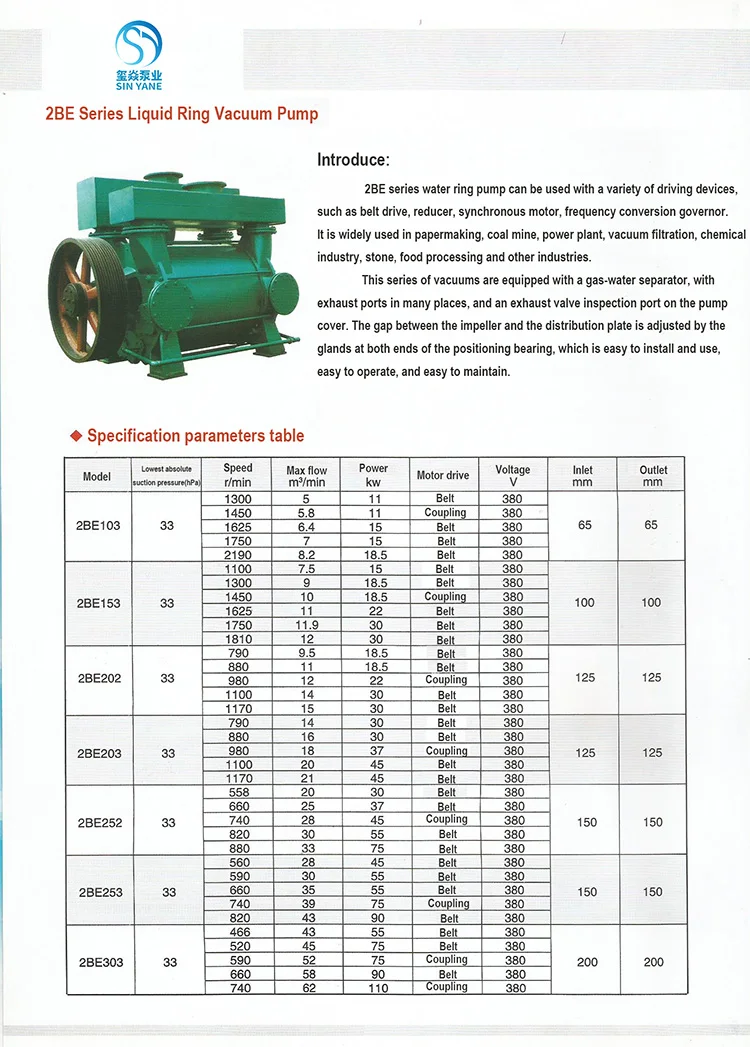

2BE series water circulating liquid ring vacuum pump

Introduce
2BE series water ring pump can be used with a variety of driving devices, such as belt drive, reducer, synchronous motor, frequency conversion governor. It is widely used in papermaking, coal mine, power plant, vacuum filtration, chemical industry, stone food processing and other industries.

Main Features
1.Pump cover on both sides of a large inspection hole, they can be checked through the clearance, corrosion scale.
2.All the bearings are original imported bearings, which ensures the accurate positioning of the impeller of 2BE3 series water ring vacuum pump and high stability during operation.
3.The pump body is made of steel plate or stainless steel, providing the service life of 2BE3 series water ring vacuum pump.
4. pulley (belt drive) using standard precision Bushes, reliable operation and long belt life, easy removal.
5.coupling (direct drive) using a standard high-strength elastic couplings, flexible components using polyurethane materials, stable and reliable, long service life.
6. 2BE3 pump sleeve as the most easily damaged parts, all use stainless steel material than the average life expectancy has increased by 5 times.
7. unique top-mounted gas-water separator to save space, and effectively reduce the noise.
8. casting resin sand casting in all, good quality, without the need to play tired, so 2BE3 heat pump works best.
9. mechanical seals (optional) all imported parts, fully guaranteed 2BE3 series vacuum leak in long-running process.INQUIRE NOW

Item	sihi circulating water vacuum pump for filtration industry
Model	2BE series
Material	Cast inron or Stainless steel
Color	Blue and adjustable
Mode	Horizontal
Impeller	Open impeller
Seal	Mechanical seal
Speed	970~2880r/min
Theory	Vacuum pump
Structure	Single pump
Usage	Food processing, vacuum filtration,etc
Power	Electric
Standard or Non	Standard
Shaft	Stainless steel
Capacity	5-560m³/min
Power	11-800kw
Warranty	1year
Certificate	ISO9001:2008
OEM	Acceptable GET THE LATEST PRICE
Feature	Cheap, mature technology, widely used
