copper fittings, alloy, stainless steel, carbon steel fittings Reducer and tee beveling machine
- Category: >>>
- Supplier: Shanghai Mingheng Pipe Fittings Machinery Co. Ltd.
Share on (1600113262913):
Product Overview
Description
Machine Model and Main Parameters
Beveling: Concentric Reducer & Eccentric Reducer Raw Material: Carbon Steel, Stainless Steel, Alloy Steel Applicable Standards: ASME B16.9, ASME B16.11, GB12459, JIS, DIN, GOST | ||||||||||||||
Parameter Model | Beveling Size (Inch) | Max. Wall Thickness | Feed Type of Sliding Table | Clamping Type | System Pressure (Mpa) | Power (KW) | Weight (T) | |||||||
YTPDJ2503A | 1/2"-3" | SCH80 | Hydraulic | Hydraulic | 7 | 10 | 3.5 | |||||||
YTPDJ3204A | 1"-4" | SCH80 | Hydraulic | Hydraulic | 7 | 15 | 4 | |||||||
YTPDJ4008A | 3"-8" | SCH80 | Hydraulic | Hydraulic | 7 | 19 | 7.6 | |||||||
YTPDJ4010B | 4"-10" | SCH80 | Hydraulic | Hydraulic | 7 | 19 | 8.5 | |||||||
YTPDJ5012B | 5"-12" | SCH80 | Hydraulic | Hydraulic | 7 | 26 | 11.5 | |||||||
YTPDJ5016A | 8"-16" | SCH80 | Hydraulic | Hydraulic | 7 | 34 | 14 | |||||||
YTPDJ6324A | 12"-24" | SCHXS | Hydraulic | Hydraulic | 7 | 48 | 22 | |||||||
Product Paramenters

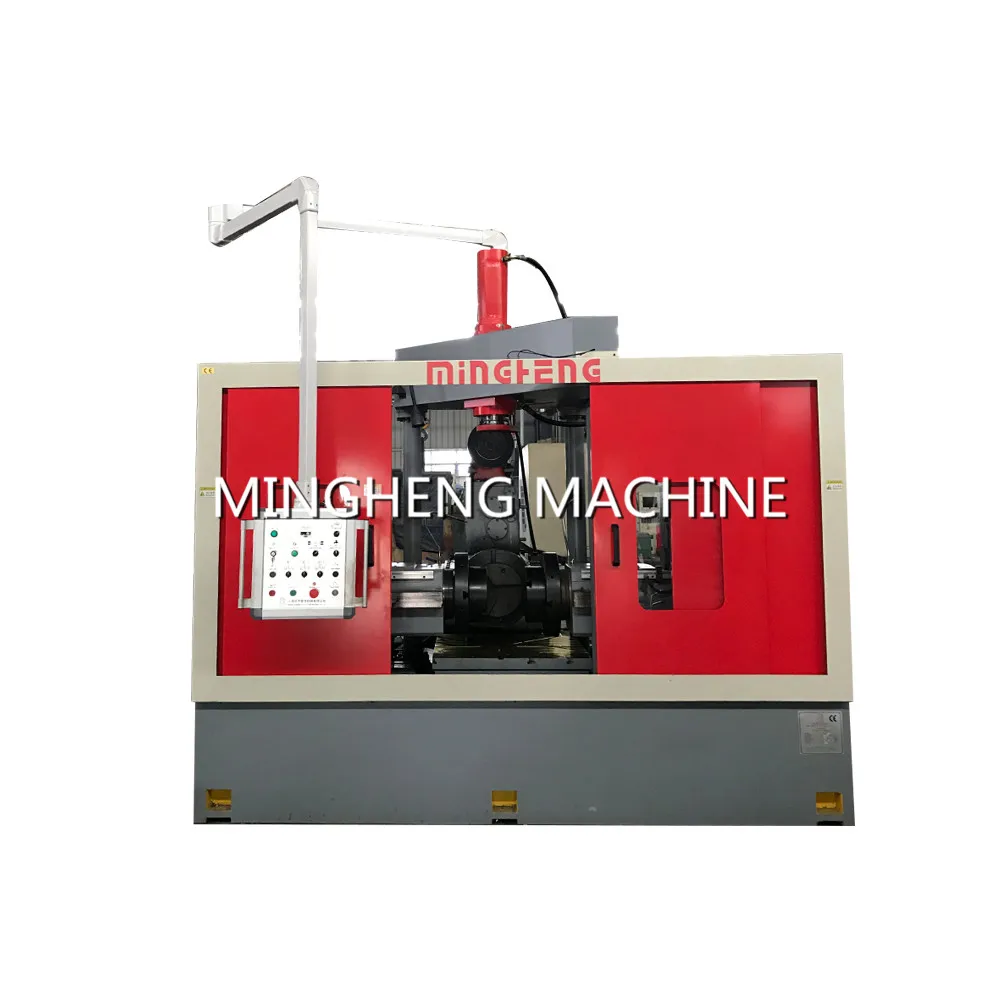

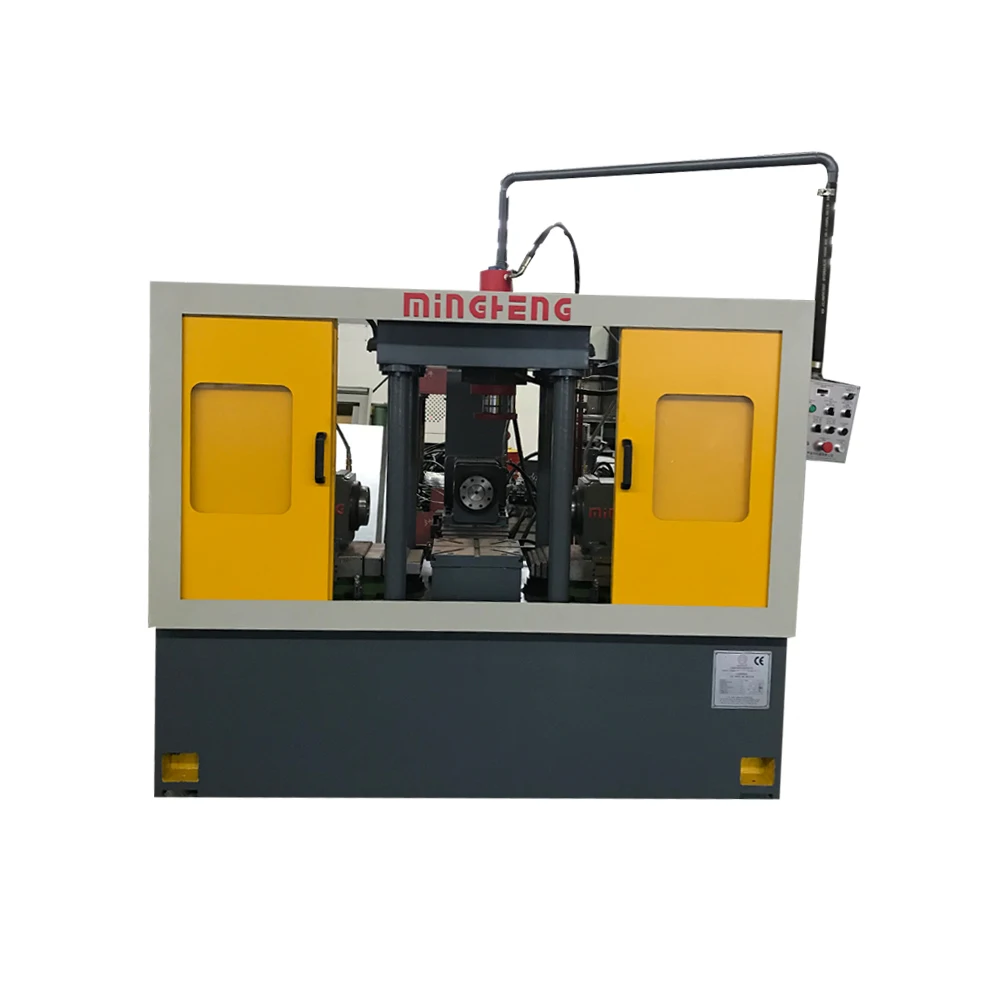

YTPDJ series reducer beveling machine is specially designed for beveling both concentric and eccentric reducers of size 1/2"to 48" at both ends simultaneously. It has the features of compact structure, good appearance and convenient to operate.The materials of the reducers can be carbon steel, stainless steel and alloy steel.
Main Features
* It has high precise-locating device for reducer jigs, excellent hydraulic clamping device and individual hydraulic power unit.
* The sliding table is functioned with fast feeding, inching and fast retreat hydraulic stepless speed control, very safe and
easy to operate.
* The processing stroke is also adjustable according to the size and the thickness of reducers based on relevant beveling
standard.
* There are three tips for each power head, they serve for different range of work and can work at the same time to ensure the effective cutting and fully satisfy stable requirements of the guide track under the status of strong cutting.
* The application of floating cutter for large size helps to solve the difficulties of rough roundness of hydro-forming elbows,which developbeveling precision and decrease reject ratio.
* Get CE approval and ISO 9001: 2015
* The sliding table is functioned with fast feeding, inching and fast retreat hydraulic stepless speed control, very safe and
easy to operate.
* The processing stroke is also adjustable according to the size and the thickness of reducers based on relevant beveling
standard.
* There are three tips for each power head, they serve for different range of work and can work at the same time to ensure the effective cutting and fully satisfy stable requirements of the guide track under the status of strong cutting.
* The application of floating cutter for large size helps to solve the difficulties of rough roundness of hydro-forming elbows,which developbeveling precision and decrease reject ratio.
* Get CE approval and ISO 9001: 2015

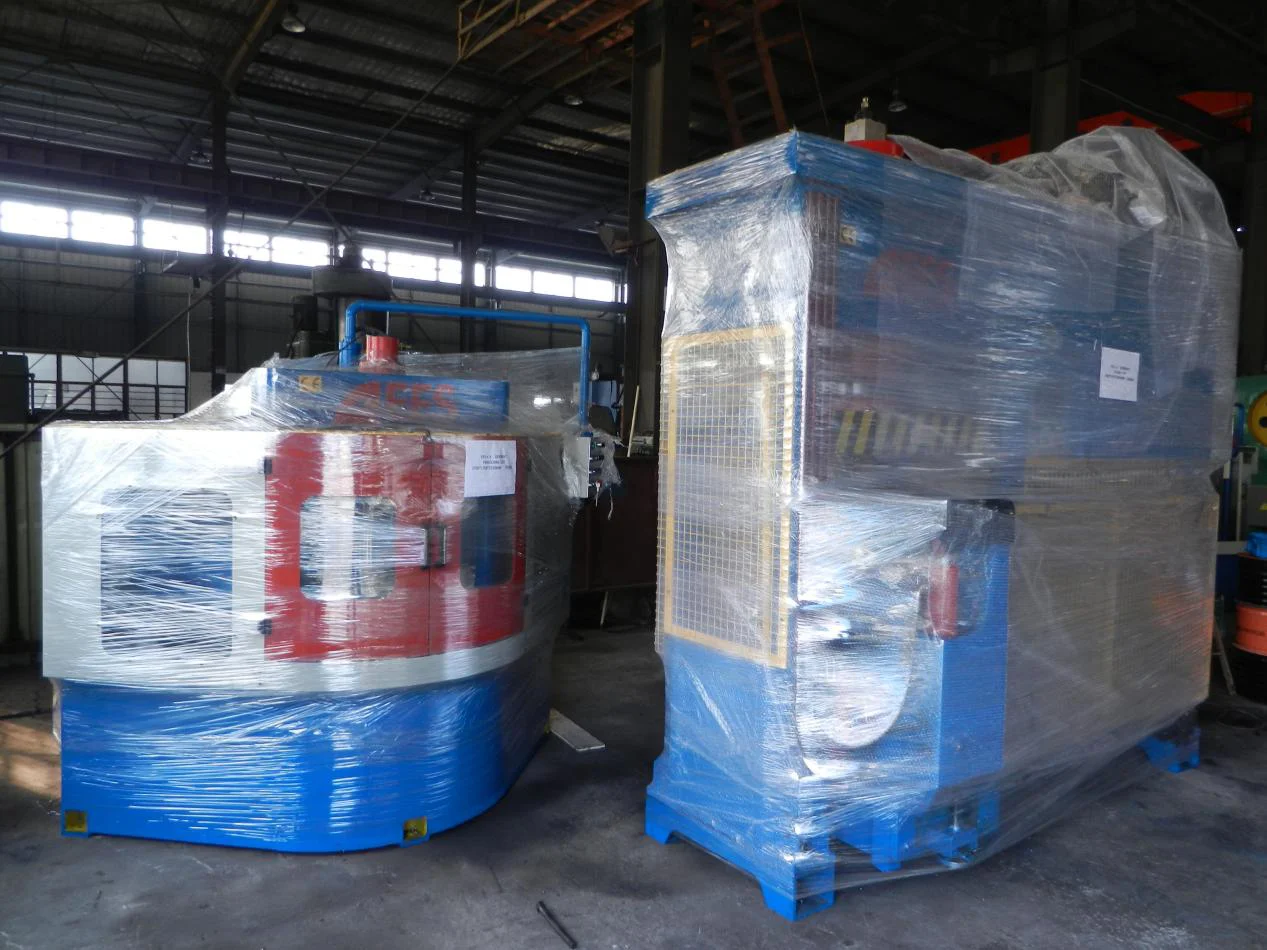

Packing & Shipping
Customer Photos
Certifications
transport
FAQ
Q: Are you a manufacturer or trading company?
A: We are a manufacturer. We specialize in butt weld pipe fittings manufacturing and processing machinery for over 20 years.
Q: What’s your advantage?
A: We integrated R&D, production and sales together, and we can provide you high quality machine to help you increase products quality and production efficiency.
Q: How many countries your machines have been exported?
A: With excellent quality, advanced technology and good after-sale service, our machines have been exported all over the world, as of now more than 50 countries, including USA, Canada, Mexico, Germany, UK, Poland, Russia, Czech, Slovakia, Ukraine etc.
Q: How to choose the pipe fittings machines?
A: You have to inform us following details: OD, Wall thickness, Material etc.
Q: What is the biggest production capacity you could offer for elbow and tee cold forming?
A: As of now the biggest production capacity is 28”(720mm) for elbow cold forming and 24”(630mm) for tee cold forming.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Shanghai. You can fly to Shanghai Pudong Airport or Shanghai Hongqiao Airport directly.
A: We are a manufacturer. We specialize in butt weld pipe fittings manufacturing and processing machinery for over 20 years.
Q: What’s your advantage?
A: We integrated R&D, production and sales together, and we can provide you high quality machine to help you increase products quality and production efficiency.
Q: How many countries your machines have been exported?
A: With excellent quality, advanced technology and good after-sale service, our machines have been exported all over the world, as of now more than 50 countries, including USA, Canada, Mexico, Germany, UK, Poland, Russia, Czech, Slovakia, Ukraine etc.
Q: How to choose the pipe fittings machines?
A: You have to inform us following details: OD, Wall thickness, Material etc.
Q: What is the biggest production capacity you could offer for elbow and tee cold forming?
A: As of now the biggest production capacity is 28”(720mm) for elbow cold forming and 24”(630mm) for tee cold forming.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Shanghai. You can fly to Shanghai Pudong Airport or Shanghai Hongqiao Airport directly.
Welcome to visit us!
Q: How does your factory do regarding quality control?
A: Quality is our culture. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE certificate and ISO9001:2015 certificate.
Q: How can you assure your good service?
A: We have a strong R&D research department and we can customize the machines according to your request, the warranty are 12 month after installation and our engineers are available for machine installation, commissioning and training your staffs oversea.
Q: How does your factory do regarding quality control?
A: Quality is our culture. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE certificate and ISO9001:2015 certificate.
Q: How can you assure your good service?
A: We have a strong R&D research department and we can customize the machines according to your request, the warranty are 12 month after installation and our engineers are available for machine installation, commissioning and training your staffs oversea.
