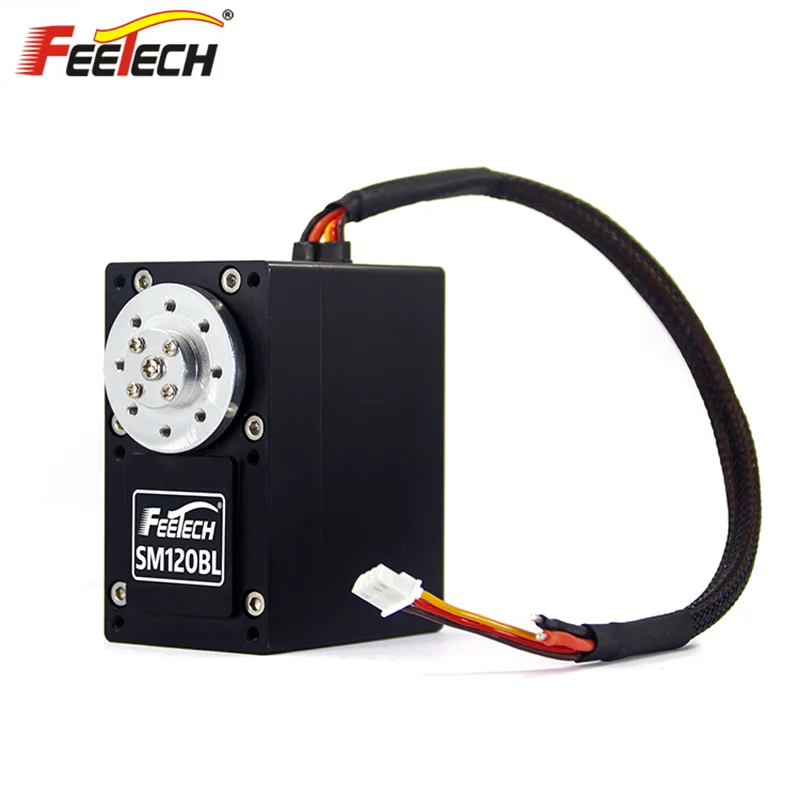

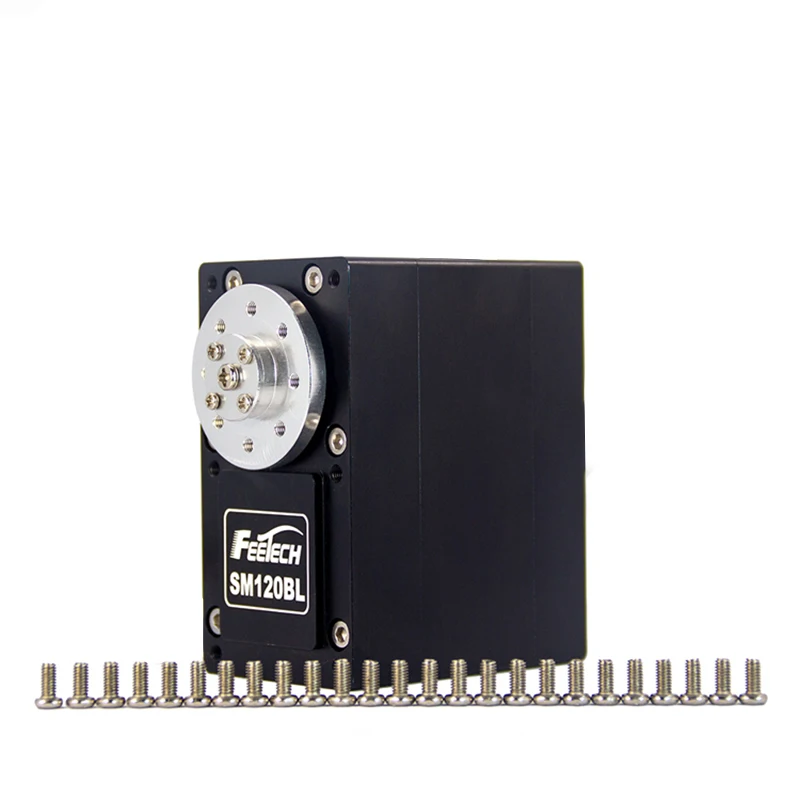

Feetech SM120BL 24V Brushless Industrial Servo 120kg High Torque 360 degree All Metal Serial Brushless Motor Servo
- Category: >>>
- Supplier: Shenzhen,Feite,Model,Co.,Ltd.
Share on:
Product Overview
Description
Features
1. Can be installed at any angle
When SM120 is installed in the equipment, there is no need to find an intermediate position. After installation at any angle, it can be compensated to the specified position through position correction.
Advantages: reduce installation links, reduce error rate, improve the efficiency of mass production and the cost of manual
maintenance.
2. Multi-turn and large angle
SM120BL can achieve plus or minus 7 rotations at the highest angle resolution, and adjust the angle resolution to achieve plus or minus 100+ rotations.
Advantages: Achieve more scene applications, modular design shortens the development cycle.
3. Parameter feedback, multiple protection
SM120BL has the following parameter feedback mechanism. The software can monitor parameter changes in real time. When the equipment is running, it dynamically monitors the data changes. When the internal and external environment changes, such as torque
overrun, locked rotor, temperature overrun, etc., the protection mechanism will start , So as to protect the steering gear itself.
Advantages: closed-loop design, dynamic monitoring, protect itself, and extend life.
4. Open PID motor parameter debugging
SM12OBL uses high-precision brushless motors and opens PID to debug the motor motion effects, such as the motor's rigidity, static error compensation, overshoot and other methods.
Advantages: to achieve a more consistent motor motion effect.
5. Features
01. Magnetic encoder sensor
Use 12-bit high-precision sensor to measure position
02. High resolution
Non-contact absolute value 12-bit encoder (360 degrees 0.088 degrees)
03. Serial bus type
Support serial bus daisy chain, 254 ID addresses are optional
04. Position servo control mode
Can rotate 0~360° and multi-turn any absolute angle
O5. Speed control mode
Constant speed control for continuous rotation in forward and reverse directions, wide speed range
06.PWM control mode
Can output constant force to realize forward and reverse direction control
When SM120 is installed in the equipment, there is no need to find an intermediate position. After installation at any angle, it can be compensated to the specified position through position correction.
Advantages: reduce installation links, reduce error rate, improve the efficiency of mass production and the cost of manual
maintenance.
2. Multi-turn and large angle
SM120BL can achieve plus or minus 7 rotations at the highest angle resolution, and adjust the angle resolution to achieve plus or minus 100+ rotations.
Advantages: Achieve more scene applications, modular design shortens the development cycle.
3. Parameter feedback, multiple protection
SM120BL has the following parameter feedback mechanism. The software can monitor parameter changes in real time. When the equipment is running, it dynamically monitors the data changes. When the internal and external environment changes, such as torque
overrun, locked rotor, temperature overrun, etc., the protection mechanism will start , So as to protect the steering gear itself.
Advantages: closed-loop design, dynamic monitoring, protect itself, and extend life.
4. Open PID motor parameter debugging
SM12OBL uses high-precision brushless motors and opens PID to debug the motor motion effects, such as the motor's rigidity, static error compensation, overshoot and other methods.
Advantages: to achieve a more consistent motor motion effect.
5. Features
01. Magnetic encoder sensor
Use 12-bit high-precision sensor to measure position
02. High resolution
Non-contact absolute value 12-bit encoder (360 degrees 0.088 degrees)
03. Serial bus type
Support serial bus daisy chain, 254 ID addresses are optional
04. Position servo control mode
Can rotate 0~360° and multi-turn any absolute angle
O5. Speed control mode
Constant speed control for continuous rotation in forward and reverse directions, wide speed range
06.PWM control mode
Can output constant force to realize forward and reverse direction control
Product Description
Model：SM120BL
Product Name:24V 120kg RS485 6V 24V /120kg. cm Serial Control RS485 Servo
Storage Temperature Range\t-30℃～80℃
Operating Temperature Range:\t-20℃～80℃
Size:A：78mm B：43mm C：65.5mm
Weight:485g
Gear type:Steel
Limit angle:NO limitGear ( GearRatio 232:1 )
Bearing:\t2 Ball bearings
Horn gear spline:One character (OD1 0mm)
Horn type:steel
Case:Al uminiumi ( 7075)
Connector wire:300mm ±5 mm
Motor:Brushless motor
Operating Voltage Range:24V
No load speed:0.2sec/ 60degree 50RPM@24V
Runnig current(at no load) :\t200 mA@24V
Peak stall torque:120kg.cm@24V
Rated torque:40kg.cm@24V
Stall current:4000mA@24V
Rated Load:32kg. cm≤
Rated current:1 000mm≤
KM:30kg. cm/A
Terminal resistance:2.80
Command signal:Bus Packet Communication RS485
Protocol Type:Half duplex Asynchronous Serial Communication
ID range:\t0-253
Communication Speed:38400bps ~ 1 Mbps
Running degree:360° (when 0~4096)
Feedback:Load,Position, Speed，Input Vol tage,Current, T emperature
Position Sensor Resolution:12Bits Magnetic Coding(360° /4096 ）
Product Name:24V 120kg RS485 6V 24V /120kg. cm Serial Control RS485 Servo
Storage Temperature Range\t-30℃～80℃
Operating Temperature Range:\t-20℃～80℃
Size:A：78mm B：43mm C：65.5mm
Weight:485g
Gear type:Steel
Limit angle:NO limitGear ( GearRatio 232:1 )
Bearing:\t2 Ball bearings
Horn gear spline:One character (OD1 0mm)
Horn type:steel
Case:Al uminiumi ( 7075)
Connector wire:300mm ±5 mm
Motor:Brushless motor
Operating Voltage Range:24V
No load speed:0.2sec/ 60degree 50RPM@24V
Runnig current(at no load) :\t200 mA@24V
Peak stall torque:120kg.cm@24V
Rated torque:40kg.cm@24V
Stall current:4000mA@24V
Rated Load:32kg. cm≤
Rated current:1 000mm≤
KM:30kg. cm/A
Terminal resistance:2.80
Command signal:Bus Packet Communication RS485
Protocol Type:Half duplex Asynchronous Serial Communication
ID range:\t0-253
Communication Speed:38400bps ~ 1 Mbps
Running degree:360° (when 0~4096)
Feedback:Load,Position, Speed，Input Vol tage,Current, T emperature
Position Sensor Resolution:12Bits Magnetic Coding(360° /4096 ）
Item Packing
Why Choose Us
Shipping Discount: With the well partnership of various shipping
companies and forwarder including EMS, Fedex, TNT, UPS, DHL, you can save
a lot buying from us.
Sourcing: Finding a new products from China to sell locally is easy, our
purchasing centre located at the major wholesale market in China, you
can just send us the targeted product photography, we can source it for
you within a speedy timeframe.
Direct Deal with factory: We are the direct agent of several famous Toy
factories in china, offering you the wholesale price which you can not
find locally.
Communication: You may communicate with our sale team via Skype/What’s
app/Wechat/QQ instantly to get the most updated price, information and
shipping information for your order. Normally, our sale man is available
within your local office hours. Certainly, you can also phone us to check
any information you needed.
Combined Shipment: We provide you an ONE-STOP service you really needed
when buying from China. From translation, quotation, quality check,
shipment arrangement, shipping discount, and even combined shipment
packing. Don't waste your time to deal with different factories and only
get separated shipment.
companies and forwarder including EMS, Fedex, TNT, UPS, DHL, you can save
a lot buying from us.
Sourcing: Finding a new products from China to sell locally is easy, our
purchasing centre located at the major wholesale market in China, you
can just send us the targeted product photography, we can source it for
you within a speedy timeframe.
Direct Deal with factory: We are the direct agent of several famous Toy
factories in china, offering you the wholesale price which you can not
find locally.
Communication: You may communicate with our sale team via Skype/What’s
app/Wechat/QQ instantly to get the most updated price, information and
shipping information for your order. Normally, our sale man is available
within your local office hours. Certainly, you can also phone us to check
any information you needed.
Combined Shipment: We provide you an ONE-STOP service you really needed
when buying from China. From translation, quotation, quality check,
shipment arrangement, shipping discount, and even combined shipment
packing. Don't waste your time to deal with different factories and only
get separated shipment.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Southern Europe(8.33%),Northern Europe(8.33%),Central America(8.33%),Western Europe(8.33%),Eastern Asia(8.33%),Mid East(8.33%),Oceania(8.33%),Africa(8.33%),Southeast Asia(8.33%),Eastern Europe(8.33%),South America(8.33%),North America(8.33%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
RC Servo,Brushless Motor and ESC,RC Robot,RC Balancer Charger,RC Quad Copter FPV
4. why should you buy from us not from other suppliers?
We are one stop rc wholesale supplier over 10 years.We deal with various kinds of R/C hobbies and R/C toys. Such as R/C drone, R/C helicopter, R/C airplane, Gas airplane, R/C Robot, R/C car, R/C boat, RC access.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Guangdong, China, start from 2011,sell to Southern Europe(8.33%),Northern Europe(8.33%),Central America(8.33%),Western Europe(8.33%),Eastern Asia(8.33%),Mid East(8.33%),Oceania(8.33%),Africa(8.33%),Southeast Asia(8.33%),Eastern Europe(8.33%),South America(8.33%),North America(8.33%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
RC Servo,Brushless Motor and ESC,RC Robot,RC Balancer Charger,RC Quad Copter FPV
4. why should you buy from us not from other suppliers?
We are one stop rc wholesale supplier over 10 years.We deal with various kinds of R/C hobbies and R/C toys. Such as R/C drone, R/C helicopter, R/C airplane, Gas airplane, R/C Robot, R/C car, R/C boat, RC access.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Company Profile
We Recommend

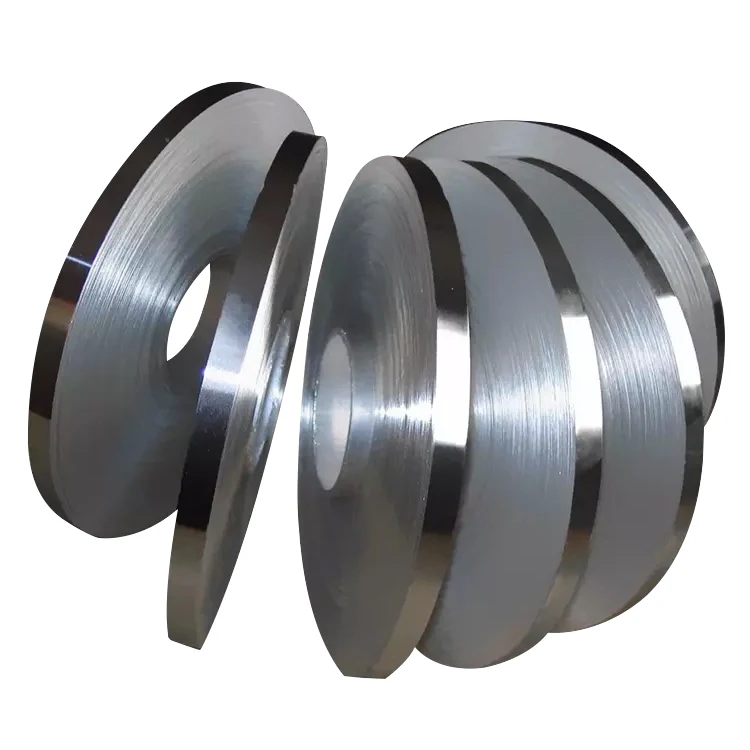

ASTM 1000 series Wholesale Flat Aluminum Strip Coil Alloy Aluminum Strip Customize Strip
