Product Overview
Description

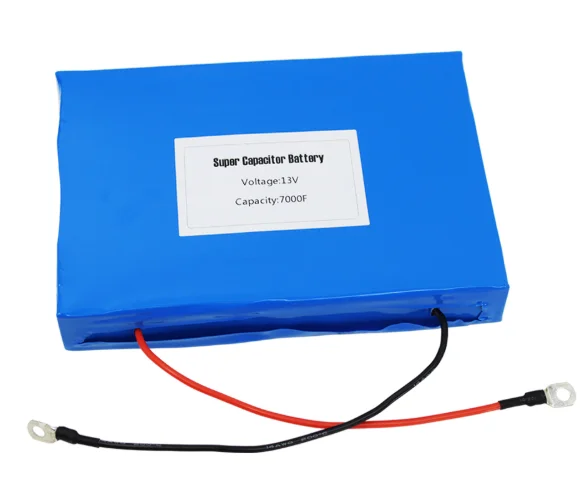

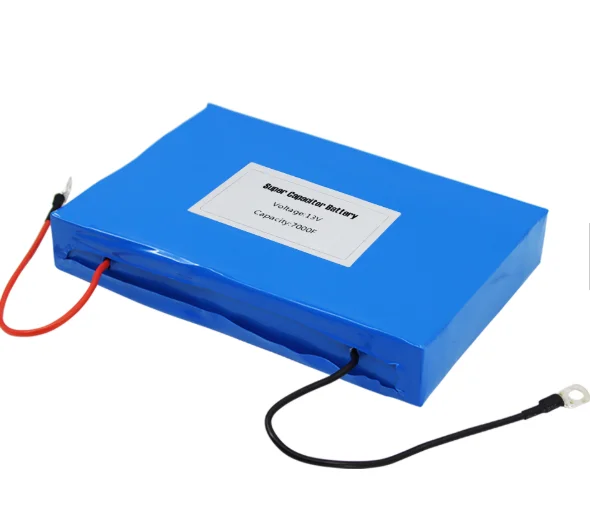

7000f 12v super capacitor electric bike 12v ultracapacitor module
Product Description
| Product Name | GHT 12V 7000F Moudle |
| Serial parallel mode | 3S1P |
| Rated Capacitance | 7000F |
| Energy Storage | 225Wh |
| Rated Voltage | 12V |
| Maximum Charge Voltage | 13.5V |
| Internal Resistance(AC) | ≤ 4.5mOhm |
| Maximum Continuous Discharge Current | 40A |
| Max. Peak Current | 60A |
| Leakage current(mA/72hrs) | ≤2mA |
| Safety Test | DC1500V |
| Operating Temperature Range | minus 20 to plus 55 ℃ |
| Storage Temperature Range | minus 20 to plus 60 ℃ |
| Cycle life | ≥ 20,000 |
| Protection Class | IP30 |
| Product Weight | 1.32kg |

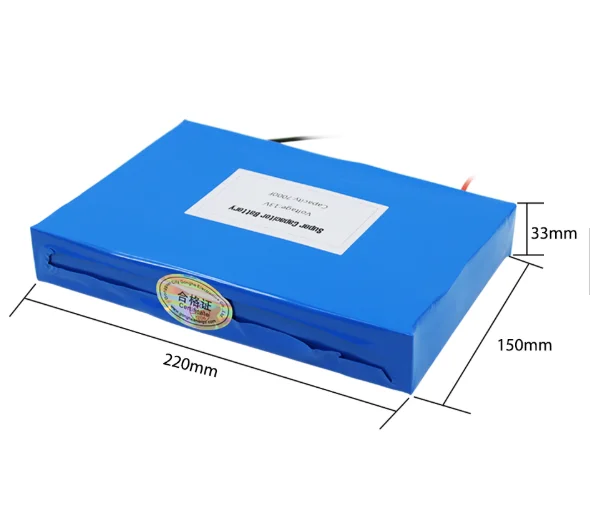

| Product Size ±5mm | 220*33*150mm |
| Warranty Time | 5 years |
| MODEL NUMBER: | C4221000P |
| PLACE OF ORIGIN: | GUANGDONG,CN |
| BRAND NAME: | GH |
| WORKING TEMPERATURE: | FROM -40 TO +70 |
| CHARGING AND DISCHARGING TIME: | MORE THAN 20,000 TIMES |
| TYPE: | PAPER |
| ESR: | 1mΩ |
| NORMAL CURRENT: | 20A |
| STORED ENERGY: | 75WH |
| LEAKAGE CURRENT: | ≤20mA |
| MAXIMUM CONTINUOUS CURRENT: | 40A |
| MAXIMUM PEAK CURRENT: | 60A |
| MOQ: | 6PIECES |

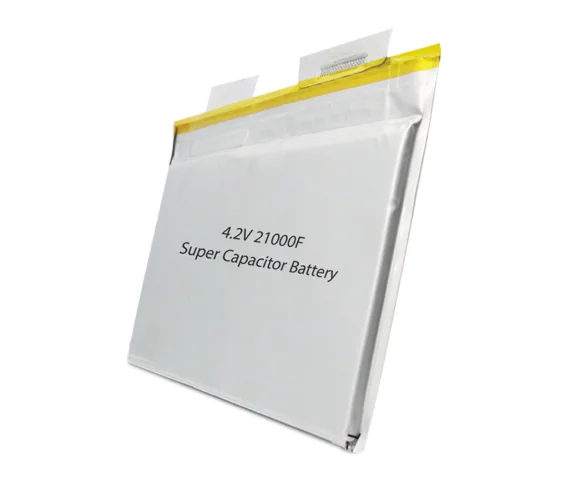

| SPECIFICATION: | 4.2V 21000F |
| SIZE: | 220*128*7.5MM |
| WEIGHT: | 350G |
| WARRANTY TIME: | 3YEARS |
| COLOUR: | BLUE OR As Customized |
| APPLICATION: | Heavy industry equipment Vehicle system Fan pitch system hybrid car Rail UPS and telecommunication systems High impact and vibration environment |
Super capacitor bank 12v 7000f Advantages
1.high safety and reliability
2. long cycle life
3. low temperature performance
4. small self -discharge
5. fast charge
6. low long-term cost

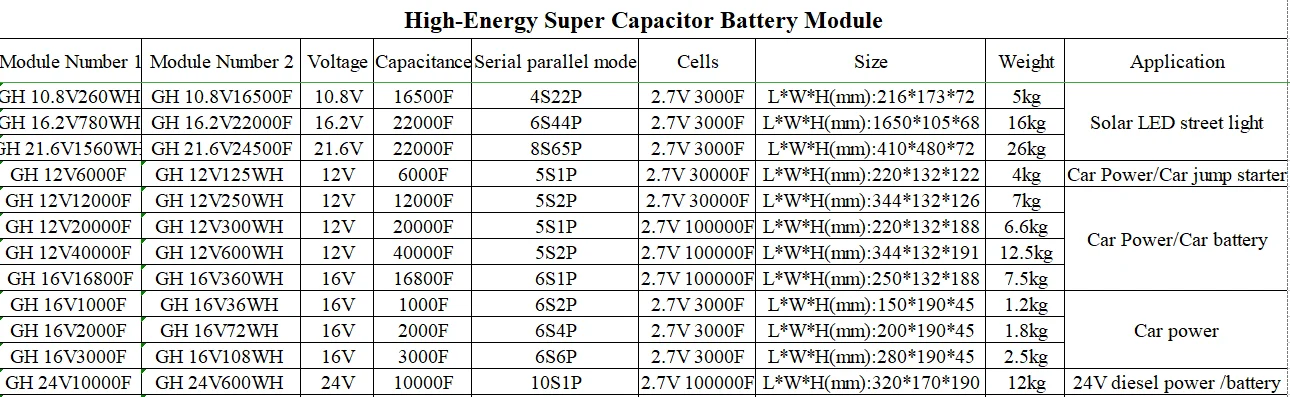

Other modules
