Китайская автоматическая лучшие агентов по продажам, в наличии 6 цветов ролл наклейка печатная машина
- Category: Printing Machine >>>
- Supplier: Ruian,Dingyu,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview

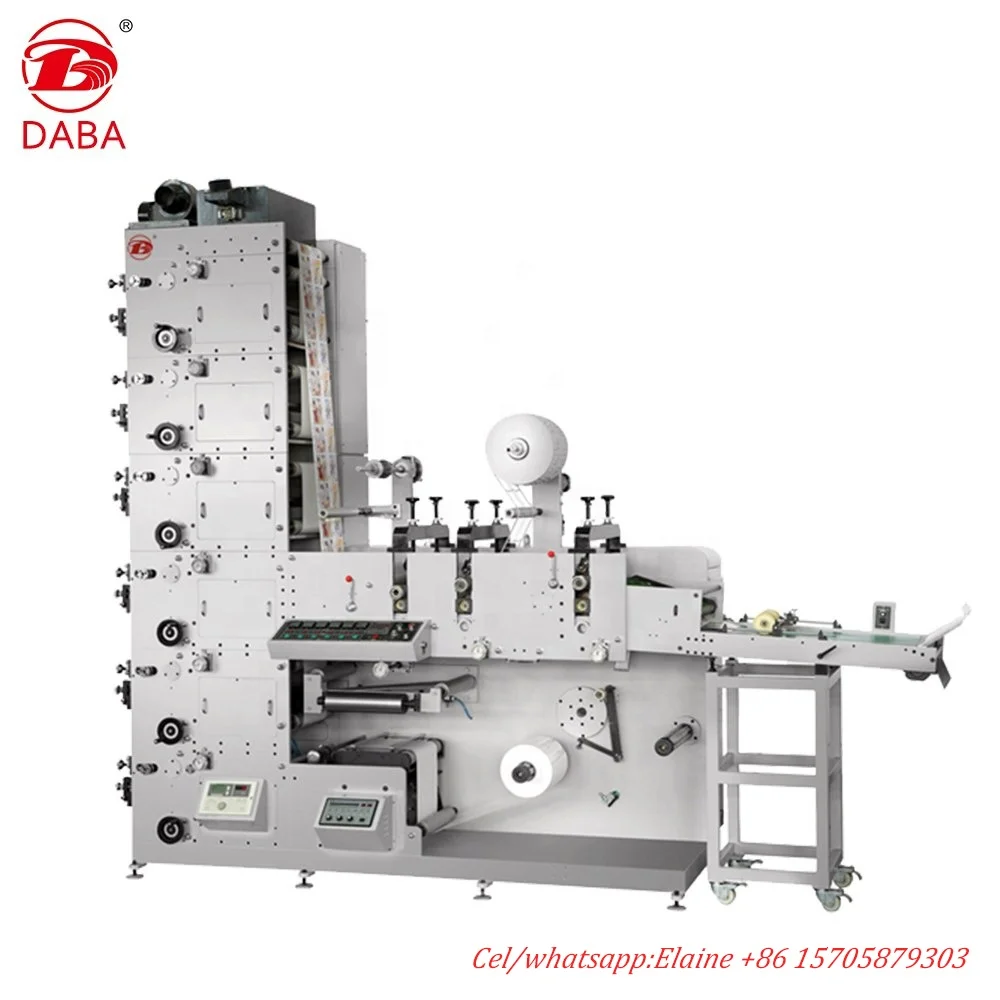

China automatic best sales 6 color roll sticker printing machine
Suitable Material:
1. 40-300g paper
2. Plastic Film
3. Aluminium Foil
4. Tissue paper
5. Self adhesive paper/Film
6. Vinyls/PVC
2. Plastic Film
3. Aluminium Foil
4. Tissue paper
5. Self adhesive paper/Film
6. Vinyls/PVC
7. Laminating Film
8. Opp,CPP ,PET
Performance Characteristics:
1.Adopt the anilox rollers to spread ink.
2.Unwinding and rewinding controlled by magnetism power brake, clutch. (for by the automatic tension controller of mitsubishi, made in Japan).3. Printing unit adopt 360º to regulate for registration.
4. Each printing unit has one IR oven.
5. The rubber roller can break away automatically while parking, and running at a low speed, in order to avoid water being dried.
6. The main motor is adopted the import stepless regulation of frequency conversion.
7. Unwinding, printing, varnishing, IR drying, laminating and rewinding can be finished in one process, this kind of printing
machine is suitable for each printing companies to print on adhesive-paper labels and other commercial label.
8. Meter counter can set printing quantity according to the requirement.Stop the machine automatically at the set quantity or when the material is cut off.
Standard Configuration：
1.One paste plate machine
2.One set anilox roller for each group (LPI is optional, made in shanghai)
3.Three sets printing rollers (for example,6 color:3*6=18) Printing Teeth User Advise
4.Printing both sides at the same time (with Turn bar)
5.With the lamination station
6.Die cutting station
7.One unwinding tension controller.(Mitsubishi)
8.One rewinding tension controller.(ZXT)
9.Magnetic power brake.
2.One set anilox roller for each group (LPI is optional, made in shanghai)
3.Three sets printing rollers (for example,6 color:3*6=18) Printing Teeth User Advise
4.Printing both sides at the same time (with Turn bar)
5.With the lamination station
6.Die cutting station
7.One unwinding tension controller.(Mitsubishi)
8.One rewinding tension controller.(ZXT)
9.Magnetic power brake.
10.Printing both sides at the same time (with Turn Bar)
Sample show:
Recommend Products

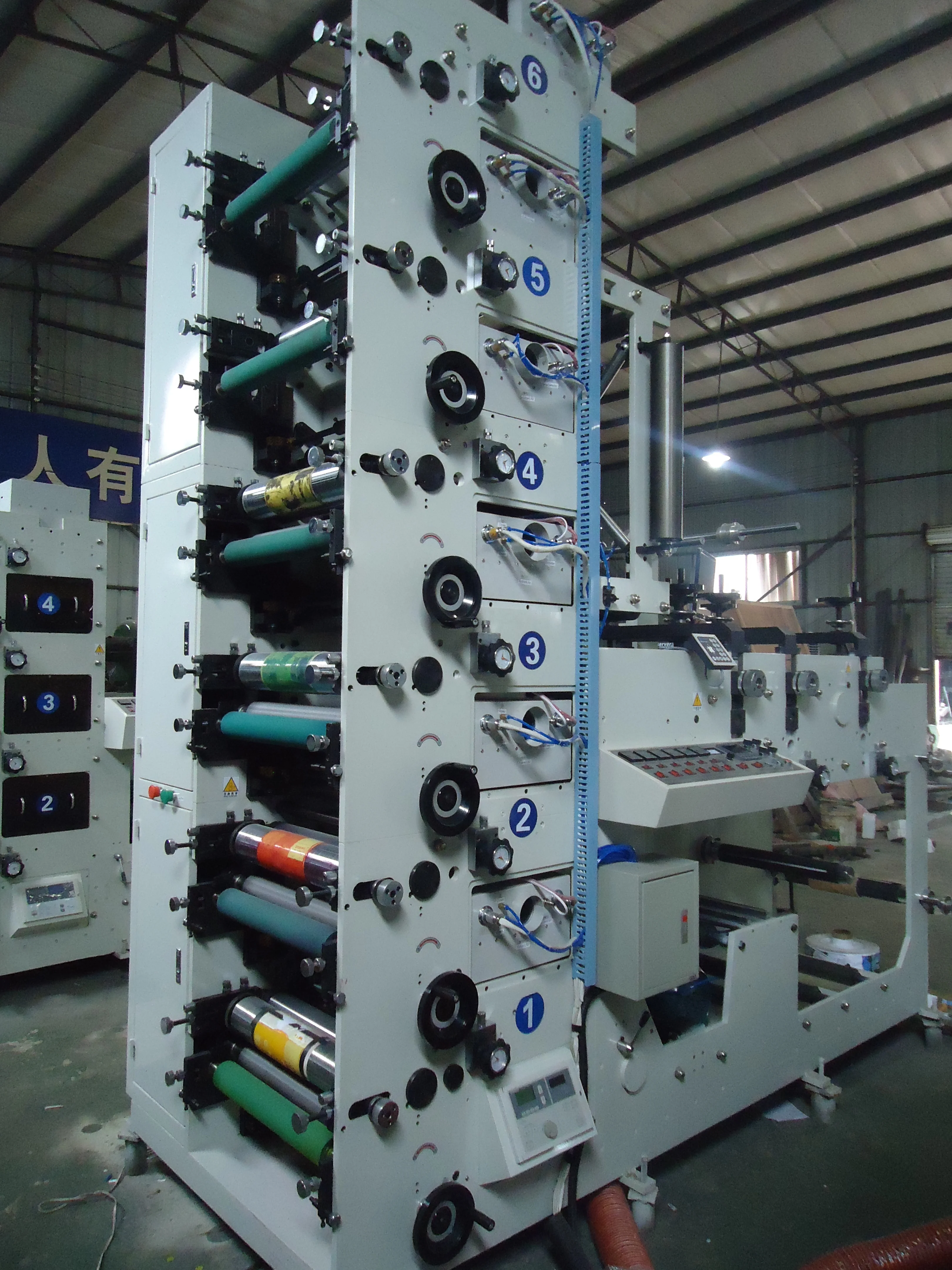

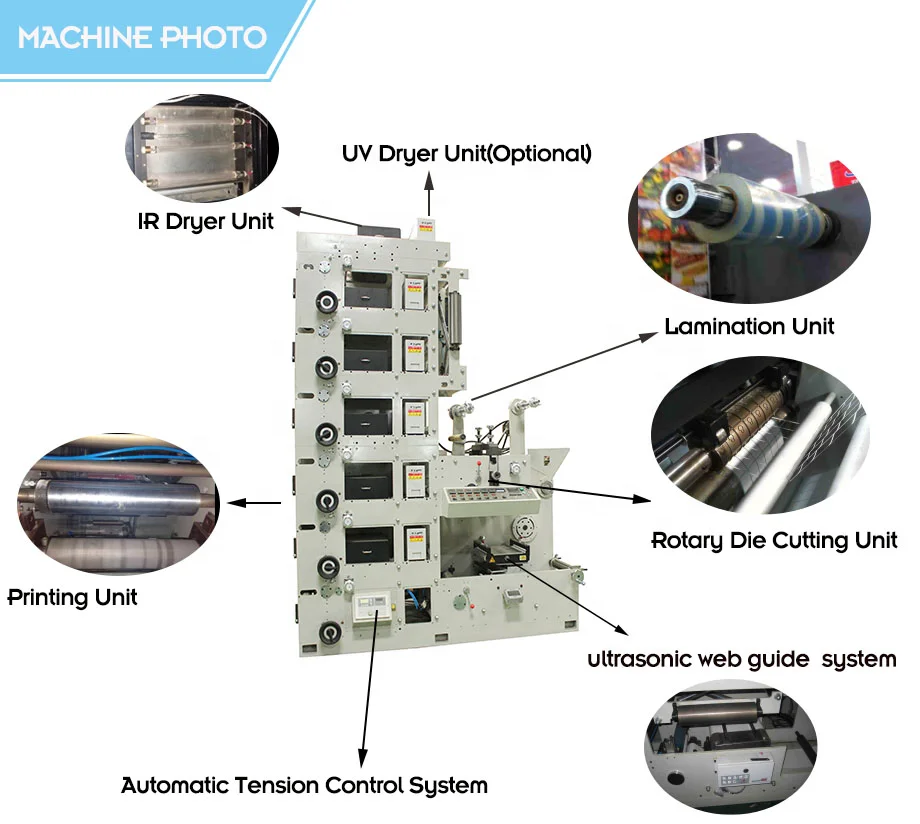

Details Images
PRODUCT SPECIFICATIONS
Product Model: | DBRY-320 | DBRY-480 | DBRY-650 |
Printing speed | 60-80m/min | 60-80m/min | 60-80m/min |
Printing color | 6 colors | 6 colors | 6 colors |
Max. Web Width | 330mm | 480mm | 680mm |
Max. Printing width | 320mm | 450mm | 650mm |
Min. Printing width | 35mm | 35mm | 35mm |
Max. unwinding diameter | 600mm | 600mm | 600mm |
Max. rewinding diameter | 600mm | 600mm | 600mm |
Precision of chromatography | ±0.10mm | ±0.10mm | ±0.10mm |
Dimensions | L2.1M*W1.3M*H2.8M | L2.1M*W1.4M*H2.8M | L2.2M*W1.55M*H2.8M |
Machine weight | About 3200KG | About 3700 KG | About 4200KG |
Product packaging
Interior: To oil machine and fix machine in the wooden tray avoid machine moving during shipment.
Wraping Film to keep dry and prevent from rusty.
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
To pack whole machine into wooden case avoid machine collision.
Company Profile
FAQ
