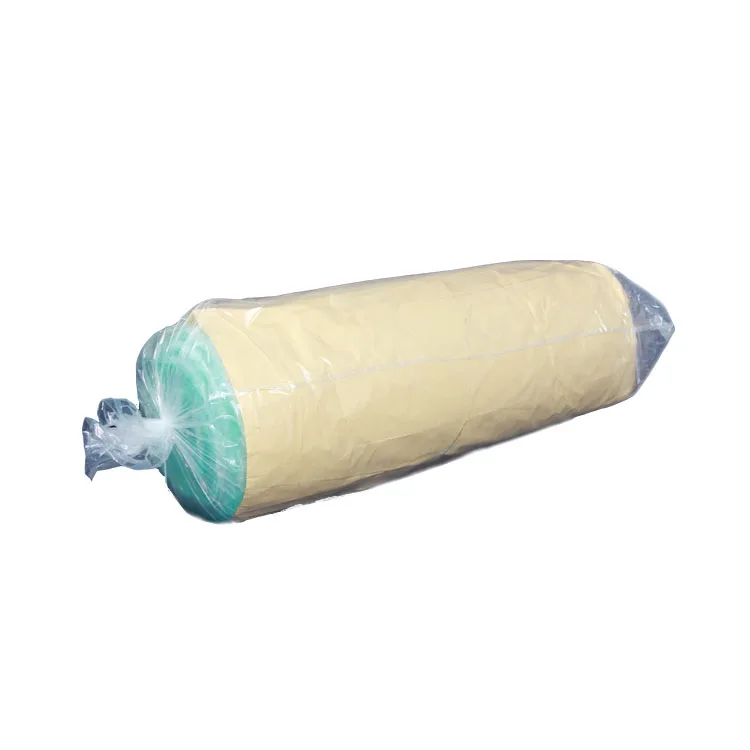

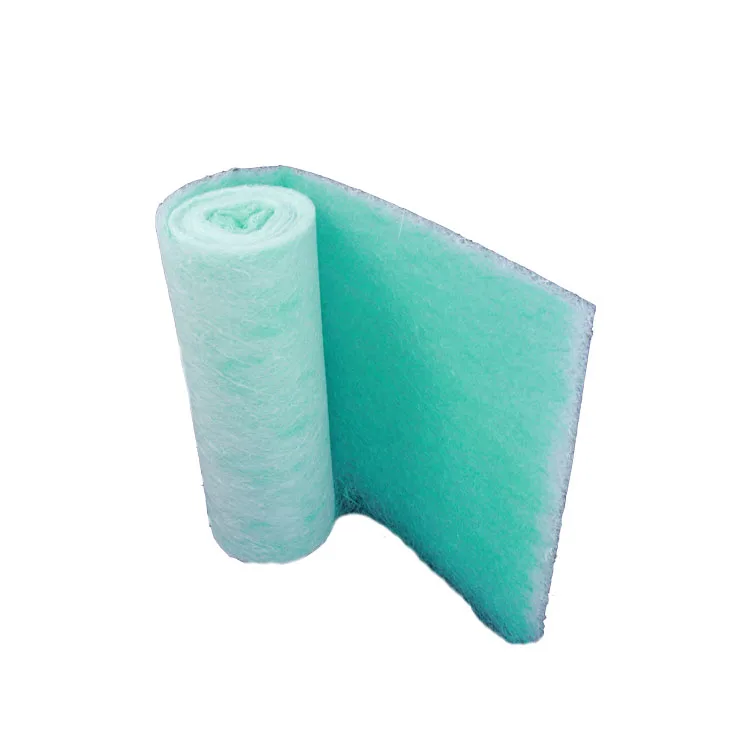

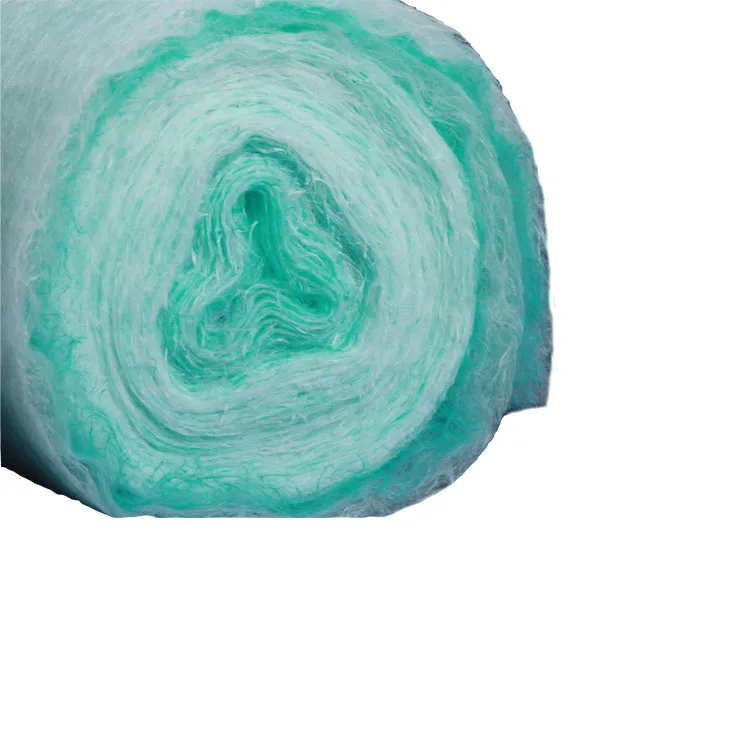

Spray booth fibreglass floor exhaust filter for paint arrestor

Model

LH-200G

Weight

200g/m2

Thickness

30mm

Max. Airflow

5400m3/hr

Initial Resistance

12pa

Final Resistance

200Pa

Efficiency

74.10%

Nominal Velocity(m/s)

1.45m/sec

Dust Holding Capacity

3000g/m2

Max. Working Temp.

150℃

Filtering Grade

G2/EU-2 DIN24185

Flame resistance

F-1 DIN53438

Standard Size

1*20m; 2*20m
