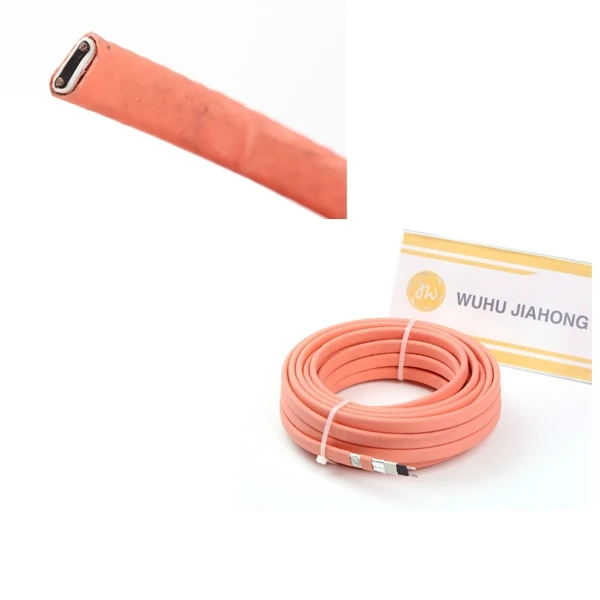

Water Pipes Freeze-Proofing Heat Tracing 32w electric heating cable for water pipe
- Category: Other Wires, Cables & Cable Assemblies >>>
- Supplier: Wuhu,Jiahong,New,Material,Co.,Ltd.
Share on:
Product Overview
Description
Technical Data
Service voltage | 110-120V, 220-277V |
Maximum maintain or continuous exposure temperature(power on) | +65℃(150℉) |
Maximum intermittent exposure temperature, 1000 hours (power on or off) | +85℃(185℉) |
Minimum installation temperature | -40℃(-40℉) |
Protective braid resistance | ﹤18.2Ω/km |
Bus wire gauge | 20AWG |
Approvals | ETL / EAC / CE |
Installation scheme

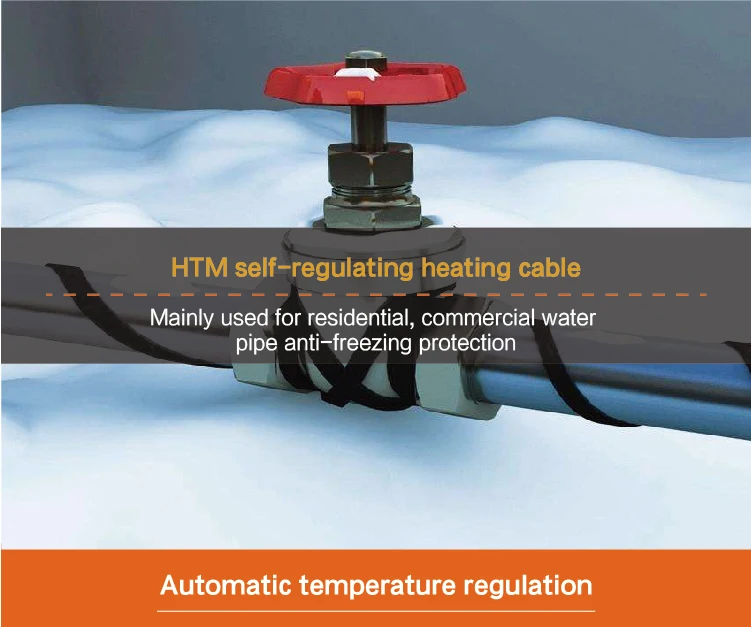

-----pipe anti-freezing application
Title goes here.
1. Full set accessories are prepared.
. Prior to installing the cable, be sure pipe is dry, and any sharp surfaces are removed.
2. If the heating cable is the same length as the pipe, run it straight along the bottom of the pipe.
3. If the cable is less than double the pipe length, spiral the cable over the
. Prior to installing the cable, be sure pipe is dry, and any sharp surfaces are removed.
2. If the heating cable is the same length as the pipe, run it straight along the bottom of the pipe.
3. If the cable is less than double the pipe length, spiral the cable over the
1. The most professional manufacturer in Asia-pacific since 2002, more than 17 years developed experience in overseas market.
2. OEM/ODM services, customized product, product packaging, logo printing
3. International certificated IECEx lab, mainly tests and controls quality of the material and semi-products.
2. OEM/ODM services, customized product, product packaging, logo printing
3. International certificated IECEx lab, mainly tests and controls quality of the material and semi-products.
4. Professional R&D teams, rich experienced engineers offer you the best heating solution and technical support.
