Uv sterilizer cabinet for cap sterilizing use
US $300.00-$950.00

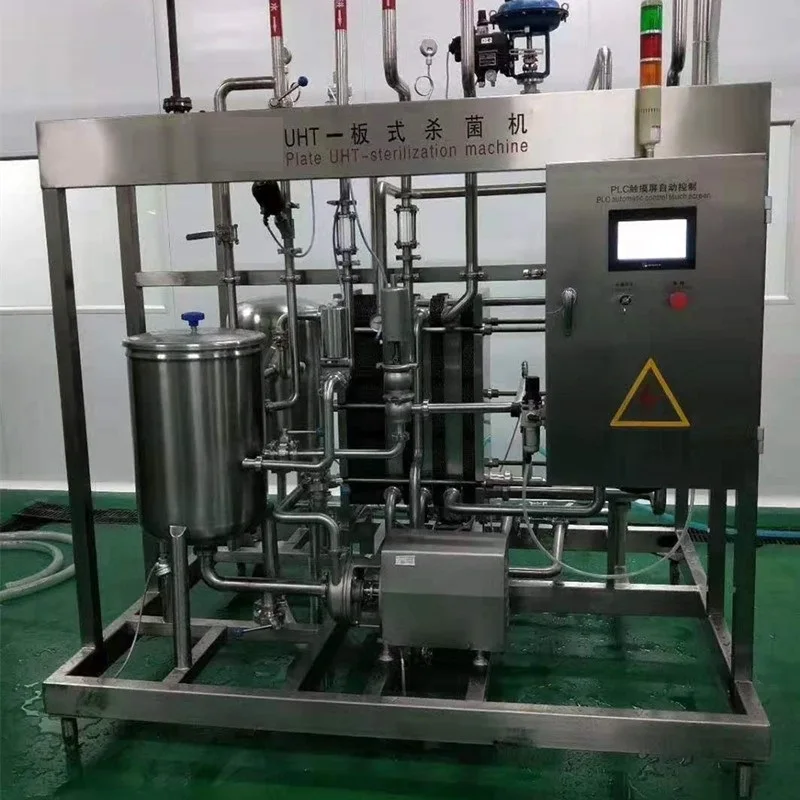

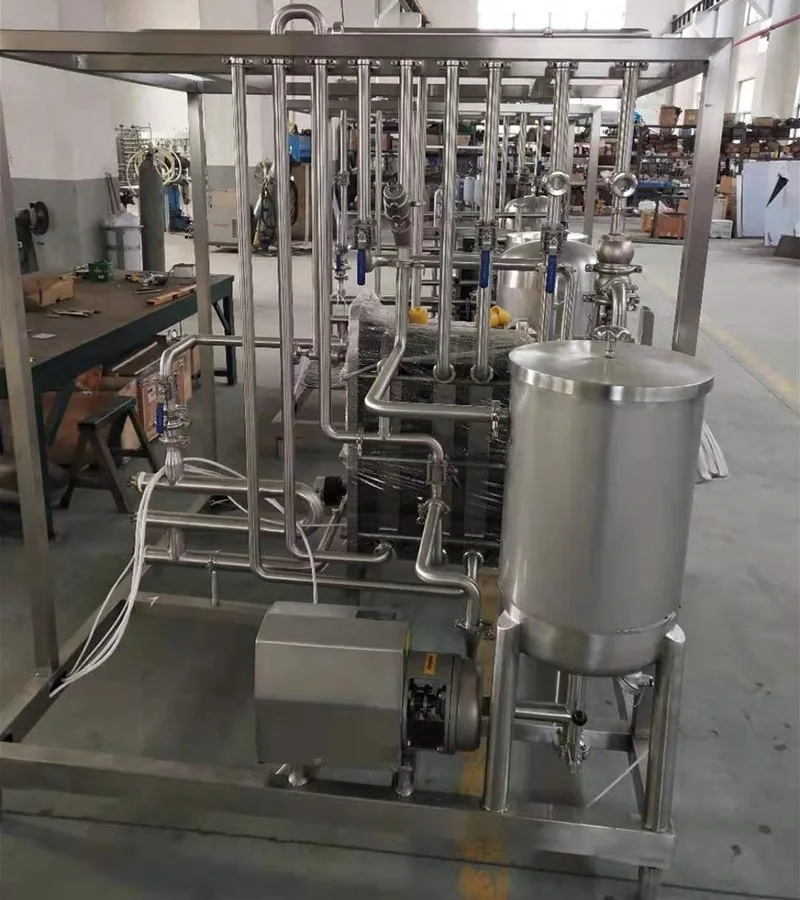

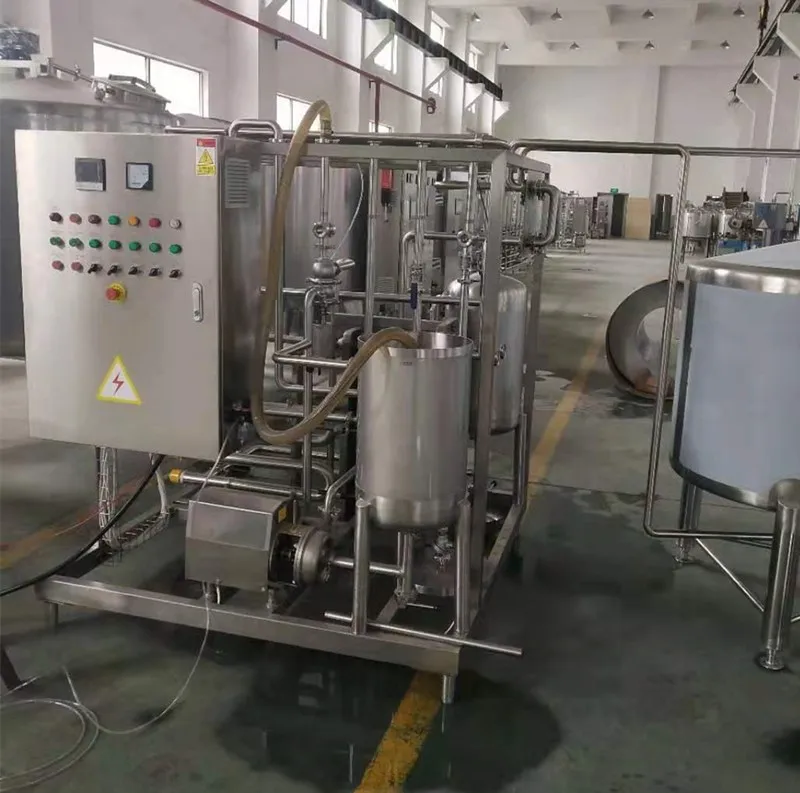

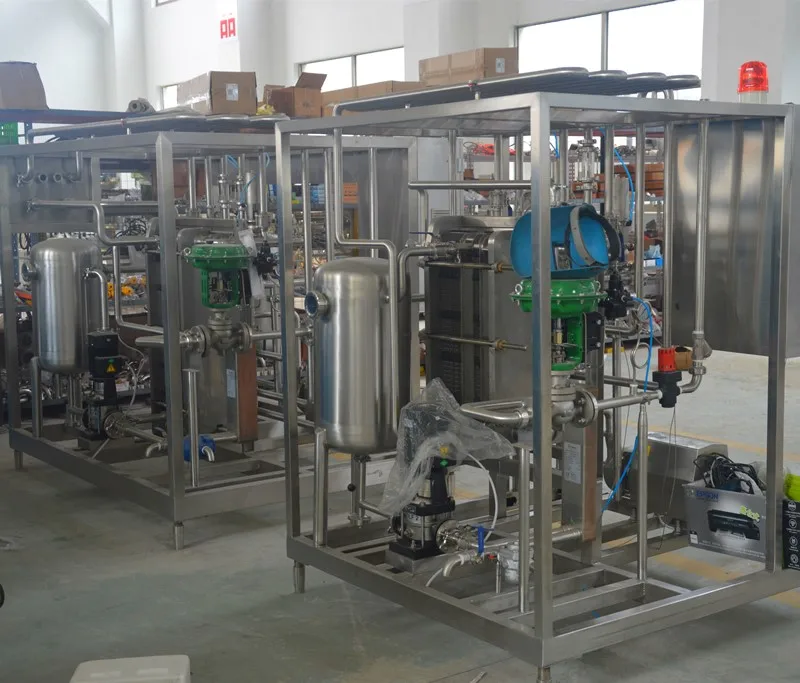

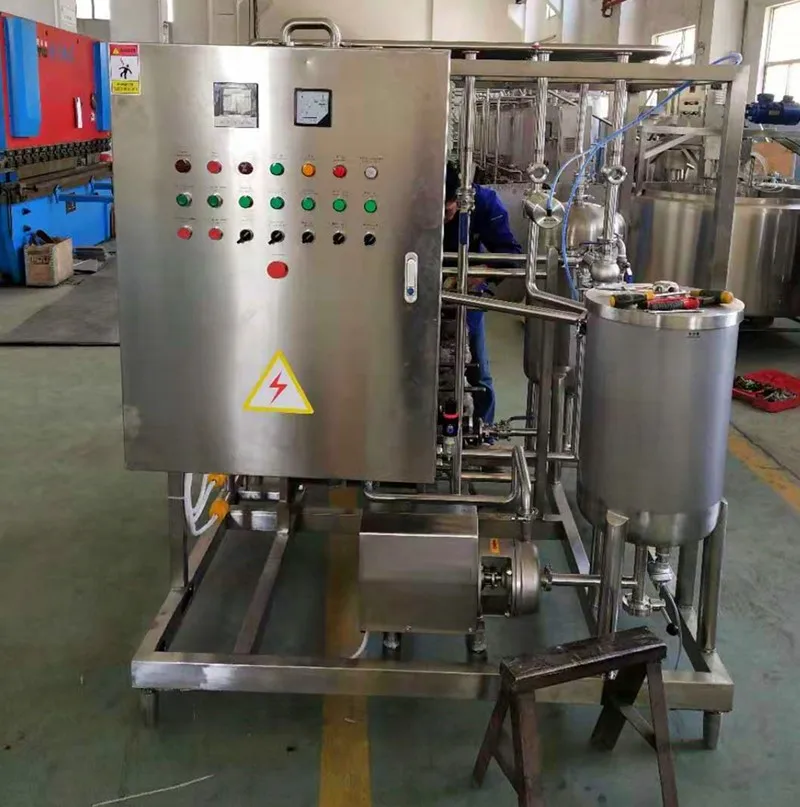

1000L plate type UHT food sterilizer for tomato paste
- Category: Sterilizer >>>
- Supplier: Shanghai Youcan Beverage Machinery Co. Ltd.
Share on (1600115209017):
Product Overview
Description
plate type pasteurizer jam pasteurizer
2000L milk pasteurizer small pasteurizer for milk and beverage
small pasteurizer milk processing plant milk pasteurization equipment
Small Milk Pasteurizer, Juice Pasteurizer, Electric heating pasteurizer
Product Description
Our Factory manufacture industrial Pasteurizer for milk, yogurt, ice cream, juice and other beverage UHT sterilizer, continuously sterilization machinefor dairy liquid, juice , wine, pharmacy liquid, and other food liquid like sauce
| |
Machine name and capacity | Milk Pasteurizer Milk pasteurizer 100Litres, 200Litres, 300Litres, 400Litres, 500Litres, 600Litres, 800Litres, 1000Litres,1200Litresper hour pasteurizer and other capacity pasteurizer according to clients requirement |
Heating Source | Steam heating, Electric heating , natural gas heating |
Milk Pasteurizer (plate/board type pasteurizer)
Main Technical Parameter for pasteurization machine( plate type):
Model | Capacity (T/H) | Heat Exchange Area (M2) | Gross Power(KW) | Steam Consumption (Kgs/hour) | Overall Dimension(mm) | Total Weight |
Ucan-PHE-0.5 | 0.5 | 5 | 5.2 | 52 | 1200×1200×1500 | 790kg |
Ucan-PHE -1 | 1 | 8 | 5.2 | 60 | 1500×1500×1800 | 880kg |
Ucan-PHE -2 | 2t/h | 13 | 6 | 104 | 1800×2000×1800 | 980kg |
Ucan-PHE -3 | 3t/h | 20 | 6 | 156 | 2000×2000×2200 | 1080kg |
Ucan-PHE -5 | 4-5t/h | 30-45 | 8 | 260 | 2250×2000×2200 | 1250kg |
Ucan-PHE -8 | 6-8t/h | 35-50 | 8 | 400 | 2250×2000×2200 | 1250kg |
Ucan-PHE-9 | 10t/h | 60- | 11 | 520 | 2800×2000×2200 | 1650kg |
Ucan-PHE-15 | 15t/h | 75 | 15 | 780 | 3000×2200×2200 | 2150kg |
Ucan-PHE-20 | 20t/h | 80 | 18 | 945 | 3300×2200×2200 | 2350kg |
Function and Feature | 1. Electric heating pasteurizer integrates multi-functions: such cooling, heating , pasteurizing ,temperature keeping and controlling, , in short time and very easy to operate
2. The material and the heating medium are in their own sealing system, ensure milk or other juice liquid materials sanitary and clean
3. Pasteurization temperature and time could be controlled and adjusted easily by users, good pasteurization effect and milk, juice nutrition can be kept.
4. Good heat transfer effect, high heat recovery, less energy consumption;
5. Simple structure, easy to clean, convenient operation, low noise, low cost of maintenance and running life more than 10years.
6.Could be connected to CIP cleaning system or can be cleaned manually |

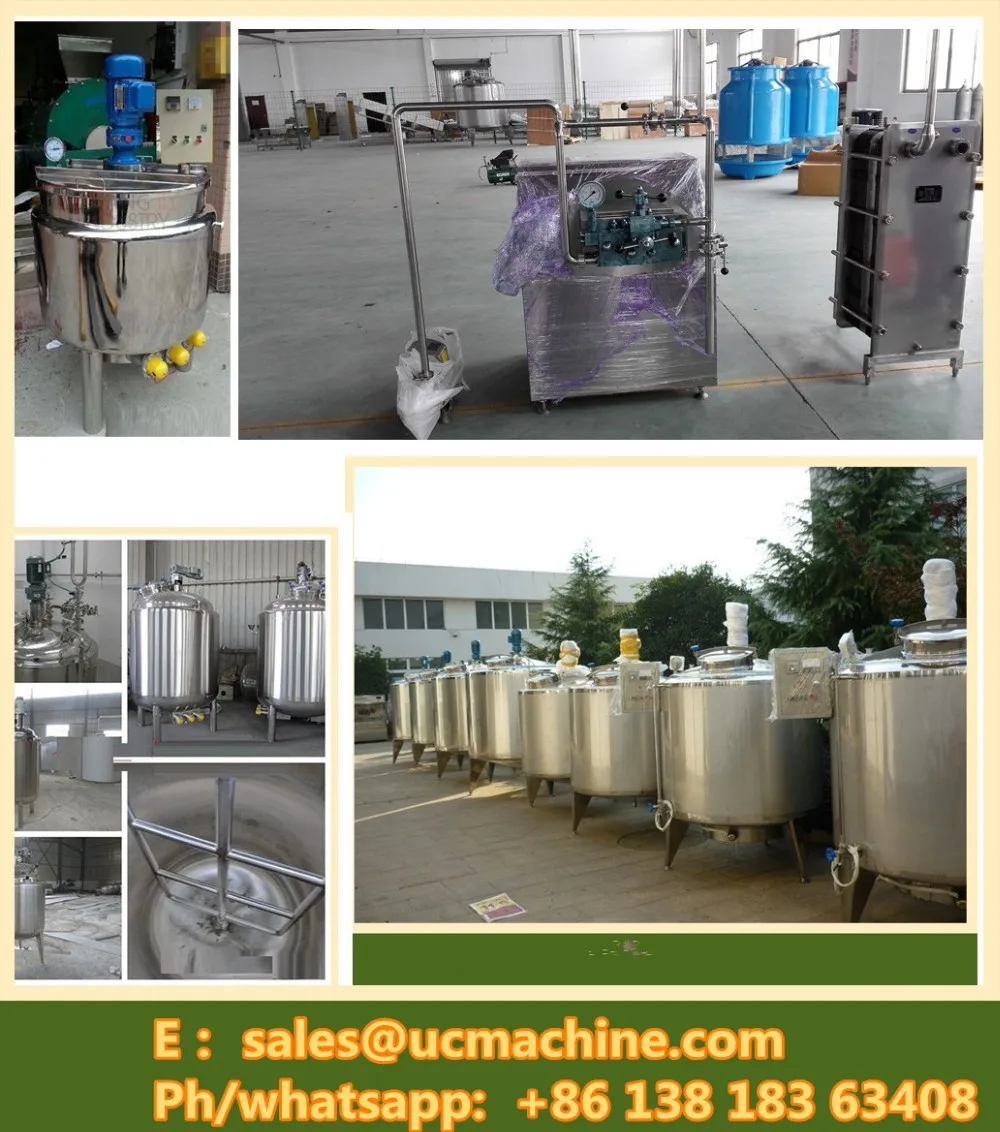

Other related machines as homogenizer, plate heat exchanger picture is as following:
Packaging & Shipping
Package | Plywood box, standard for exporting and protect goods safely deliverying |
Company Information
About US/Supplier Types | 1 .Trade Assurance,With Trade Assurance, you'll enjoy: •100% product quality protection •100% on-time shipment protection •100% payment protection for your covered amount 2. Gold Supplier 3. Assessed Supplier 4 . Onsite Checked 5 . A&VChecked 6. we accept Transactions via Alibaba.com 7. Payment protection 8 . On-time shipment 9. Wholesale Low MOQS 9. Popular Buying Requests for "milk pasteurizer" and "pasteurizer" |
Our Services
FAQ
Pasteurization Machine for milk, yogurt, ice cream, juice, tomato sauce, chili sauce,
Introduction of Pasteurization Machine:
1. The working procedure of Pasteurization machine: from 5 to 65 ℃(homogenizing), 85-65 ℃ (15 s) - 5 ℃.
2.The machine can be connected with separator, homogenizer, flash degassing equipment, etc.
Pasteurization machine is suitable for fresh milk, fruit juice beverage, wine and other heat-sensitive liquid heating, sterilization, heat preservation and cooling process.
3.The machine is usually used to pasteurize materials (including raw milk, milk beverage, fruit juice, tea, juice and other kinds of drinks, all kinds of wine and ice cream, etc.), can also be used as pre-sterilization for raw material when producing pasteurized milk.
4.This equipment owns high heat recovery, energy saving, compact structure, simple operation, easy maintenance and some other advantages.
