Automatic Facial Paper Tissue Making Machine z fold facial tissue machine
- Category: >>>
- Supplier: Qingdao Dongang Machinery Co. Ltd.
Share on (1600115339378):
Product Overview
Description
Product Description

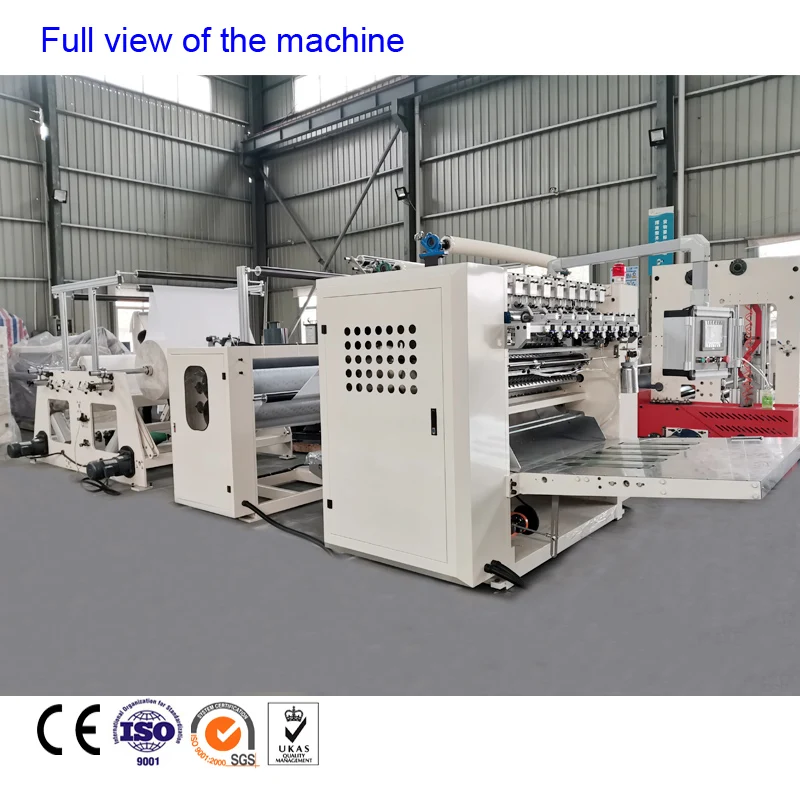

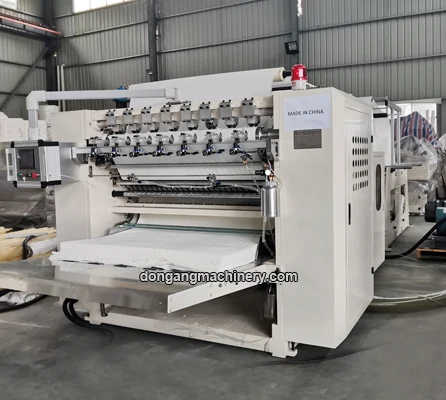

Full automatic small scale interfold facial tissue making machine facial tissue paper folding machine
This machine is facial tissue V folding machines, Machine speed is about 3600-4800 pcs/min, machine adopt wall type structure, the back stands can double side lifting the jumbo roll, and each back stand with one motor driving, can better control the paper
tension.
tension.

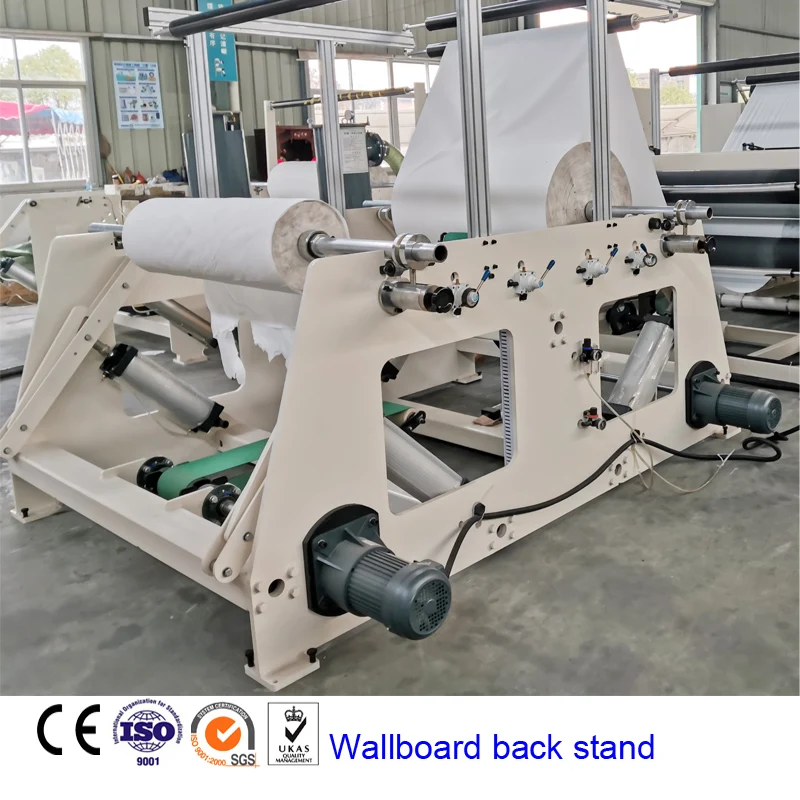

Pneumatic lifting the jumbo roll and Wall type stable structure back stand

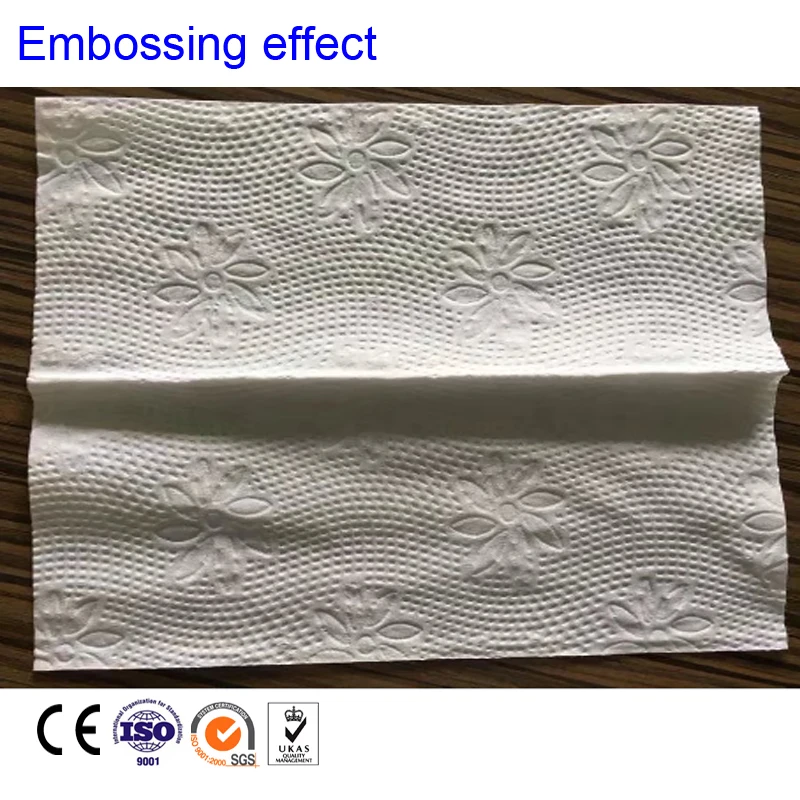

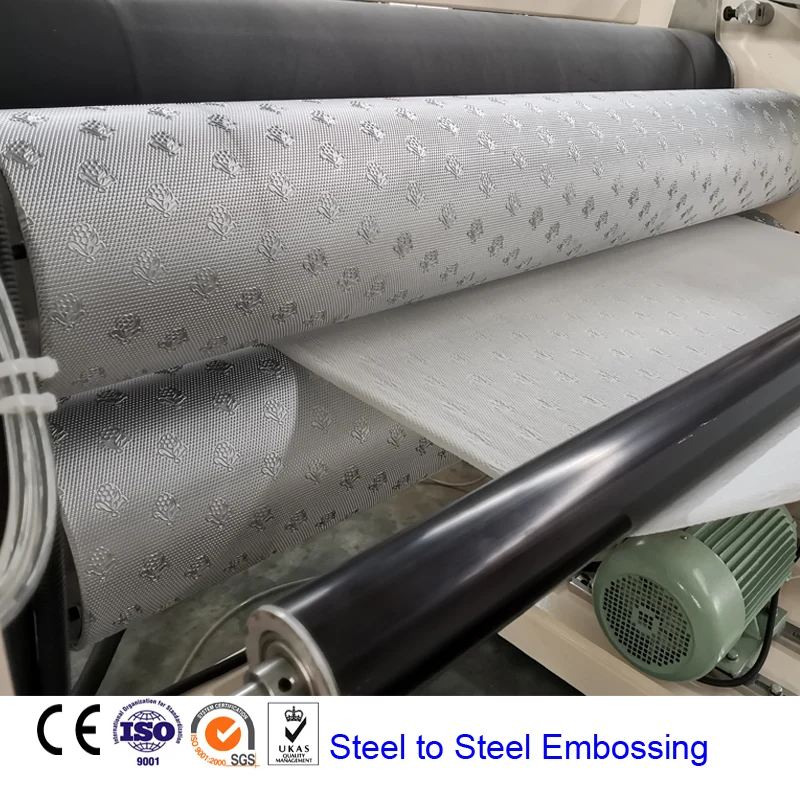

steel to steel embossing,good embossing effect
Edge embossing(optional)

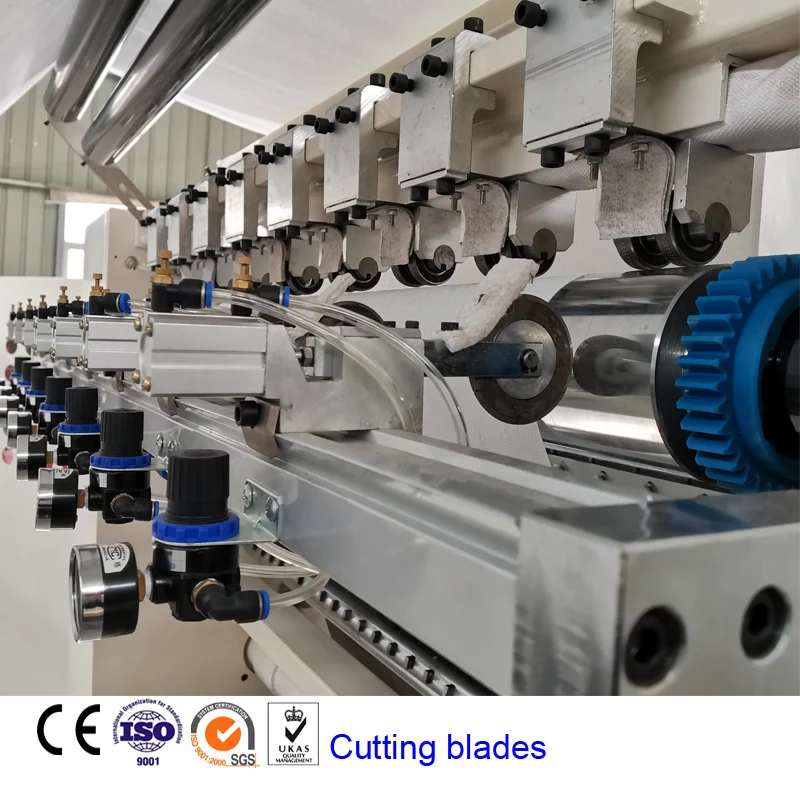

Slitting blades
frequency converter
Vacuum pump(2-4 lines smaller)
Out tissue paper neat
Inner drive
Function and Features
1. Our facial tissue paper fold machine equips with pneumatic controlled embossing rollers.
2. This Facial tissue paper making machine adopts wallboard machine frame, machine runs stably,speed is 120meters per minute.
3. It adopts pneumatic jumbo roll loading, stepless speed control and automatic paper tension control.
4. Equipped with Roots vacuum pump which runs stably and supply excellent air adsorption.
5. Equip with steel to steel edge embossment to keep the plies together,embossing pattern can be customized.
7. Machine stop automatically when paper break which decrease production defective rate.
8. Equip with frontal and back jog switch to make the paper feeding simpler and safer.
2. This Facial tissue paper making machine adopts wallboard machine frame, machine runs stably,speed is 120meters per minute.
3. It adopts pneumatic jumbo roll loading, stepless speed control and automatic paper tension control.
4. Equipped with Roots vacuum pump which runs stably and supply excellent air adsorption.
5. Equip with steel to steel edge embossment to keep the plies together,embossing pattern can be customized.
7. Machine stop automatically when paper break which decrease production defective rate.
8. Equip with frontal and back jog switch to make the paper feeding simpler and safer.
Facial tissue paper V fold machine Main Technical Parameters | ||
Model | DA-CS-6L-180/190/200/210 | |
Finished product size | 180/190/200/210 X (120-210)±2mm | |
Finished product open size | 180/190/200/210 X 210±2mm | |
Jumbo roll width | 1260mm | |
Jumbo roll diameter | 1200mm | |
Jumbo roll tube diameter | 76.2mm | |
Production capacity(8 hours) | 6000Kg | |
Embossing Unit | steel to steel, pneumatic control | |
Cutting system | pneumatic slitting | |
Power | Main motor 5.5KW | |
conveying motor 1.5KW(2units) | ||
Vacuum system | blower 18.5KW | |
Pneumatic system | 3HP air-compressor, min pressure 5kg/cm2PA | |
Driving system | Timing belt | |
Dimension | 6000x2000x1900mm | |
Weight | 5.0T | |
Manufacturing Technique
we use high quality famous brand Motors,the machine will work good for years
NSK bearings and other good brand bearings are equiped on machine,good bearing makes our machine working good
Frequency converter usefamous Brand Delta,can also select INVT，good Frequency converter makes our machine working good
we produce main accessaries by ourselves,to make sure every part coordinate work.
produce main accessaries all by ourselves can control quality well too,that why our machine can use for years no repair
roller processing
Frame processing
Mechanical Drawing
Combine and welding
Related Products
Packing&Shipping
We use wood box and wood pallet according to container full or not.
Company Introduction
Qingdao Dongang Machinery Co.,Ltd. is the factory professional in developing,designing,producing and selling toilet and kitchen towel paper making machine,facial tissue paper folding machine,napkin paper folding machine,Maxi roll rewinding machine,hand towel paper N folding machine,paper cutting macchine,paper packing machine and so on.our company also acting sales of China's famous brand forklift and forklift clamp for carry jumbo roll .the company has 39 top engineers,and it has an advanced scientific research team,the company produce machines all with high quality,and we offer best after-sale service.The company believe Integrity first,Customer first.and Quality most important.
Our Advantages
Our own brands
We are directly factory,we can customized the machine according to your request.we have our own brands,also we can OEM and ODM for you.Our machines are high quality,we have export to European countries like Ukraine Romania Belgium ,Middle East countires like Saudi Arabia Yemen Oman,South America countries like Peru,Chile and so on.our machines high quality are Recognized by customers.
After Sales Service
We offer manual together with machine delivery.After customer confirm received the machine,we will guide customer’s install engineer install first.If customer’s engineer can not install,and need our engineer come to install,customer need to pay our engineer $120 per day per person for salary,customer should afford the engineer round-trip ticket,visa,and Meals and accommodation.
a).Warranty:Three years quality warranty,if the main accessaries broken(not human error control damage),we will send the broken accessaries free to customer’s address.The warranty time start from when the customer receive the machine.
b).Provide Lifelong Maintenance:we offer lifelong maintenance,after Three years quality warranty time,if the machine have problems,we will offer free technology advice to help customer solve the problems,if need change accessaries,we will guide customer purchase right accessaries to install,and if customer need our accessaries,we will send our accessaries all according to actual prices.
b).Provide Lifelong Maintenance:we offer lifelong maintenance,after Three years quality warranty time,if the machine have problems,we will offer free technology advice to help customer solve the problems,if need change accessaries,we will guide customer purchase right accessaries to install,and if customer need our accessaries,we will send our accessaries all according to actual prices.
we have service in most countries all over the world,and we offer local technology service
333
FAQ
1.Q:Whio we are?
A:we are Qingdao Dongang Machinery CO.,LTD.we are the factory professional in developing,designing,producing and selling toilet and kitchen towel paper making machine,facial tissue paper folding machine,napkin paper folding machine,Maxi roll rewinding machine,hand towel paper N folding machine,paper cutting macchine,paper packing machine and so on.our company also acting sales of China's famous brand forklift and forklift clamp for carry jumbo roll .the company has 39 top engineers,and is has an advanced scientific research team,the company produce machines all with high quality,and we offer best after-sale service.The company believe Integrity first,Customer first.and Quality most important.welcome come to China visit our factory
2.Q:What is the delivery time
A:Normally, our delivery time is 60 days from 30% deposit byT/T transfer.ready machine 5-10 days.we produce almost all accessaries all by ourselves to make sure machine high quality and work good,if the machine you buy is standard size,we can ready the machine within 45 days.
3.Q:What is our warranty?
A:our warranty is one year start from machine arrive the client’s place, the parts can be replaced for free within one year(not including the easy-wear parts like blade), but the after-sales service is all machine lifetime, any problems happen can contact us, we will try our best to help you out of trouble.
4.Q:What is our payment terms?
A:Our general payment terms is T/T. After confirmed machine details, client need to pay 30% of the total amount by T/T to start the order. After machine finished and tested, and client feel satisfied (client can come and test the machine or we send machine testing videos to them) then pay 70% by T/T before shipping.(For other payment terms, need to be agreed by buyer and seller both parts.)
A:we are Qingdao Dongang Machinery CO.,LTD.we are the factory professional in developing,designing,producing and selling toilet and kitchen towel paper making machine,facial tissue paper folding machine,napkin paper folding machine,Maxi roll rewinding machine,hand towel paper N folding machine,paper cutting macchine,paper packing machine and so on.our company also acting sales of China's famous brand forklift and forklift clamp for carry jumbo roll .the company has 39 top engineers,and is has an advanced scientific research team,the company produce machines all with high quality,and we offer best after-sale service.The company believe Integrity first,Customer first.and Quality most important.welcome come to China visit our factory
2.Q:What is the delivery time
A:Normally, our delivery time is 60 days from 30% deposit byT/T transfer.ready machine 5-10 days.we produce almost all accessaries all by ourselves to make sure machine high quality and work good,if the machine you buy is standard size,we can ready the machine within 45 days.
3.Q:What is our warranty?
A:our warranty is one year start from machine arrive the client’s place, the parts can be replaced for free within one year(not including the easy-wear parts like blade), but the after-sales service is all machine lifetime, any problems happen can contact us, we will try our best to help you out of trouble.
4.Q:What is our payment terms?
A:Our general payment terms is T/T. After confirmed machine details, client need to pay 30% of the total amount by T/T to start the order. After machine finished and tested, and client feel satisfied (client can come and test the machine or we send machine testing videos to them) then pay 70% by T/T before shipping.(For other payment terms, need to be agreed by buyer and seller both parts.)
