♥This machine is frame and four colomn structure, including main machine, hydraulic station, electric controlling cabinet
♥Main machine is composed by base, plunger piston, platform, beam, automatic mold pushing-out device and compulsory mold opening device
can be used as hydraulic press machine
2 Technical Parameters
Parameters/version
XLB350*350*2
XLB400*400*2
XLB500*500*2
XLB600*600*2/4
XLB750*850*2
XLB1000*1000*2
Mould closing force
0.25MN
0.5MN
0.8MN
1.0MN
1.6MN
2.5MN
Hot plate spacing
125mm
125mm
125mm
125mm
125mm
200mm
Hot plate layer
2
2
2
2/4
2
2
Plunger stroke
250mm
250mm
250mm
250/500mm
250mm
400mm
Heating way
Electricity/stream
Electricity/stream
Electricity/stream
Electricity/stream
Electricity/Stream
Electricity/stream
Main motor power
2.2kw
2.2kw
2.2kw
2.2kw
3kw
5.5kw
The thermal power
2.4kw/board
3kw/board
3kw
7.5kw/board
9kw/board
10.8kw/board
Size(L*W*H)mm
1450*400*1350
1600*400*1440
1450*690*1818
1880*780*1660
2100*1010*1900
2400*960*2500
Weight(kg)
1200
1500
1700
2500/3100
3560/4300
8300
if you make nonstandard machine, kindly confirm me below ,so that we can make precise quotation.
-1 what is your rubber plate size ? 500*500mm?1000*1000mm?
-2 pressure? 25T ,50T,80T.100T?
-3 How many layers? 2 plates,1 layer?3 plates ,2 layers?.........
-4 distance between hot plates? 125mm? or other?
-5 what is the plunger stroke? 250mm? 500mm?
-6 Leave your cellphong? Skype? whatsApp?viber? so that we can talk efficiently.
3 why choose us:
1 manufacturer direct sale, can ensure delivery time and quality.
2 plunger diameter difference is very small,which ensure pressure.
3 our vulcanizing press is equiped with PLC system. automatic controling temperature and pressure, automatic alarm, automatic loading ,emergency stop ,digital readout and son on.
4 low noise, no oil leakage, no pressure off.
5 small temperature difference of hot plate,
Plate temperature difference: ±1°C, which follows the national standard.
6 the parallelism differnce does not exceed ±0.01-0.02mm
7 hot plate use high quality carbon steel Q-235 material.
7 heating method according to your request : electricity , steam heating , conduction oil heating .
8 we can make machine according to the your request.
9 we can give a good discount according to your quantity

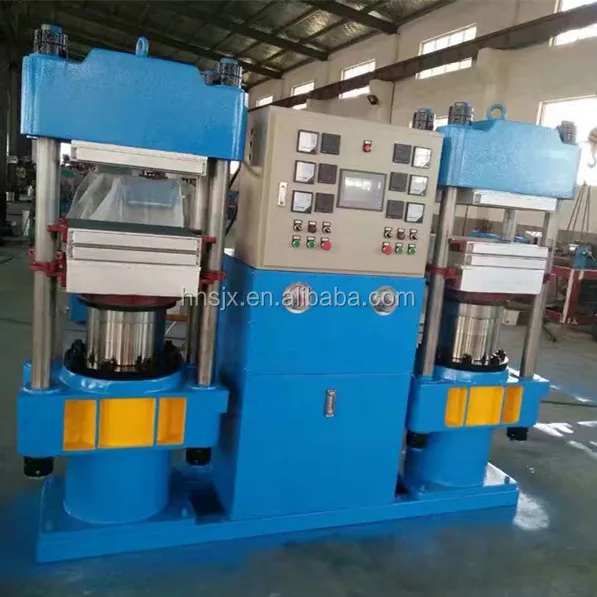

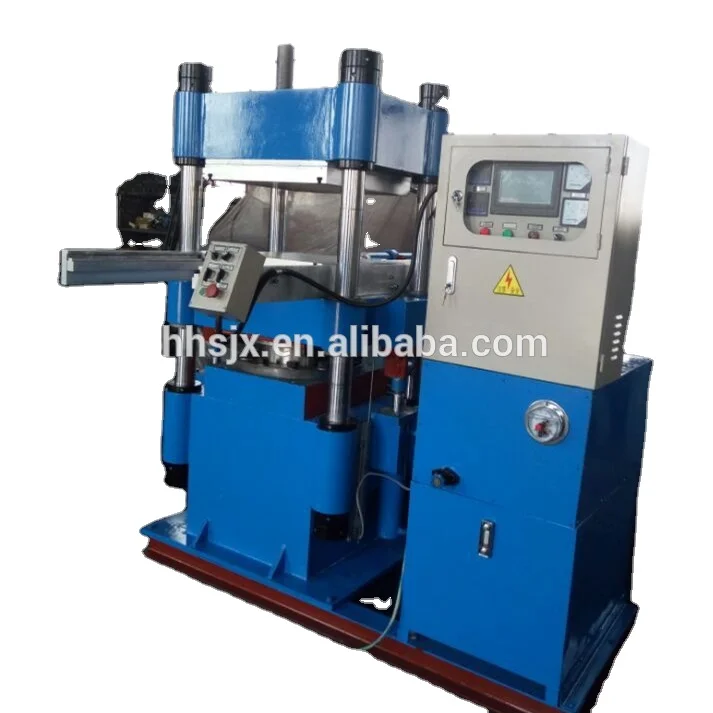

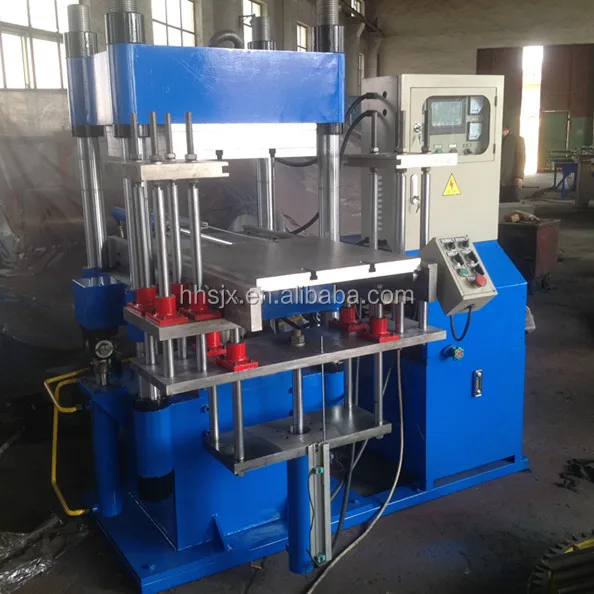

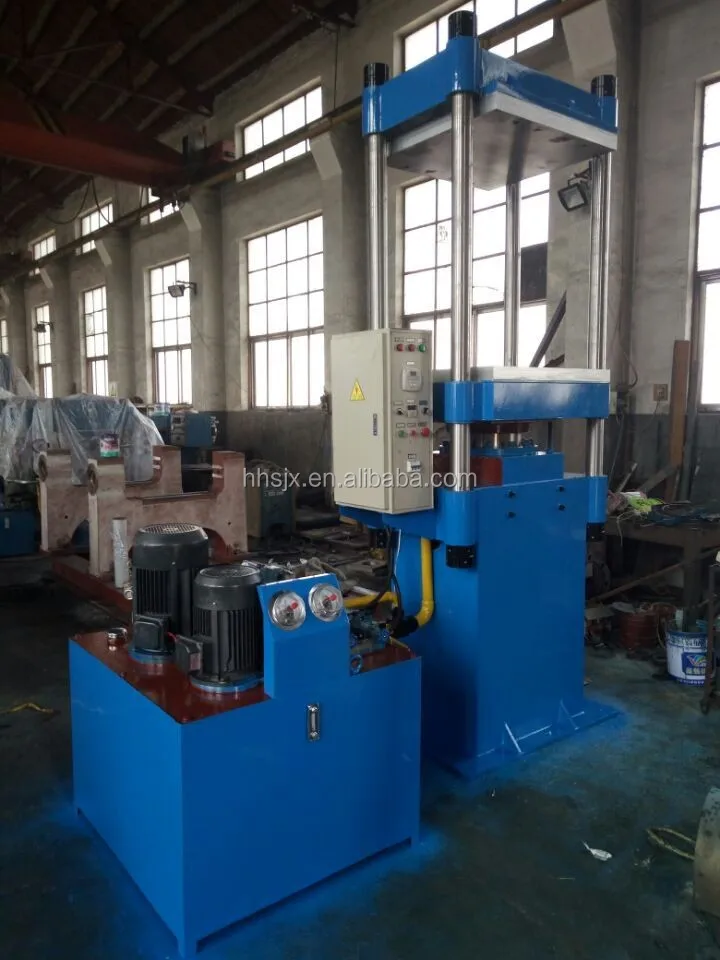

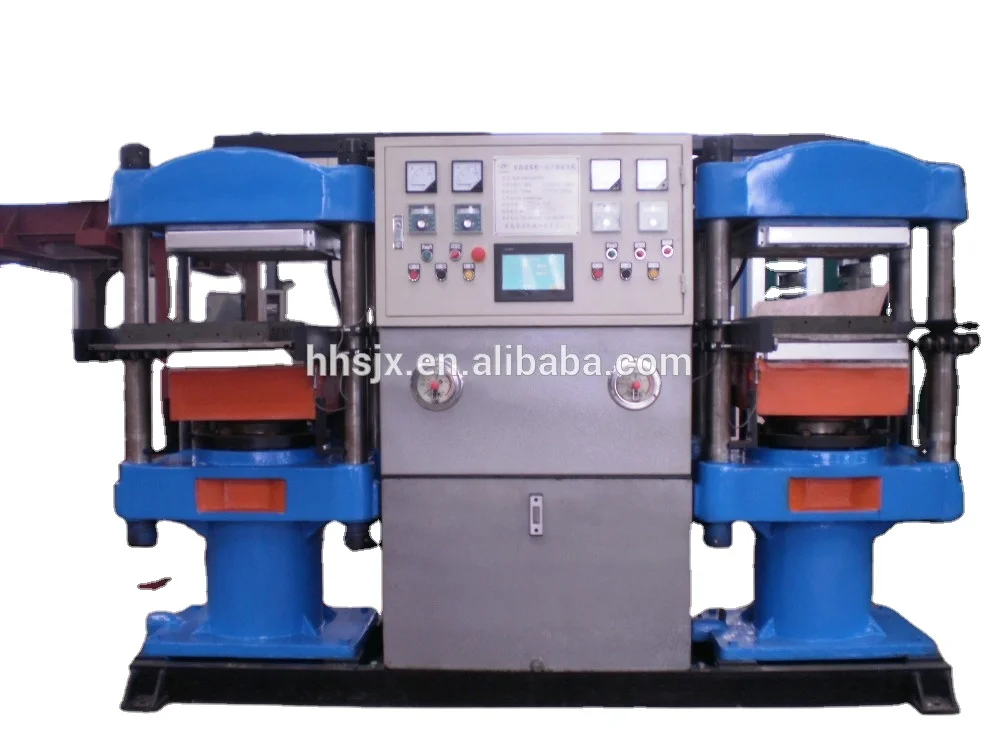

4 detailed pictures,note:machine can be different colour
note : can choose push and pull mould and touch screen based on your needs
