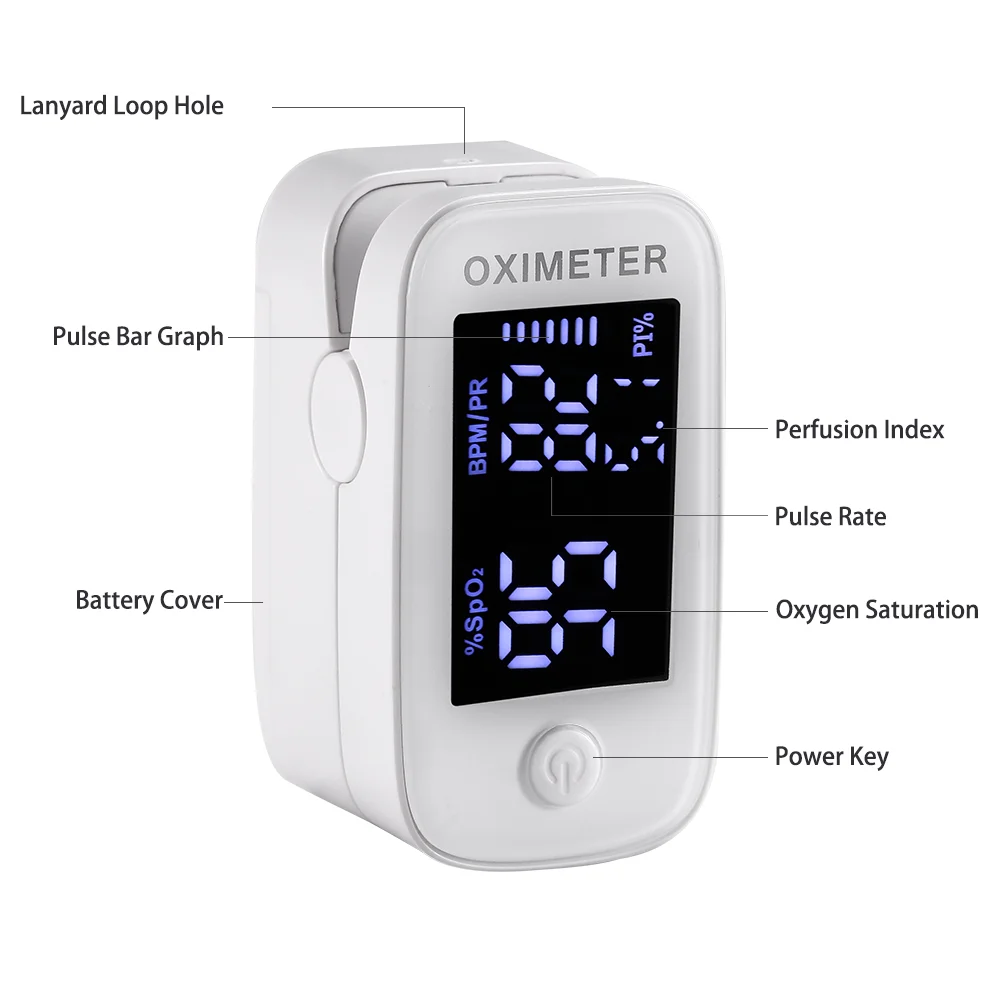

1) 1.5 inch white LED Display,the largest LED display of fingertip oximeter,large numeric font. 2) User-friendly Horizontal Screen Design 3) With SpO2,PR and PI parameters. 4) With Menu,can setup brightness and alarm limits 4) Three grades brightness adjustment 5) Standard Accessories: 1 lanyard, 1 manual.
Product’s detailed technical specifications:
Model No.

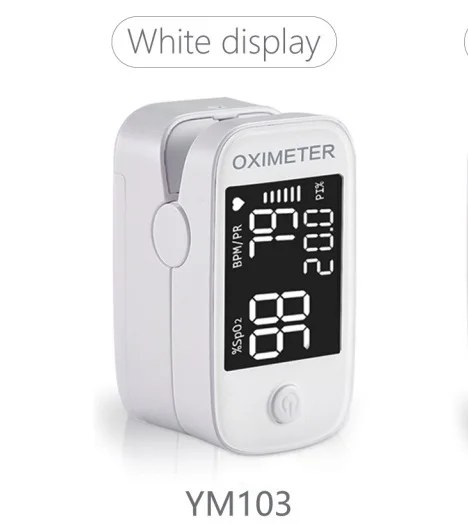

YM103 (1.5""LED Display screen, white light)
Type of protection against electric shock
Ⅱ (Internally powered equipment)
Degree of protection against electric shock
Type BF-Applied part (non-defibrillation proof)
Operating mode
Spot checking
Degree of protection against electric hazards of explosion
IP22
Specification of alkaline batteries
Two AAA (LR03)
Operating current
25-50mA

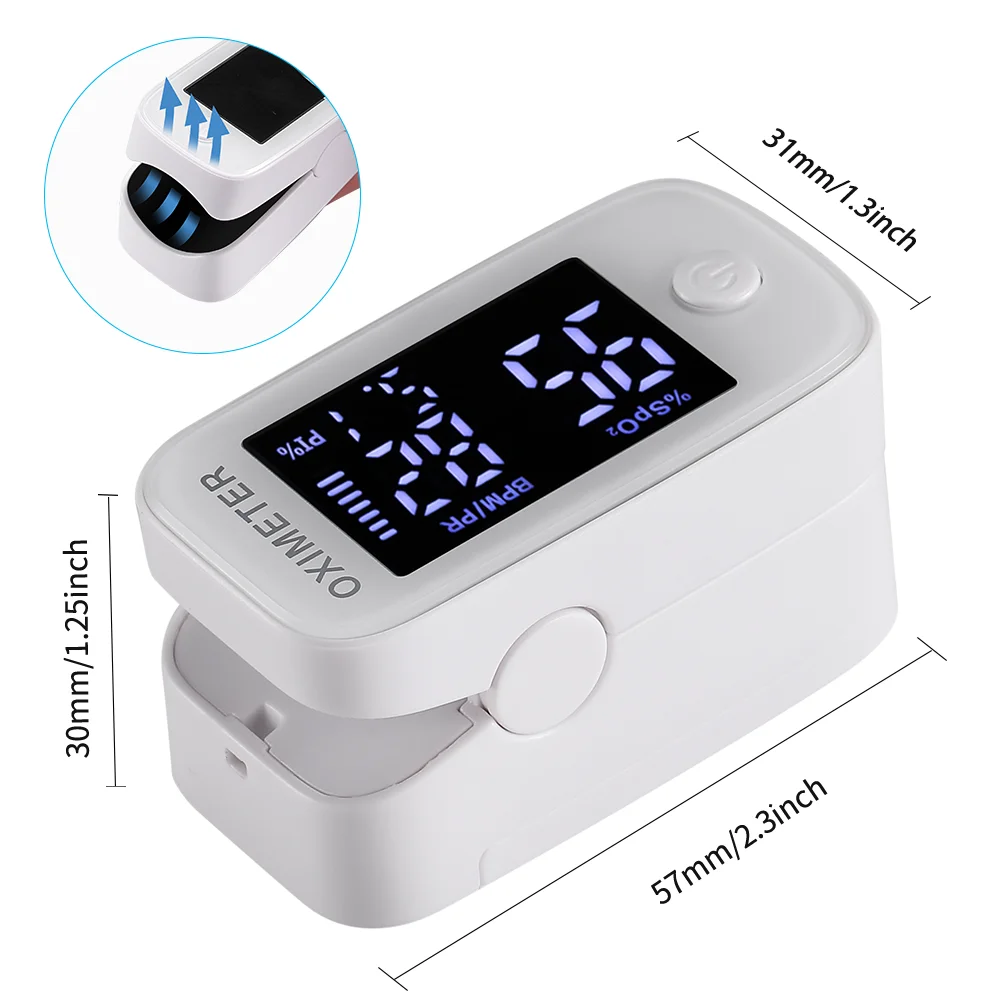

Width *Height*depth
57×30×31mm
Weight
28g (Bare machine)
Spo2 declared accuracy
-range
70%~100%: ± 2digits 0% ~ 69%: unspecified
-resolution
1%.
Spo2 display range
30%~99%
PR declared accuracy
--Range(σ*)
25~250 : ± 3digits
--Resolution
1 bpm
Temperature
--Operating
+41°~ +104°F / +5°~ +40°C
--Storage/Transportation
-40° ~ +140°F / -20° ~ +60°C
Humidity
--Operating
10~95%, noncondensing
--Storage/Transportation
10~95%, noncondensing
Atmosphere Pressure
--Operating
70~106kpa
--Storage/Transportation...
50~107.4kpa
Warranty
1 year
Packaging & Shipping
Device size 5.7*3.1*3.0 cm box size 8.9*6.0*4.0 cm Gross weight with box (no battery) 54g Carton size 47.5*31*19.5 cm Carton 5.5KG+2.5KG(BATTERY)/100pcs/carton
