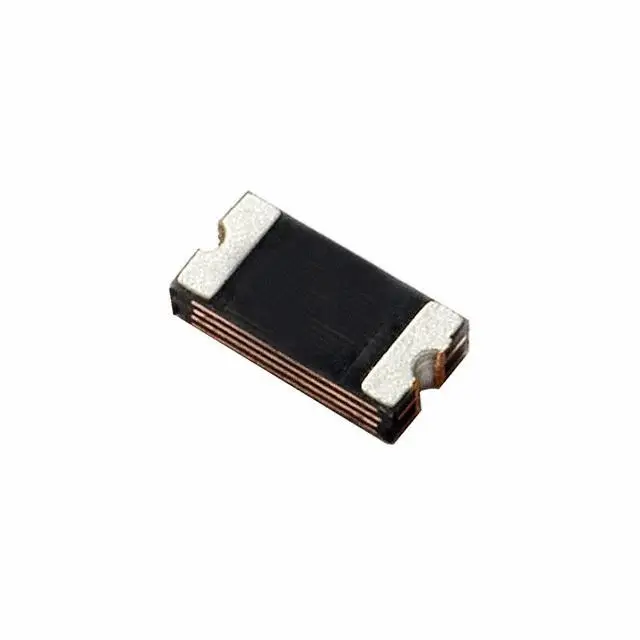

PTC RESET FUSE 6V 500MA 1206 RoHS 1206L050YR
PTC RESET FUSE 6V 500MA 1206 RoHS 1206L050YR
PTC RESET FUSE 6V 500MA 1206 RoHS 1206L050YR
PTC RESET FUSE 6V 500MA 1206 RoHS 1206L050YR

PTC RESET FUSE 6V 500MA 1206 RoHS 1206L050YR

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


Product Paramenters
Part Number
1206L050YR
Minimum Quantity
4000
Description
PTC RESET FUSE 6V 500MA 1206
Category
Circuit Protection
Minimum Quantity
4000
Packaging
Tape & Reel (TR)
Series
POLY-FUSE®, 1206L
Type
Polymeric
Voltage - Max
6V
Current - Max
100A
Current - Hold (Ih) (Max)
500mA
Current - Trip (It)
1A
Time to Trip
100ms
Resistance - Initial (Ri) (Min)
150 mOhms
Resistance - Post Trip (R1) (Max)
700 mOhms
Resistance - 25°C (Typ)
-
Operating Temperature
-40°C ~ 85°C
Ratings
-
Mounting Type
Surface Mount
Package / Case
1206 (3216 Metric), Concave
Size / Dimension
0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max)
-
Thickness (Max)
0.030" (0.75mm)
Lead Spacing
-
