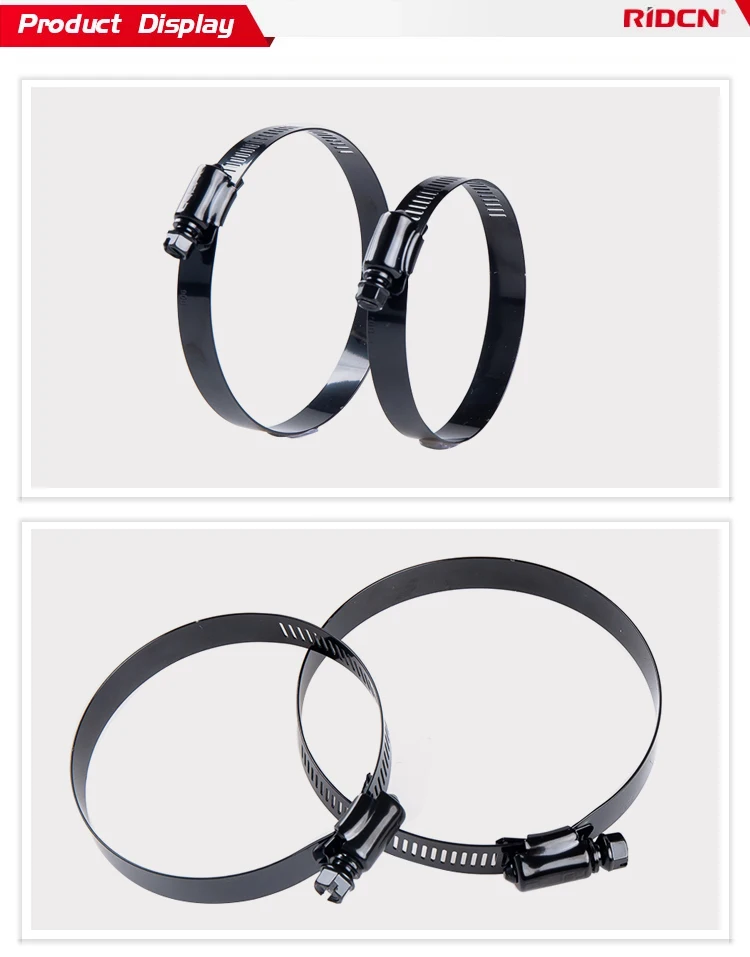

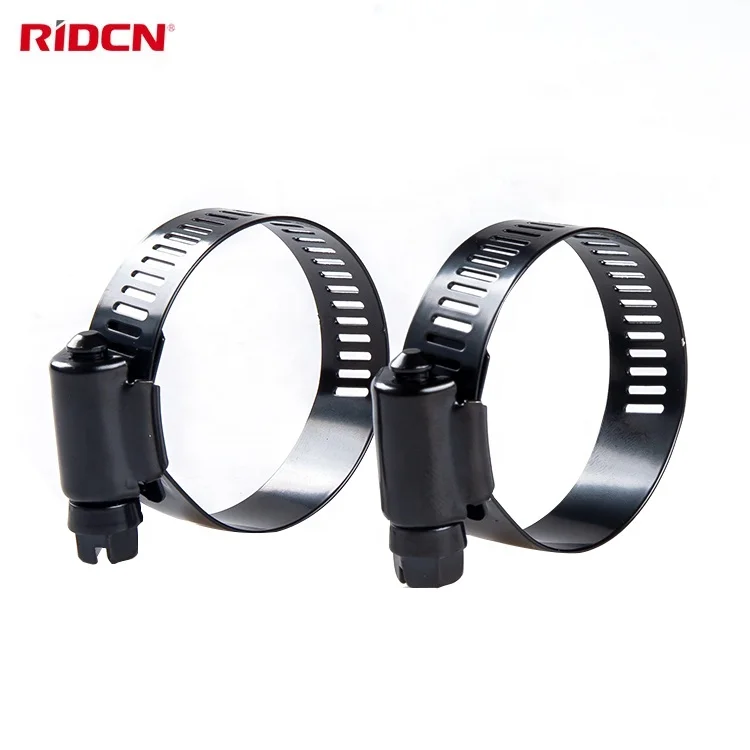

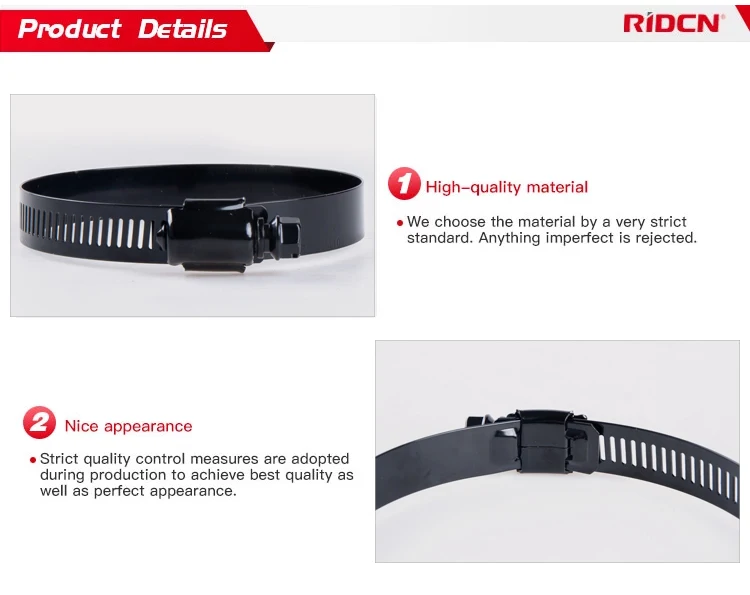

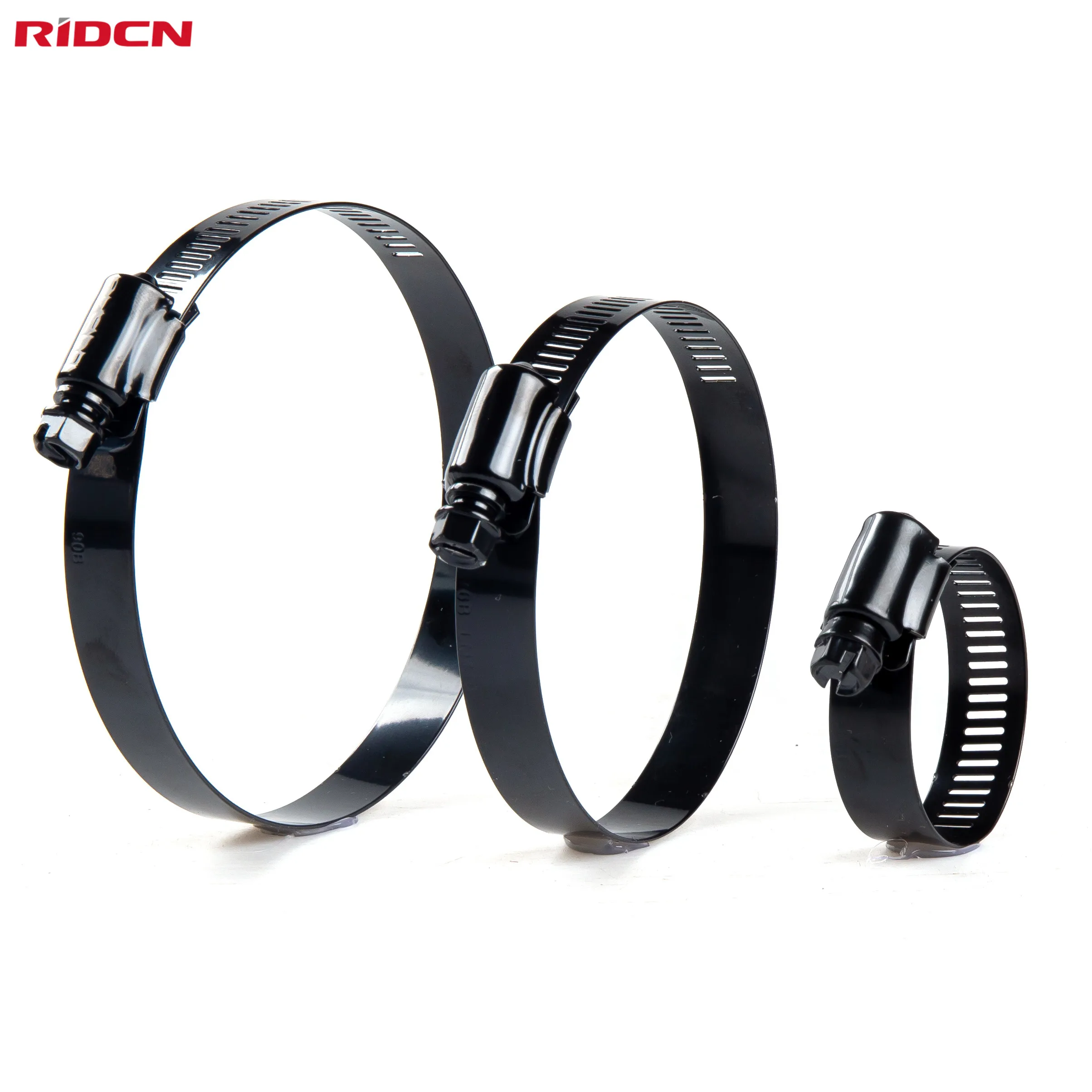

Black Hose Clamps 304 Stainless Steel Worm Drive Hose Black Coating Clamps

Product Overview

Description







• Material: band and housing are 304 stainless steel


• Band Width:12.7mm(1/2 inch)


• Band Thickness: 0.5mm/0.6mm/0.7mm


• Screw: 8mm(5/16 inch) slotted hex head screw ( zinc-plated steel, 304 stainless steel and 410stainless steel are optional)


• Worm drive clamps, also called worm gear clamps or gear clamps, are the most commonly used


• type of clamps for attaching and sealing a hose or tube. The electrophoretic paint make the clamps better corrosion-resistant. They are used in various fields such as automobile, motorcycle, industrial machine, fire-fighting, home appliance, cable,ship building, agricultural irrigation, etc.

Part NO.	Clamping Range	Band width	Torque
	(mm)	(mm)	(N.m)
22B	12-22	12.7	4.9
27B	16-27	12.7	4.9
32B	22-32	12.7	6.4
35B	23-35	12.7	6.4
40B	25-40	12.7	6.4
45B	25-45	12.7	6.4
50B	32-50	12.7	6.4
55B	35-55	12.7	6.4
60B	40-60	12.7	6.4
65B	42-65	12.7	6.4
70B	51-70	12.7	6.7
80B	60-80	12.7	6.7
90B	70-90	12.7	7.8
100B	80-100	12.7	7.8
110B	90-110	12.7	7.8
120B	100-120	12.7	7.8
130B	110-130	12.7	7.8
140B	120-140	12.7	7.8
150B	130-150	12.7	7.8
160B	140-160	12.7	7.8
170B	150-170	12.7	7.8
180B	160-180	12.7	7.8
Note:We customize clamps according to your special requirements.                Other sizes and alternate materials are also available.
