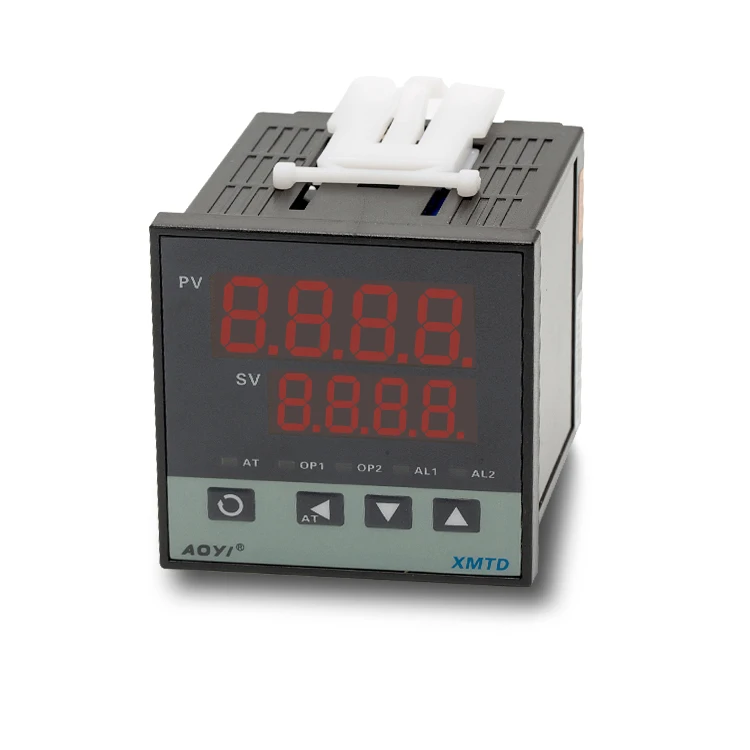

DC 12V XMTD 2000 Leading Manufacturer industrial use PID thermostat controller manufacturer digital temperature controller
DC 12V XMTD-2000 Leading Manufacturer industrial use PID thermostat controller manufacturer digital temperature controller
DC 12V XMTD-2000 Leading Manufacturer industrial use PID thermostat controller manufacturer digital temperature controller
DC 12V XMTD-2000 Leading Manufacturer industrial use PID thermostat controller manufacturer digital temperature controller
DC 12V XMTD-2000 Leading Manufacturer industrial use PID thermostat controller manufacturer digital temperature controller
DC 12V XMTD-2000 Leading Manufacturer industrial use PID thermostat controller manufacturer digital temperature controller

DC 12V XMTD 2000 Leading Manufacturer industrial use PID thermostat controller manufacturer digital temperature controller

Share on (1600116835220):


Price:$10.98 - $12.98

Quantity:


Product Overview

Description



Product Description






















1.Thermal resistance or thermocouple input and measuring range both can be set freely.


2. Software adjust zero and full scale, temperature measuring of cold-end alone, amplifier constant-zero, display accuracy is better than 0.5%FS.
3. The method of fuzzy theory with the traditional PID make the temperature be controlled quickly and smoothly.
4. The method of advanced PID parameter self-tuning saves a third time as compared with ordinary instrument.
5.  Five Optional output type: Relay output, DC12V voltage output, 4-20mA current output, phase shift /zero-crossing output voltage regulator, analog output.
6. Alarm output: two circuit user-defined alarm output.










































































Model


XMTD-2581 /XMTD-2681 /XMTD-2181/XMTD-2081


Dimensions


72*72*76mm (install size: 68*68mm)


Temperature sensor input


thermocouple: K, J, E ; thermal resistance: Pt100 ;                                analog output: 1-5V(4-20mA),0-5V(0-20mA)                                                  all compatible in one meter


Measuring Range


K(-50-1300/999℃) , J(-50-999℃) , E(-50-800℃),                              Pt100(-50-650℃)


Precision Class


0.5 class(±0.5%F±1); 1.0 class(±1.0%F±1)


Sampling Rate


2 times/sec


Adjustment  Method


intelligent PID adjustment (P ,PI, PD ,PID)


Main Control Output


DC12V voltage output to control SSR to regulate the temperature


Type differ by Alarm Function


XMTD-2581 (one way upper limit bias alarm default 10degree)


XMTD-2681 ( one way lower limit absolute value default 100degree )


XMTD-2181 ( one way upper limit alarm and one way lower limit alarm )


XMTD-2081 ( no alarm)


Contact Capacity


250VAC/3A  DC28V/3A (resistive)


Working Power


transformer : 220VAC±10% 50/60Hz; 100-240V (could be customized)


Power Consumption


< 3VA


Ambient Temperature


temperature -10°C~50°C; humidity <85% non-corrosive occasion




product recommendati


















Company Information







Certifications


.png





Packaging & Shipping







Warning


1.Please confirm whether the auxiliary power,input signal and connection are correct before energizing.

2.The instrument should be preheated for 15 minutes before accurate measurement.

3.The instrument shall not be knocked,collided and vibrated violently,and the operating environment shall meet the technical requirements.

Packaging and Storage
The instruments and accessories shall be stored in a dry and ventilated place under packing conditions to avoid exposure to moisture and corrosive gasses.The storage temperature shall not exceed +70℃,no less than -40℃,and the humidity shall bexiao 85%.





FAQ


1. Q: Can you provide OEM service?


    A: Yes, we can.


2. Q: What's the MOQ?


    A: For testing purpose, 1pc is ok.


3. Q: Can you provide trade assurance service?


    A: Yes, we are member of the Alibaba trade assurance scheme.


4. Q: What's the lead time?


    A: General lead time is 15 days after payment.


5. Q: What's your waranty?


    A: We provide 12 months warranty against manufacturing defective.
