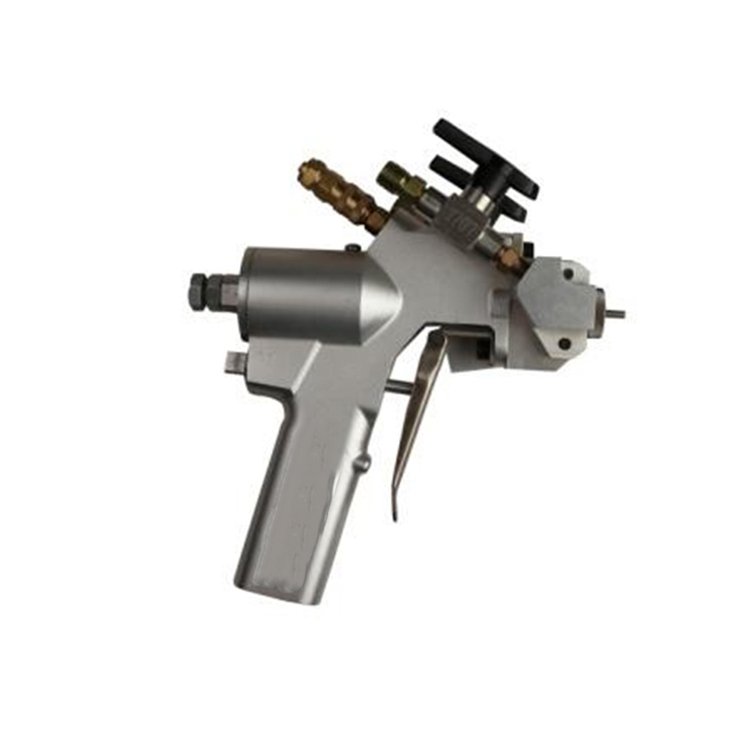

P2 PU Foam Spray Gun Polyurethane Air Purge Spray Gun Self Cleaning With Accessory Kit
Product description:
Max.fluid working pressure 24Mpa
Air inlet pressure 0.4-0.8mpa
Cleaning method self cleaning with air
Working flow 2-9kg/min
Mix Chamber Size 1.3mm(1.5mm could select)
Spray nozzle size 1.6mm(1.8mm or 2.0mm could select)
Spray gun parts Could send the total part list about the spray gun for extra select
Gross weight 2.0kg
Model P-2
Features:
1. The pipe joint Angle, reduce the gun load, make operation easy.
2. Gas valve can prevent trigger is stuck.
3. Gas auxiliary spring can quickly cut into the mixing head of raw materials.
4. Jet linear continuous and smooth, no field control.
5. Pneumatic wrench can reduce the labor intensity of operators.
6. All steel hybrid head, output, precise control of spraying position, reduce the waste of raw materials, particularly applicable to residential construction between two walls of spraying.
7. Single valve device can prevent ISO material and POLY material flow back, and not apart gun, which can check the gun inside most of the seal.
8. Use manual switch valve, no tool can quickly and easily switch gun.
9. High pressure vacuum mixed to ensure the best
P2 gun lightweight, easy to handle , even in the difficult position of spray can and spray ease of operation , its excellent production efficiency has been widely recognized by the industry . At the end of the work day , maintenance is simple. P2 gun with one-way valve to separate the wet area of the gun .
trigger rapid response - double piston provides a powerful driving force .
replacement of the mixing chamber can insert , without replacing the entire mixing chamber .
Anti- crossover design to virtually eliminate the possibility of material fleeing into the air piston.
ergonomic handle design for peace and comfort , compact , and lightweight.
Specification
item
value
Model Number
MAP2
No-Load Speed
1000r/min
Place of Origin
SHANDONG
Max.fluid working pressure
24Mpa
Air inlet pressure
0.4-0.8mpa
Product name
P2 Air Purge Spray Gun
Type
MAP2
Material
cast iron
Color
Black
Cleaning method
self cleaning with air
Working flow
2-9kg/min
Mix Chamber Size
1.3mm(1.5mm could select)
Spray nozzle size
1.6mm(1.8mm or 2.0mm could select)
Packing & Delivery
carton box
