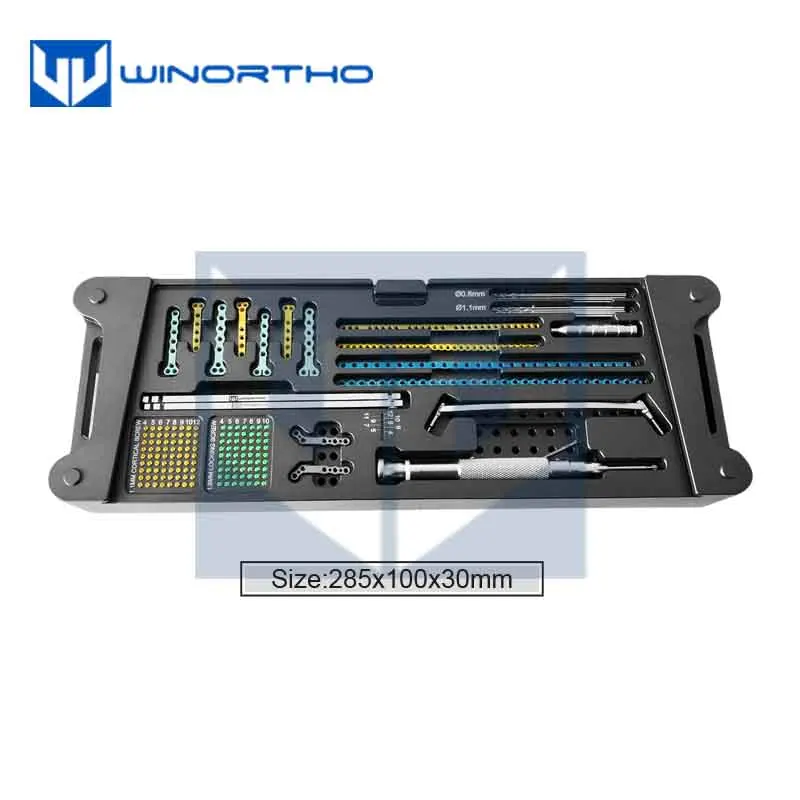

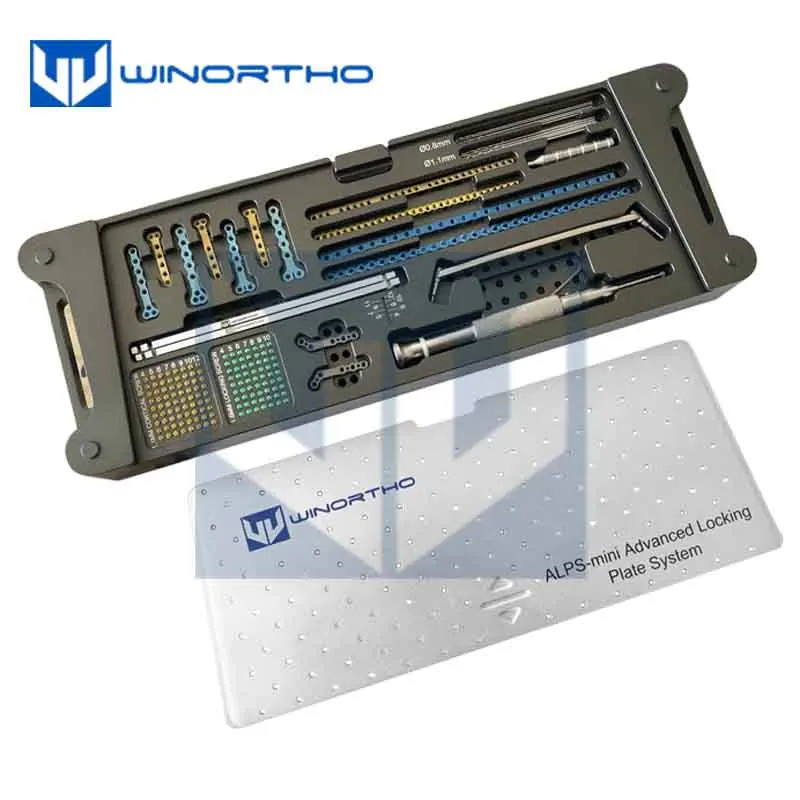

ALPS mini system
It is very difficult to reduce fractures in small dogs weighing less than 1kg. Even the 1.5mm and 2.0mm implants are still too big.In order to operate on small bone fractures, we have produced a unique alps mini system。All implants are made of implant-grade titanium alloy with a thickness of 1.0mm.The screws are 1.1mm diameter cortical self-tapping screws and 1.6mm diameter locking screws.


FEATURES AT A GLANCE


Material:titanium
1.1mm cortical self-tapping screw（72 pcs）
1.6mm locking self-tapping screw（54 pcs）
T type plate: locking(4 pcs);non locking(3pcs)
1.1mm cuttable reconstruction plate:2 (pcs)
alps3.5 locking plate:1 pcs
alps4.2 locking plate:1 pcs
0.8mm drill bits:5 pcs
1.1mm drill bits:5 pcs
0.8/1.1mm double drill guide 1pcs
1.1mm locking drill sleeve 1pcs
plate bending iron 1 pair
cross screwdriver 1pcs
Be applicable:Animals within 5kg



Photo 1
Photo 2
Photo 3

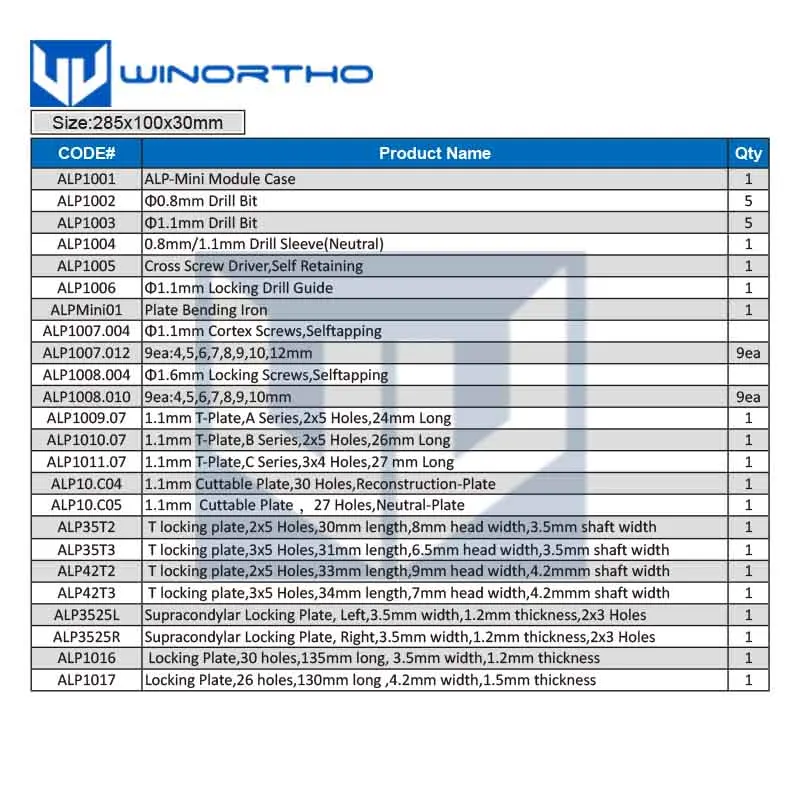

PRODUCT SPECIFICATIONS


Product Name
Size
ALP-Mini 3.5mm locking plate
30holes;135mm length;3.5mm width;1.2mm thickness
ALP-Mini 4.2mm locking plate
26holes;130mm length;4.2mm width;1.5mm thickness
ALP-Mini T Locking plate
2 holes head,5 holes shaft,30mmm length,8mm head width,3.5mm shaft width,1.2mm thickness
ALP-Mini T Locking plate
3 holes head,5 holes shaft,31mm length,6.5mm head width,3.5mm shaft width,1.2mm thickness
ALP-Mini T Locking plate
2 holes head,5 holes shaft,33mm length,9mm head width,4.2mm shaft width,1.5mm thickness
ALP-Mini T Locking plate
3 hoels head,5 holes shaft,34mm length,7mm head width,4.2mm shaft width
ALP-mini T plate
2 holes head,5 holes shaft,24mm length,1.0mm thickness,3mm shaft width,6mm head width
ALP-mini T plate
2 holes head,5 holes shaft,26mm length,1.0mm thickness,3mm shaft width,6mm head width
ALP-mini T plate
3 holes head,4 holes shaft,27mm length,1.0mm thickness,3mm shaft width,6mm head width
ALP-mini Reconstruction cuttable  plate
30 holes,1.0mm thickness,3mm width,90mm length
ALP-mini neutral cuttable plate
27 holes,1.0mm thickness,3mm width,90mm length
B1.6mm Locking screws
4/5/6/7/810mm
1.1mm cortex screws
4/5/6/7/8/9/10/12mm
drill bits
0.8mm&1.1mm
drill sleeve
1.1mm
double drill guide
0.8/1.1mm
screwdriver
cross
plate bending iron
1 pair
implant module case
1 pc
