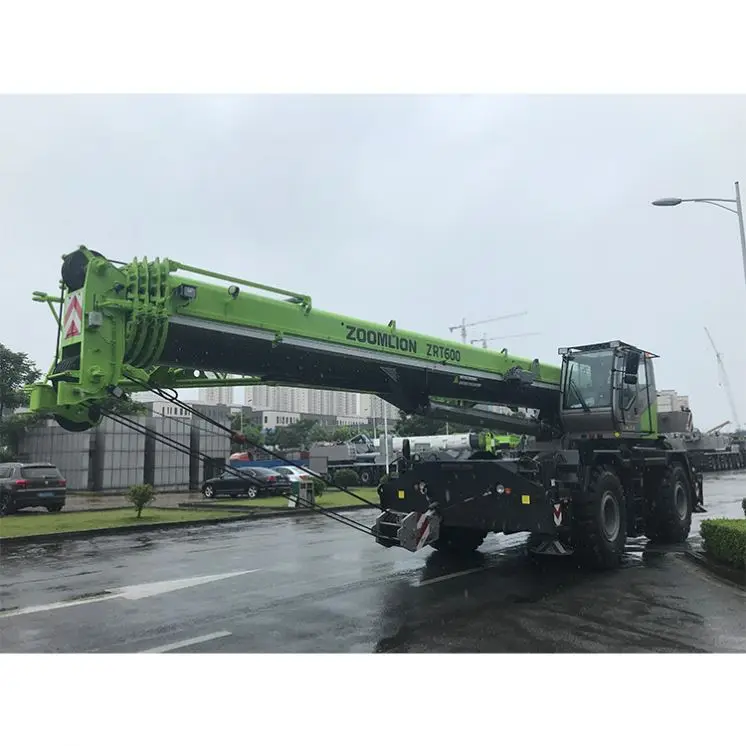

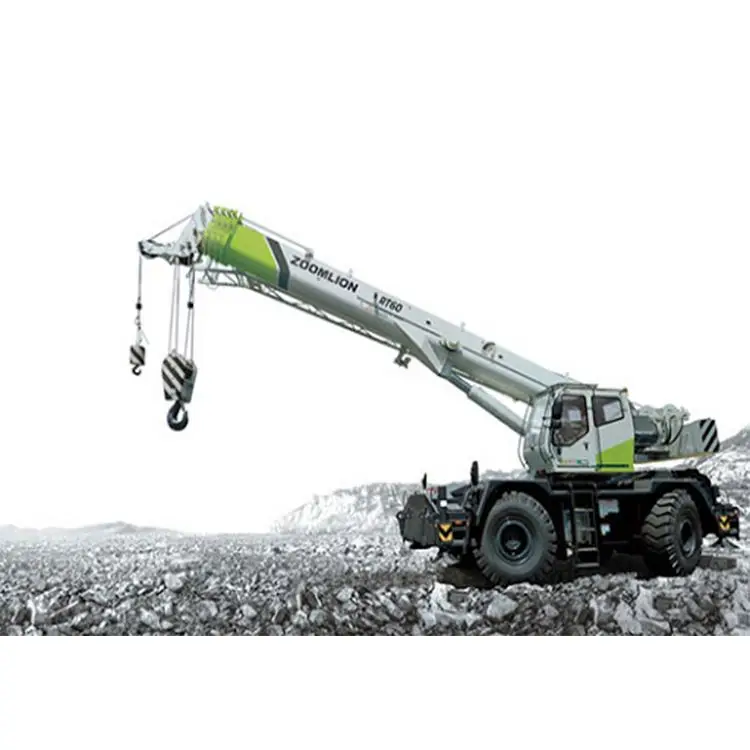

Hydraulic Mobile Crane 60Ton Zoomlion Rough Terrain Crane Price ZRT600
Product Description
1.Technical Parameters:
1.Maneuverable and robust drive • Four-wheel drive and four-wheel steer chassis; • Fully hydraulic steering system; • Variable steering modes, front-wheel steer,four-wheel steer and crab steer; short vehicle length and small turning radius provide the crane with maximum maneuverability and flexibility in narrow job sites
2.Excellent off-road capability Big ground clearance and departure / approach angle offer excellent off-road capability.
3.Strong gradeability • Cumins electronically-controlled engine, automated transmission and steerable drive axlex provide reliable power output. • Even in the condition of abrupt road resistance, the engine can also be functional. • Four-wheel drive, hydraulic suspension and special tires optimize the vehicle' s drive performance to its maximum, suitable for any bad roads and job sites.
Type
Ser. No.
Item
Unit
Value
Working performance
1
Max. rated lifting capacity × working radius
kg.m
60000×2.5
2
Max. load moment of main boom
kN.m
2116.8
3
Max. load moment of main boom (fully extended)
kN.m
1197
4
Max. lifting height of main boom (fully extended)
m
45.1
5
Max. lifting height of jib
m
61.2
Dimensions
6
Overall dimensions (L × W × H)
mm
14100×3300×3790
7
Outrigger spread
(Height × Width)
mm
7380×7400
8
Main boom length
mm
11600 - 45000
9
Jib length
mm
9500 - 16000
10
Boom angle
°
-2 - 80
11
Swing range
360° unlimited swing (Full range)
Working speeds
12
Max. hoist rope speed (Main winch)
m/min
130
13
Min. boom telescoping out time
s
95
14
Min. boom telescoping in time
s
110
15
Min. boom derricking up time
s
45
16
Min. boom derricking down time
s
125
17
Swing speed
r/min
0~2.4
Hydraulic system
18
Maximum working pressure
MPa
28
19
Rate working flow
L/min
280
20
Hydraulic oil tank capacity
L
850

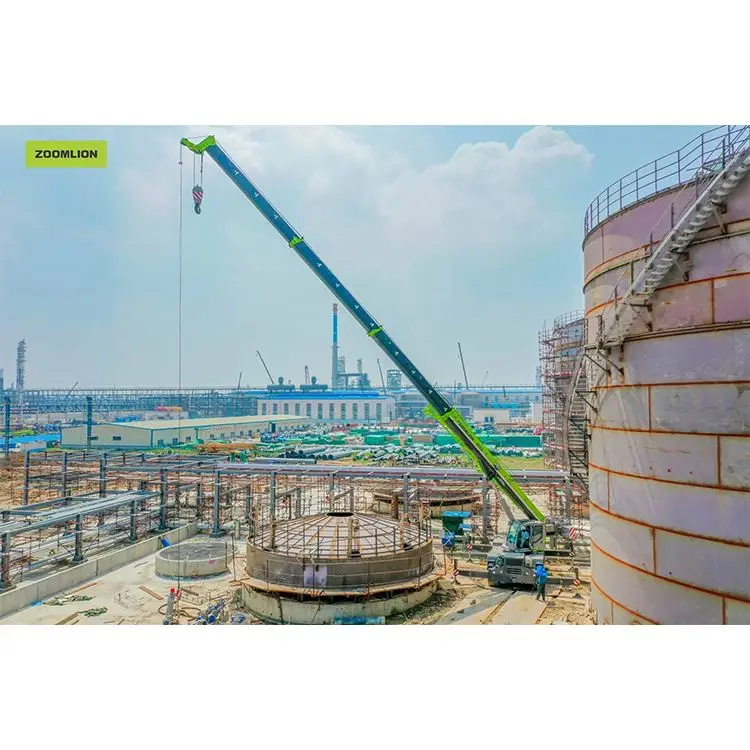

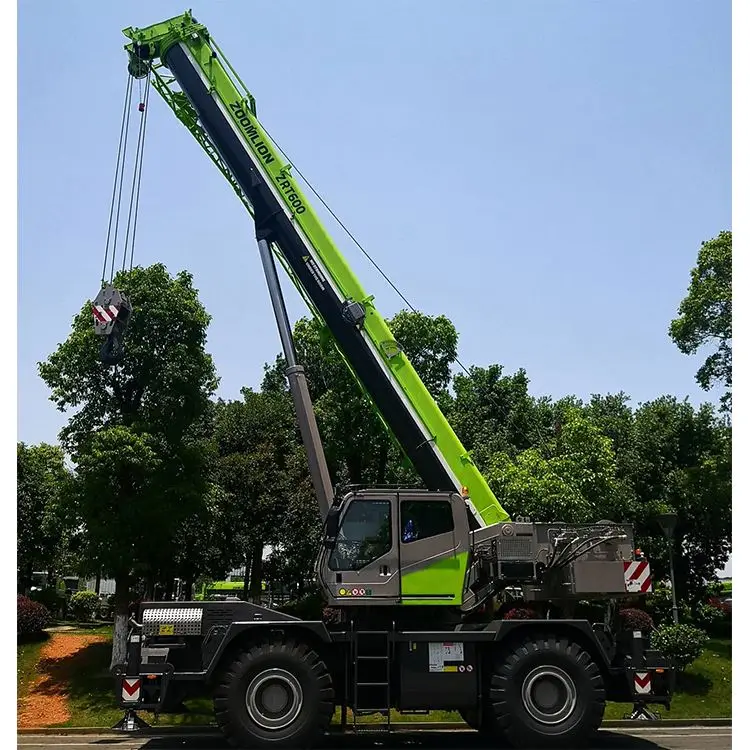

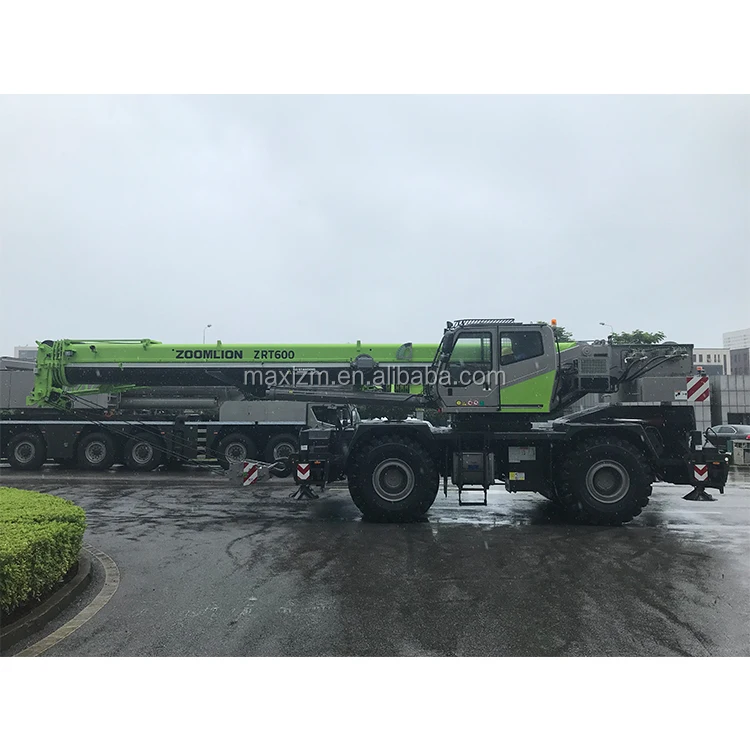

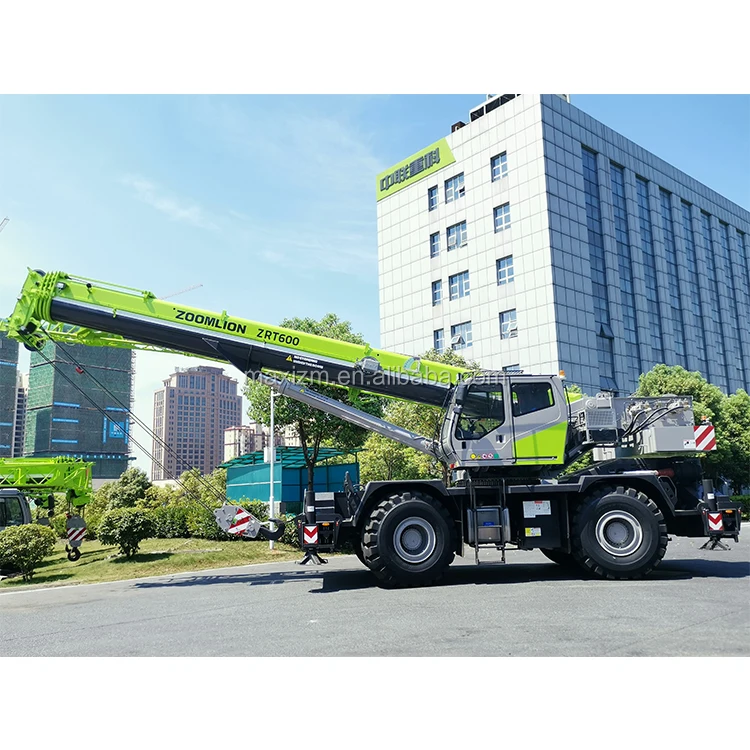

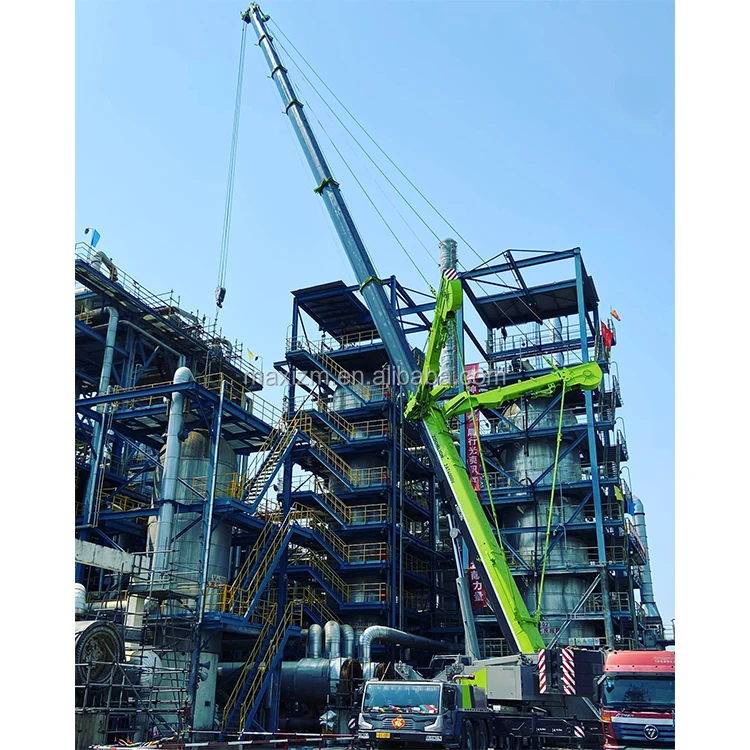

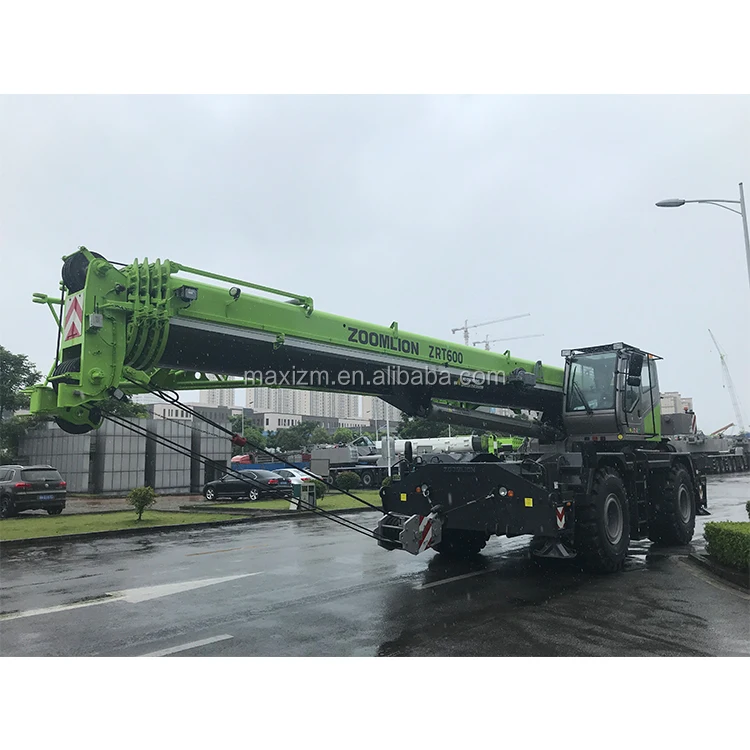

2. Photo:
Packaging & Shipping
Company Information
3.Our Company:
1. Professionally export construction hinery and spare parts for more than 10 years to over a hundred countries. 2. Experienced in customs ance in different ports(countries). Clients type has big contractors, tender, private,rental companies, construction companies etc. 3. Quick delivery time and thoughtful services.
