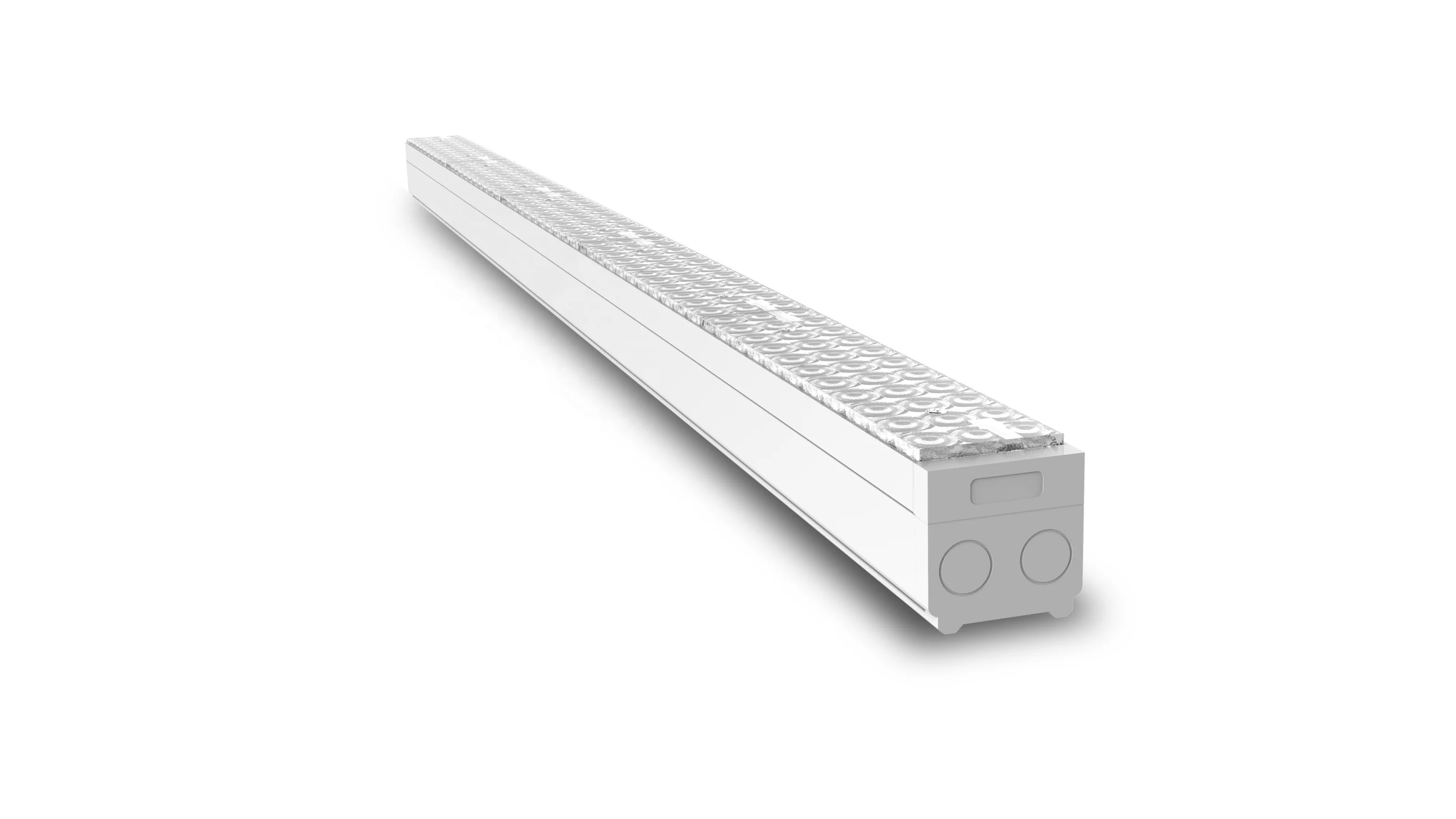

IP54 LED linear Trunk system light 150lm/w for the work shop and industrial light linable
- Category: >>>
- Supplier: Shenzhen Newlite Technology Co. Ltd.
Share on (1600118259102):
Product Overview
Description
IP54 150-180LM/W Wattage adjustable Plusine Linear Trunking System
| ITEM | Model No. | Length | Driver brand | POWER | LM/W | Lumen | Function | ||||
| 1 | 60W-S1 | 1438mm | OSRAM | 60W-50W-42W-32W by Switch | 150 LM/W | MAX9000 | Non-Dimming | ||||
| 3 | 68W-P1 | Philips | 68W | 150 LM/W | MAX 11,000 | Non-Dimming | |||||
| 4 | 72W-B3 | BOKE | 72W-68W-64W-60W-58W-56W-54W-52W-48W-45W by Switch· | 140 LM/W | MAX 9,600 | 1-10V | |||||
| 5 | 68W-T4 | Tridonic | 16W to 68W | 150 LM/W | MAX 11,000 | DALI | |||||

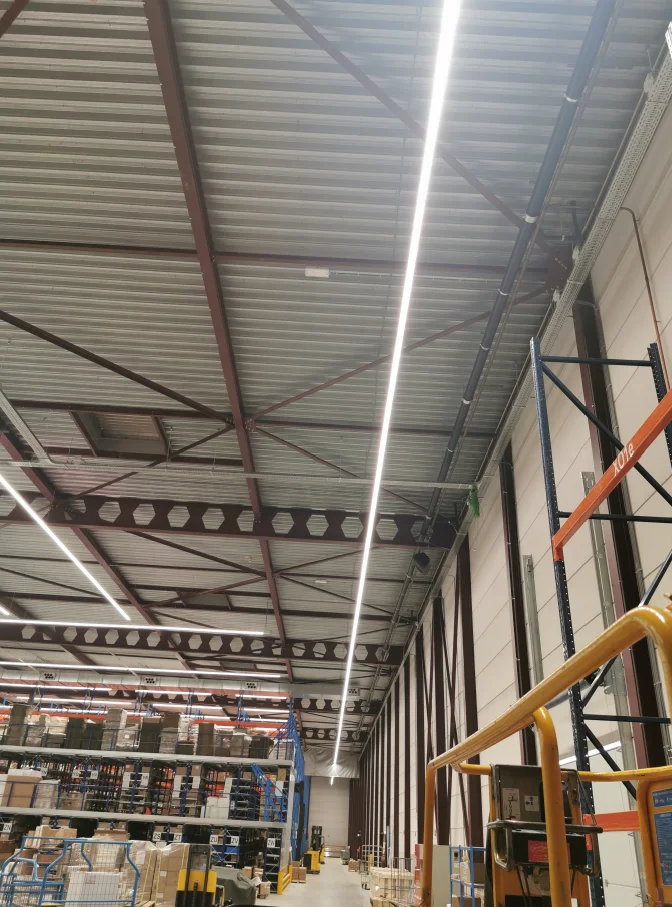

1. IP54 grade ,this is can widely use for many industrial lighting solution project .
Such as Car shop,food factory ,industrial factory
2. wattage adjustable:
16W to 68W
60w,68w,72w can be option .
60W-50W-42W-32W by Switch
72W-68W-64W-60W-58W-56W-54W-52W-48W-45W by Switch.
3. Driver brand : Osram,philips, Tridonic ,Boke as option .
4. High lumen efficiency 150lm/w
5. 5 years warranty
6. Sensor and emergency led driver can support it
7.Beam angle of the Plusline Trunking system
30degree,60degree ,90degree ,120degree, 25degree double
Plus linear Trunking system Accessories as option as below :
Installation details :
Support Carton packing and pallets packing
| Product Name |
Packages | G.W/N.W (CTN) | Measurement | |||
| Qty/PCS | KGS | CTN(cm) | ||||
| LED Module | 8 | 20 | 18.5 | 164 | 37 | 17 |
| LED Trunk | 8 | 16.5 | 15 | 164 | 37 | 17 |
