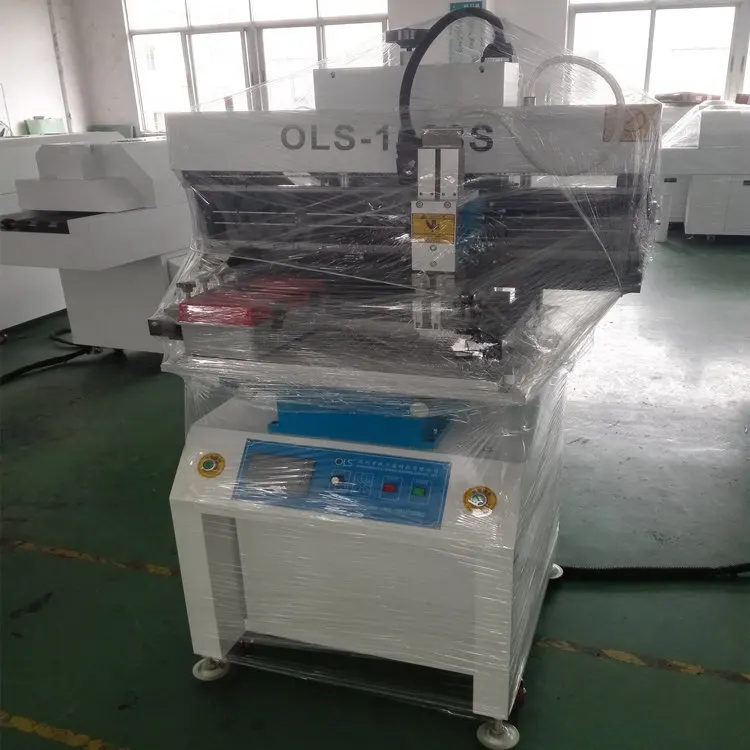

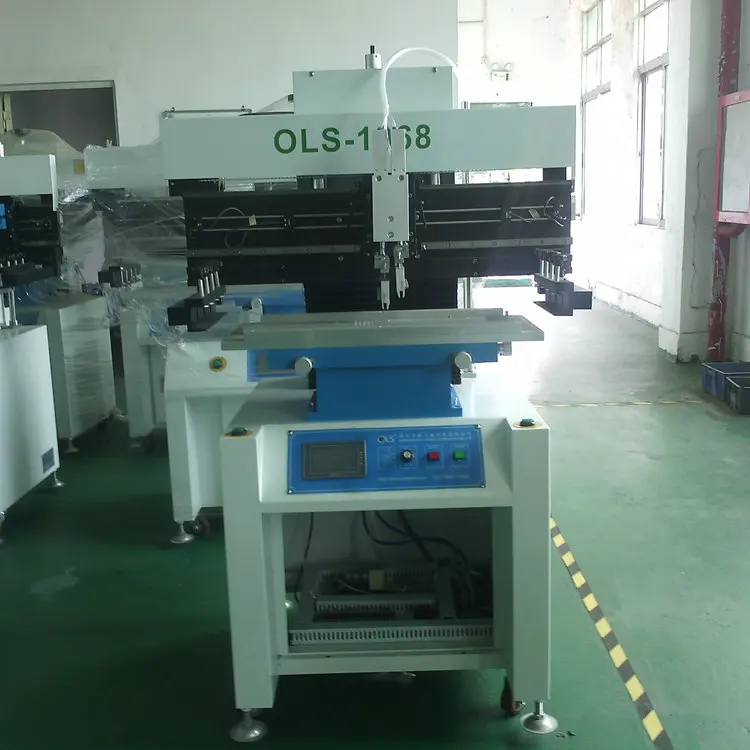

0.6 meter semi automatic LED PCB screen printer machine SMT solder paste printer solder stencil printing machine

Product features:

Use the servo system for easy and accurate positioning.

- It adopts imported linear high-speed guide rail and imported speed motor to drive the scraper seat to ensure printing accuracy.

- The printing scraper can be rotated 45 degrees upward to fix and clean the printing plate and scraper.

- The blade holder can be adjusted forward and backward to select the appropriate printing position.

- Combined printing plate with fixed groove and PIN, easy installation and adjustment, suitable for single and double panel printing.

- The school edition adopts stencil net movement, combined with printing (PCB) X, Y, Z. Calibration is quick and easy.

- Adopt PLC and touch screen man-machine interface control, simple, convenient and more suitable for human-machine dialogue.

- can be set to one-way and two-way, a variety of printing methods.

- With automatic counting function, convenient production statistics.

- adjustable blade angle, steel scraper, rubber scraper are suitable.

- The man-machine interface has a screen protection function to protect the service life of the man-machine interface.

- Adopt unique programming, printing scraper seat is easy to adjust.

- Press speed man-machine interface display, digital control can be arbitrary.



Technical parameters:

The number type	OLS-1068
Printing machine covers an area	700 x 320mm
Frame size	370 * 470 mm, 1000 * 400 mm
Substrate size	600 x 250 mm, 600 x 300 mm
Printing Area	600*300mm
Base plate thickness	0.2 ~ 2.2 mm
Plate fine-tune	the Front/Back + 10 mm R/L + 10 mm
The printing accuracy	+ / - 0.02 mm
Machines repeat accuracy	+ / - 0.03 mm
Minimum spacing	0.35 mm
The use of air compressor	4-7 KGF/Cm2
Power	220V 50/60Hz, 100W
Machine size	1050 x 900x 1650mm
The machine weight	280 kg



 Printer blade and spare parts

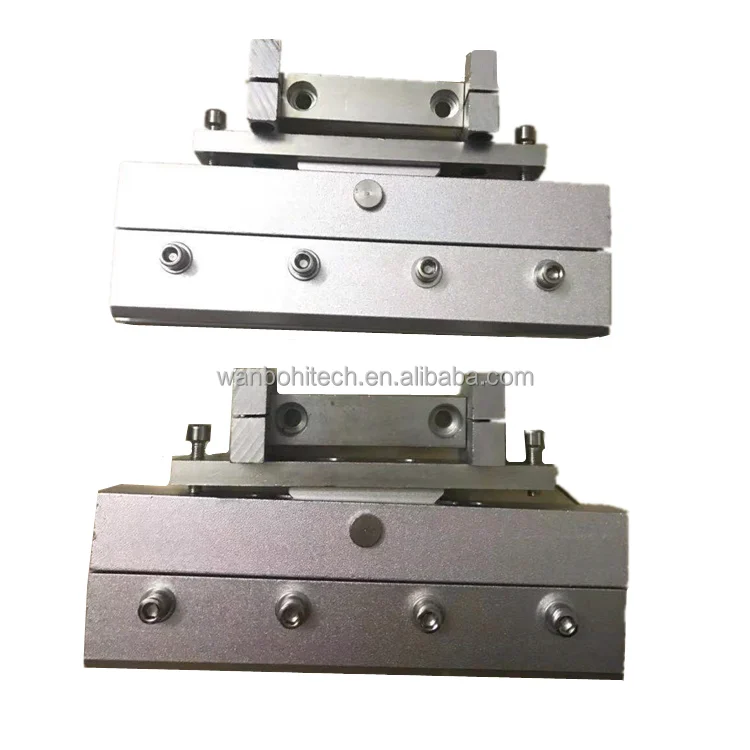

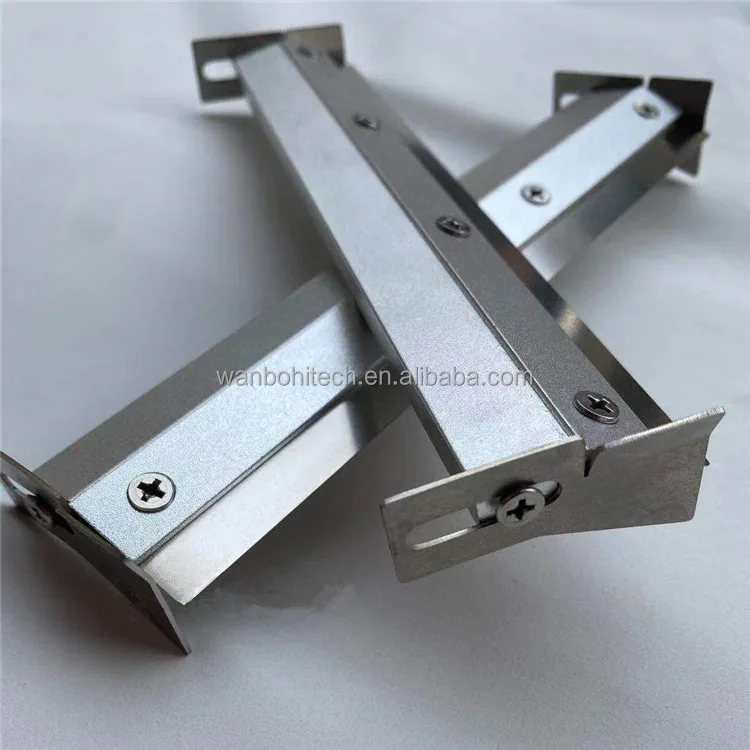

Printer Head assembly for semi automatic solder paste printer

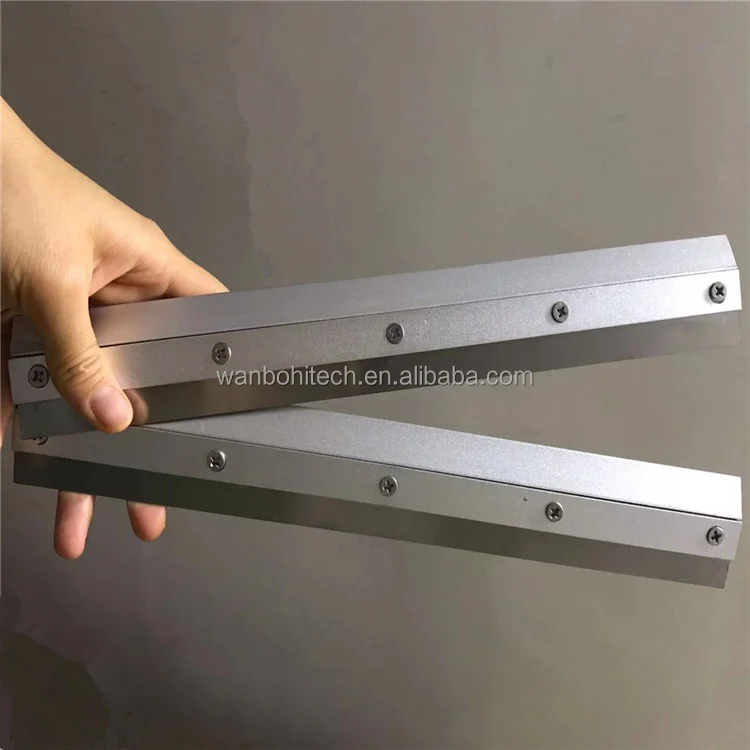

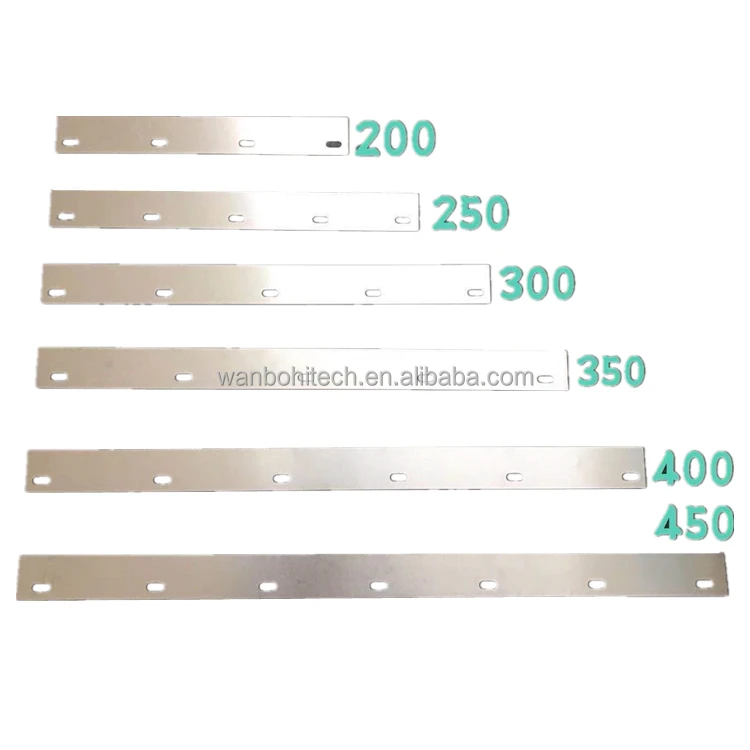

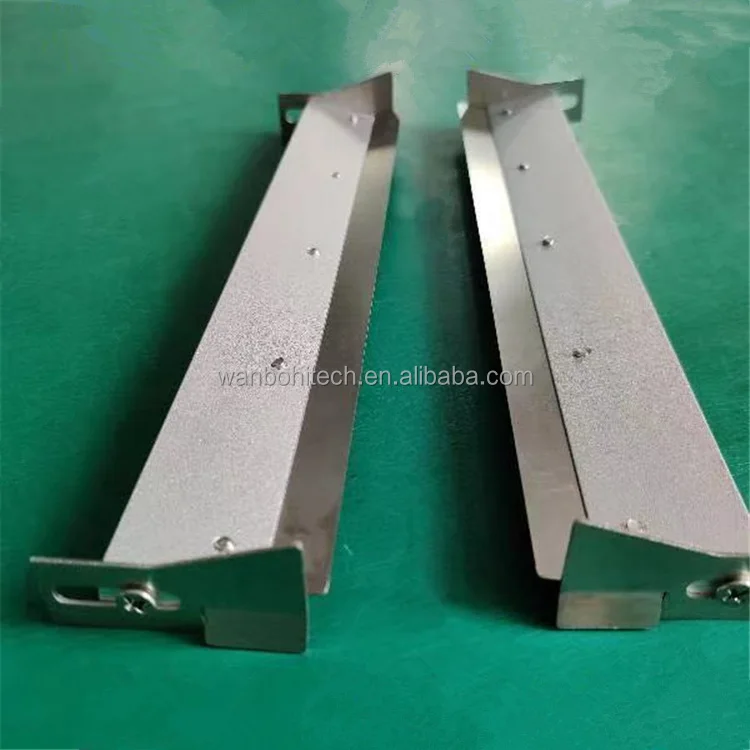

Printer head blade with block to prevent solder paste flowing out

Printer head blade no block
