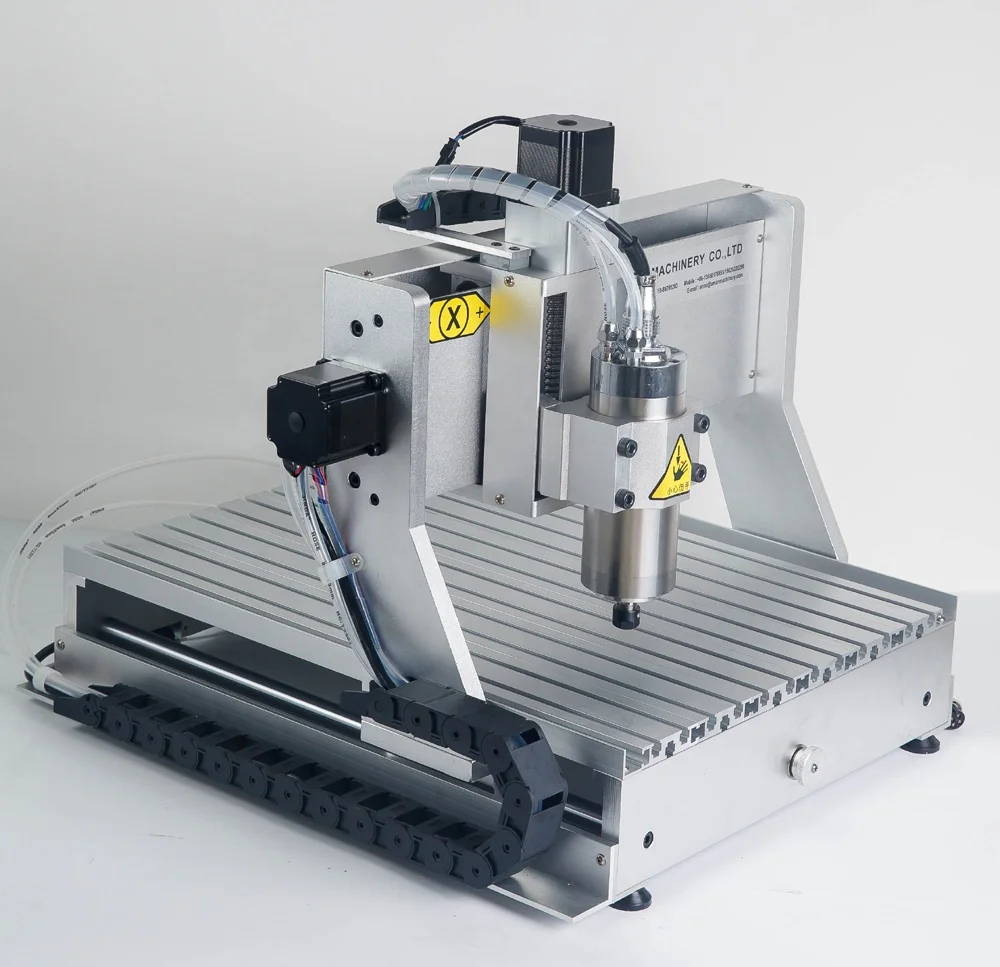

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes. The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

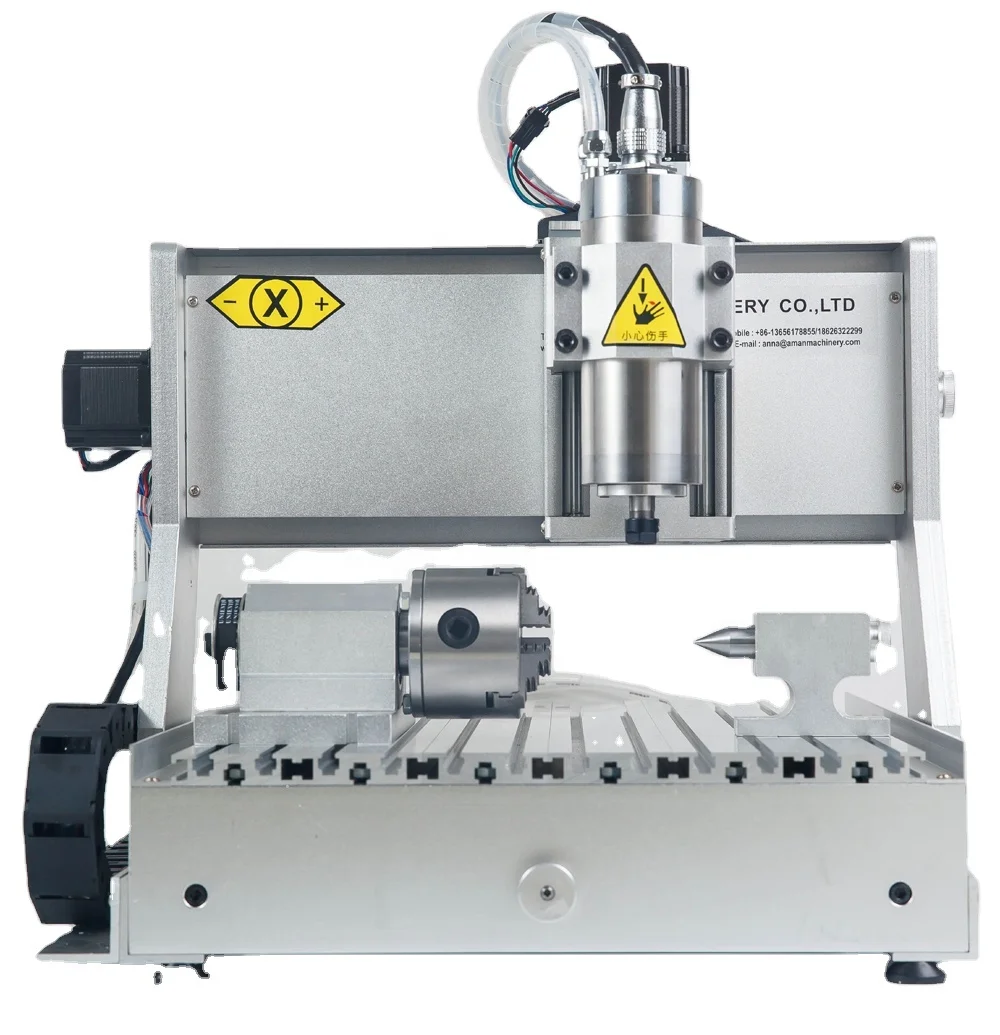

In addition, it can be upgraded to be installed a rotational axis. More Precise Stepping Motor The engraving process is visible as controlled by computer Simple operation and installation 1 year machine part and 6 months electrical parts,stepping motor,spindle Free Warranty
The machine already assembled & tested well, can directly use after take them out from package Shipping by DHL FEDEX UPS with tracking number
Specification
AM3040 Technical Parameters
Model
AM3040G-800W
AM3040G-1.5KW
AM3040G-2.2KW
Dimension
600*510*480mm
600*510*480mm
600*510*480mm
Working Travel
X300*Y400*Z80mm
X300*Y400*Z80mm
X300*Y400*Z80mm
Workpieces height
≤100mm
≤100mm
≤100mm
Platform size
535*400mm
535*400mm
535*400mm
Structure Material
6061-T10 Aluminum Alloy
6061-T10 Aluminum Alloy
6061-T10 Aluminum Alloy
Screw
Import 1605 ball screw
Import 1605 ball screw
Import 1605 ball screw
Guide
X:20/Y:16/Z:12 Circular orbit
X:20/Y:16/Z:12 Circular orbit
X:20/Y:16/Z:12 Circular orbit
Spindle power
800W Spindle
1.5KW Spindle
2.2KW Spindle
Spindle control
VFD
VFD
VFD
Spindle Speed
0-24000 rpm/Min
0-24000 rpm/Min
0-24000 rpm/Min
Spindle cooling method
water cooling
water cooling
water cooling
Spindle collet
ER11-3.175/6 mm
ER11-3.175/6 mm
ER20-6mm
Stepper Motor
57BYH56
57BYH56
57BYH56
Stepper driver
8 division driver
8 division driver
8 division driver
NC code
Standard G code nc.tab.mmg.plt.eng.dxf
Standard G code nc.tab.mmg.plt.eng.dxf
Standard G code nc.tab.mmg.plt.eng.dxf
Engraving Precision
±0.03-0.05mm
±0.03-0.05mm
±0.03-0.05mm
Repeated positioning accuracy
±0.03
±0.03
±0.03
Control software
MACH 3 USB
MACH 3 USB
MACH 3 USB
Communication port
Parallel Port/USB
Parallel Port/USB
Parallel Port/USB
Machine Voltage
AC 220V/110V optional
AC 220V/110V optional
AC 220V/110V optional
Compatible drawing software
TYPE4/MaterCAM/CDR/UG/ARTCAM/Coopercam/CAD/CAM
TYPE4/MaterCAM/CDR/UG/ARTCAM/Coopercam/CAD/CAM
TYPE4/MaterCAM/CDR/UG/ARTCAM/Coopercam/CAD/CAM
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Aman Machinery Co., Ltd. was established in 2007. specializes in the production of CNC Engraving Machine . Till now, we have already had good export and import relationships with customers in Russia, India, Singapore, Brazil, Mexico, Spain, Ukraine,South Korea, South Africa and other countries and regions, with great honor. Aman Machinery takes "faithful and honest" as our root, persisting in strict management and technology innovation, with careful manufacture and continuous improvement. We make sure to produce products welcomed by the market and provide wholehearted and confident service for all the customers.
Sample
Exhibition
FAQ
After service Q and A
Question 1
I want to buy this machine but i don't know how to program G code ?
Answer: We can provide fee charge service Or you can go to study .
Question 2
I don't know how to setting parameters when need to use it .
Answer: We have instructions for our machine .All the parameters is very clearly on it. We also can provide online support service.
Question 3
I am interested in this CNC machine but i don't know how to use it.
Answer: We have video to show how to operate our machine ,If you still don't know after check the video and we can provide remote assistance .
Question 4
How can i do if the machine damage on the shipping way ?
Answer: No matter any problem with the machine please contact us by Alibaba message with photos or videos . We will give you a satisfied solution after check it.
Question 5
How long is the warranty of the machine?
Answer : This item comes with 12 months Manufacturer's Warranty from the date of customers purchased it.
Question 6
How can i do when the machine have quality problem ?
Answer : Please take a video to show your problem to us .We have professional engineer to help you solve the problem.A free replacement can send when needed
PS: Any other question welcome to contact us by Alibaba message .We are always here with you!
Our working time is 9:00AM-6:00PM from Monday-Friday .All the service can be provide during working time.
