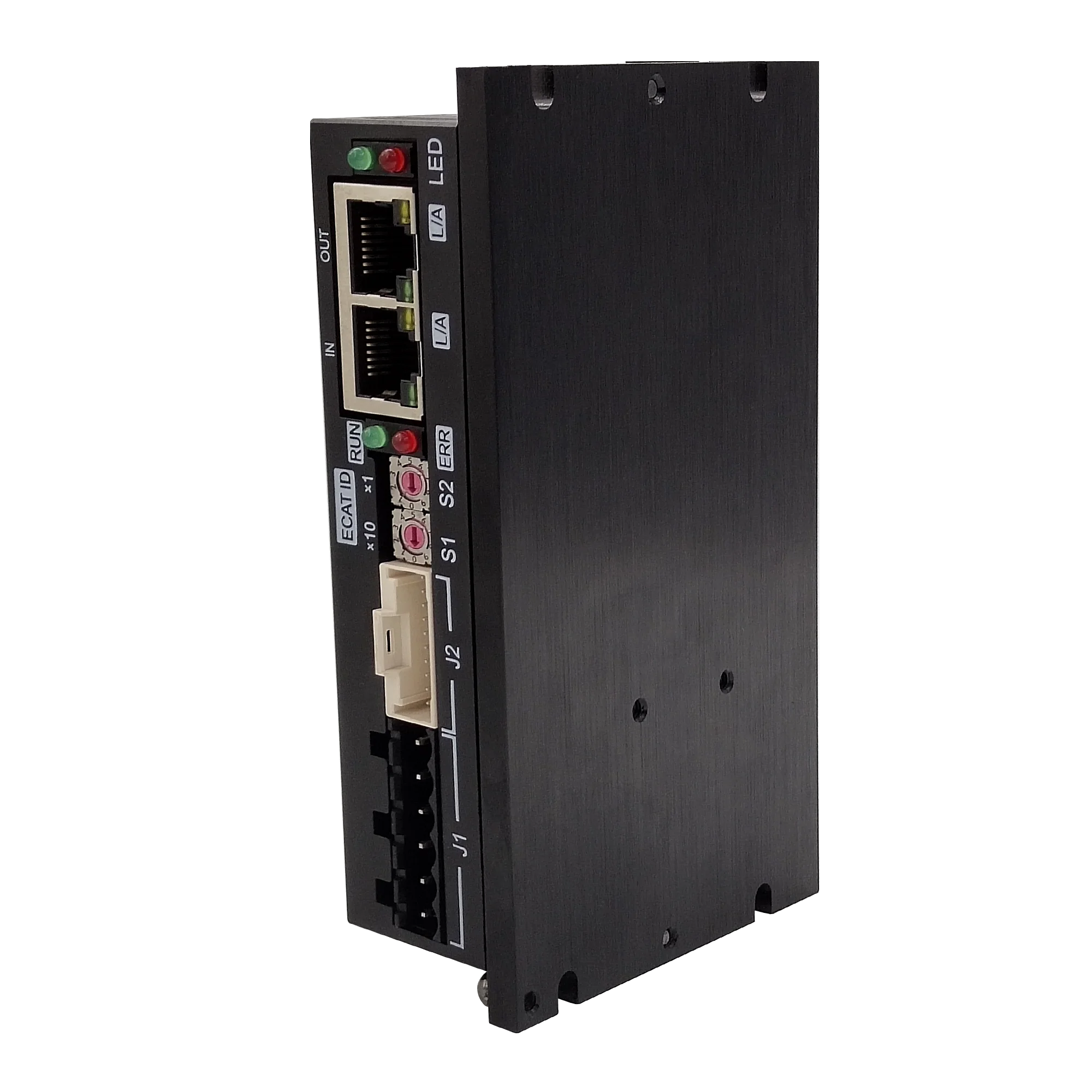

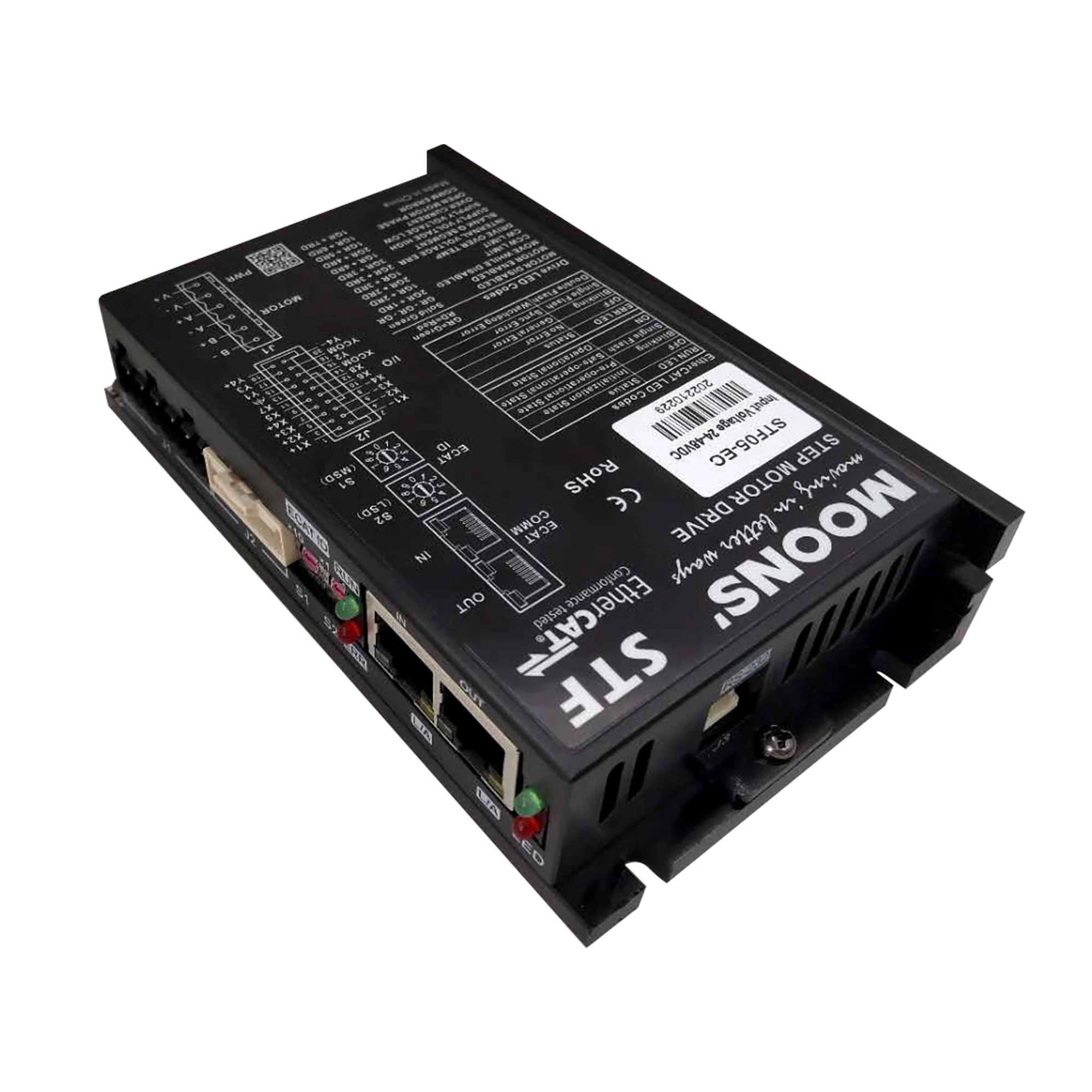

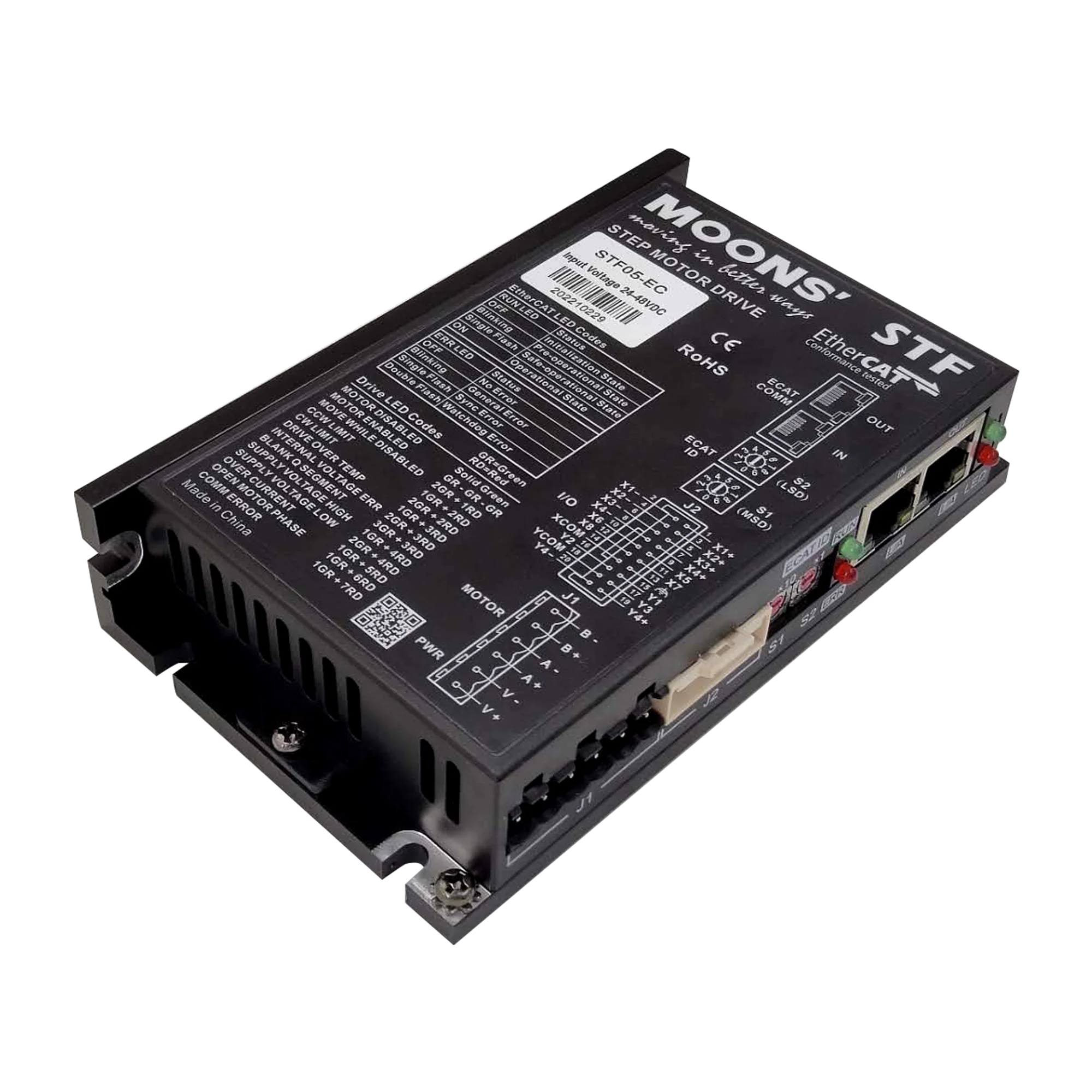

Moons hybrid intelligential EtherCAT 2 phase 24v-48v 5a microstep digital dc power step driver ethercat
| Brand | MOONS |
| Model | STF05-ECX |
| Driver Size | 129mm*78.2mm*29mm |
| Certification | CE RoHS |
Feature:
| Parameter | Unit | Value |
|---|---|---|
| Supply Voltage | 24-48 VDC | |
| Control Modes | EtherCAT,Q Programming | |
| Output Current | A | 0.1-5.0 |
| Communication Ports | Dual EtherCAT,RS-232 | |
| Encoder Feedback | NO | |
| Amplifier Type | Dual H-Bridge,4 Quadrant | |
| Current Control | PWM at 20KHz | |
| Input Voltage Range | 18-53 VDC | |
| Protection | Over voltage,under voltage,over temp,over current,open winding,communication cable disconnection | |
| Idle Current Reduction | 0-90% | |
| Digital Input | 8 digital inputs | |
| Digital Output | 4 digital outputs | |
| Approval | CE,RoHS | |
| Ambient Temperature Range: | 0 to 55 °C | |
| Ambient Humidity | 90% max,non-condensing |
Drive Specifications
1. Amplifier Type: Dual H-Bridge, 4 Quadrant
2. Current Contro: PWM at 20 KHz
3. Output Current: 0.1 - 5.0A/phase (peak-of-sine) in 0.01 amp increments
4. Voltage Range: 24 - 48VDC
5. Input Voltage Range: 18 - 53VDC
6. Protection: Over voltage, under voltage, over temp, over current, open winding, communication cable disconnection
7. Idle Current Reduction: Reduction range of 0 - 90% of running current after a delay selectable in milliseconds

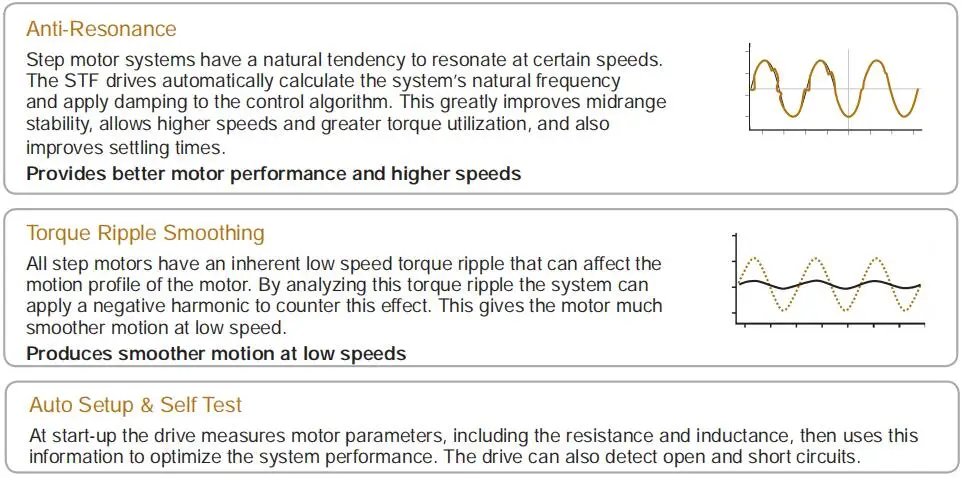

8. Anti-Resonance: Raises the system-damping ratio to eliminate midrange instability and allow stable operation throughout the speed range of the motor

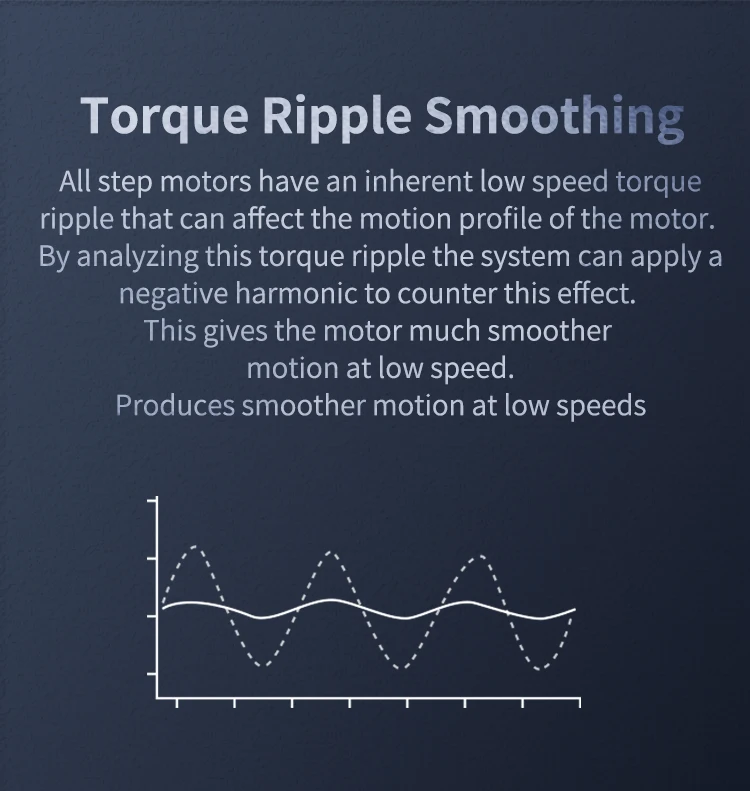

9. Torque Ripple Smoothing: Allows for fine adjustment of phase current waveform harmonic content to reduce low-speed torque ripple in the range of 0.25 to 1.5 rps
10. Auto Test & Auto Setup: Auto test and setup at power on (ie. motor resistance, and capacitance) to optimize your system performance.
11. Non-Volatile Storage: Configurations are saved in FLASH memory on-board the DSP

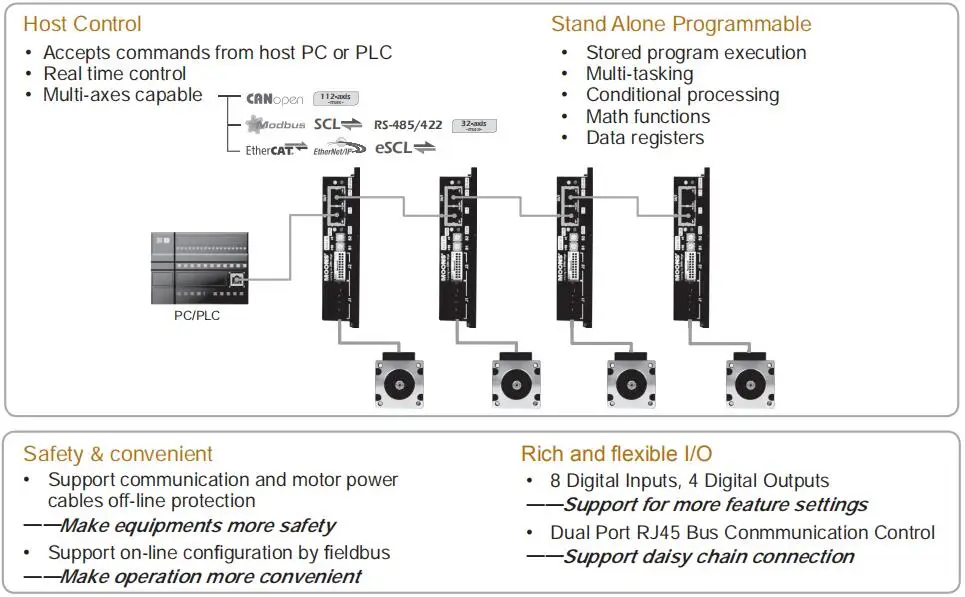

12. Operation Mode:EtherCAT (CoE) with full support of CiA402, Support PP, PV, CSP&HM mode and Q mode
13. Digital Input: 8 digital inputs
X1, X2: Optically isolated, differential, 5-24VDC for high level voltage, minimum pulse width = 250ns, maximum pulse frequency = 2MHz
X3, X4: Optically isolated, differential, 5-24VDC for high level voltage, minimum pulse width = 100μs, maximum pulse frequency = 5KHz
X5 ~ X8: Optically isolated, single-ended, 5-24VDC for high level voltage, minimum pulse width = 100μs, maximum pulse frequency = 5KHz
14. Output: 4 digital outputs
Y1 ~ Y4: Optically isolated, maximum voltage 30V, maximum sinking or sourcing current 100mA

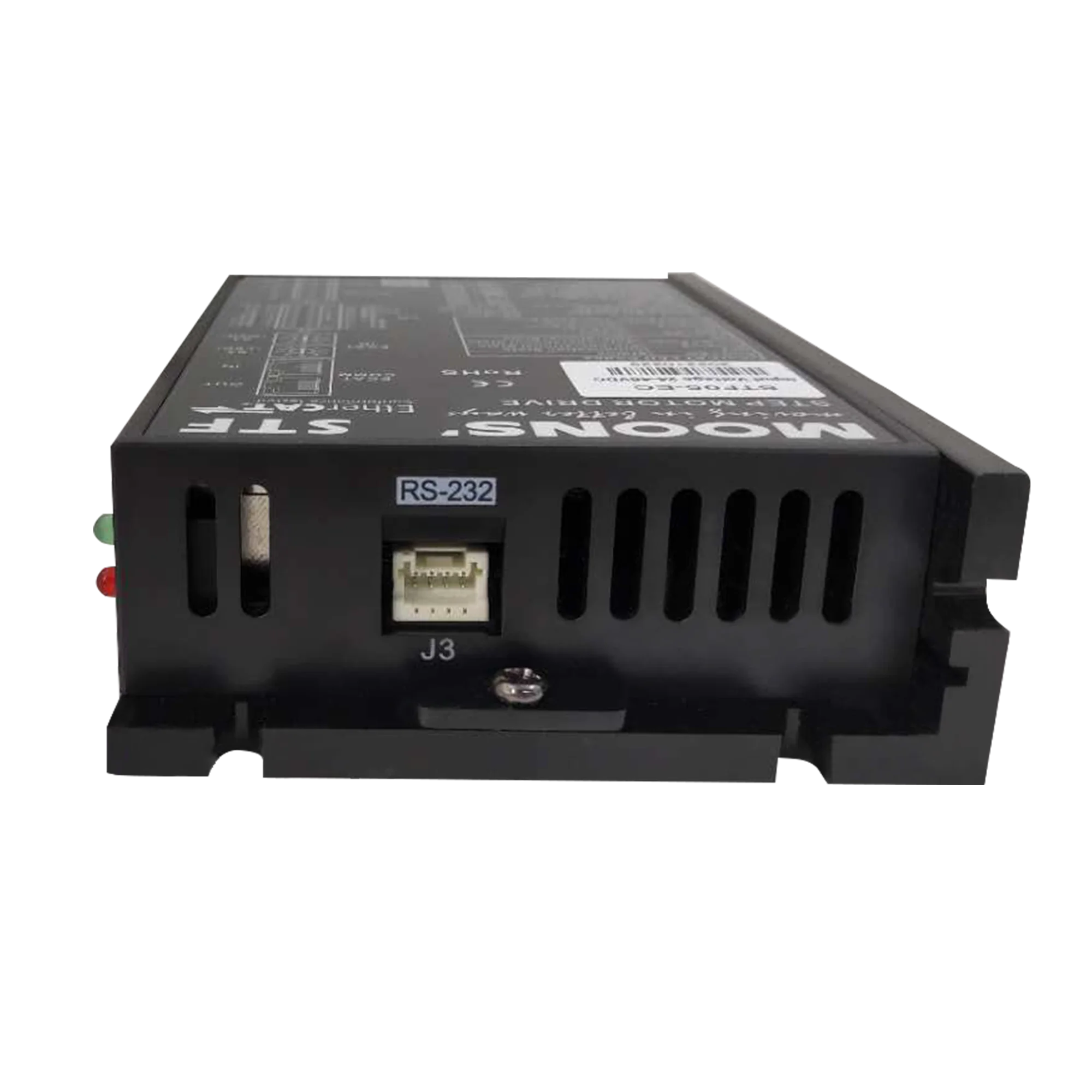

15. Communication Port: Dual port Ethernet(RJ45 connector)and RS-232(RS-232 serial port for configuration)
16. Ambient Temperature: 0 - 40°C when mounted to a suitable heat sink
17. Humidity: 90% non-condensing

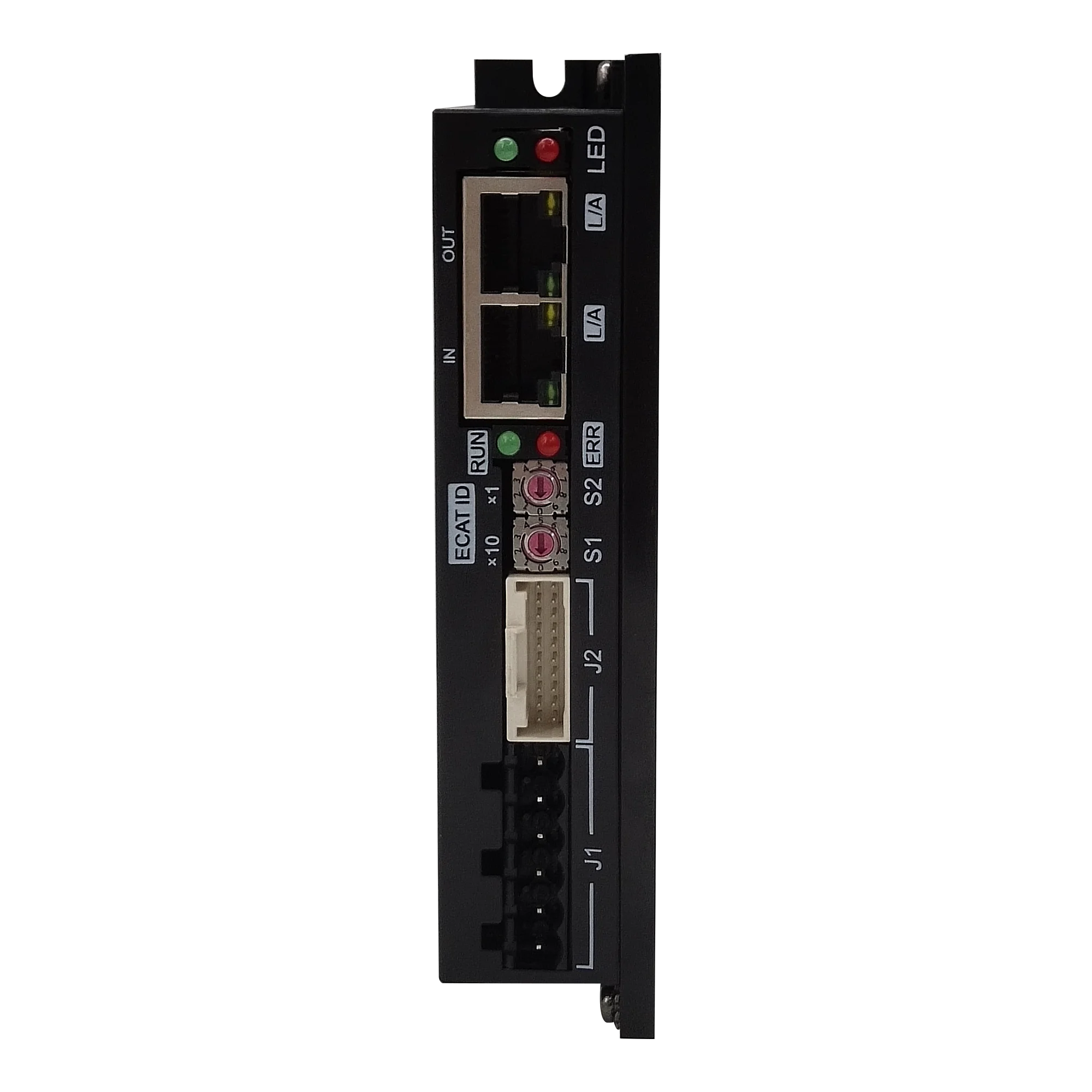

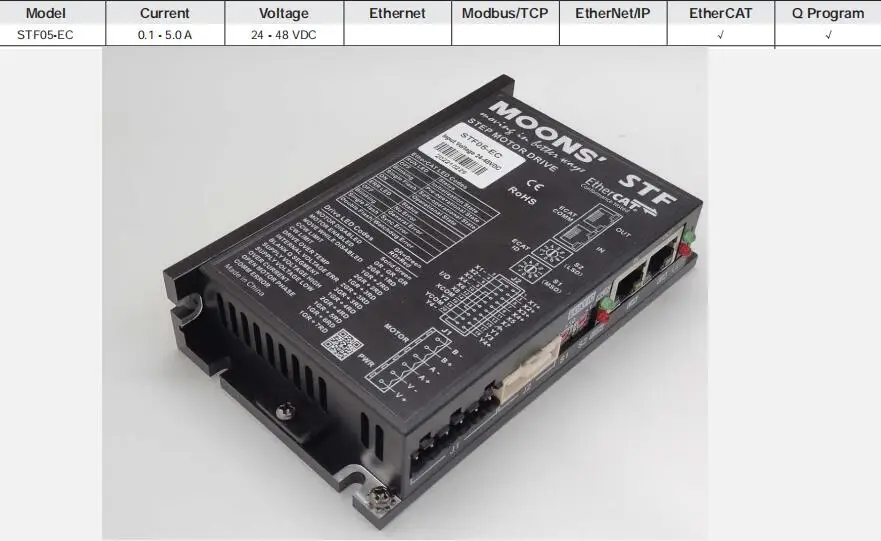

Production Detail

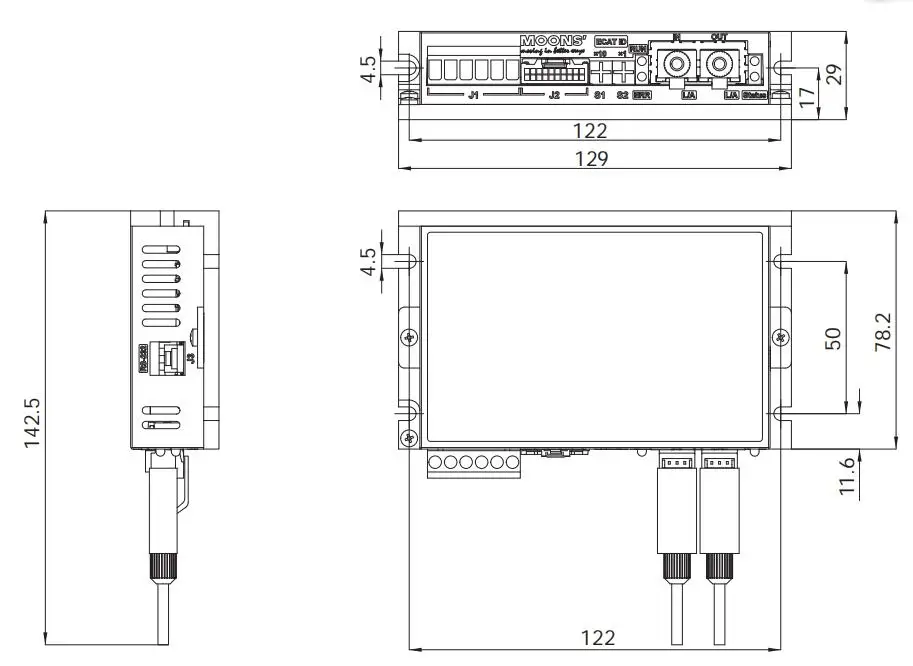

Demensions (Unit: mm)
