Product Overview

Description



Products Description

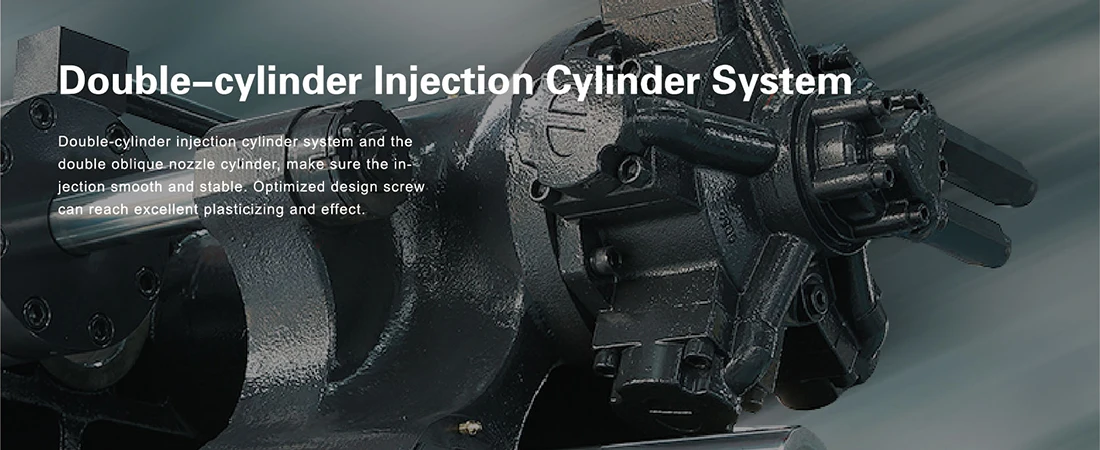

Injection unit
- Double Cylinder injection cylinder system and the double oblique nozzle cylinder, make sure the injection smooth and stable.
- Optimized design screw can reach excellent plasticizing and effect.

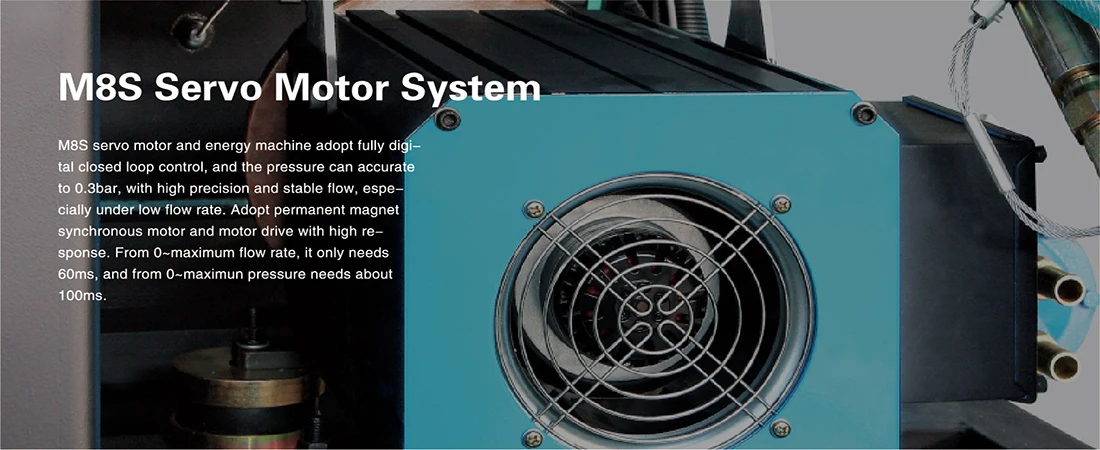

Hydraulic unit
- Servo motor and energy machine adopt fully digital closed loop control. The pressure can accurate to 0.3 bar, with high precision and stable flow, especially under low flow rate.
- Adopt permanent magnet synchronous motor and motor drive with high response

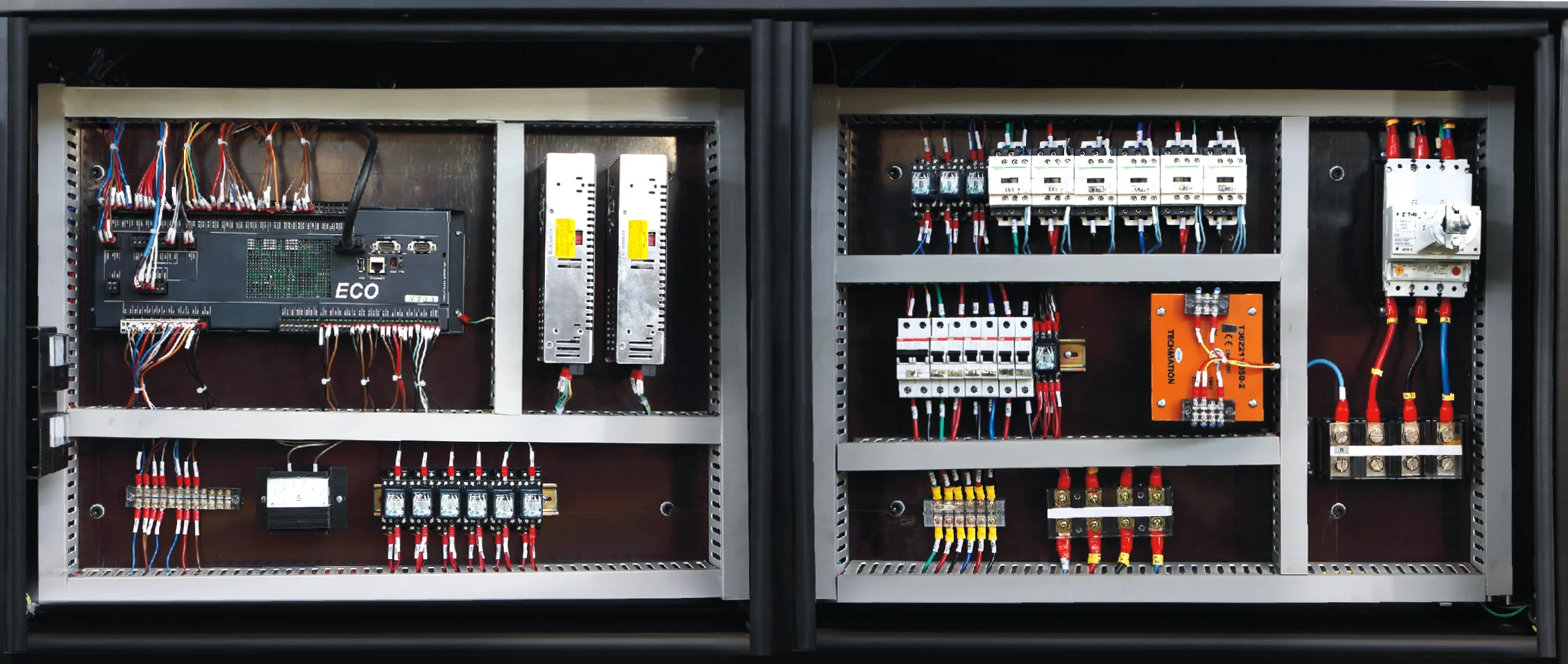

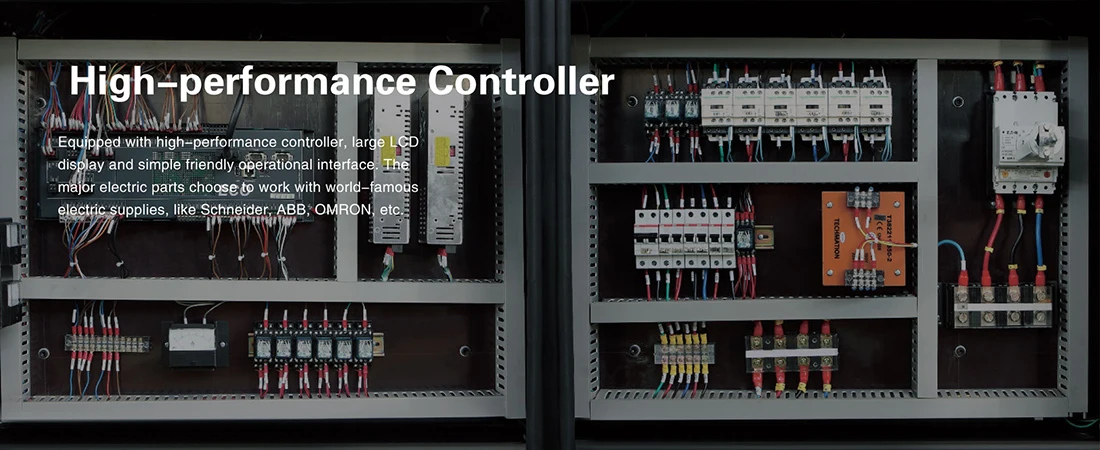

Electronic control unit
- Equipped with high performance controller, large LCD display and simple friendly operational interface.
- The major electric parts choose to work with world famous electric suppliers, like Schneider, ABB, OMRON, etc


Clamping unit
- Newly designed clamping unit, rigid cast platen - box design, with finite Element Analysis designed optimized moving platen ensure minimum deflection for maximum control and toggle linkage durability. making the clamping unit with the merits of high speed , stable and rigid
- Standard with T- slot, which more convenient for installation and removal of mold




Title goes here.
Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.


DESCRIPTION

Unit
HMD268 M8/M8-S
International size rating
1190/268
INJECTION UNIT
A
B
C
Shot volume
cm3
595
763
951

Shot weight(PS)
g
542
694
866
oz
19.1
24.5
30.5
Injection rate
cm3/s
212
272
340
Screw diameter
mm
53
60
67
Injection pressure
MPa
199
155
125
Screw L:D ratio
L/D
22:1
20:1
18:1
Screw stroke
mm
270
Screw speed (stepless)
r/min
0~180
CLAMPING UNIT
Clamping force
kN
2680
Opening stroke
mm
560
Platen size
mm
850 x 850
Space between tie-bars (HxV)
mm
580 x 580
Max. daylight
mm
1160
Mold thickness (Min-Max)
mm
220~600
Ejector stroke
mm
160
Ejector force
kN
77
POWER UNIT
Hydraulic system pressure
MPa
17.5
Pump motor power
kW
22/28.7
Heating capacity
kW
18.2
Number of temp control zones
/
6
GENERAL
Oil tank capacity
L
390
Machine dimensions (LxWxH)
m
6.5 x 1.46 x 2.31
Machine weight
Kg
8500
