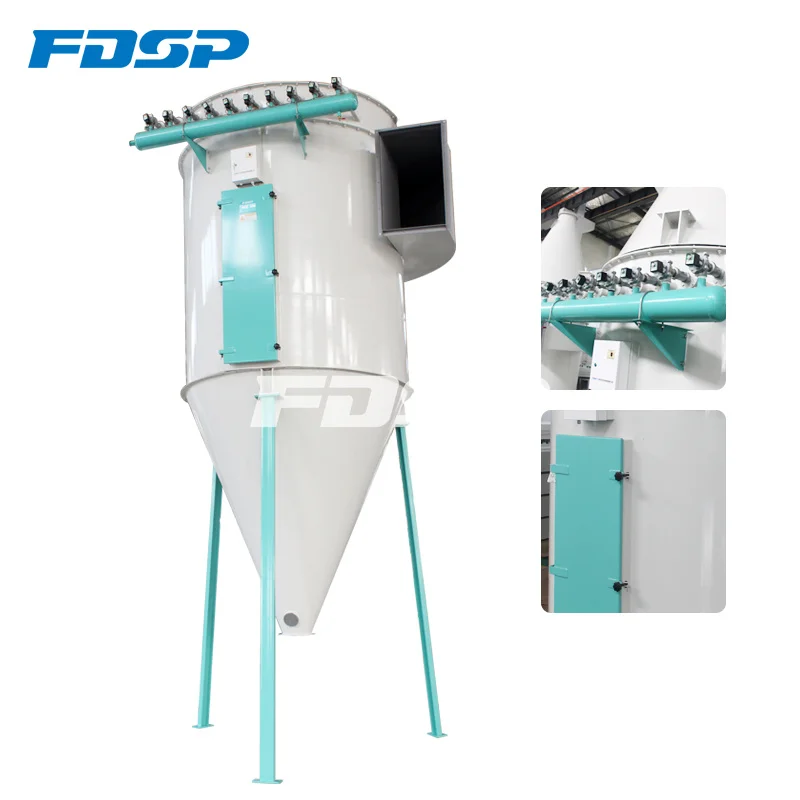

No dust workshop necessary Filtration processing machine TBLMy series round dust collector

Product Overview

Description

No dust workshop necessary Filtration processing machine TBLMy series round dust collector

It is suitable for dust removal and dust recovery in grain, food, feed, light industry, mining, building materials, woodworking and other industries.



Description features:

1.The cylinder body increases the stiffness and strength of the body;

2. Tangential centrifugal feeding is used to reduce equipment resistance and reduce filter bag load;

3. The bottom of the straight part is equipped with grate, which can effectively prevent the equipment from being damaged due to the cloth bag falling off, and at the same time, it is convenient for personnel to repair

4. Large air volume, small floor area and low equipment noise;

5. Pressure gauge and explosion discharge port can be set according to customer needs.

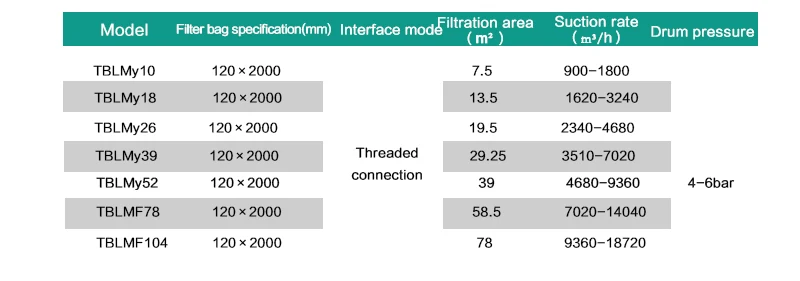

Model parameters:

Model	φ120×2000		φ120×2400		Dust collector resistance	Pulse injection pressure	Filtration velocity
	Filtering area	Disposal air volume	Filtering area	Disposal air volume
TBLMY9	6.8	813~1627			No more than 1470Pa	4×105Pa	2-4m/min
TBLMY18	13.5	1627~3255
TBLMY26	19.6	2350~4700
TBLMY39	29.4	3526~7053
TBLMY52	39	4700~9400
TBLMY78	58.8	7053~14107
TBLMY104	78.4	9404~18809	93.6	11232~22464
TBLMY130	98	11756~23512	117	14040~28080





















Equipment configuration:

Filter bag: Needle felt filter bag

Shell: - 3 / Q235

Solenoid valve: large caliber brand solenoid valve

Solenoid valve voltage: DC24V

Solenoid valve current: 0.8-1a

Ambient temperature: -20 ~ 50℃













Other model of pulse filter
