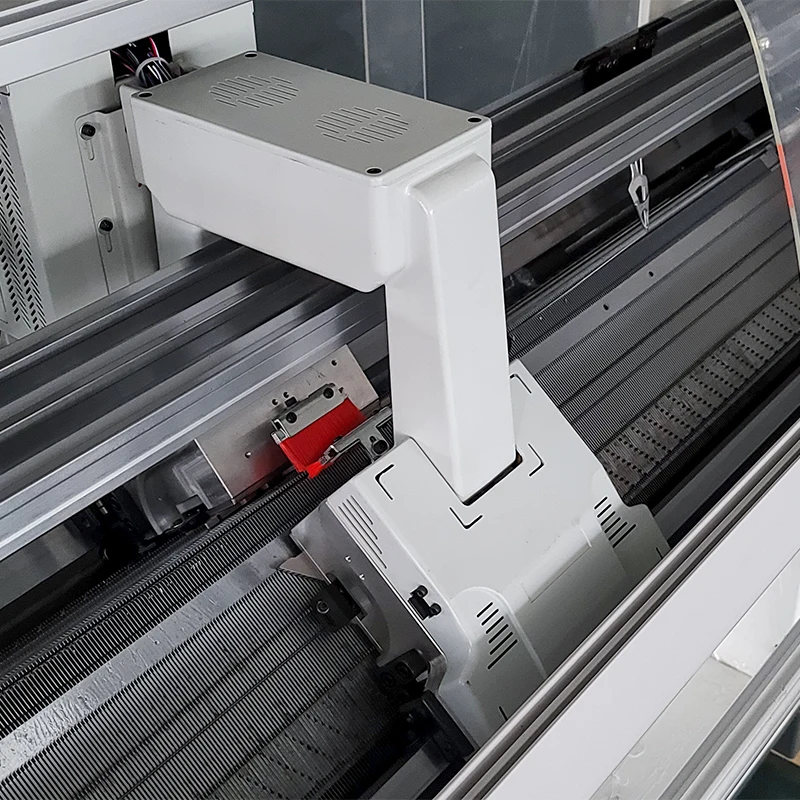

Single carriage with single system
Trasfer , Independent suspension,pointelle,intarsia,jacquard,evidence shaping,concealed shaping and other regular or inregular patterns.
Controlled by servo-motor with 32 sections optional, max speed reach 1m/s.servo motor use the precise back award control and link up the high speed operation ability of digital processor(DSP) which control IGBT to produce the accurate output of electric current.
Controlled by servo-motor racking within 3 inches and with fine adjusting function.

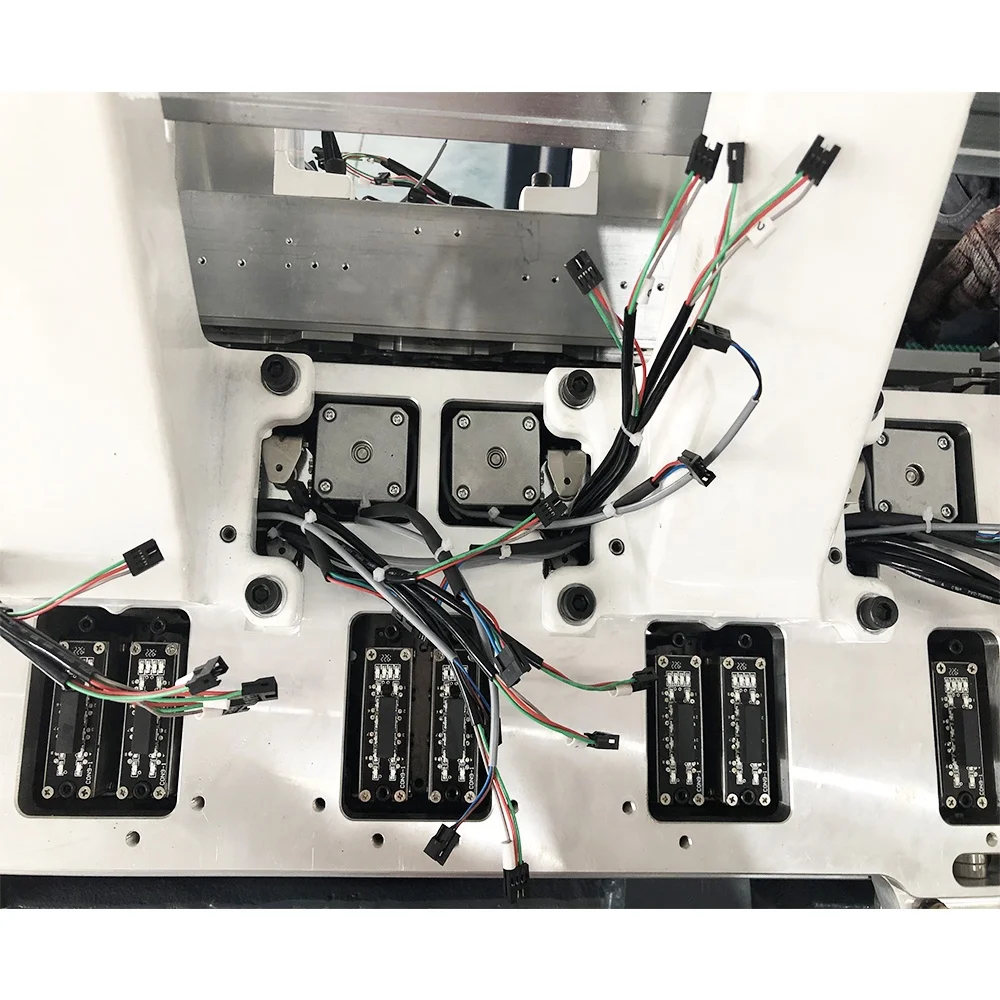

Advanced encoder reading pin.8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector.
Controlled by stepping motor, 32 section stitch selectable adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled.
Triangular composite design can realize the efficient stitch reversing.

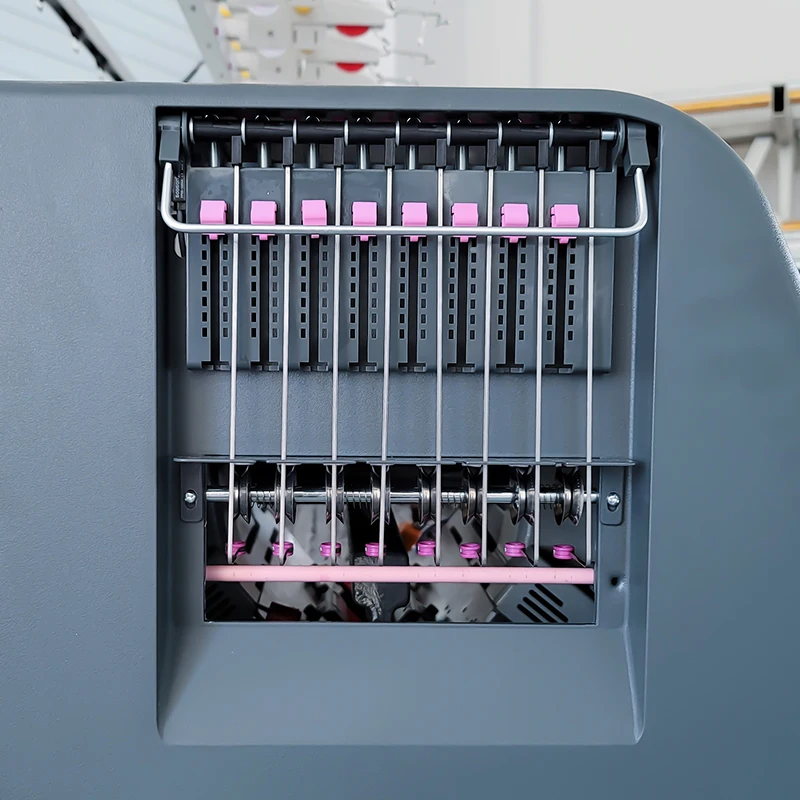

Computer programs instruction,stepper motor control and 32-stagetension selection with an adjustable range between 0-100

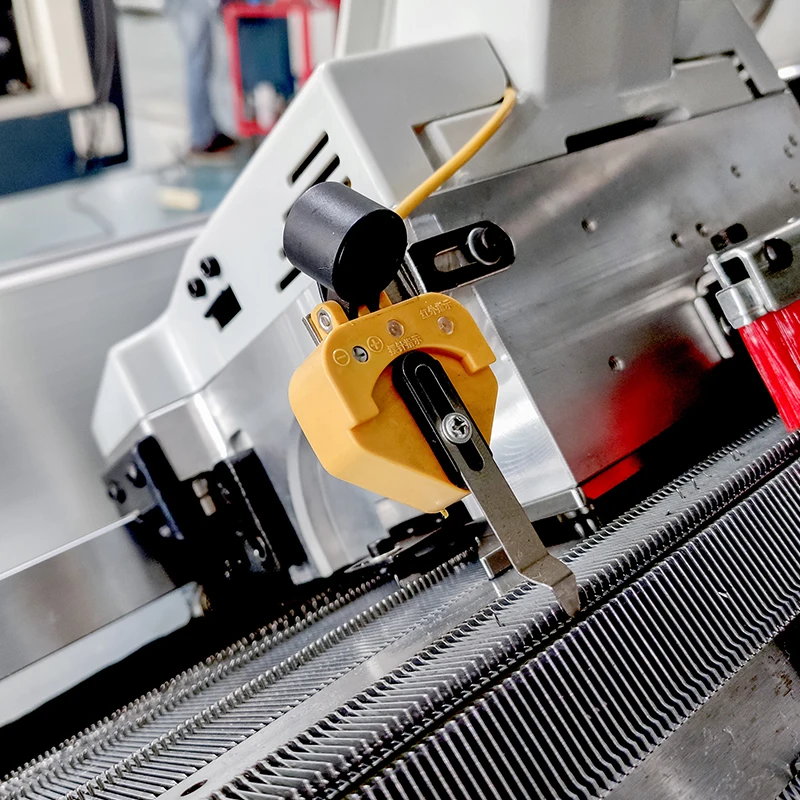

2×3 yarn feeders at the single side of 3 guide rails, shiftable on any needle position.
1. LCD industrial display, Can display various parameters, which can be adjustable during operation.
2. USB memory interface,System memory 1G.
3. Free design system is visual and easy to understand and software upgrade free of charge.
4. Support multi-language operation as Chinese and English, Spanish,Russian etc.
Has network interface,enable remote-monitoring via network,and connecting with ERP system.
Single-phase 220V/three-phase 380V,adopt advanced CMOS technology,having memorizing function at power shock stop.
Volume and weight
