Air Handling Unit For Ventilation
- Category: >>>
- Supplier: Ningbo Lance Imp. & Exp. Co. Ltd.
Share on (1600118929795):
Product Overview
Description
Structure:
Patented structure and excellent quality. The units are directly assembled with panels. Panel frames are of aluminum alloy structure with polyurethane foam inside to provide sufficient strength and specially designed rubber sealing strips to prevent thermal bridges
Mounting:
horizontal, Vertical Standing, ceiling type
Panel construction:
25mm and 50mm Double skin panel/Sandwich panel
Fan type:

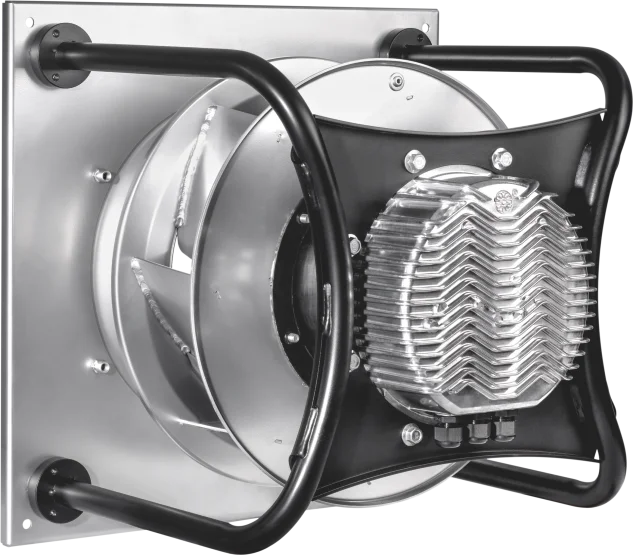

Front forward or backward multi-blade fan or plug fan (EC Plug available). Direct drive or belt drive
Motor type:
Speed regulating external-rotor motor
Function:

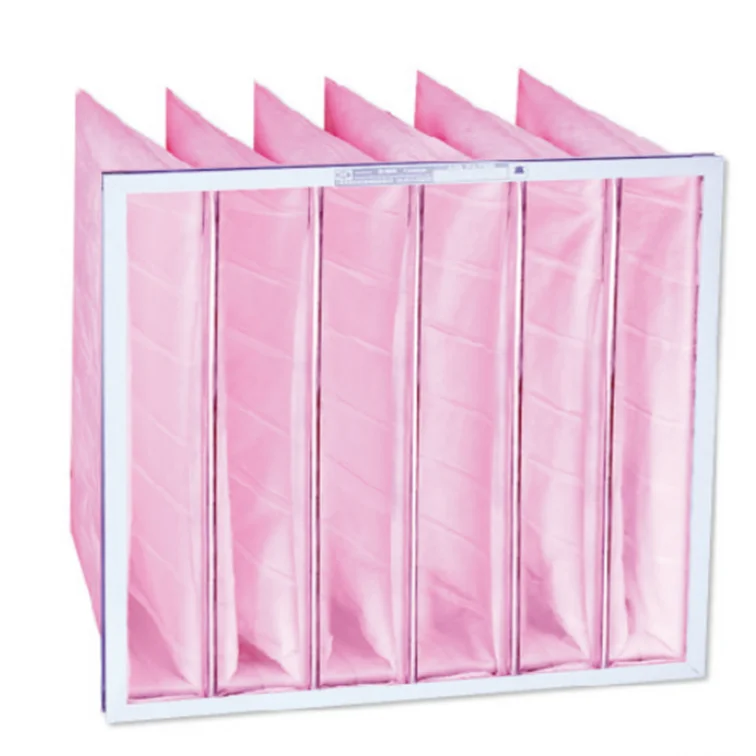

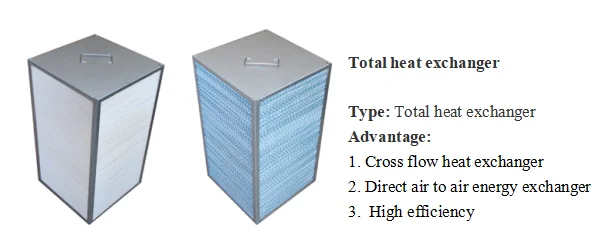

filter, adjust cold/heat, dehumidification, humidification, heat recovery
Application:
hotel, office building, gymnasium, exhibition center, subway, airport and other general air conditioning system, and medicine, electronics, textile, tobacco, food, chemical and other special requirements of air conditioning system

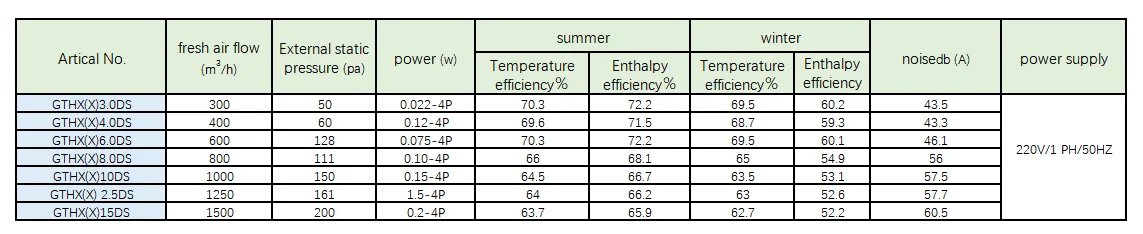

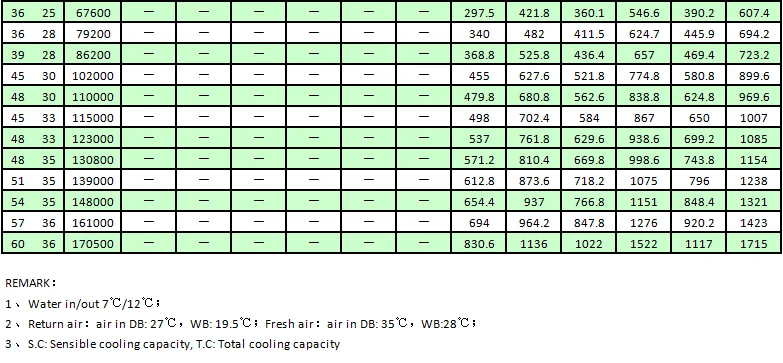

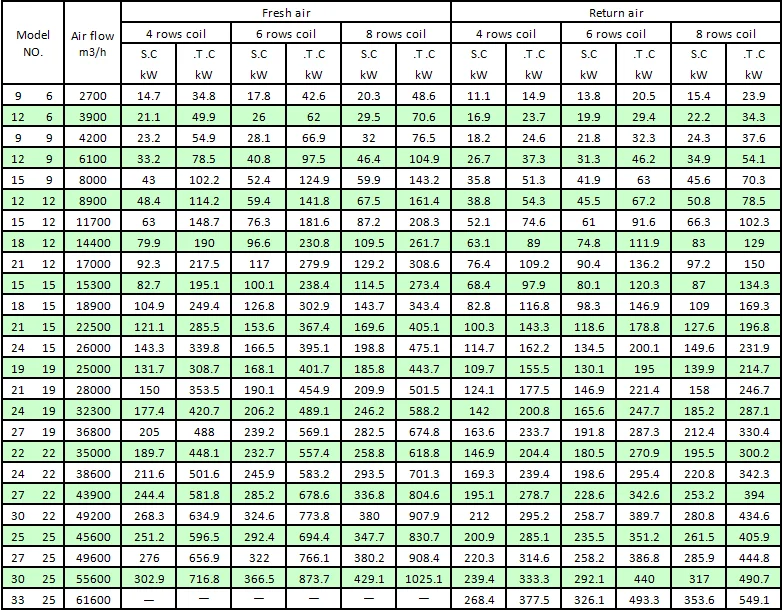

Specification

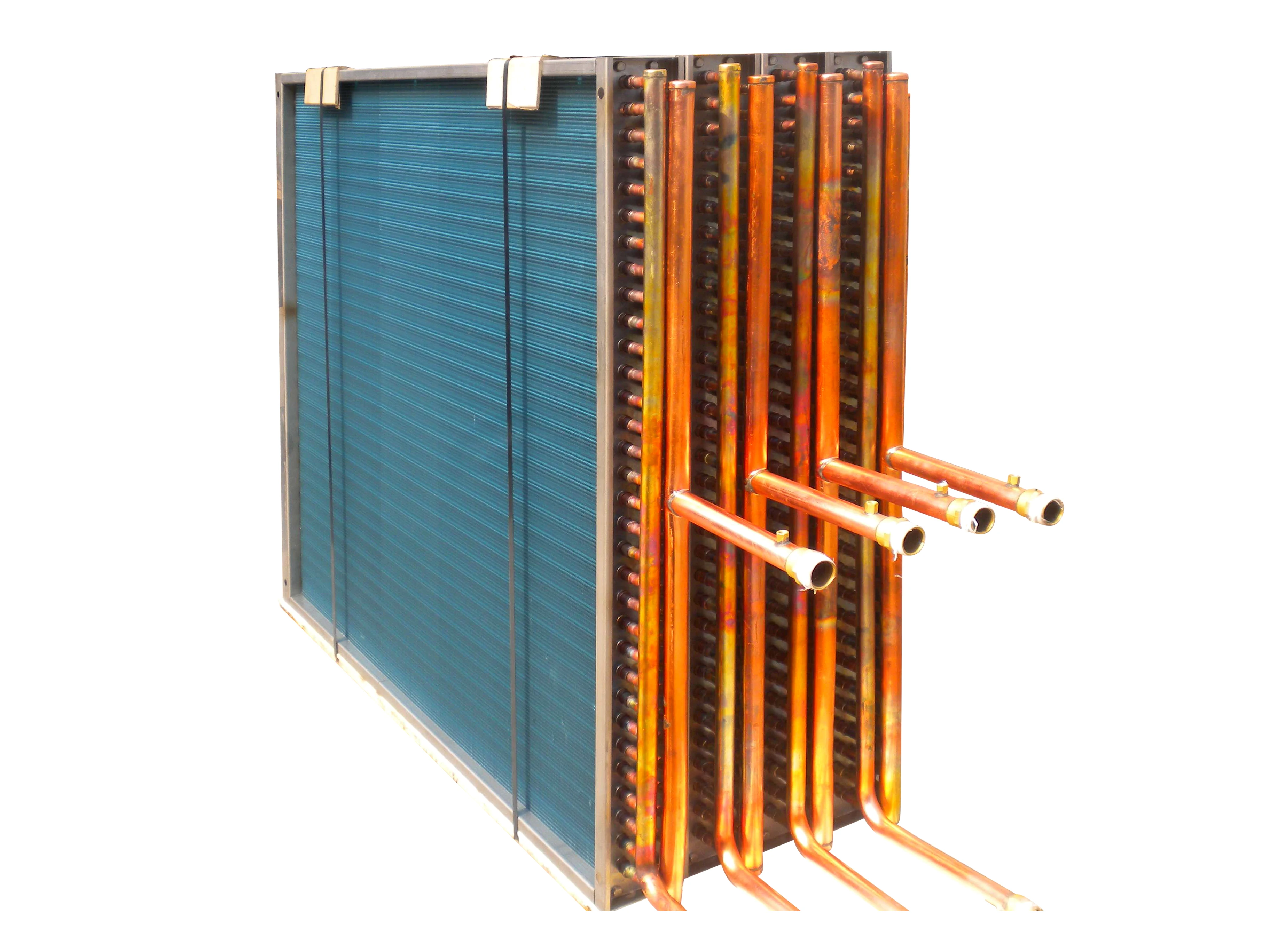

Heat exchanger
Type: Copper tube and aluminum fin
Advantage:
1. designed to deliver their respective duties at optimum performance at all design conditions.
2. Coils are manufactured from seamless copper tubes mechanically expanded into aluminum fins.
3. All coils are tested (under water to avoid leakage) at 30kg/cm2 (450 Psi) air pressure..
4. They also undergo cleaning after manufacturing for optimum system cleanness.
Advantage:
1. designed to deliver their respective duties at optimum performance at all design conditions.
2. Coils are manufactured from seamless copper tubes mechanically expanded into aluminum fins.
3. All coils are tested (under water to avoid leakage) at 30kg/cm2 (450 Psi) air pressure..
4. They also undergo cleaning after manufacturing for optimum system cleanness.
Humidifier
Type: electrode
Advantage:
1. Precise controlling
2. Drainage pump mounted
3. Security and reliability
4. Auto washing
Advantage:
1. Precise controlling
2. Drainage pump mounted
3. Security and reliability
4. Auto washing
Company Profile
Company & factory
Our company was founded in January 2018, is a joint venture invested by biggest air conditioning company in the South Africa and Ningbo ECOAIR environment Technology Co.,Ltd.
In recent year, ECOAIR's product line has been extended to Rooftop Package unit, DX duct unit, water cooled package unit, Fresh air unit with heat recovery, Medium/High static pressure Fan Coil Unit and more than 100 models, in addition to Hospital Theatre Package Units and Fresh Air Unit .
In recent year, ECOAIR's product line has been extended to Rooftop Package unit, DX duct unit, water cooled package unit, Fresh air unit with heat recovery, Medium/High static pressure Fan Coil Unit and more than 100 models, in addition to Hospital Theatre Package Units and Fresh Air Unit .
Our Vision:To be the best supplier of HVAC equipment.Providing the cutting-edge technology,perfect quality,best service to all our clients globally.
Our factory
Our project
Why Choose Us
We have rich experience in product design and precise customization ability.
We have rich experience in product design and precise customization ability.
Which can help our customer to get a most suitable products instead of just good products.
Product packaging
After the production of the unit, we will make protective supports for those vulnerable parts.
Waterproof material is also used to wrap the product to avoid water damage of the unit.Ensure that the goods are not damaged in transit.
As for other requirements of packing, we will try our best to meet our customers!
Why Choose Us
We have rich experience in product design and precise customization ability.
We have rich experience in product design and precise customization ability.
Which can help our customer to get a most suitable products instead of just good products.
FAQ
Sample Policy
General samples can be available for free, however, express freight are on buyer's account.
For valued items, we charge sample fee, which can be refund in the order.
For valued items, we charge sample fee, which can be refund in the order.
Payment term
