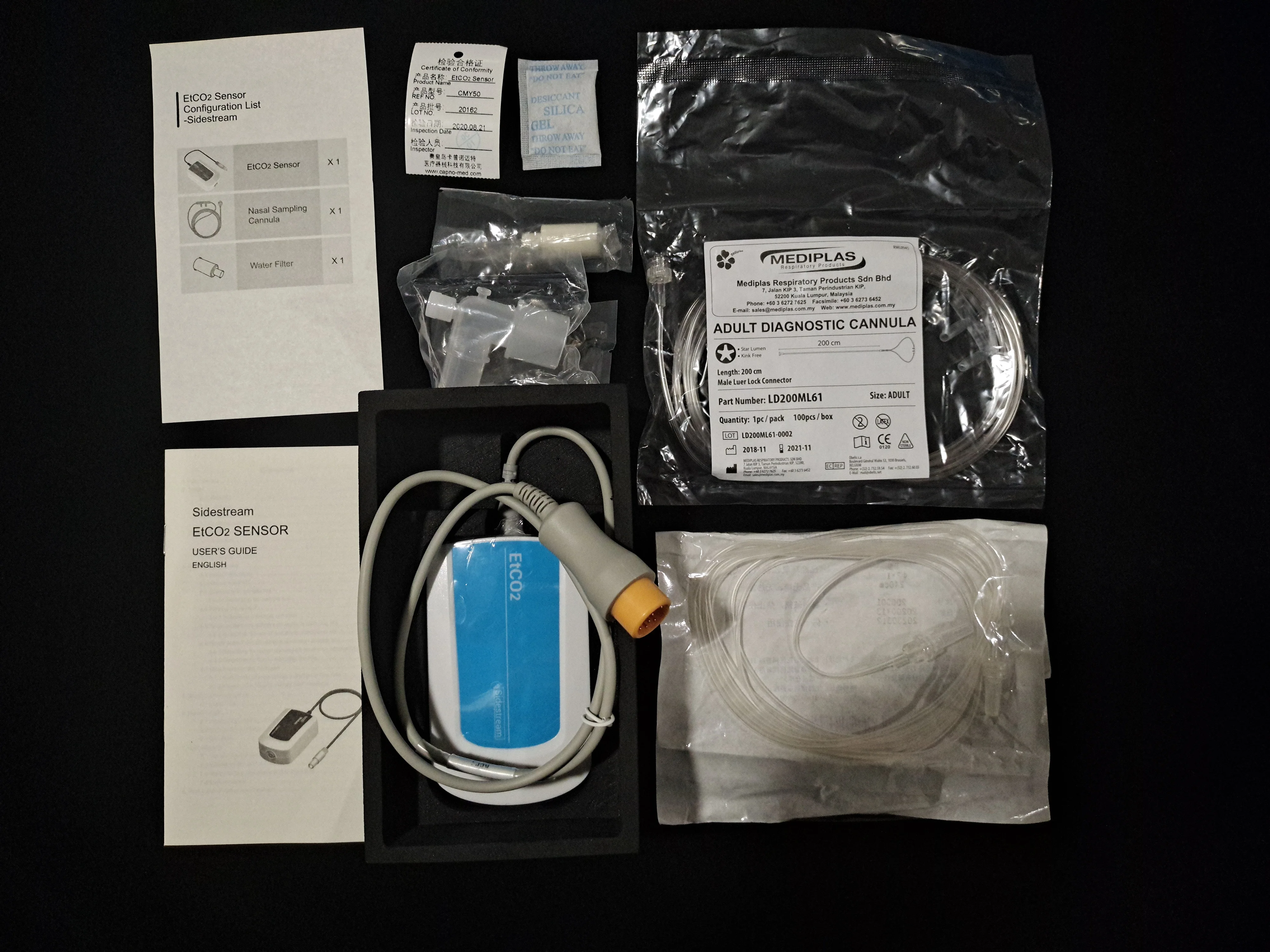

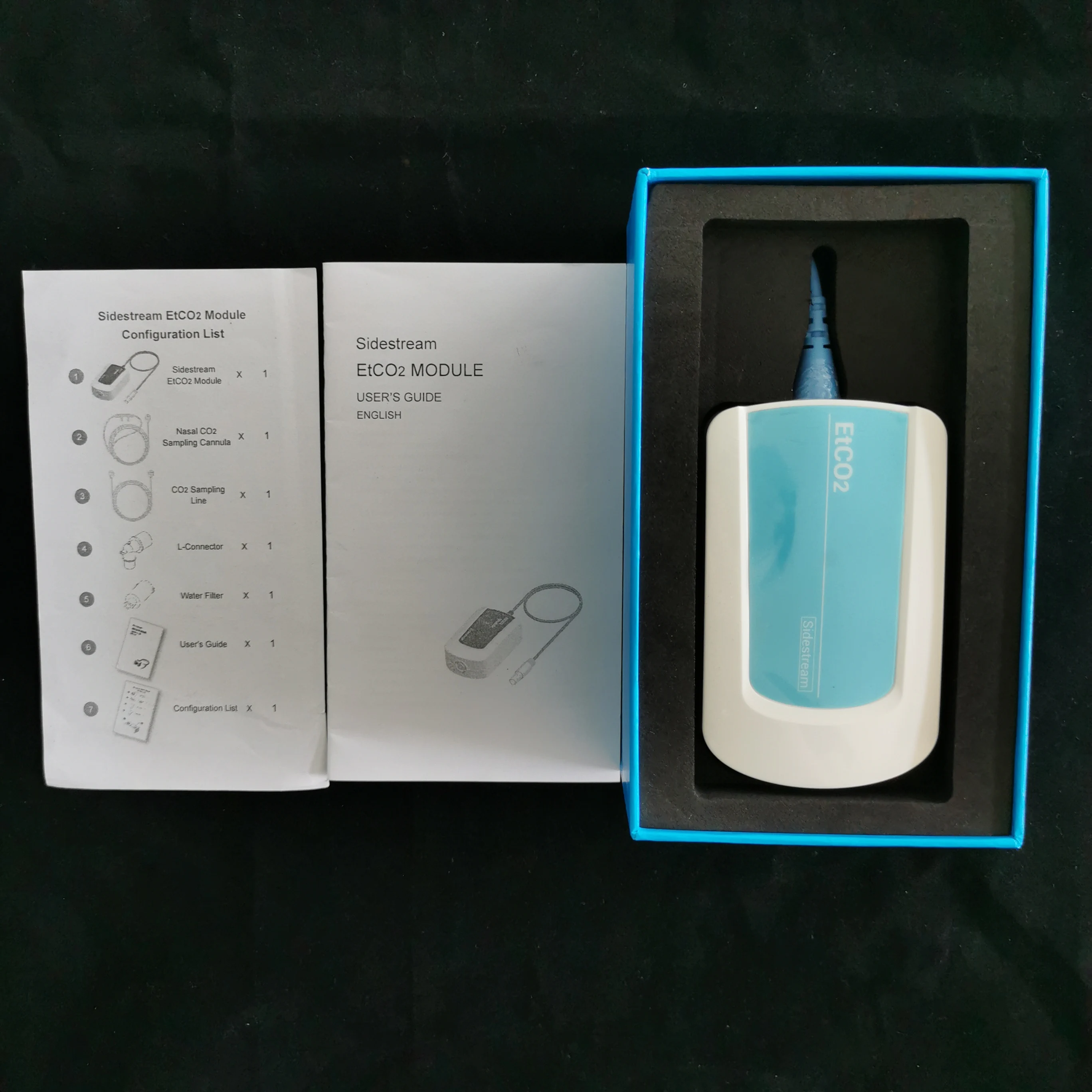

Mindray Sidestream EtCO2 Capnograph Sensor

Sample Flow Rate

Range:50-150 ml/min; Accuracy:±20% ; Default: 75 ml/min

Principle of Operation

Non-dispersive infrared, dual wavelength, no moving parts

Initialization Time

Capnogram displayed in less than 4 seconds, at an ambient temperature of 25℃, full specifications within 2 mintues

CO2 measurement Range

0-114 mmHg ; 0-15% ; 0-15.2 kPa

CO2 Response Time

Includes Transport time and rise time.Less than 2 seconds, at 150 ml/min sampling flow
Less than 3 seconds, at 100 ml/min sampling flow
Less than 4 seconds, at 50 ml/min sampling flow

CO2 Resolution

0.2 mmHg @ 0-59 mmHg ; 0.5mmHg @60-114 mmHg

CO2 Accuracy

0-40 mmHg ± 2 mmHg41-70 mmHg ± 5% of reading
71-100 mmHg ± 8% of reading
101-114 mmHg ±10% of reading
Above 80 reaths per mintue ±12% of reading
* Note:Gas temperature at 25℃

CO2 Stability

Short Term Drift : Drift over three hours shall not exceed 1 mmHg maximumLong term Drift : Accuracy specification will be
maintained over a six hour period

CO2 Noise

RMS noise of the sensor shall be less than or equal to 0.5 mmHg at 5% CO2

Sampling Rate

100Hz

Respiration Rate Range

2 to 150 breaths per minute

Respiration Rate Accuracy

± 1 breath

Calibration

No Routine user calibration required

EtCO2 Calcuation

Method: peak of the expired CO2 waveform

Inspired CO2 Measurement

Method: Lowest reading of the CO2 waveform in the previous 20 seconds

Temperature

Operation : 0 to 40℃ ; Storage :-40 to 70℃ ; Transport :-40 to 70℃

Humidity

Operation :10 to 90 % RH, Non-condensing ; Storage :10 to 90 % RH, Non-condensing.
Transport: 10 to 90 % RH, Non-condensing.

Atmospheric Perssure

Operating :400-800 mmHg ; Storage :400-800 mmHg ; Transport :400-800 mmHg

Water Resisitance

IPX4-Splash-Proof- sensor only

Voltage Requirements

5 VDC ±5% ; Ripple not to exceed 100.0mV

Power Raing

< 1.2W Typical; < 2.0 W Warm-up

Sensor Weight

< 250 g

Sensor Size

Deep*Wide*High 102*62*38mm

Cable Length

75cm
