Heavy duty china high lift 2ton 2.5 ton 3ton 5ton folding manual Hydraulic hand pallet truck
- Category: >>>
- Supplier: Dalian Shuhui Mechanical Equipment Co. Ltd.
Share on (1600119563193):
Product Overview
Description
Product Description
manual factory direct Hydraulic Hand Pallet Truck
Features:
1. Powerful, simple appearance.

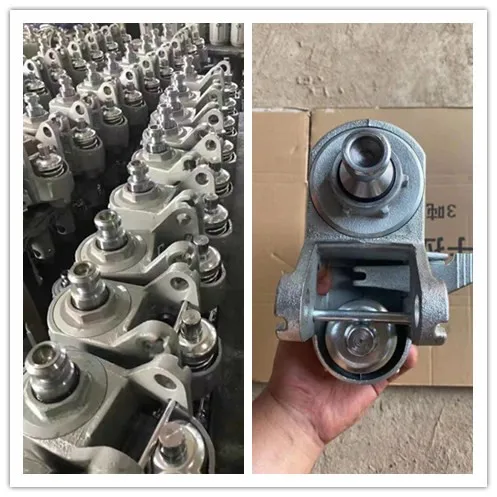

2. Pump casing as a mechanical, hydraulic integration of integrated design, leak-proof seal design
reliable, maintenance-free, removable, small turning radius
3.Setting safety valve to avoid overloading.
4. Fork lowering speed control, overload protection, long service life.
5. Three-handle: lifting, falling, median.
6. High strength steel frame building, large carrying capacity.
Specifications:
Material: Polyurethane/Nylon wheels + Metal
Color: Yellow/Red/Blue
Single fork width: 6.3 "/ 160MM
Fork Specifications: 27.0 "x48.0"
144pcs/20"GP for forksize 685mm*1200mm
180pcs/20"GP for forksize 550mm*1150mm
306pcs/40"GP for forksize 685mm*1200mm
378pcs/40"GP for forksize 550mm*1150mm
Technical parameters:
| Model | CBY-AC 2.0 | CBY-AC 2.5 | CBY-AC 3.0 |
| Capacity(Kg) | 2000 | 2500 | 3000 |
| minimum fork height (mm) | 85/75 | ||
| maximum fork height (mm) | 195/185 | ||
| lifting height(mm) | 200 | ||
| Fork length (mm) | 1150/1220 | 1150/1220 | 1150/1220 |
| single fork width(mm) | 160 | ||
| fork overall width (mm) | 550/685 | ||
| fork wheel single(mm) | Φ80x93/74x93 | ||
| fork wheel-tandem(mm) | Φ80x70 | ||
| Steering wheel (mm) | Φ180x50 | ||
| Self weight(Kg) | 73--92 | ||
| Qty/20 container(Pcs) | 180/144 | ||
