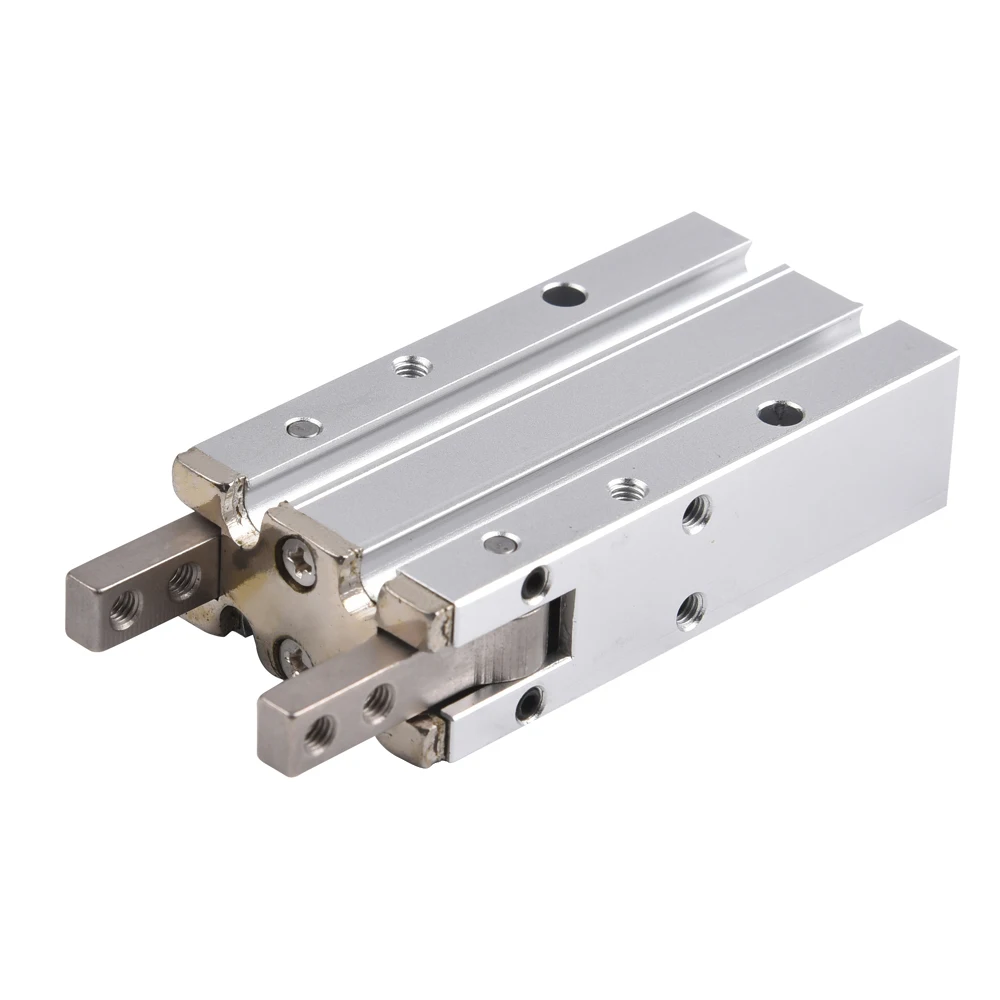

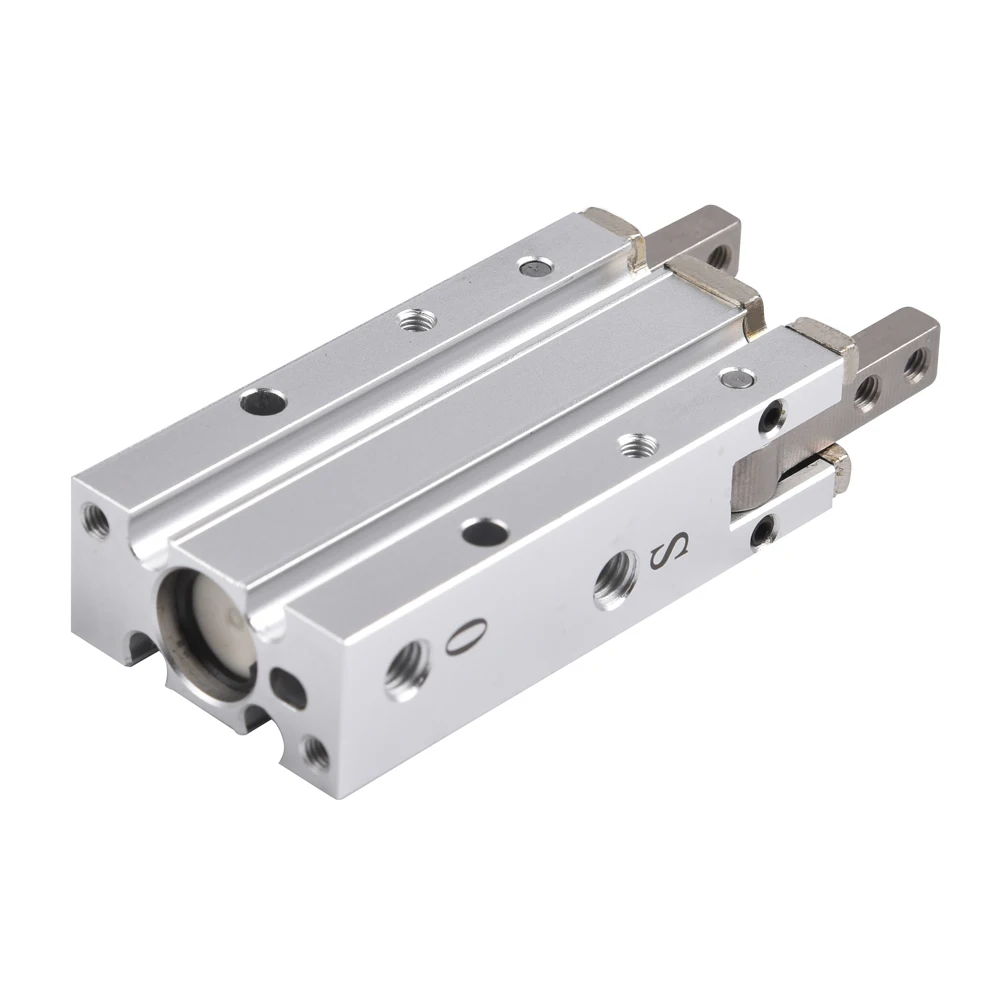

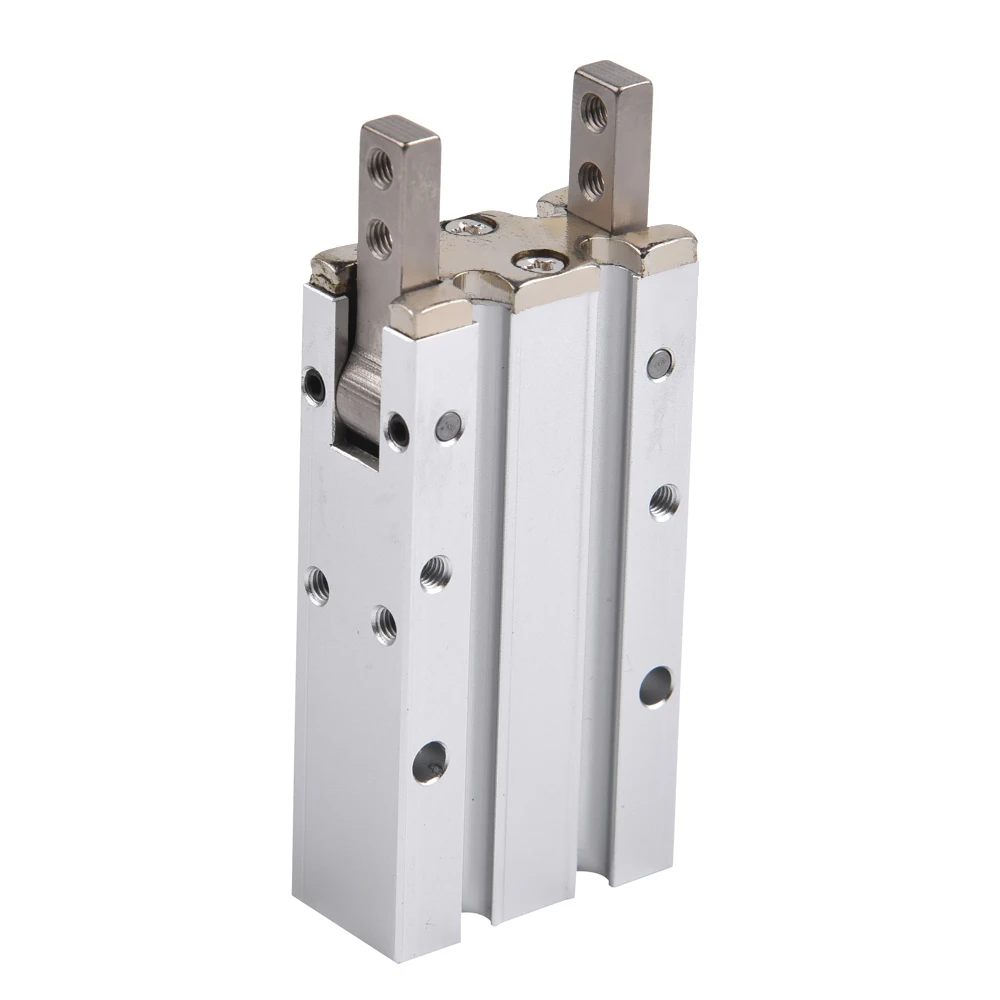

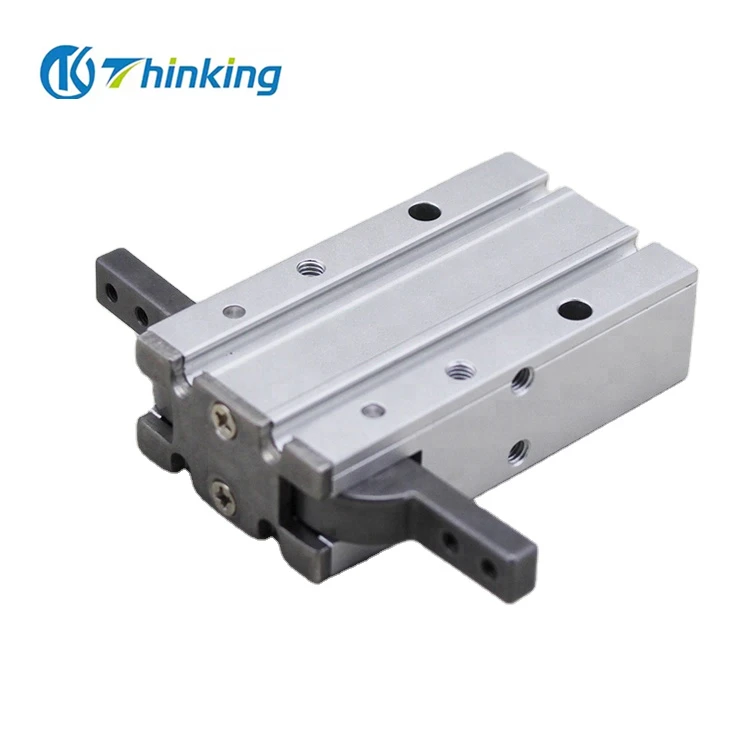

TK Finger Cylinders MHY2 16D 180 Degree Clamping Air Cylinder Pneumatic professional

Product Overview

Description

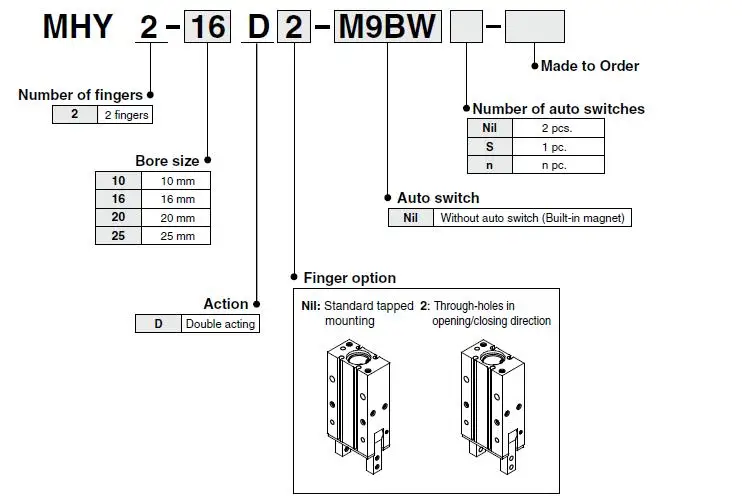

Model

Fluid			Air
Operating pressure			0.1 to 0.6 MPa
Ambient and fluid temperature			-10 to 60°C
Repeatability			±0.2 mm
Max. operating frequency			60 c.p.m.
Lubrication			Not required
Action			Double acting
Auto switch (Option)			Solid state auto switch (3-wire, 2-wire)





Specification

Model	Bore Size (mm)	Thread Size	Clamping Force Torque (N.m) (Note 1)		Working Angle (Both Sides)		Opening Weight (g)
					Opening Side	Closing Side
MHY2-10D	10	M5x0.8	0.16		180°	-3°	70
MHY2-16D	16	M5x0.8	0.54				150
MHY2-20D	20	M5x0.8	1.1				320
MHY2-25D	25	M5x0.8	2.28				560



Note 1: At the pressure of 0.5Mpa.

Note 2: Weight excluding auto switch.

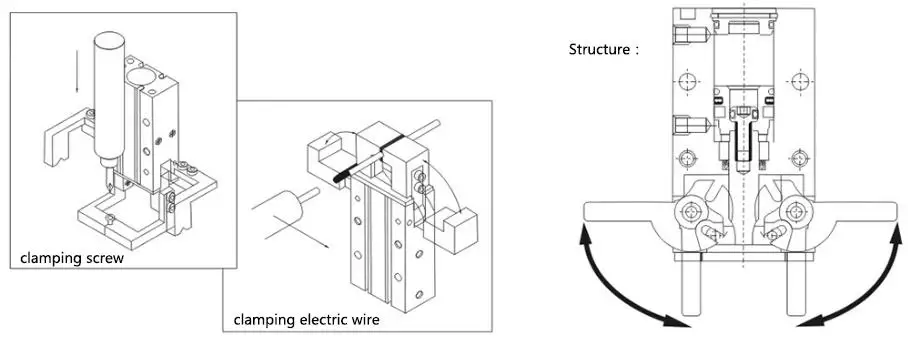

Applications & Structure

Q1. Is the sample order acceptable?

A: Yes, of course.



Q2. What is your MOQ?

A: 1 PCS.



Q3. What is the delivery time?

A: It is about 3-7 days after we receive the payment.



Q4. How to make the payment?

A: We accept T/T, Paypal, Ali Trade Assurance.



Q5. Do you have products in stock?

A: Yes, some stock can be shipped out within 3 days.



Q6. Do you test all your goods before delivery?

A: Yes, all products are fully inspected before delivery.



Q7. What is the warranty?

A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
