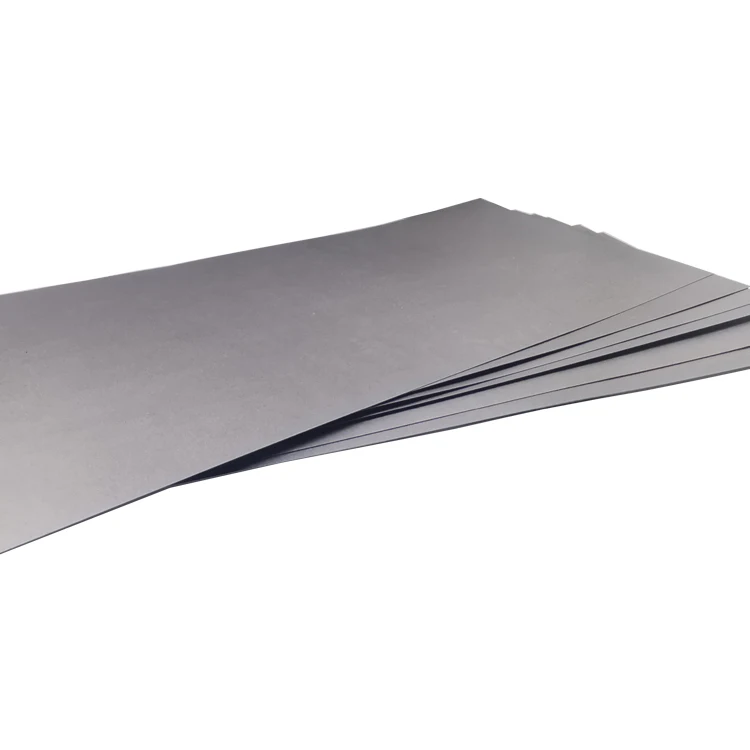

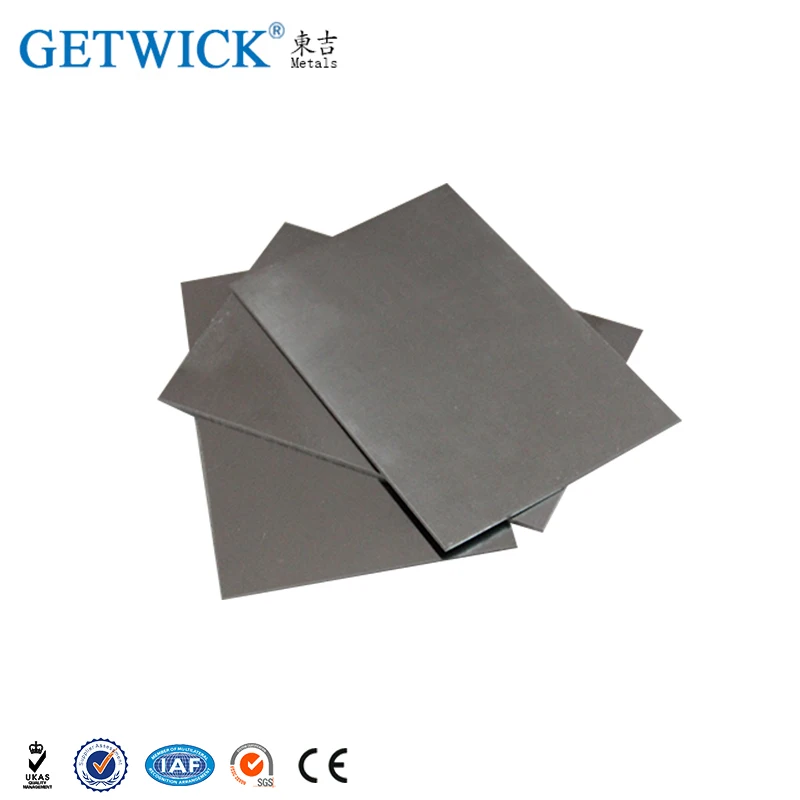

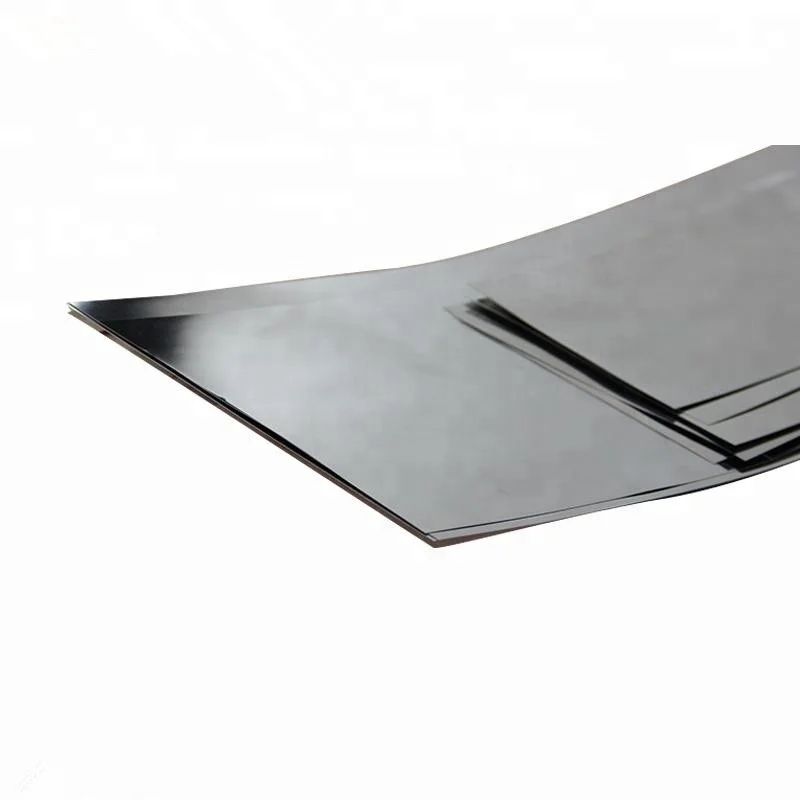

high temperature furnace heat shielding 1mm Thickness Tungsten plate sheet

Product Overview

Description

high temperature furnace heat shielding 1mm Thickness Tungsten plate sheet

Item: high temperature furnace heat shielding Tungsten plate sheetupplier

Materials: W1,W2,WAl1,WAl2

Purity: 99.95%

Density: 19.35g/cm³

Melting Point: 3410℃

Item:Good price pure 99.95 tungsten plate w1 tungsten plate sheet for sale

Materials: W1,W2,WAl1,WAl2

Purity: 99.95%

Density: 19.35g/cm³

Melting Point: 3410℃

Surface: shiny, alkaline washed, satin, or as-rolled condition; dependent upon thickness and width

parameters.

Normal specification we can provide:

Tungsten Plate/Sheet /Foil
Thickness(min) mm	Width(max) mm	Length(max) mm
0.05	150	500
0.06~0.09	250	500
0.1	300	500
0.12	320	550
0.15	350	600
0.2~0.6	400	600
0.7~0.9	400	800
1~2	450	800
2~10	450	600
10~15	450	500
15~25	300	500



Feature:

tungsten is the highest melting point of all metals.

low coefficient of thermal expansion.

very high level of dimensional stability.



Application

For producing electric light source parts and electric vacuum components

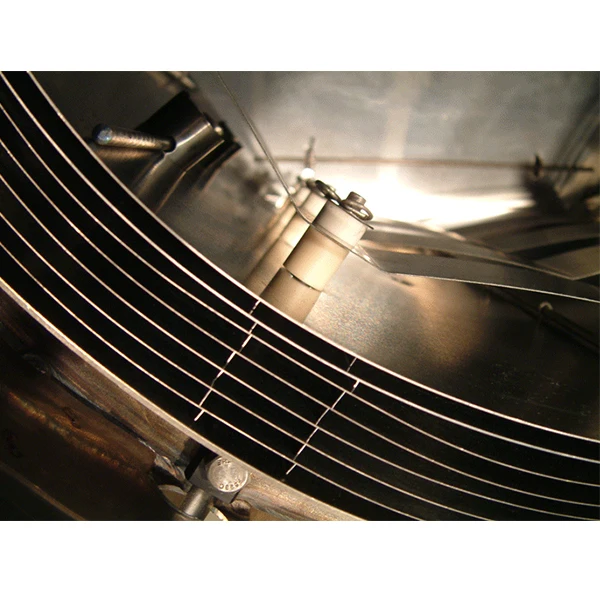

For producing heating elements and refractory parts in high temperature furnaces

Used as electrodes in the field of rare earth metal industry

Used in military of some aspects

For medical aspects

Be used to make decorations and etc.



Main Comp.W≥99.95
Other Content≤	Fe	0.0026	Al	0.0006	Si	0.001
	Ca	0.001	Ni	0.0009	O	0.0018
	Cu	0.0005	N	0.0015	Pb	0.0001
	Sn	0.0001	Sb	0.001	As	0.001
	Cd	0.0001	Mg	0.0006	C	0.002
	Bi	0.0001	Mo	0.003
