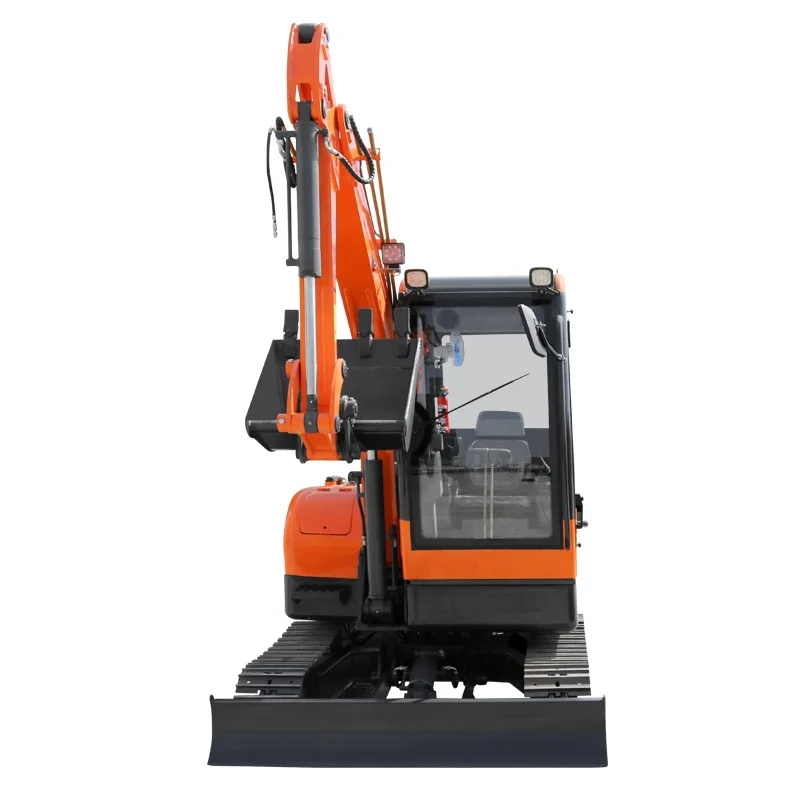

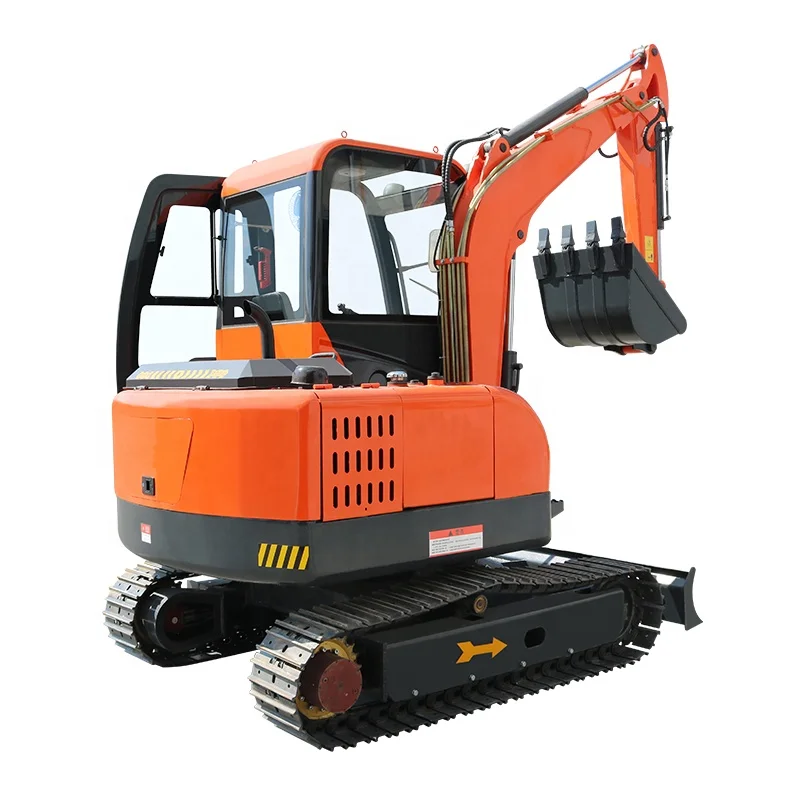

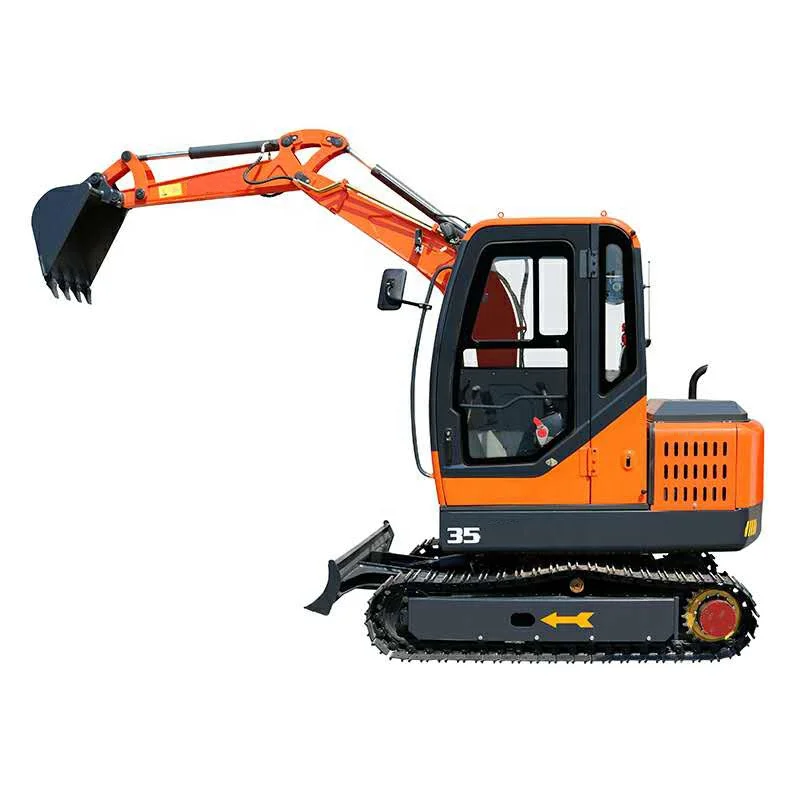

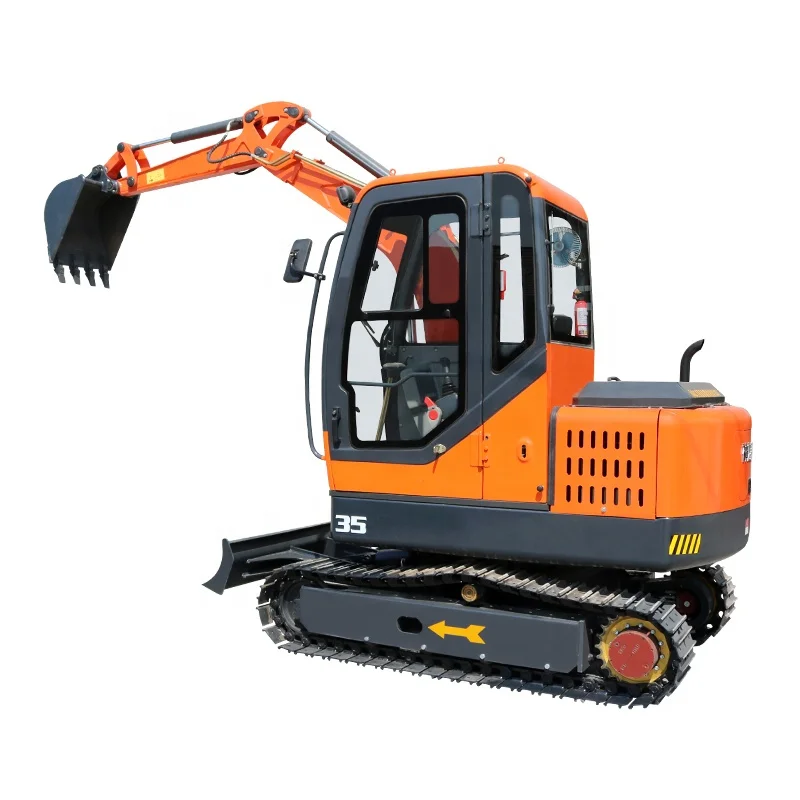

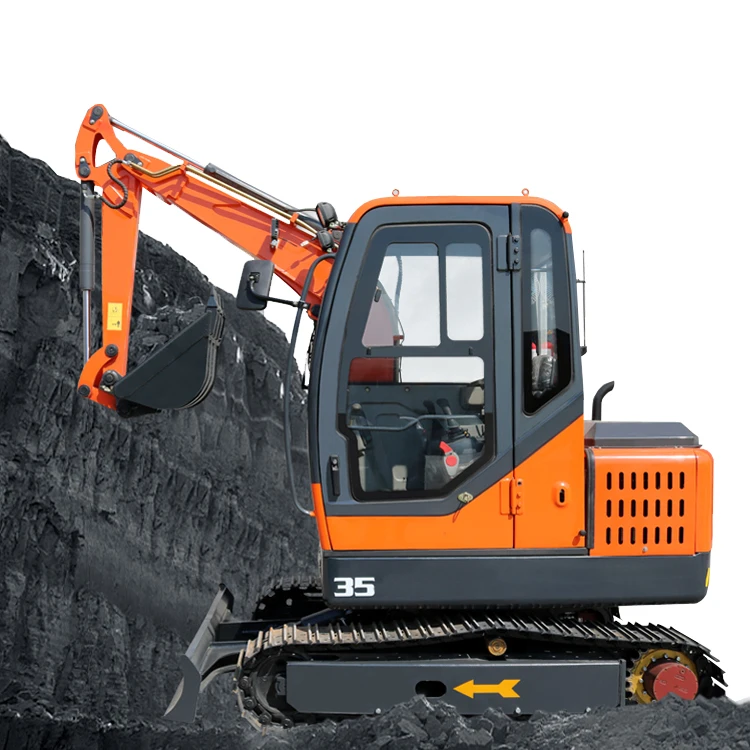

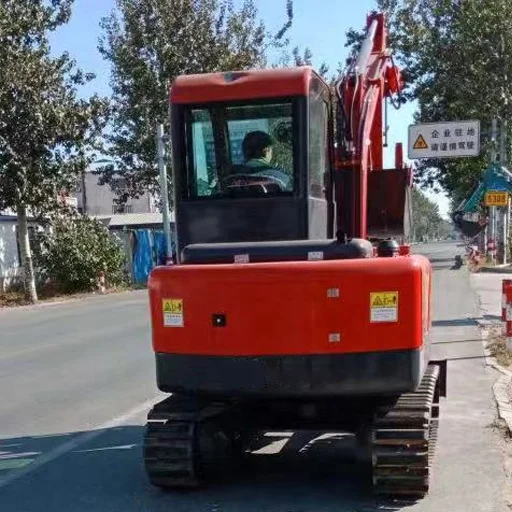

SL35(A5) 2.5 ton mini china walking excavators
- Category: >>>
- Supplier: Dandong Virtue River Technology Co. Ltd.
Share on (1600119719721):
Product Overview
Description
Products Description
This Mini Excavator delivers power and performance in a compact size to help you work in the tightest applications.
Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.
Our Advantages
Characteristics
Our digging machine has the characteristics as following:

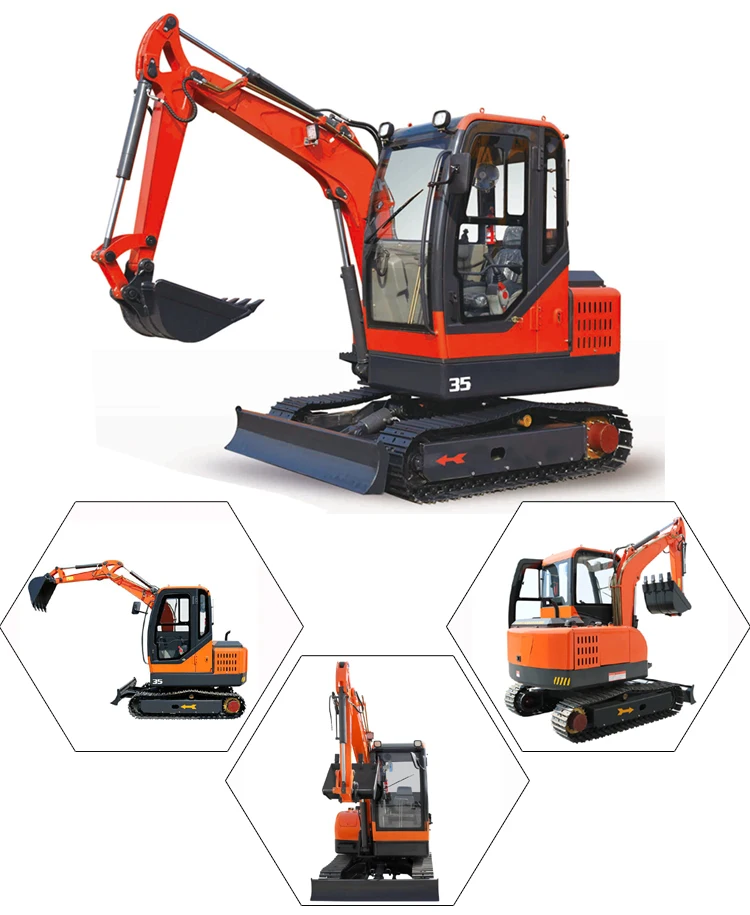

* Model: SL35
* Machine weight: 3500kg, Bucket capacity: 0.23cbm, Max.digging deapth:3000mm
* Optional accessories: breaking hammer, loosener, steel caterpillar, full-closed cab, cool-warm air conditioner, Yammar engine
Advantages:
* Fational appearance, high configuration, superior performance, low fuel consumption, wide operating range.
Multipurpose:
* digging the hole for tree planting of fruit-land nurseries concrete pavement crushing, losing soil of vegetable greenhouse,
campus greening of municipal departments, sand-gravel material mixing, construction work in the narrow place.
* It can reduce maintenance and operating costs liberate the workforce. Improve the mechanization, low investment, high return
* Model: SL35
* Machine weight: 3500kg, Bucket capacity: 0.23cbm, Max.digging deapth:3000mm
* Optional accessories: breaking hammer, loosener, steel caterpillar, full-closed cab, cool-warm air conditioner, Yammar engine
Advantages:
* Fational appearance, high configuration, superior performance, low fuel consumption, wide operating range.
Multipurpose:
* digging the hole for tree planting of fruit-land nurseries concrete pavement crushing, losing soil of vegetable greenhouse,
campus greening of municipal departments, sand-gravel material mixing, construction work in the narrow place.
* It can reduce maintenance and operating costs liberate the workforce. Improve the mechanization, low investment, high return
Product Paramenters
1 | Engine type | Four tank water cooling/Yammar 3TNV88 |
2 | Engine mode | Natural Aspirated |
3 | Power | 36.8kW/2500rpm 27kW/2200rpm |
4 | Torque | 44.4nm/2200rpm |
5 | Bucket capacity | 0.23cbm |
6 | Bucket mode | backhoe |
7 | Caterpillar width | 300mm |
8 | Dipper arm length | 1230mm |
9 | Moving arm length | 2350mm |
10 | Integrated machine weight | 3500kg |
11 | Rotating speed | 10rpm |
12 | Tail turning radius | 650-718mm |
13 | Walking speed | 5.55/3.06km/h |
14 | Clambing ability | 26 degree |
15 | Ground pressure | 1.448kg/cm2 |
16 | Caterpillar length | 2175mm |
17 | Chassis width | 1600mm |
18 | Digging height | 4450mm |
19 | Offloading height | 3050mm |
20 | Digging depth | 3000mm |
21 | Digging distance | 4300mm |
22 | Bulldozer-shovel lifting height | 410mm |
23 | Bulldozer-shovel digging depth | 210mm |
24 | Displacement | 1.662L |
25 | Hydraulic oil tank capacity | 43L |
26 | Fuel oil tank capacity | 50L |
27 | Traction force | 12.5KN |
28 | Bucket digging force | 13.6KN |
29 | Dipper arm digging force | 24KN |
30 | Packing dimension | 4600*1650*2500mm |
Recommend Products
Service
Our service is divided into pre-service, on-purchase service & after-sale service. Pre-service will reply all your query of our machines, such as basic parameter, pictures, video, price...etc. On-purchase service will help you to solve all your operation problem during your operation. After-sale service will help you to order spare parts and other possible query.
We provide spare parts service when you order the machine and online service through phonecall or wechat or whatsapp for quick response.
We provide spare parts service when you order the machine and online service through phonecall or wechat or whatsapp for quick response.
FAQ
Q1: I want to have your product catalog for reference.
Q2: How about the bucket capacity?
A2: It's 0.23 CBM.
Q3: Can I use it at home?
A3: The size of this machine is 4600*1650*2500mm. We also have other models with smaller size. Please contact us for more information.
A1: The catalog is available upon your request. Please contact us online or via email at anytime.
Q2: How about the bucket capacity?
A2: It's 0.23 CBM.
Q3: Can I use it at home?
A3: The size of this machine is 4600*1650*2500mm. We also have other models with smaller size. Please contact us for more information.
