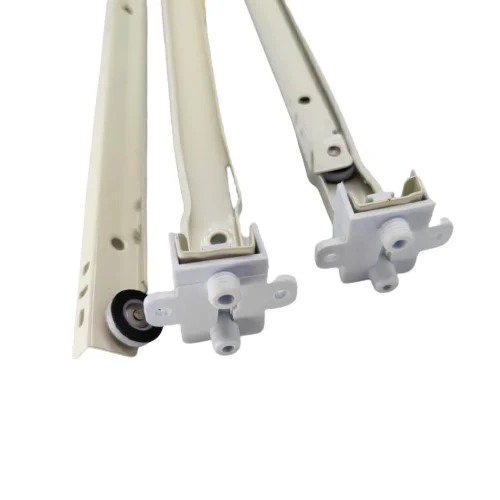

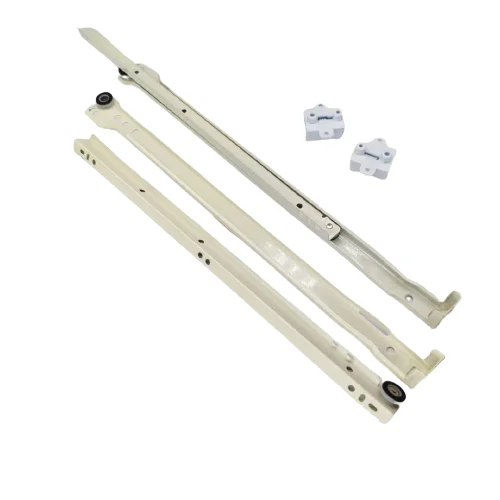

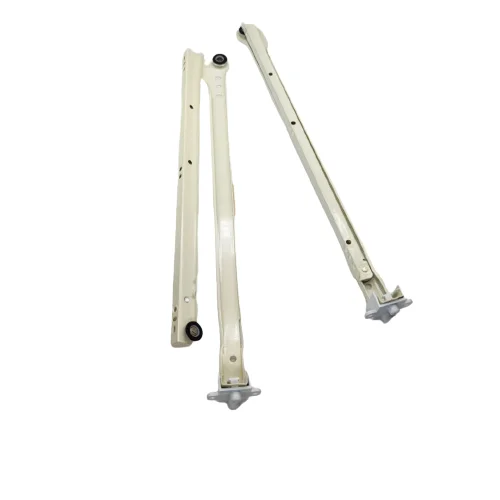

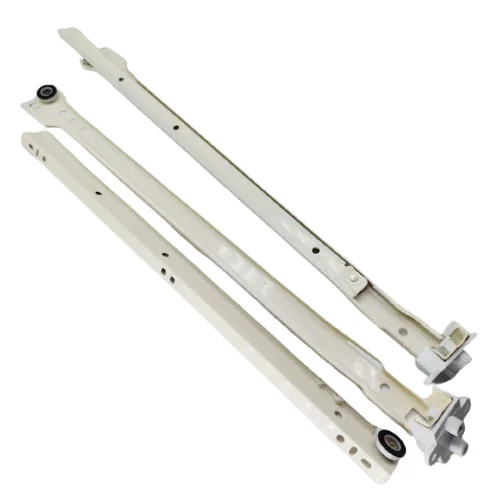

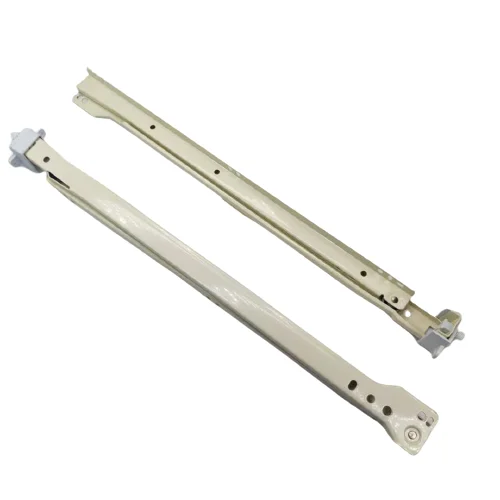

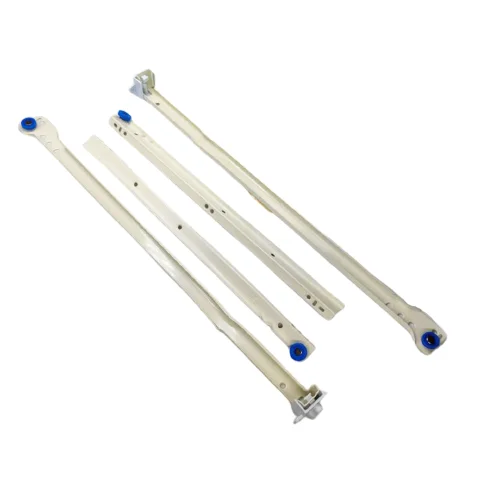

American Style Stainless Steel Telescopic Kitchen Cabinet Metal Box Drawer Slide Rail
- Category: Drawer Slide >>>
- Supplier: Kunshan Ruipuda Metals Co. Ltd.
Share on (1600120522656):
Product Overview
Description
Product Description
Product name | American Style Stainless Steel Telescopic Kitchen Cabinet Metal Box Drawer Slide Rail |
Place of origin | Jiangsu Province, China |
Material | steel/Iron |
Packing | 20sets/ctn |
Thickness | 1.1mm |
Load Capacity | 25kgs |

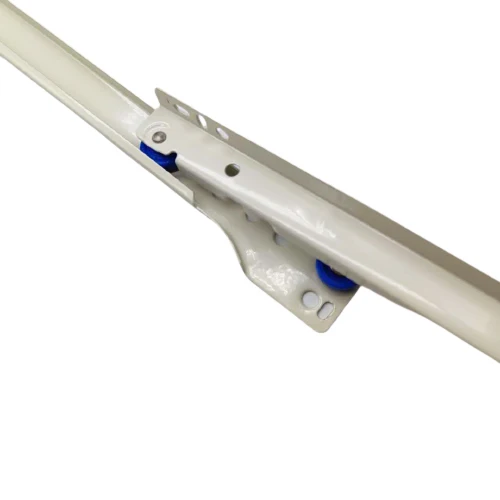

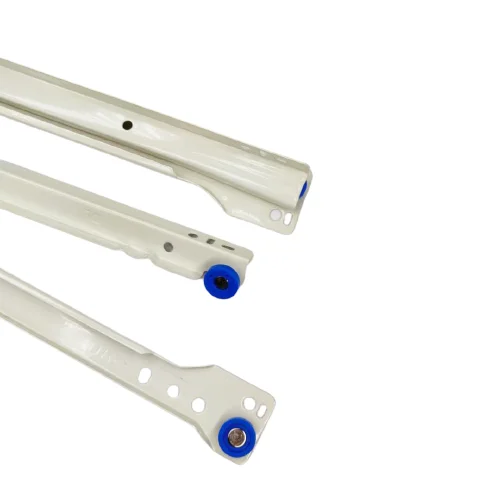

POM-Wheel(Roller) | Available with black ring noise reducer |
Notice | Please lets know the Size, quantity, Material or Grade, surface, If it is special and Non-standard products, please supply the Drawing or Photos or Samples to us |
MODEL | L(mm) | TRAVEL(mm) | MODEL | L(mm) | TRAVEL(mm) |
353*300 | 300 | 215 | 484*400 | 400 | 315 |
380*350 | 350 | 265 | 490*400 | 400 | 315 |
387*350 | 350 | 265 | 497*450 | 450 | 355 |
408*350 | 350 | 265 | 505*450 | 450 | 355 |
415*400 | 400 | 315 | 512*400 | 400 | 315 |
421*400 | 400 | 315 | 512*450 | 450 | 355 |
436*400 | 400 | 315 | 588*550 | 550 | 440 |
477*400 | 400 | 315 |
More Products

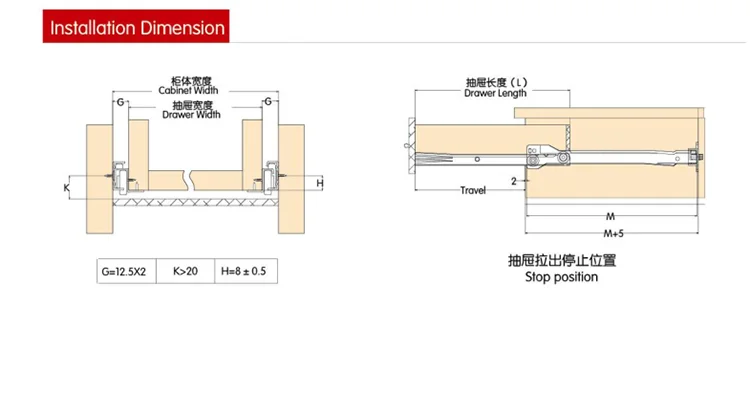

Installation Dimension
Product Installation Instructions
1.This product is suitable for a variety of office equipment and furniture, and the appropriate model can be selected according to the depth of the required cabinet (refer to the product installation dimension drawing)

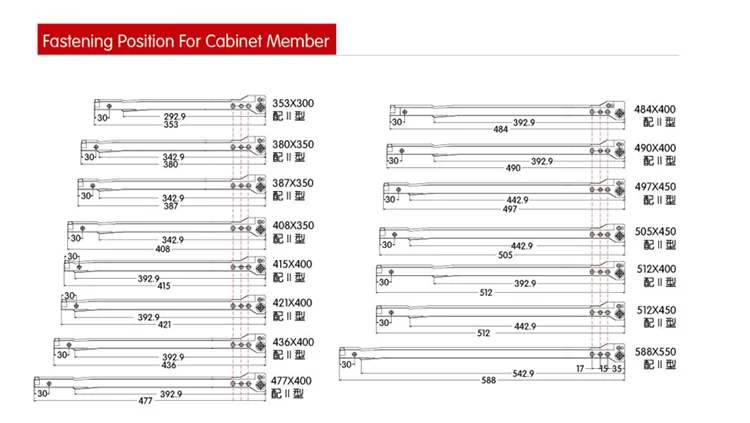

2.Draw lines on the drawer side panel and the table side panel according to the product Member diagram (the two lines can overlap)
3.Select the fixed slide rail in advance, install the screw on the oval hole of the movable slide rail for adjustment and positioning, and then correct whether the drawer is level, whether the slide rail runs smoothly, and whether the left and right slide rails are closed at the same time after closing
4.Insert the screws into the round holes of the slide rail for further tightening, and finally align the fixed slide rail entry opening, slightly lift the drawer to install it

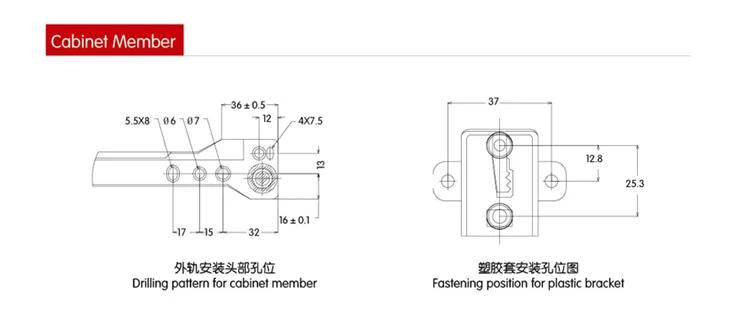

5.The holes at the tail of the left and right fixed slide rails ∅6.0 can be selected according to customer needs
6.Use fixed bracket
