Factory Price 99.95% pure Mo Molybdenum foil Molybdenum sheet Molybdenum plate per kg

Product Overview

Description

Factory Price 99.95% pure Mo Molybdenum foil Molybdenum sheet Molybdenum plate per kg



Product information

Item	Factory Price Molybdenum Sheet Plate in Stock
Standard	ASTM B386, GB/T3876
Grade	Mo1, 361
Material	99.95% min. Mo
Density	10.2g/cm3
Melting Point	2610 Centigrade
Using temperature	1400 Centigrade max.
Size	Thick 0.025mm min. x W600mm max. x L3000mm max.
Processing	Cold rolled, Stress relief annealing, Hot rolled
Colour	Black or bright
Package	Standard wooden case as your request



Feature

1. Low thermal expansivity

2. High using temperature

3. Good corrosion resistence

4. High strength

5. Low electrical resistivity



Application

1.Used for producing molybdenum targets, boats, discs, etc.

2. Used as protection cover in glass coating industry

3. Used for the electronics industries, such as intergrated circuit, information storage, LCD, laser storage, electronic control device, etc.

4. Mainly used as heat shield and reflection shield in high temperature furnace industry, such as vacuum furnace, sapphire growing furnace, etc.



 Chemical requirements

Element	Ni	Mg	Fe	Pb	Al	Bi	Si	Cd	Ca	P
Concentration(%)	0.003	0.002	0.005	0.0001	0.002	0.0001	0.002	0.0001	0.002	0.001
Element	C	O	N	Sb	Sn	Mo
Concentration(%)	0.01	0.003	0.003	0.0005	0.0001	balance



Surface:shiny, acid pickling, satin, or as-rolled condition; dependent upon thickness and width parameters.

Normal condition: cold-rolled bright, acid pickling, polished.

Normal specification we can provide:

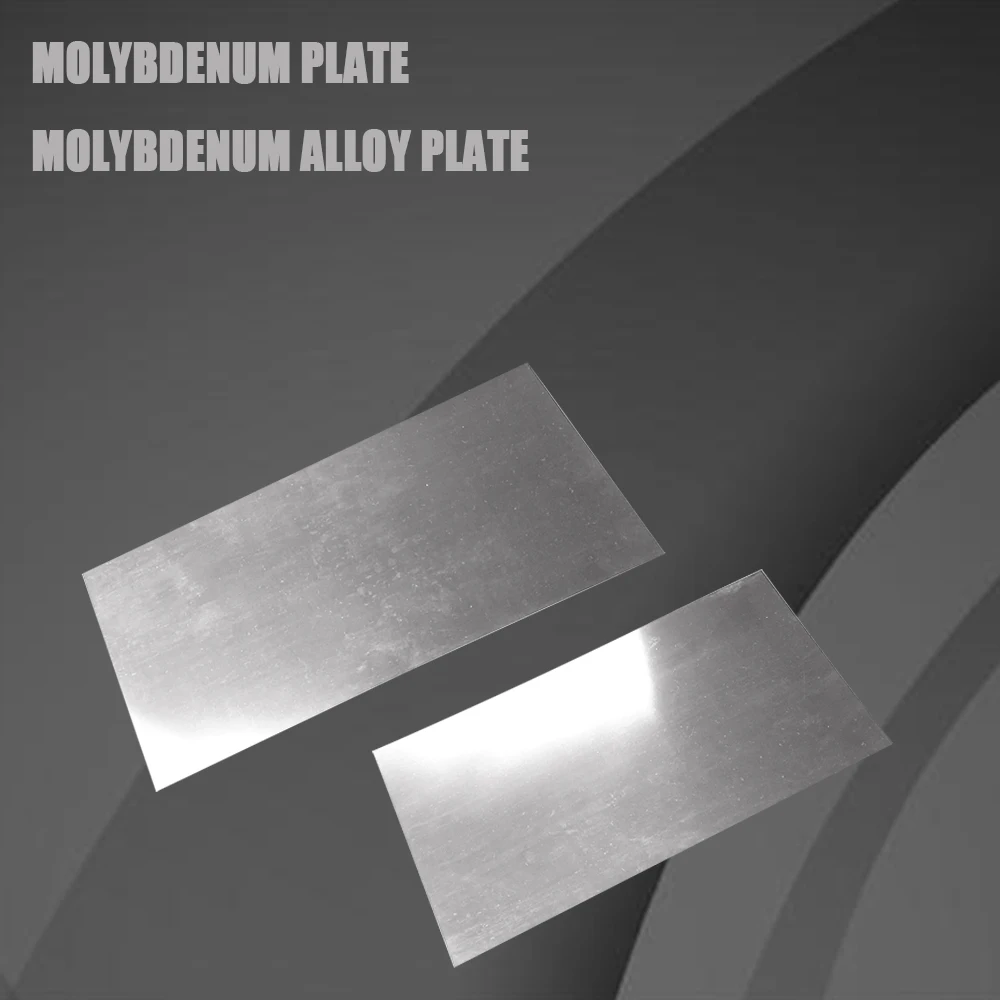

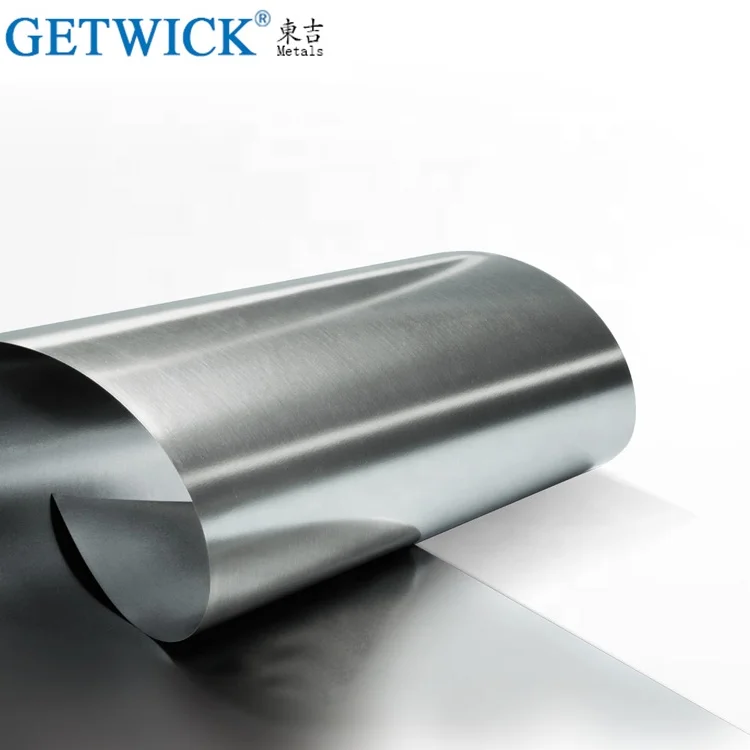

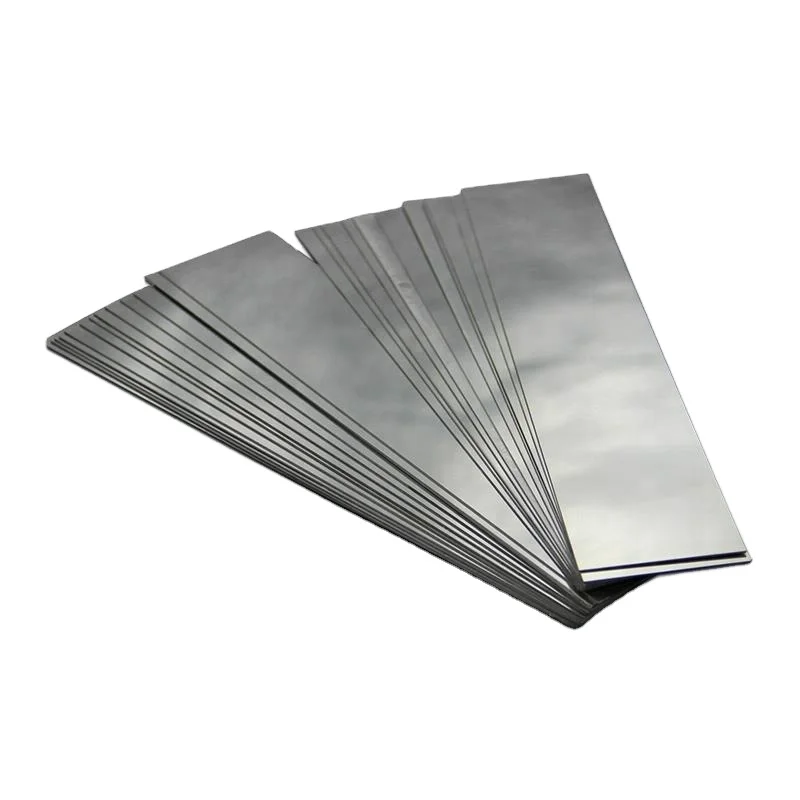

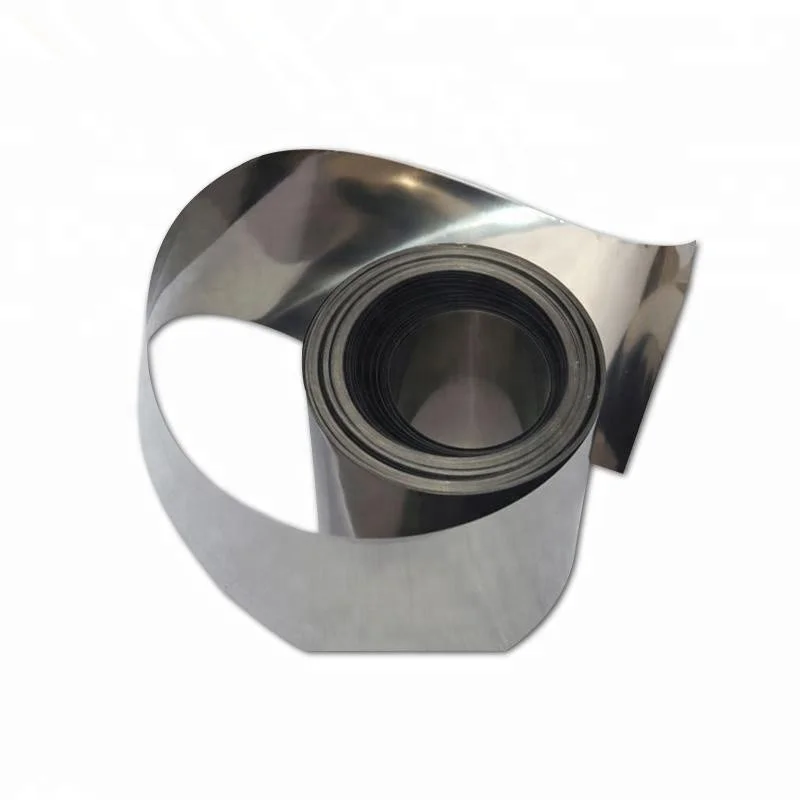

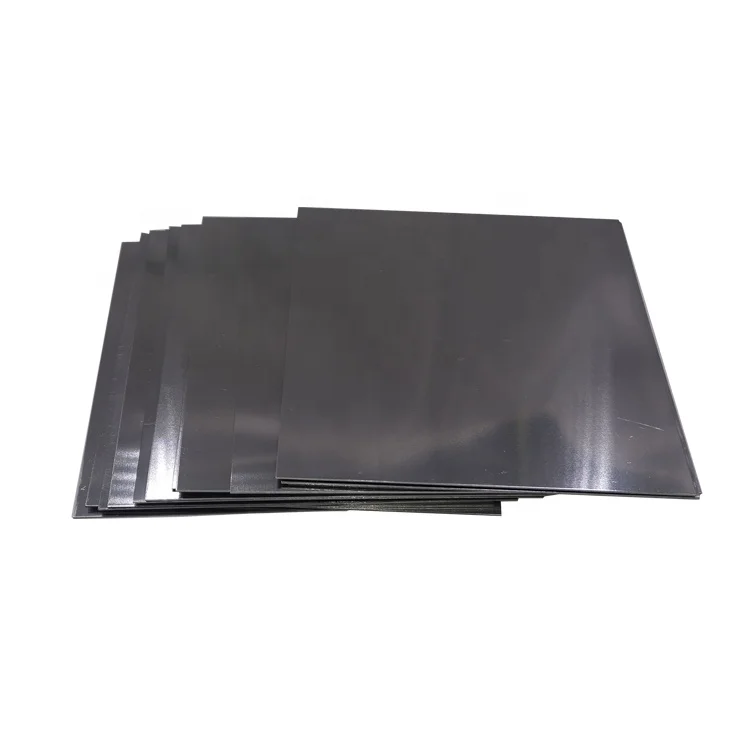

Molybdenum Plate/Sheet /Foil/Strip
Thickness(min) mm	Width(max) mm	Length(max) mm
0.025~0.09	150	1000
0.1	350	1500
0.12	400	1500
0.15	420	1500
0.2	450	2000
0.3~1	550	2500
1.5~5	500	2000
5~25	500	1500
