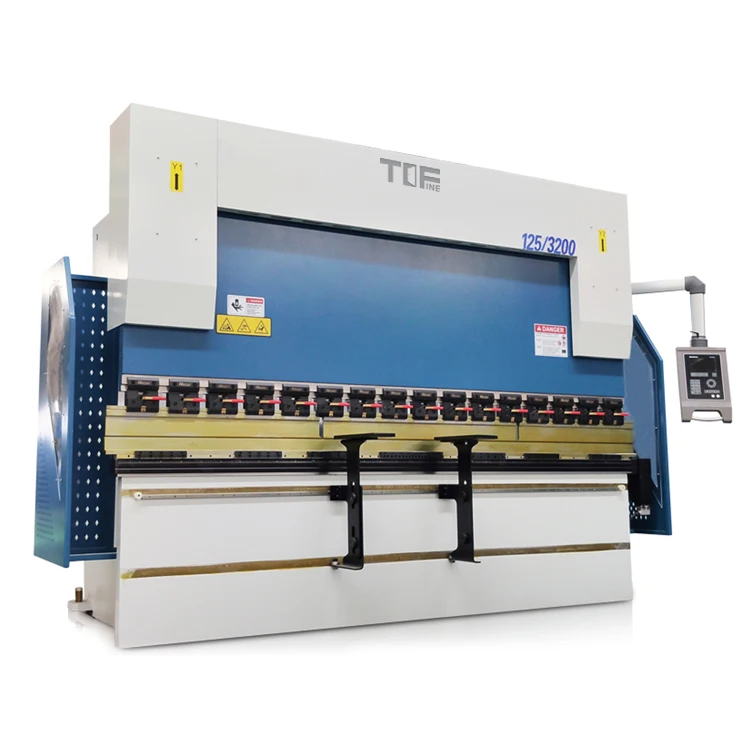

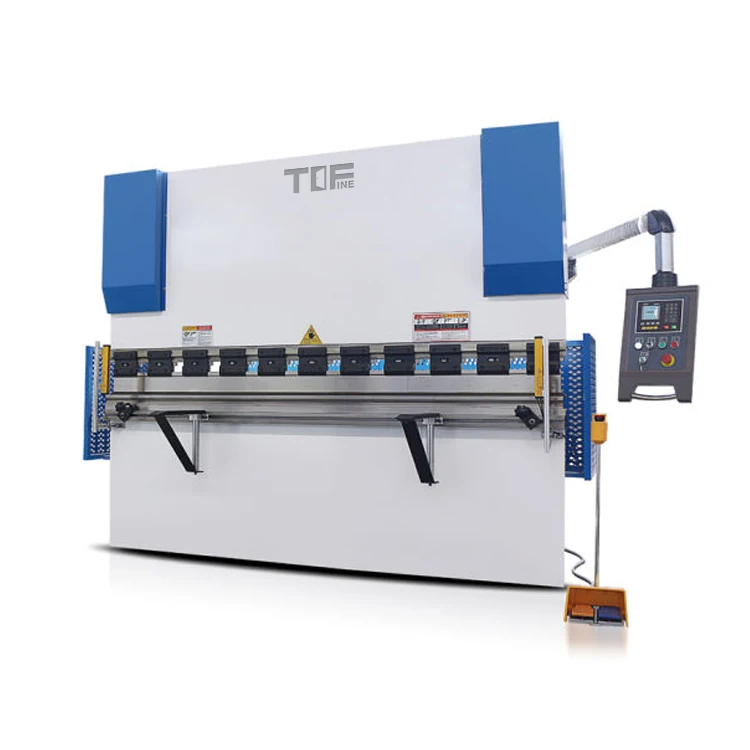

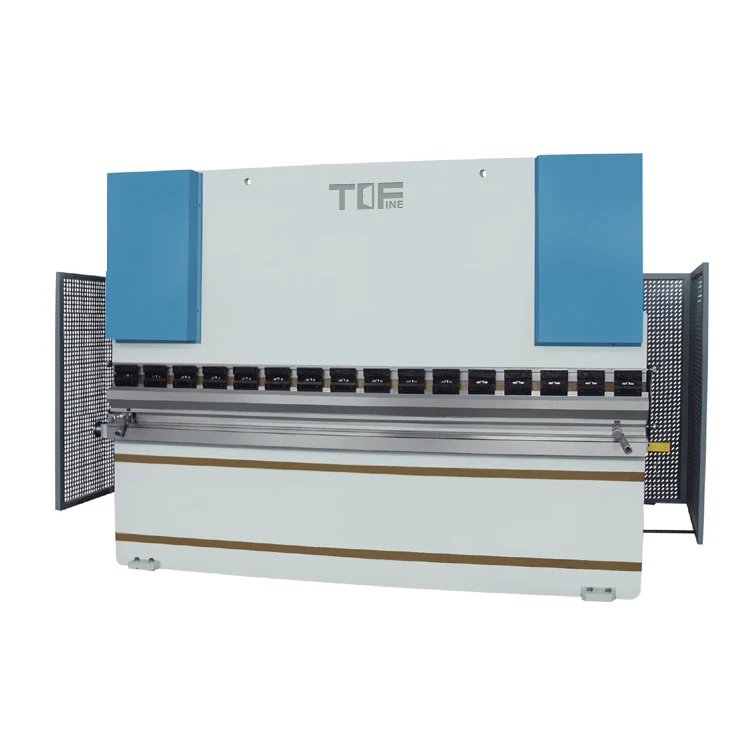

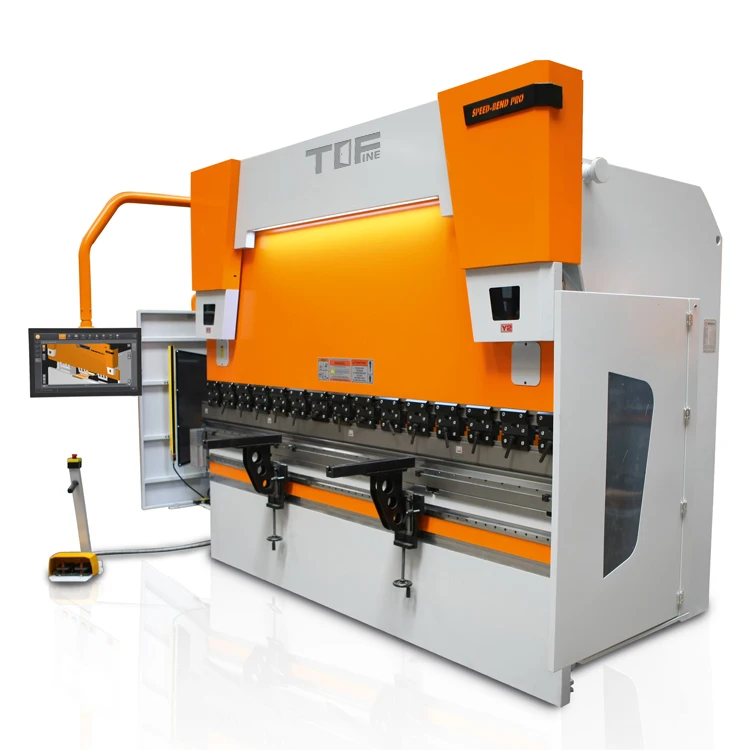

Electro Hydraulic CNC Press Brake Machine/ Sheet Metal Folder Press Brake
Electro-Hydraulic CNC Press Brake Machine/ Sheet Metal Folder Press Brake
Electro-Hydraulic CNC Press Brake Machine/ Sheet Metal Folder Press Brake
Electro-Hydraulic CNC Press Brake Machine/ Sheet Metal Folder Press Brake
Electro-Hydraulic CNC Press Brake Machine/ Sheet Metal Folder Press Brake
Electro-Hydraulic CNC Press Brake Machine/ Sheet Metal Folder Press Brake
Electro-Hydraulic CNC Press Brake Machine/ Sheet Metal Folder Press Brake

Electro Hydraulic CNC Press Brake Machine/ Sheet Metal Folder Press Brake

Share on (1600120737569):


Price:$5,980.00

Quantity:


Product Overview

Description



Recommend Products




Products Description


Hydraulic press brake
Streamllined Design, advancecl configuration, high precision and high efficiency CNC hydraulic press brake.
Electro-Iydraulic servo systern, closed loop control block synclronization.Stand configuration with 3+1 axes Y1 (upward-downward of left cylinder), Y2 (upward-downward of right cylinder), X (fonward-backwi3rci of backgauge), V (hydraulic crowning). Backguage Optional 4+1 axes,6+1 axes or more axes according to user needs.Double crowning mechanism
-Upper mechanical quick fastener has both quick fastening and crowning function.Standard straight line guide rail type removable backguageA set of standard upper and lower mold(die) with machine.
Ask us freely for more infomation.


Item
Nominal Pressure
Table length
Distance between columns
Throat Depth
slide stroke
Maximum open height
distance of back gauge
Appearance size
(KN)
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
L*W*H (mm)
35/1600
350
1600
1280
180
90
300
0-400
1600*1300*2000
40/2500
400
2500
2000
200
120
360
0-400
2500*1350*2000
63/2500
630
2500
2000
250
120
360
0-600
2500*1480*2050
63/3200
630
3200
2600
280
120
360
0-600
3200*1480*2050
80/2500
800
2500
2000
280
120
370
0-600
2500*1510*2100
80/3200
800
3200
2600
280
120
370
0-600
3200*1550*2100
100/2500
1000
2500
2000
320
120
380
0-600
2500*1560*2200
100/3200
1000
3200
2600
320
120
380
0-600
3200*1560*2260
100/4000
1000
4000
3200
320
120
380
0-600
4000*1560*2260
125/2500
1250
2500
2000
320
120
380
0-600
2500*1560*2200
125/3200
1250
3200
2600
320
120
380
0-600
3200*1560*2260
125/4000
1250
4000
3200
320
120
380
0-600
4000*1560*2260
160/2500
1600
2500
2000
330
200
460
0-600
2500*1700*2560
160/3200
1600
3200
2600
330
200
460
0-600
3200*1700*2560
160/4000
1600
4000
3200
330
200
460
0-600
4000*1700*2560
160/6000
1600
6000
4800
330
200
460
0-600
6000*1700*2567
200/2500
2000
2500
2000
350
200
480
0-600
2500*1760*2570
200/3200
2000
3200
2600
350
200
480
0-600
3200*1760*2570
200/4000
2000
4000
3200
350
200
480
0-600
4000*1760*2800
200/6000
2000
6000
4800
350
200
480
0-600
6000*1950*2985
250/3200
2500
3200
2600
400
250
540
0-600
3200*1900*3000
250/4000
2500
4000
3200
400
250
540
0-600
4000*1900*3000
250/6000
2500
6000
4800
400
250
540
0-600
6000*1950*3140
300/3200
3000
3200
2600
400
250
560
0-600
3200*1900*3200
300/4000
3000
4000
3200
400
250
560
0-600
4000*1950*3200
300/6000
3000
6000
4800
400
250
560
0-600
6000*1950*3250
400/3200
4000
3200
2600
400
250
560
0-600
3200*1950*3250
400/4000
4000
4000
3200
400
250
560
0-600
4000*1950*3450
400/6000
4000
6000
4800
400
250
560
0-600
6000*1950*3450
500/4000
5000
4000
3200
400
320
580
0-800
4000*2050*3620
500/6000
5000
6000
4800
400
320
580
0-800
6000*2150*3750


Coupons


Inquiry Now To Get Discount And Counpons




Details Images

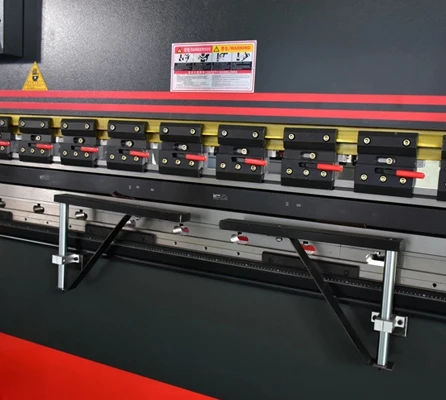

Quick folding system with support bracket

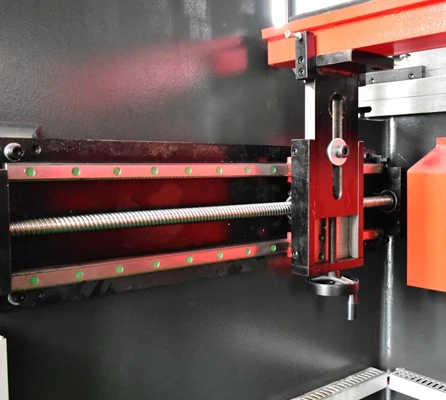

adjustable Back File Material Device

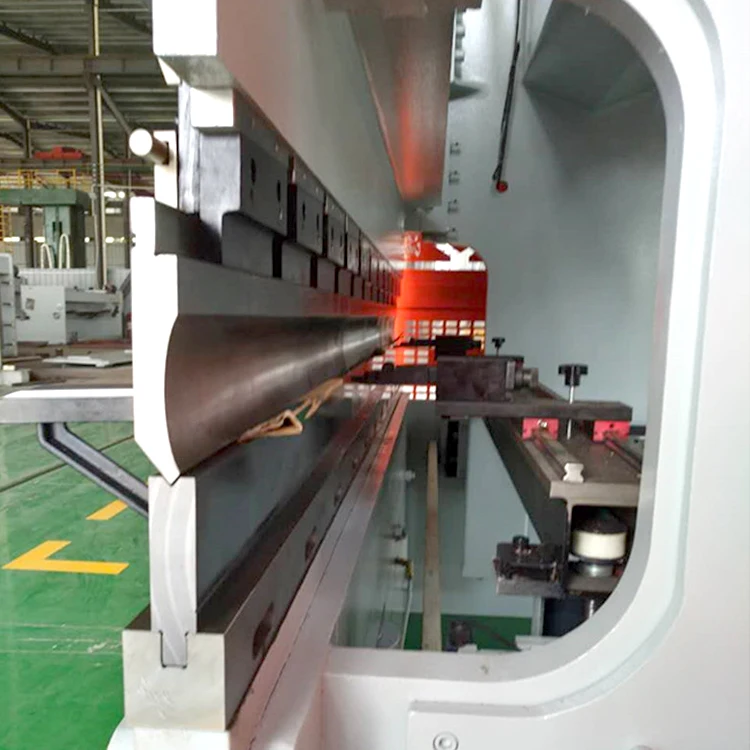

High Precision CNC Die


Fast Speed Clamping Device

Back File Material Device




High Efficiency High Quality Motor


Oil Pump


Master Electrical Box

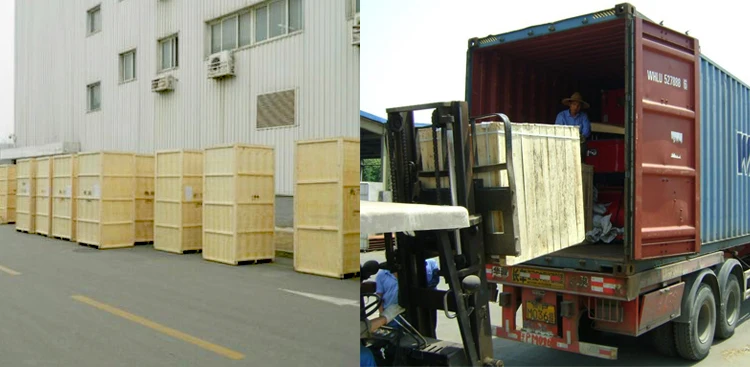

Packaging & Shipping




Our Products Can Be Packed In Non-Fumigated Wooden Cases With Pallets .
Keep Safe In Transit.Contact Us For More Details


Company Profile




Zhejiang Tofine mainly supply a variety of specifications of mechanical equipment, there are sheet flattening machine, pipe pulling machine, shearing Machine, bending machine, folding machine, embossing machine, punching machine, combination punchingmachine, gluing machine, surface spraying machine and so on.Equipment workshop has complete departments, machining, hot working,machine shop, assembly and peripheral sheet metal, casting, heat treatment, die cutter. We can provide one-stop service from rawmaterial to finished products, we have clients from southeast Asia, North and South America, Australia, Western Europe, totally more than 40 countries and regions.
Contact Us Now To Start Coopration




Why Choose Us


Team
we team always can also provide overseas installation, training, maintenance, commissioning and other services for each clients,
to ensure that customers can correctly operate TOF products, and enjoy high performance and the best service in operation.
Technology
we committed to the R&D and manufacture of professional equipment. With our product development capabilities, the leading level in
the industry, scheme ability, constantly updated, we are widely accept by clients from all over the world.
Product
We have been committed to the production of various specifications of metal processing machinery and equipment, such as bending machine
shearing machine, hydraulic press
punching machines, turret punch press, laser cutting machine, And professional door production line etc




FAQ


Q:How long is the warranty of the product?

A:Product warranty: 18-24 months.During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged,those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.

> We could provide technical guiding, production, installation, debugging and maintenance service to all customers. After the end of the warranty period, it's not free.

> We will provide the technical support for the whole life of the equipment.

Q. What are your terms of packing?

A: Packing: export worthy package suitable for container transportation.

PlyWooden case, iron pallet, plastic film ect.

Q. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.
