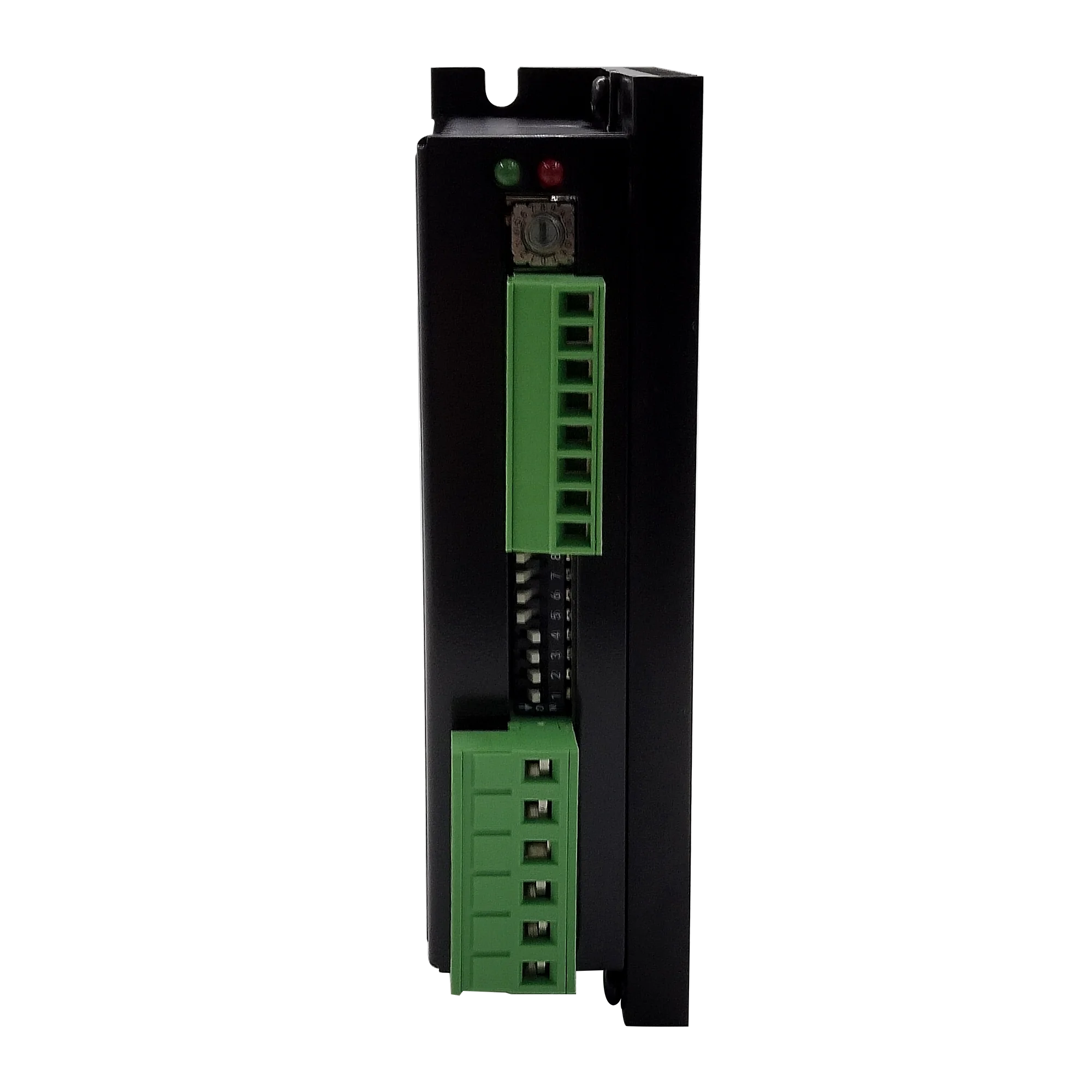

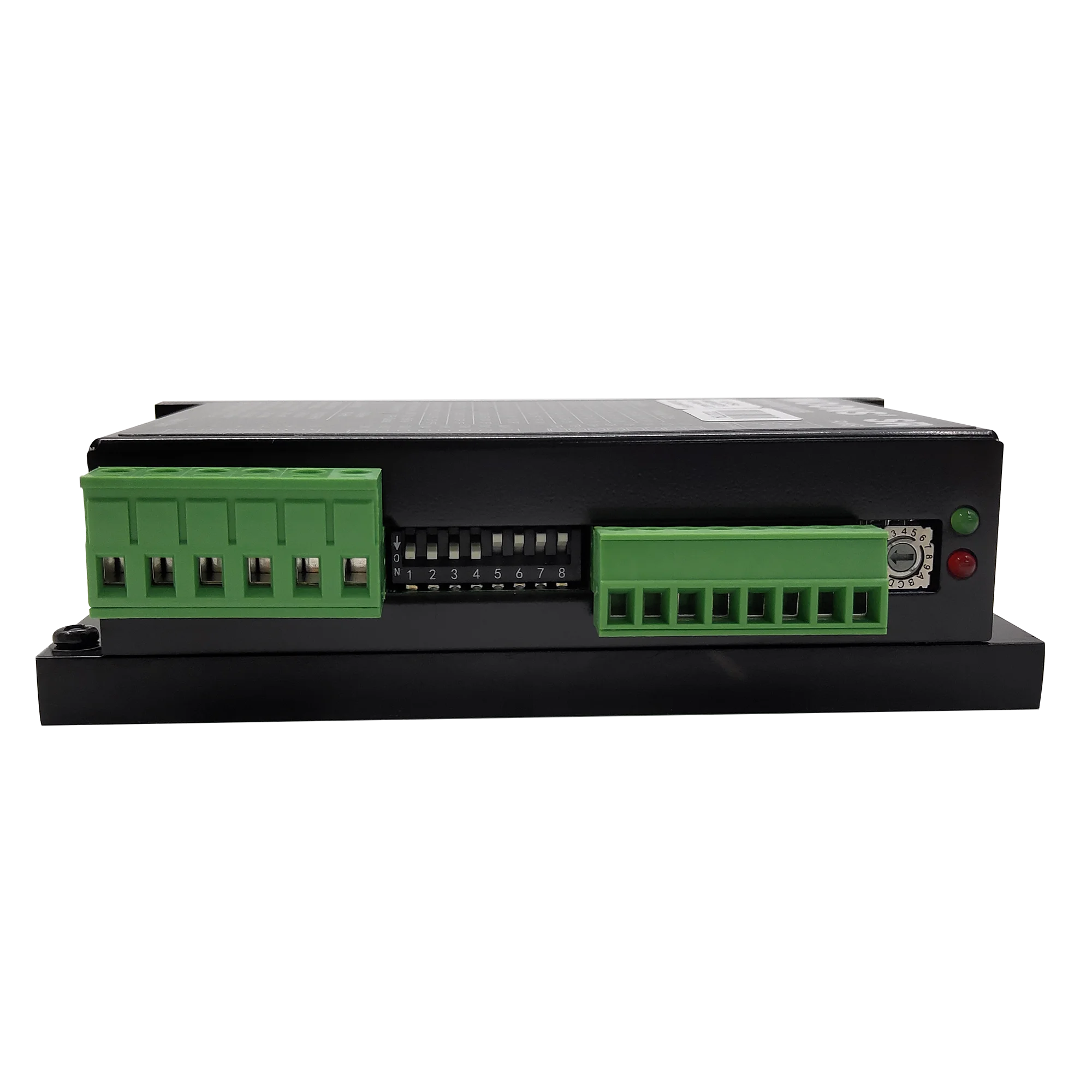

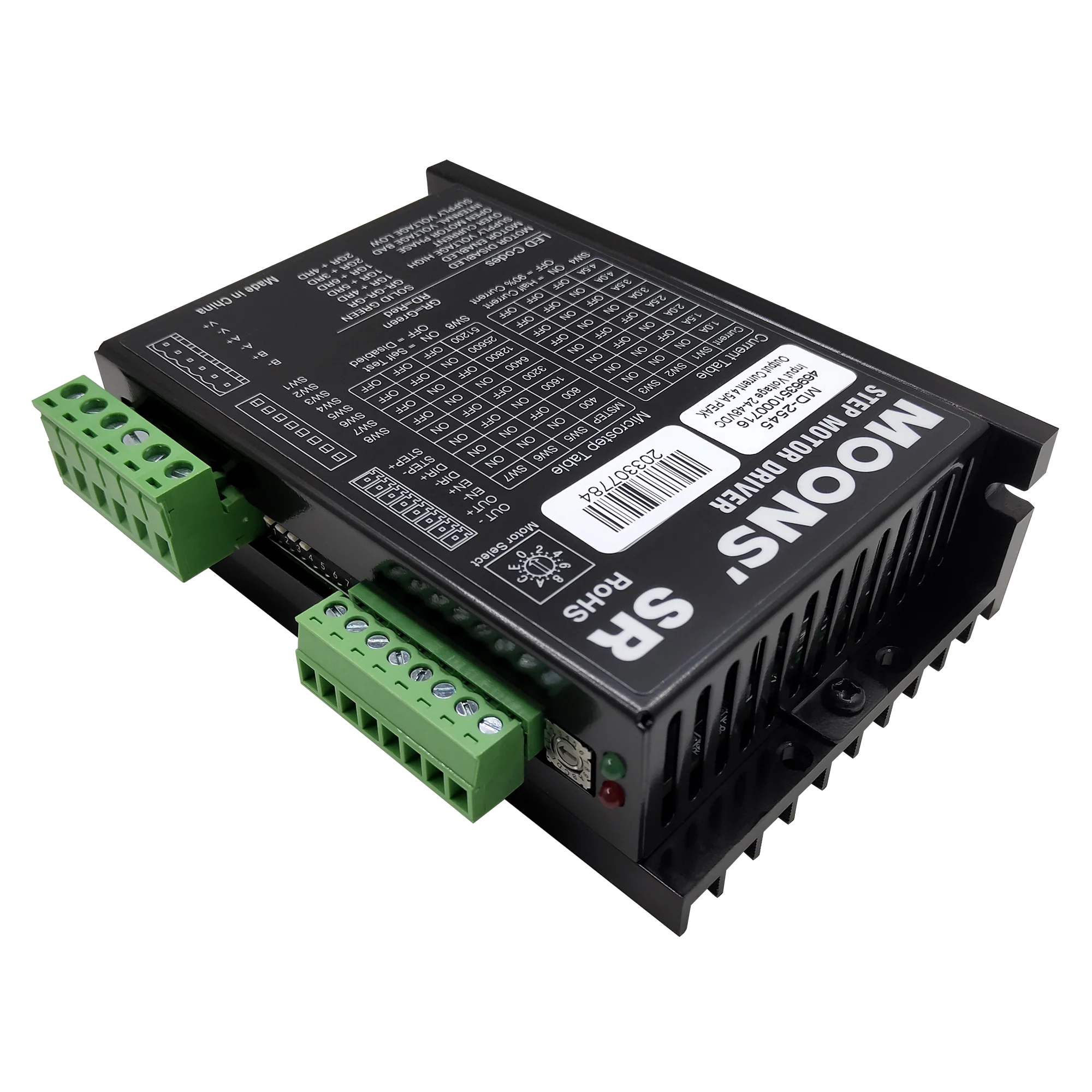

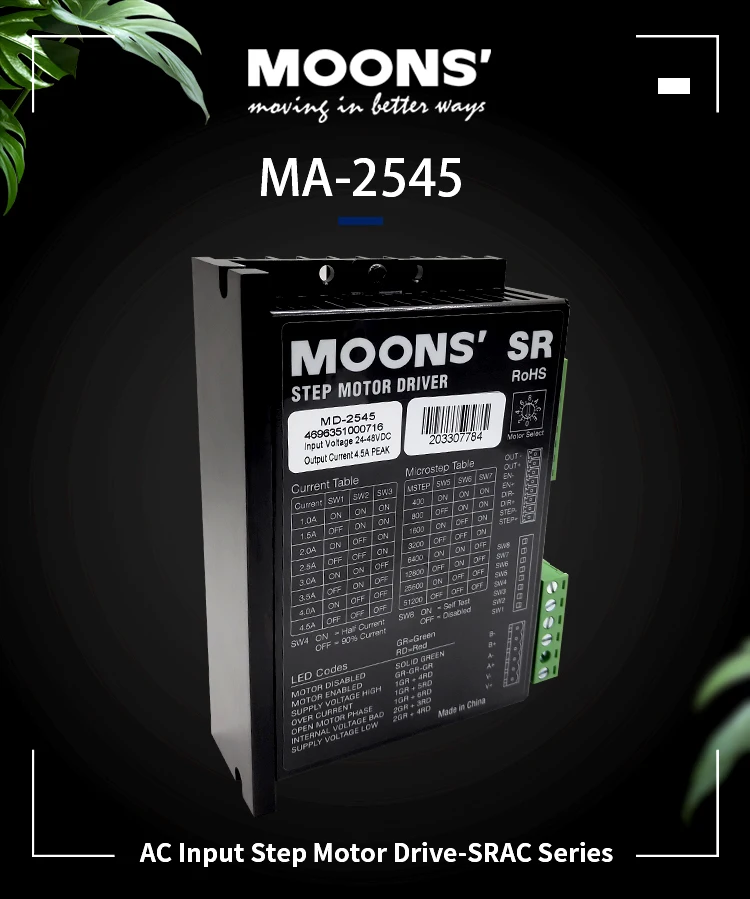

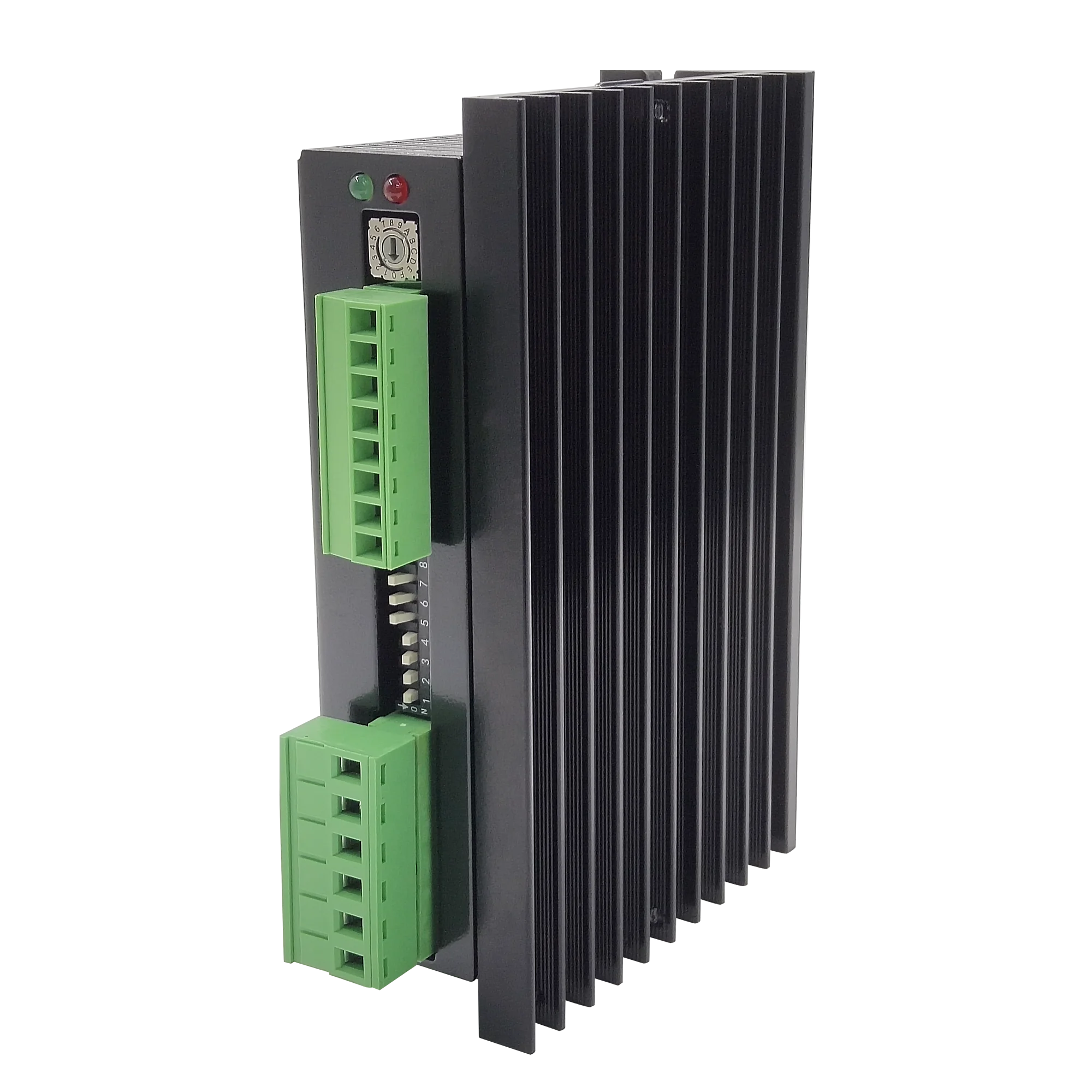

MOONS CNC Stepper Motor Driver 1.0-4.5A 24-45VDC 1/256 Micro-Step Resolutions for Nema 17 and 23 Stepper Motor
























BrandMOONS
ModelMD2545

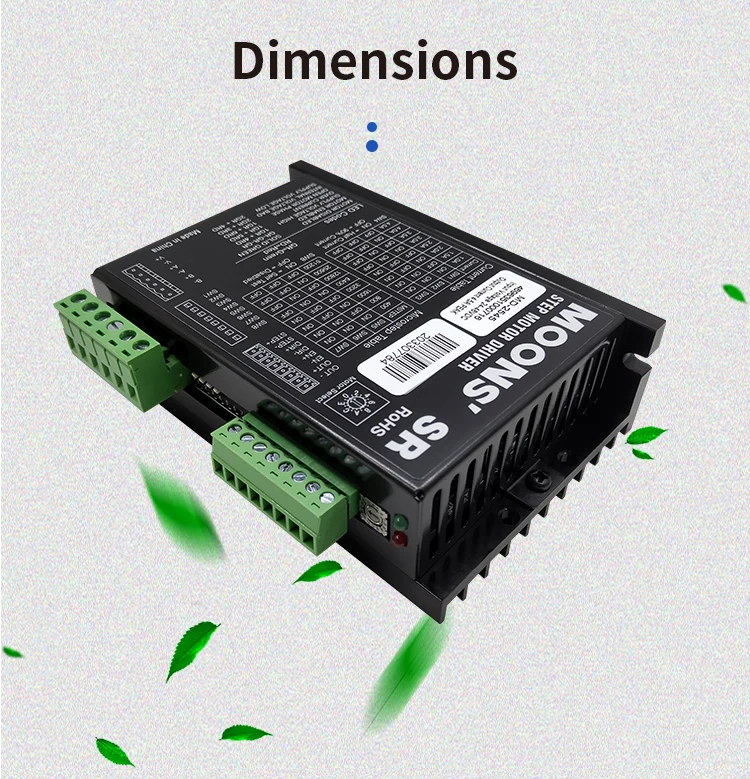

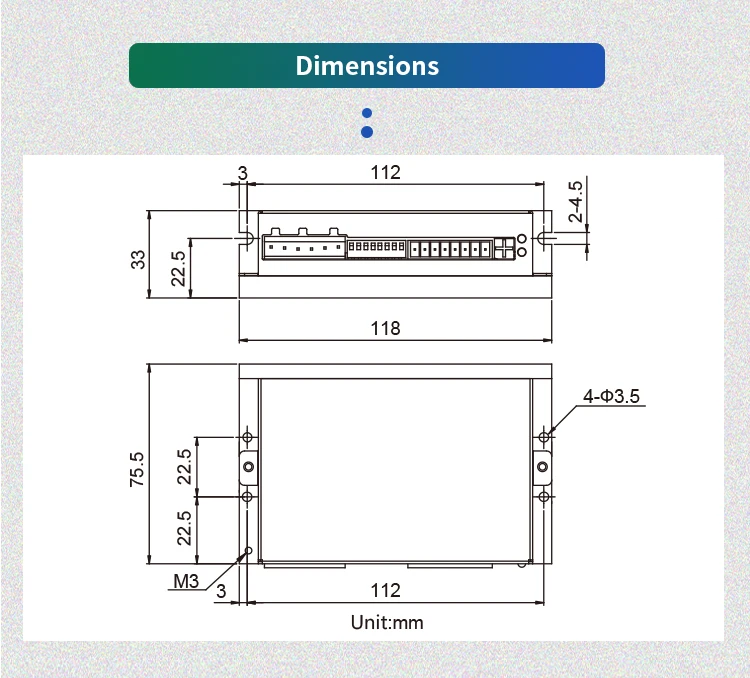

Driver Size118mm*75.5mm*33mm
CertificationCE  RoHS

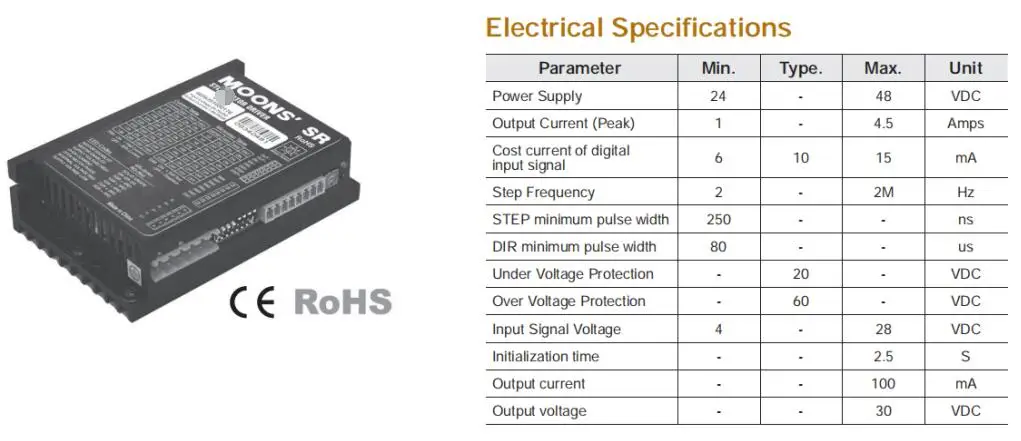

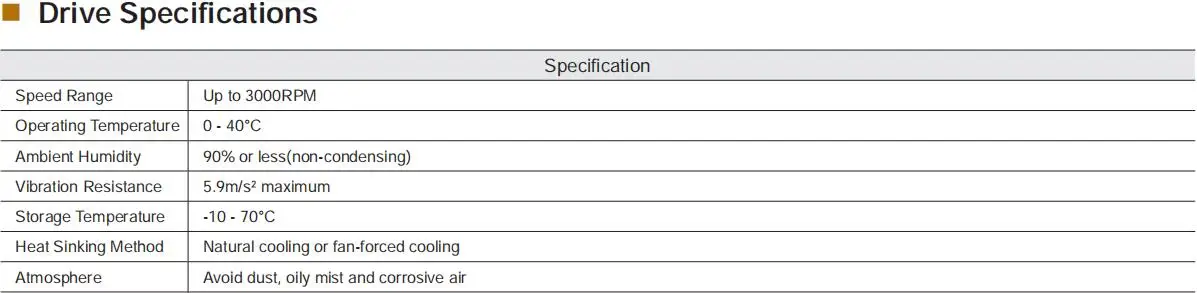

 Drive Specifications






1.  Input Voltage: 24-48VDC


2.  Output Current: 4.5A(Peak)

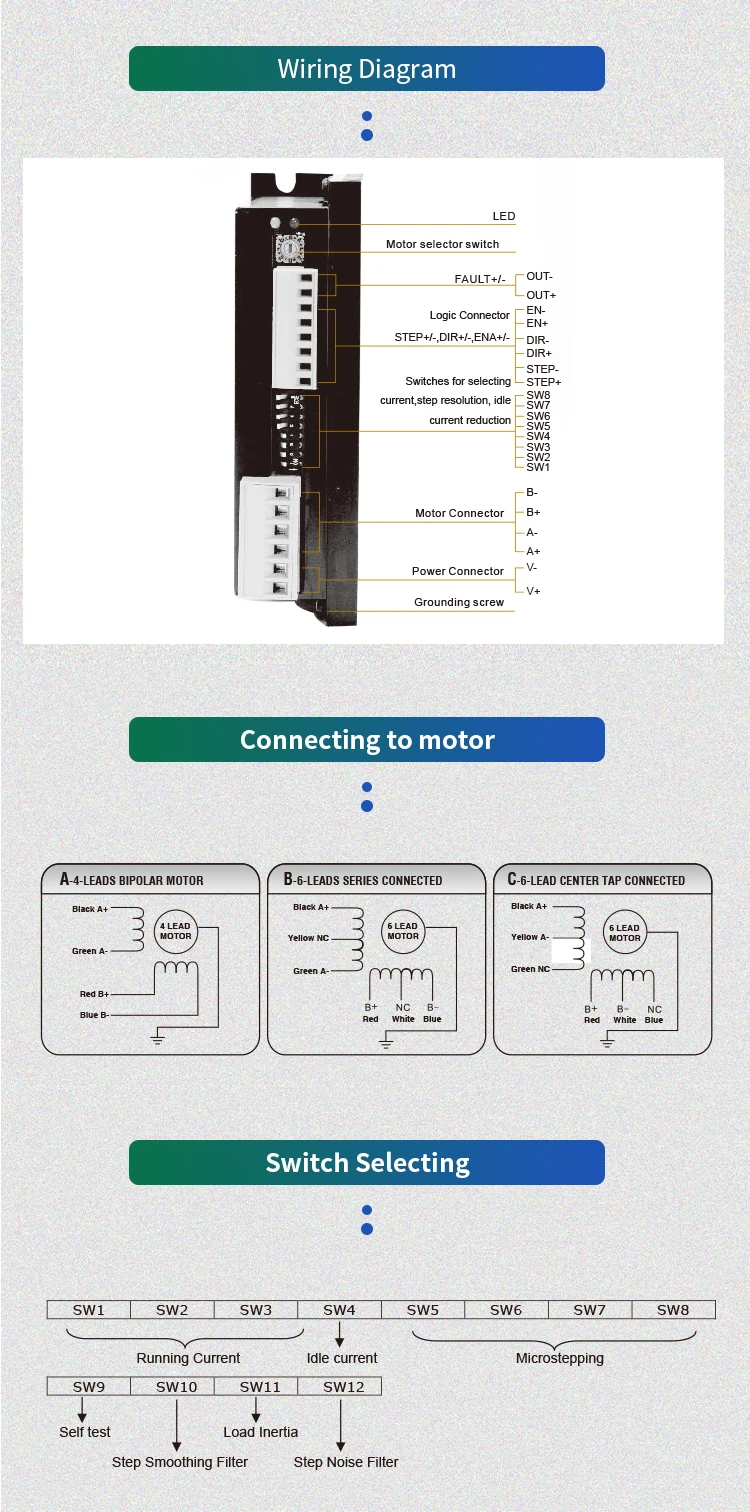

3. 3 Digital signal input, step/direction/enable


 Optically isolated 5-24VDC

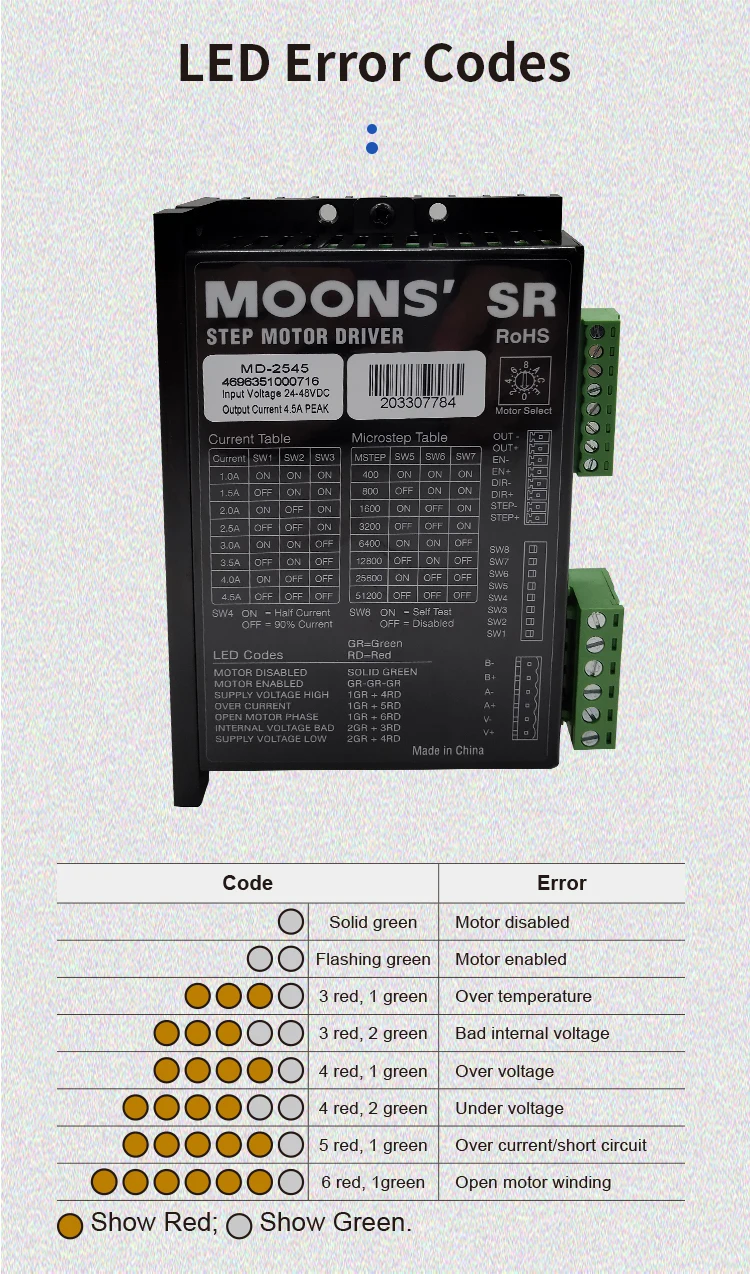

4.  1 Digital output: Fault Output

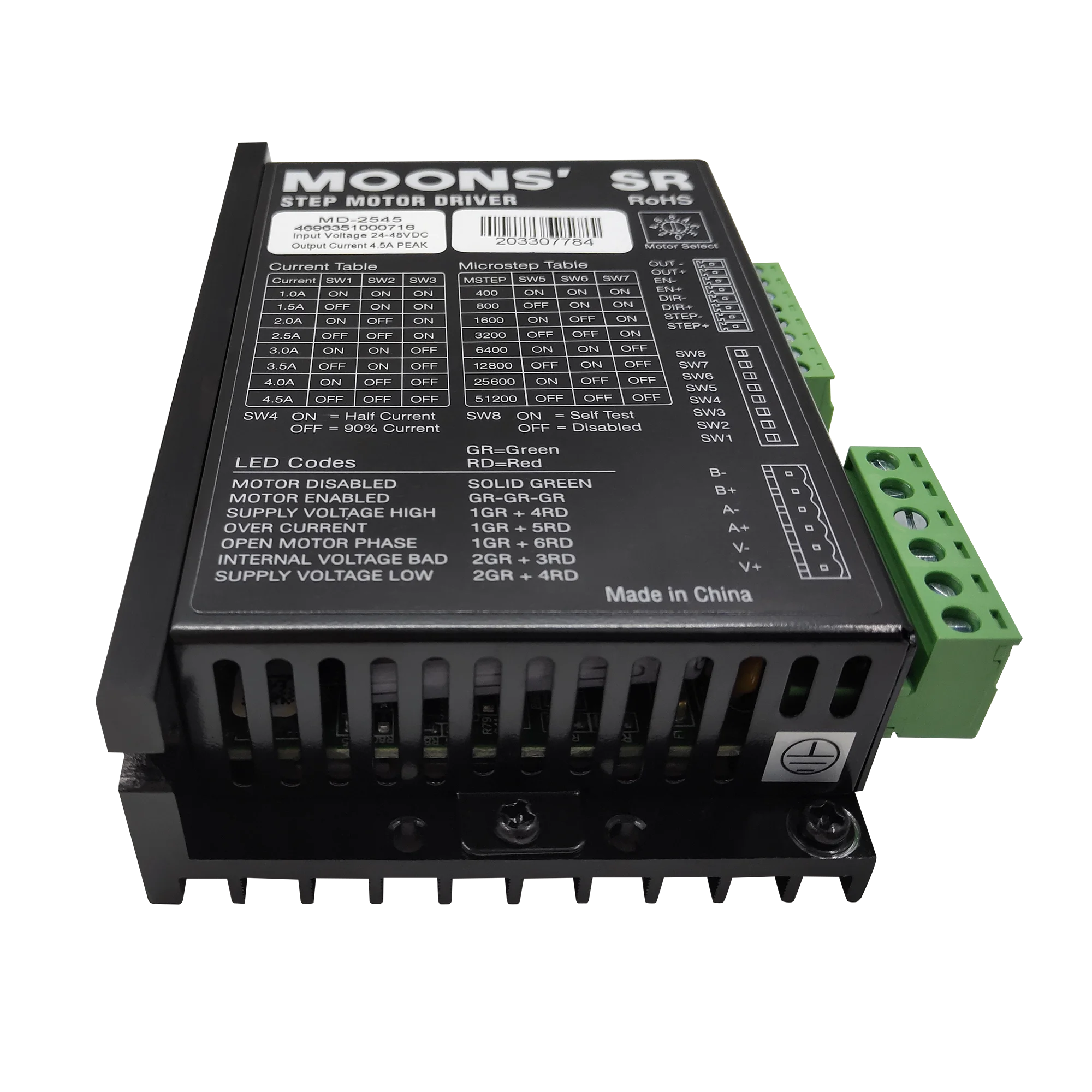

5.  8 different resolutions selectable via switches SW5-


SW7(step/rev):


400, 800, 1600, 3200, 6400, 12800, 25600, 51200


6.  8 different current levels selectable via switches


SW1-SW3:


1.0A, 1.5A, 2.0A, 2.5A, 3.0A, 3.5A, 4.0A, 4.5A

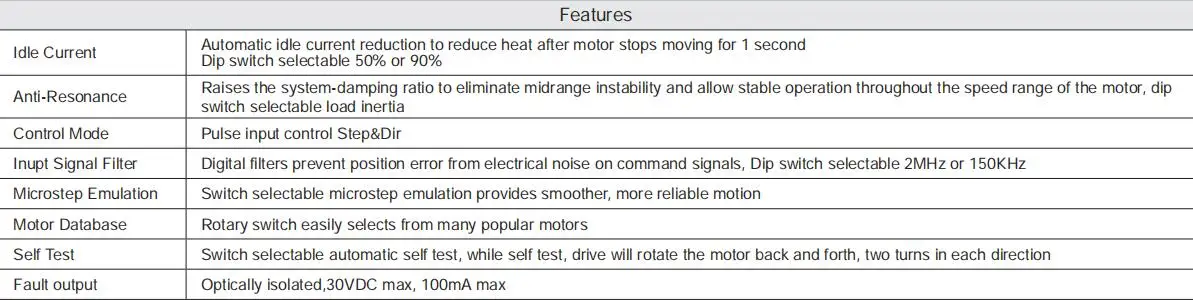

7.  Rotary switch selects motor and load intertia for


optimized current control


8.  Idel Curent Reduction:50% or 90%, selectable via


Dip switch SW4


9.  Self Test, selectable via Dip switch SW8


10.  Protection: over voltage,under voltage, over current,open motor winding













Production Detail































Certifications







Packaging & Shipping


PACKAGING.pngshipping .jpg


Company Informtion


company information.jpg





FAQ


1.Factory or Agent?
We are Agent, but have professional R&D team as introduced in company information.





2. How about the delivery?
- Sample: 1-3 days.
- Bulk order: 5-20 days.





3. What is your after-sales services?
1. Free maintenance within 12 months guarantee, lifetime consultant.
2. Professional solutions in installation and maintence.





4. Why choose us?
1. Accept customize & 24/7 after-sale services.
2. From mold customization to material processing and welding, from fine components to finished assembly,strict aging, finished product inspection.





5. Do you get the relevant certification?
All products are made according to ISO9001, CE &RoHS requirements.
